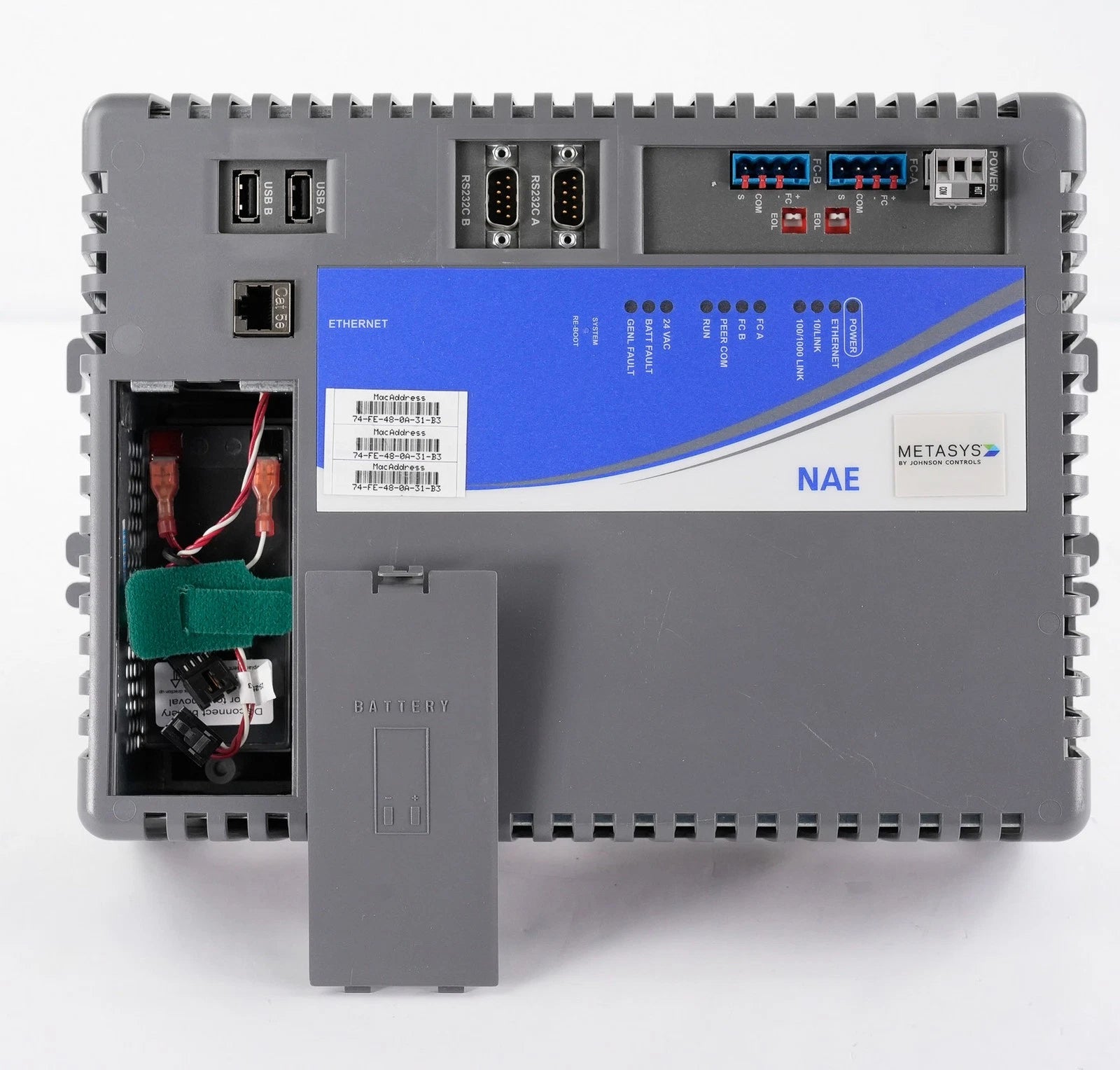

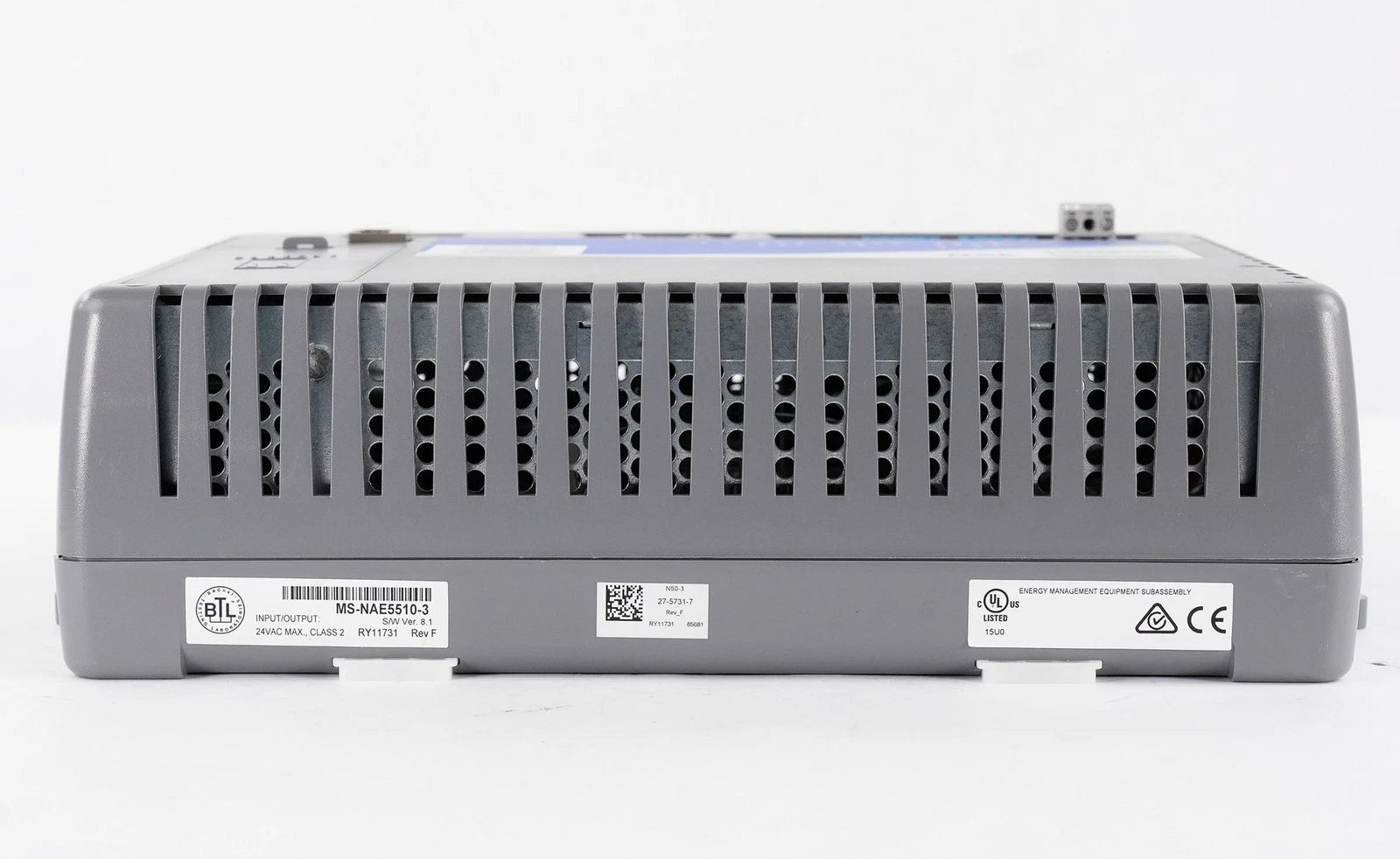

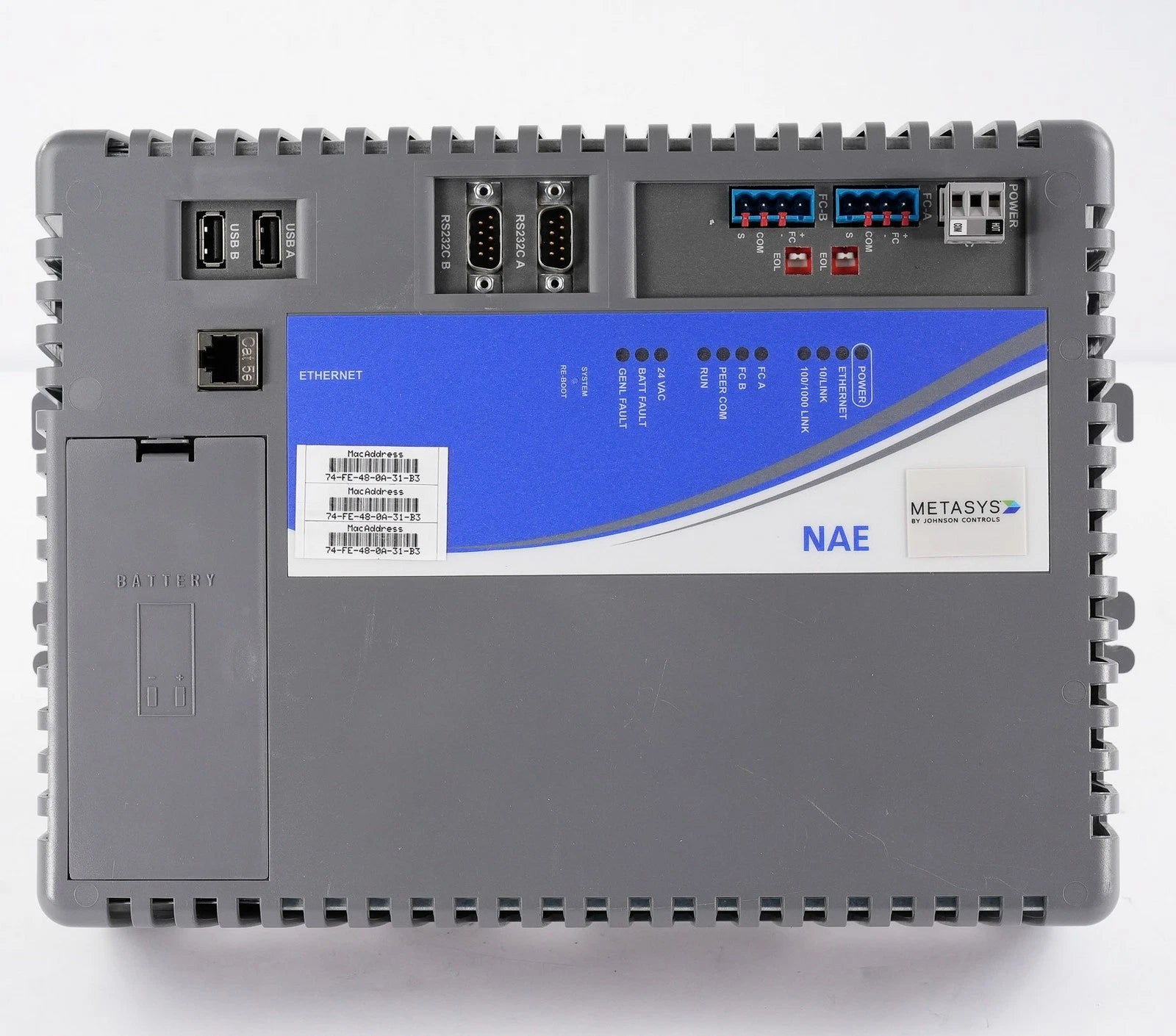

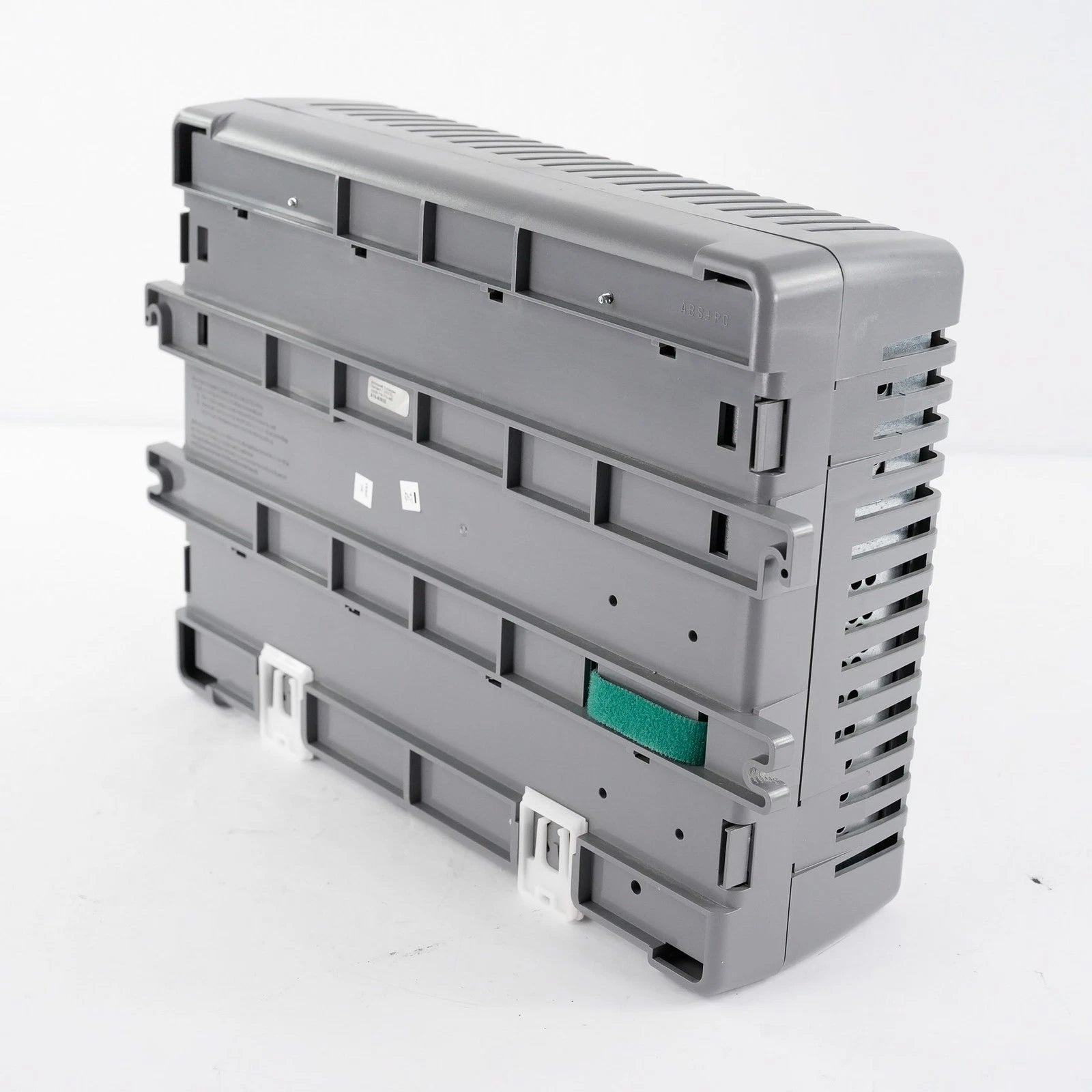

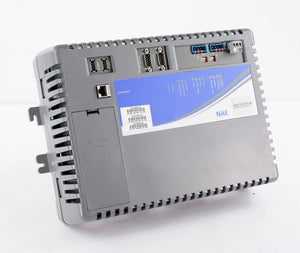

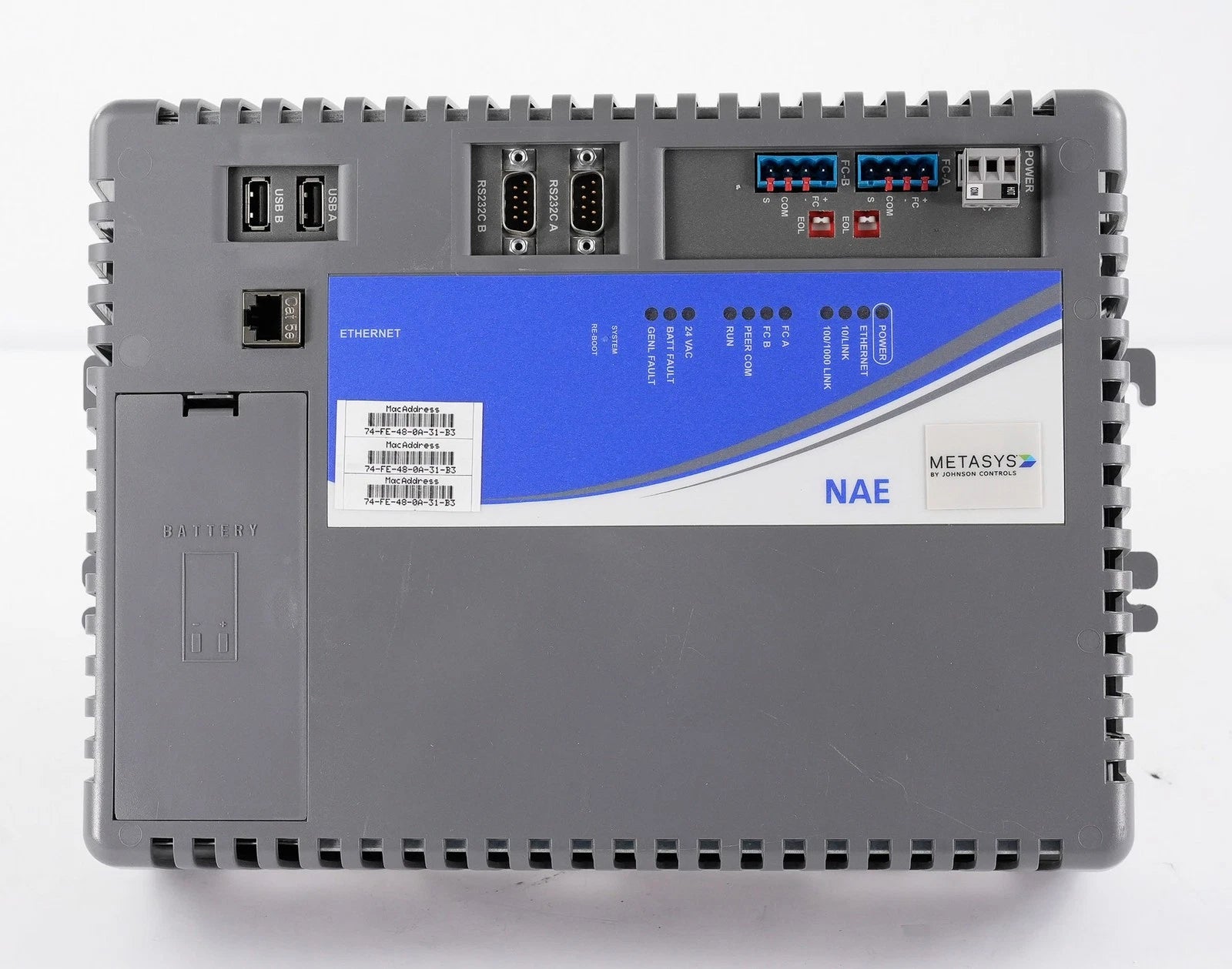

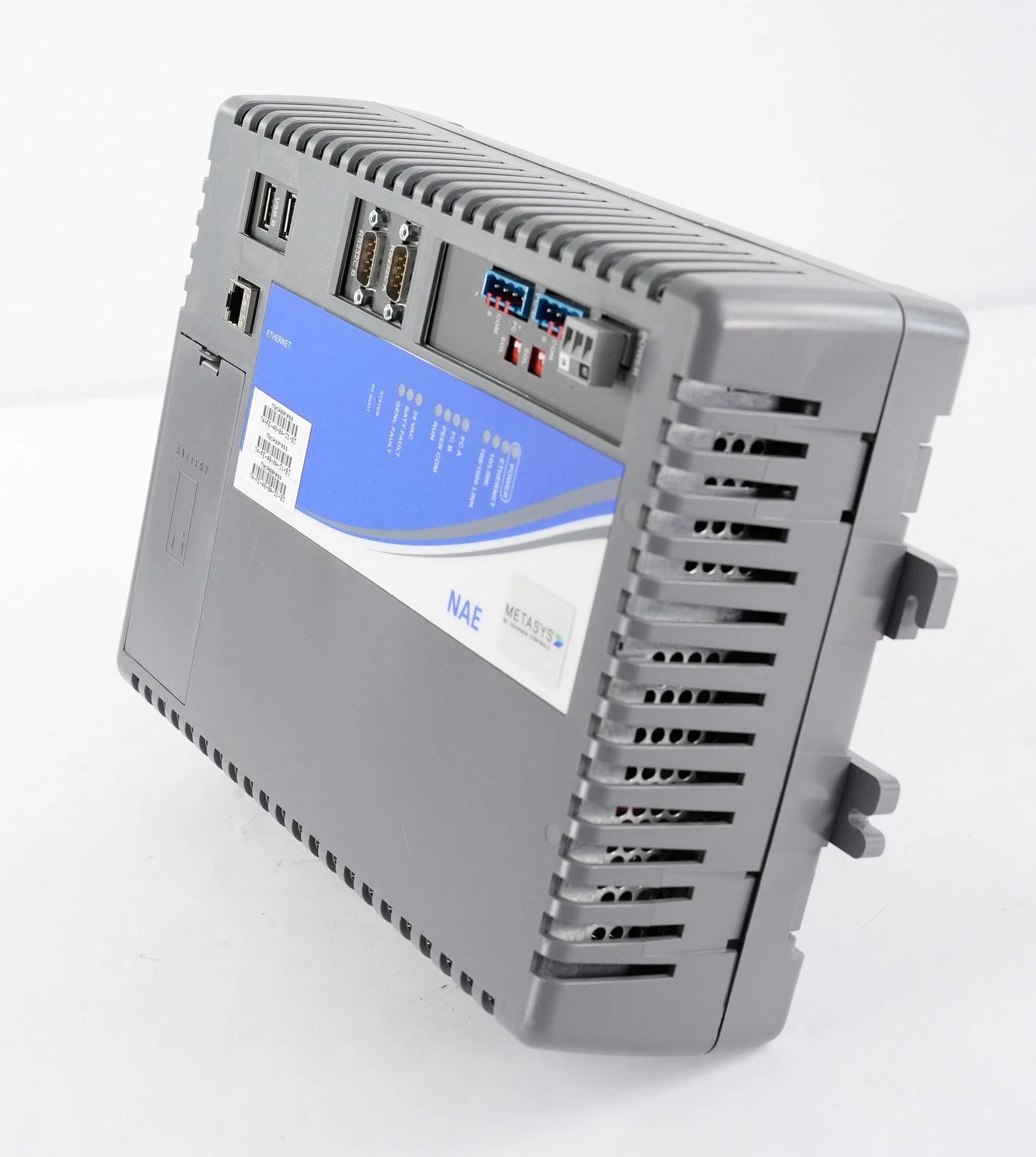

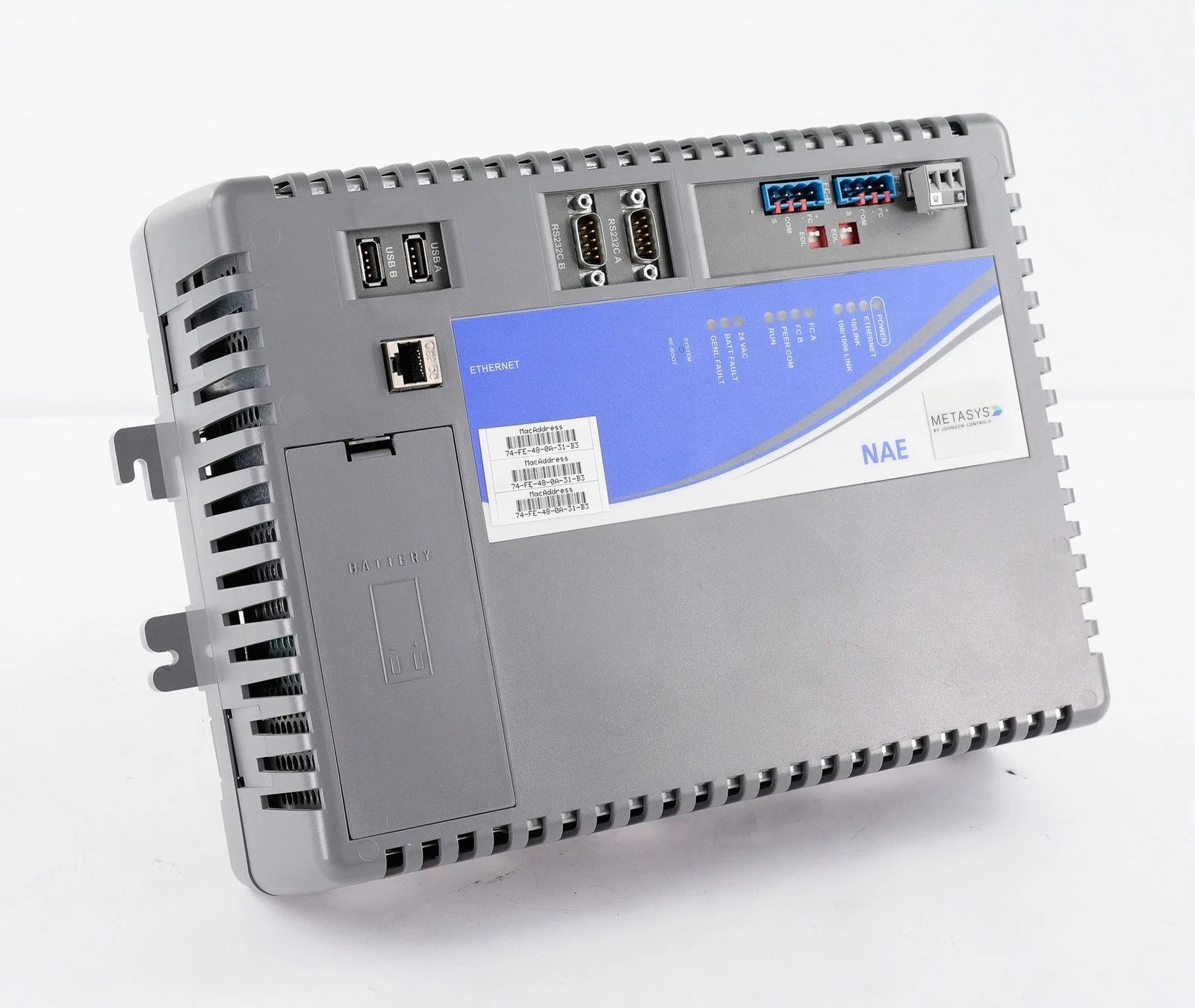

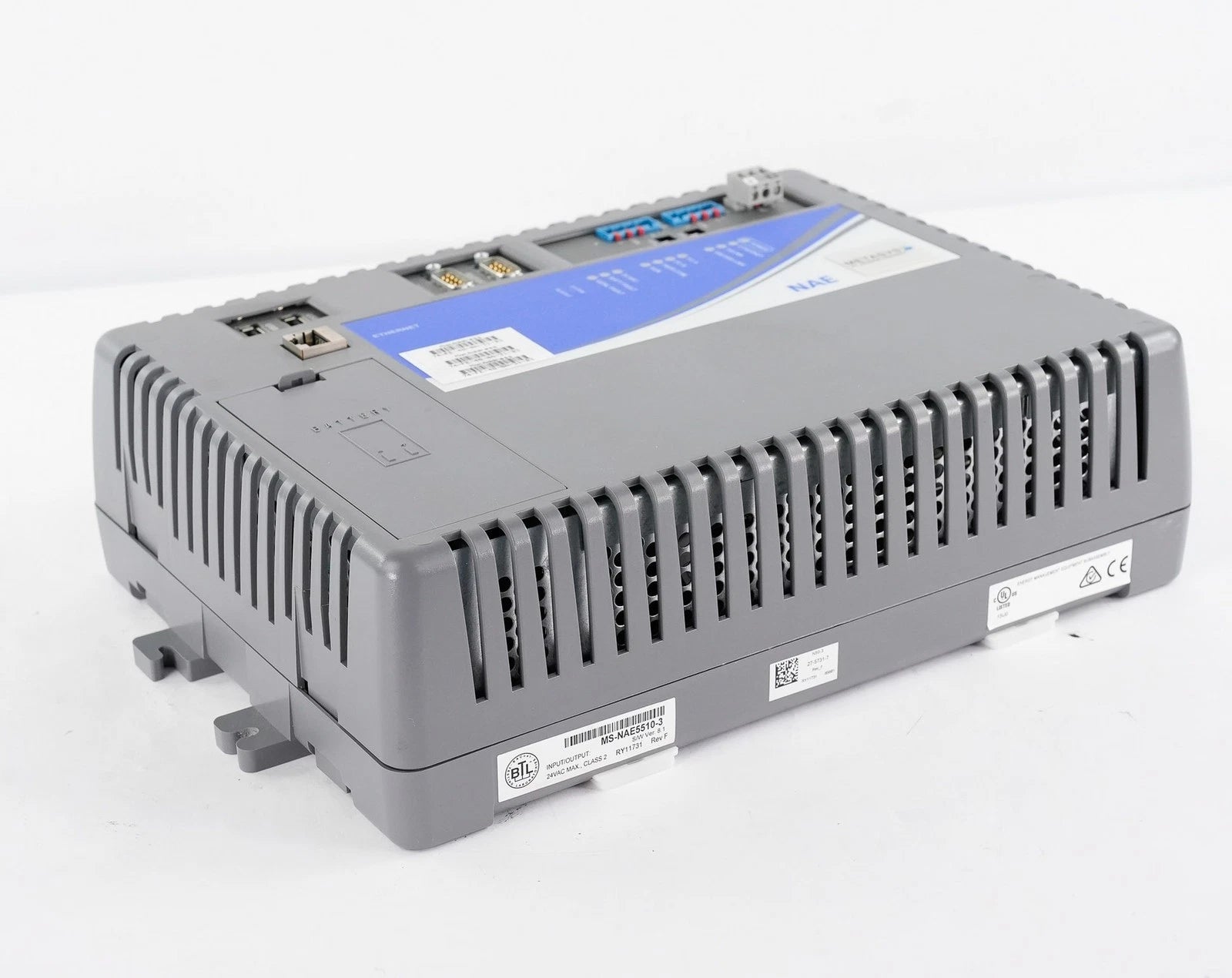

Johnson Controls MS-NAE5510-3 Metasys Network Automation Engine Supervisory Controller
- Regular price
- $15,989.00
- Sale price
- $15,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE5510-3
Description
The Johnson Controls MS-NAE5510-3 is a Network Automation Engine designed for the Metasys® Building Automation System, providing centralized supervision and management of HVAC, lighting, and other building systems. It serves as a high-performance supervisory controller that integrates field devices, manages alarms, schedules, historical data, and system communications across enterprise automation networks. The engine is designed for commercial and industrial facilities requiring scalable, secure, and reliable building automation control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-NAE5510-3 |
| Subcategory | PLC Module/Rack |
| Product Type | Network Automation Engine |
| Series | Metasys NAE55 |
| Power Supply | 24 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 50 VA |
| Flash Memory | 16 GB |
| SDRAM | 2 GB |
| Communication Protocols | BACnet/IP, BACnet MS/TP, N2, Ethernet |
| Ethernet Port | 1 × RJ-45 10/100 Base-T |
| USB Ports | USB Host Interfaces |
| Application | Building Automation Supervisory Controller |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 5.00 lbs |
Information About MS-NAE5510-3
The MS-NAE5510-3 is a member of the Johnson Controls Metasys NAE55 Series and functions as an advanced supervisory engine within the Metasys building automation architecture. It communicates with BACnet MS/TP, N2, BACnet/IP, and Ethernet networks, enabling centralized management of field controllers and integrated building equipment. The controller features a modern embedded hardware platform with a 16 GB Flash drive, 2 GB SDRAM, Ethernet connectivity, USB interfaces, and serial communication ports for system integration and maintenance. Operating from a 24 VAC power source, it provides scheduling, alarm management, trending, data archiving, and secure web-based access for large commercial building automation systems.
Key Features:
- Metasys Supervisory Controller: Centralizes management of HVAC and building automation networks.
- High-Capacity Memory: Equipped with 16 GB Flash storage and 2 GB SDRAM for operating system and application data.
- Multi-Protocol Support: Integrates BACnet MS/TP, BACnet/IP, N2, and Ethernet communication networks.
- Embedded Web Management: Supports browser-based configuration, monitoring, diagnostics, and administration.
- Enterprise Automation Platform: Coordinates alarms, schedules, trending, and historical data collection.
- Flexible Communication Interfaces: Includes Ethernet, USB, and serial communication ports for network integration.
- Commercial Building Compatibility: Suitable for offices, hospitals, educational campuses, industrial facilities, and government buildings.
- Genuine Johnson Controls Hardware: Designed for reliable operation within Metasys Building Automation Systems.
The MS-NAE5510-3 delivers the reliability and precision required for enterprise-level building automation supervision and centralized HVAC system management.
