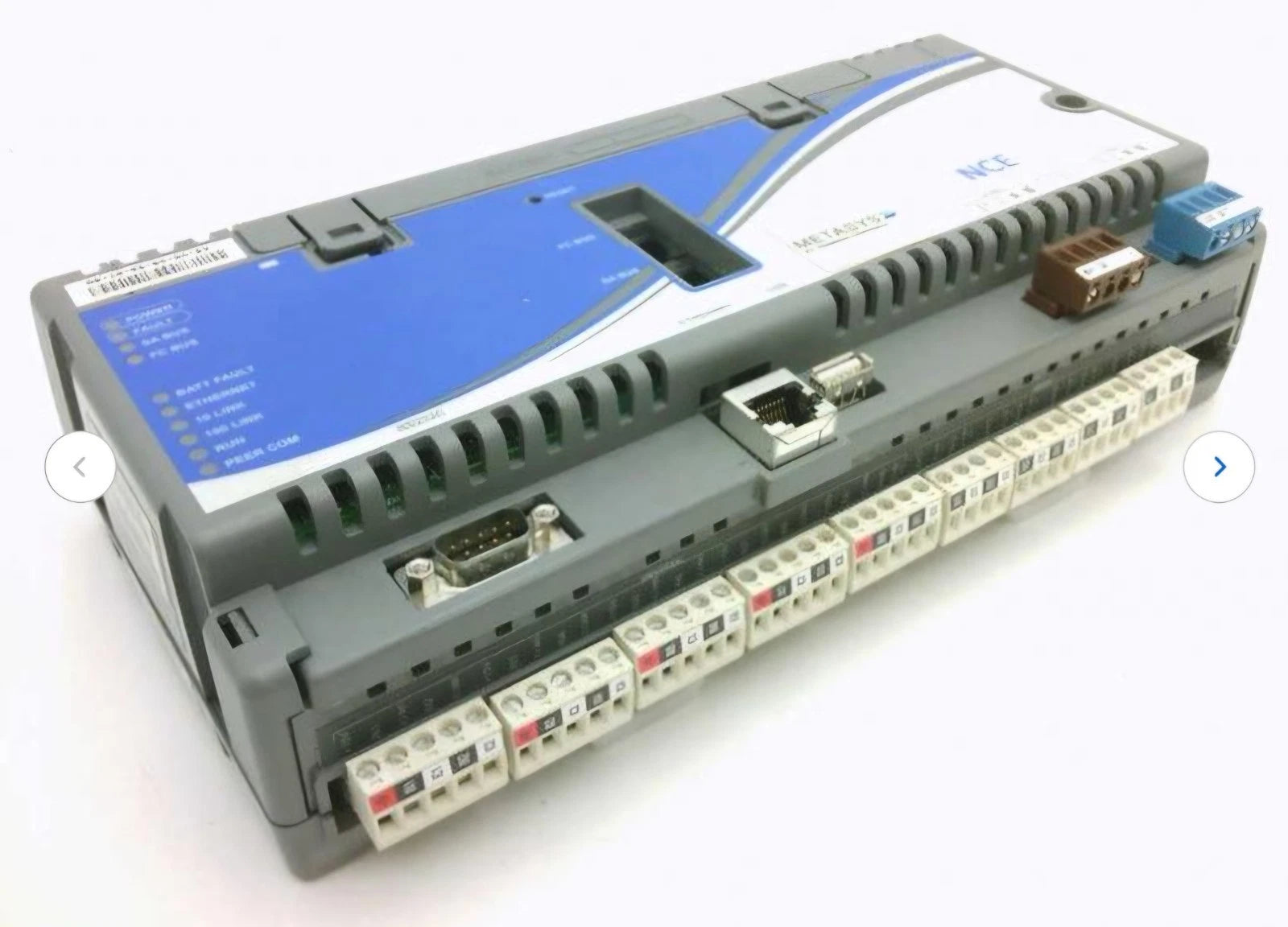

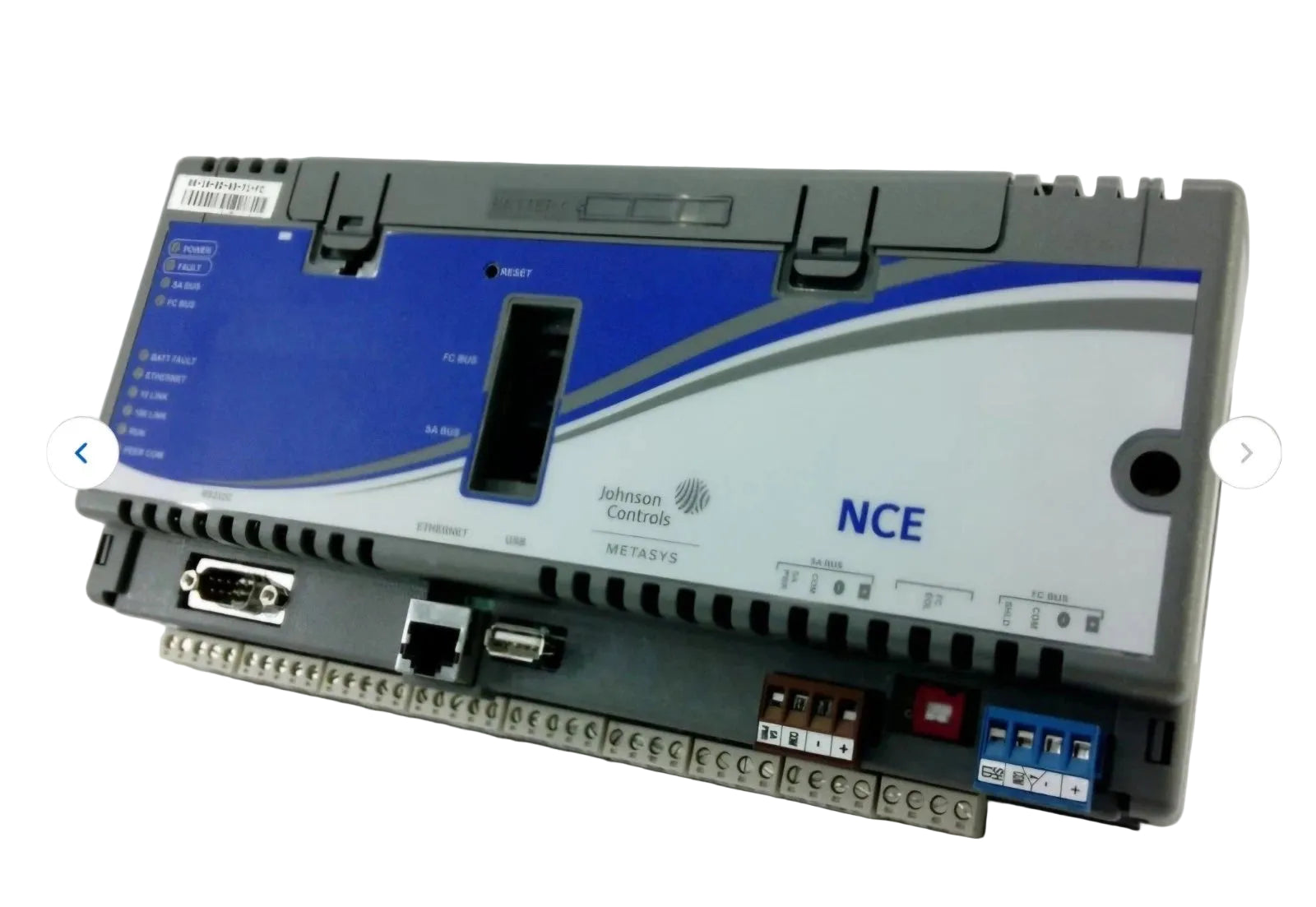

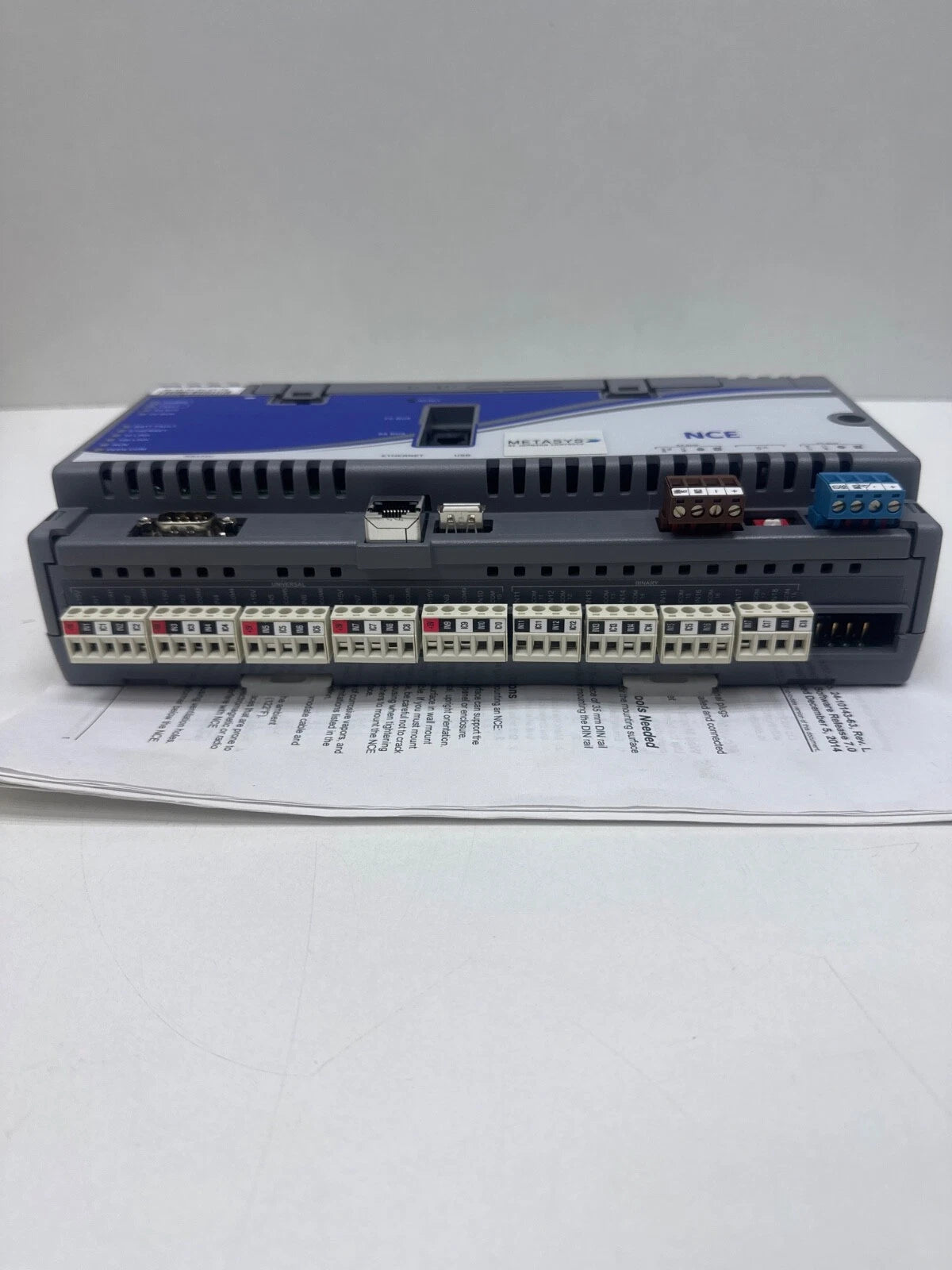

Johnson Controls MS-NCE2560-0 Metasys Network Control Engine BACnet MS/TP Controller
- Regular price
- $3,815.00
- Sale price
- $3,815.00
- Regular price
-
Couldn't load pickup availability

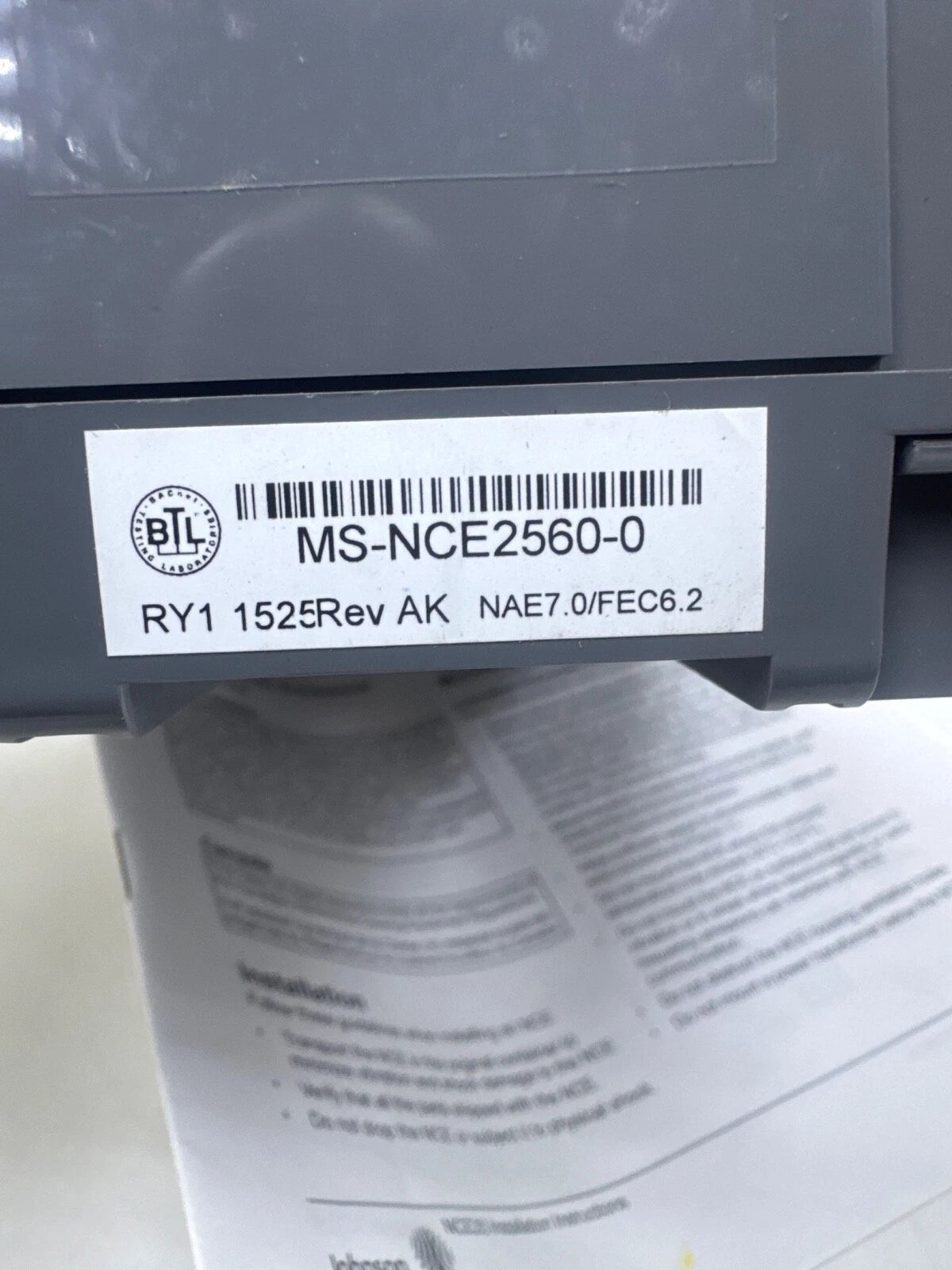

Product Description P/N: MS-NCE2560-0
Description
The Johnson Controls MS-NCE2560-0 is a Network Control Engine that combines the supervisory capabilities of a Metasys® Network Automation Engine with the direct digital control functionality of a Field Equipment Controller in a single device. It is designed to monitor, control, and integrate HVAC equipment over a BACnet MS/TP network while providing centralized scheduling, alarming, and data management. The controller is intended for commercial building automation applications including air handling units, central plants, and mechanical equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-NCE2560-0 |
| Subcategory | HVAC Control System Board |
| Product Type | Network Control Engine |
| Series | Metasys NCE25 |
| Power Supply | 24 VAC, 50/60 Hz |
| Communication Protocol | BACnet MS/TP |
| MS/TP Capacity | Up to 32 Field Controllers |
| Ethernet Port | 1 × 10/100 Base-T RJ-45 |
| RS-232 Port | 1 |
| USB Port | 1 USB Serial Port |
| Supervisory Processor | 192 MHz Renesas SH4 7760 RISC |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Protection Rating | IP20 |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 2.14 lbs |
Information About MS-NCE2560-0
The MS-NCE2560-0 is part of the Johnson Controls Metasys NCE25 Series and functions as both a supervisory controller and a programmable field controller within one hardware platform. It supports one BACnet MS/TP bus with up to 32 field controllers while providing integrated Ethernet connectivity for communication with the Metasys Building Automation System. The controller operates from a dedicated 24 VAC power supply and features a 192 MHz Renesas SH4 RISC supervisory processor, onboard flash memory, SDRAM, USB connectivity, RS-232 serial communication, and integrated field input/output capability. Its combined supervisory and equipment control architecture makes it well suited for central plants, large air handling units, and other commercial HVAC systems requiring local control with enterprise-level network integration.
Key Features:
- Combined Supervisory and Field Controller: Integrates Metasys network management with direct digital equipment control.
- BACnet MS/TP Communication: Supports one MS/TP trunk with up to 32 connected field controllers.
- Integrated Ethernet Port: Provides IP connectivity to the Metasys building automation network.
- Embedded Processing Platform: Utilizes a 192 MHz Renesas SH4 RISC processor for supervisory functions.
- Built-In Input and Output Points: Includes universal inputs, binary inputs, analog outputs, binary outputs, and configurable outputs.
- Web-Based Management: Supports browser-based configuration, scheduling, trending, and alarm management.
- Flexible Installation: DIN rail or panel mounting with IP20-rated enclosure for commercial control panels.
- Metasys System Integration: Designed for central plants, air handlers, boilers, chillers, and other HVAC applications.
The MS-NCE2560-0 delivers the reliability and precision required for integrated supervisory control and direct digital HVAC equipment management.
