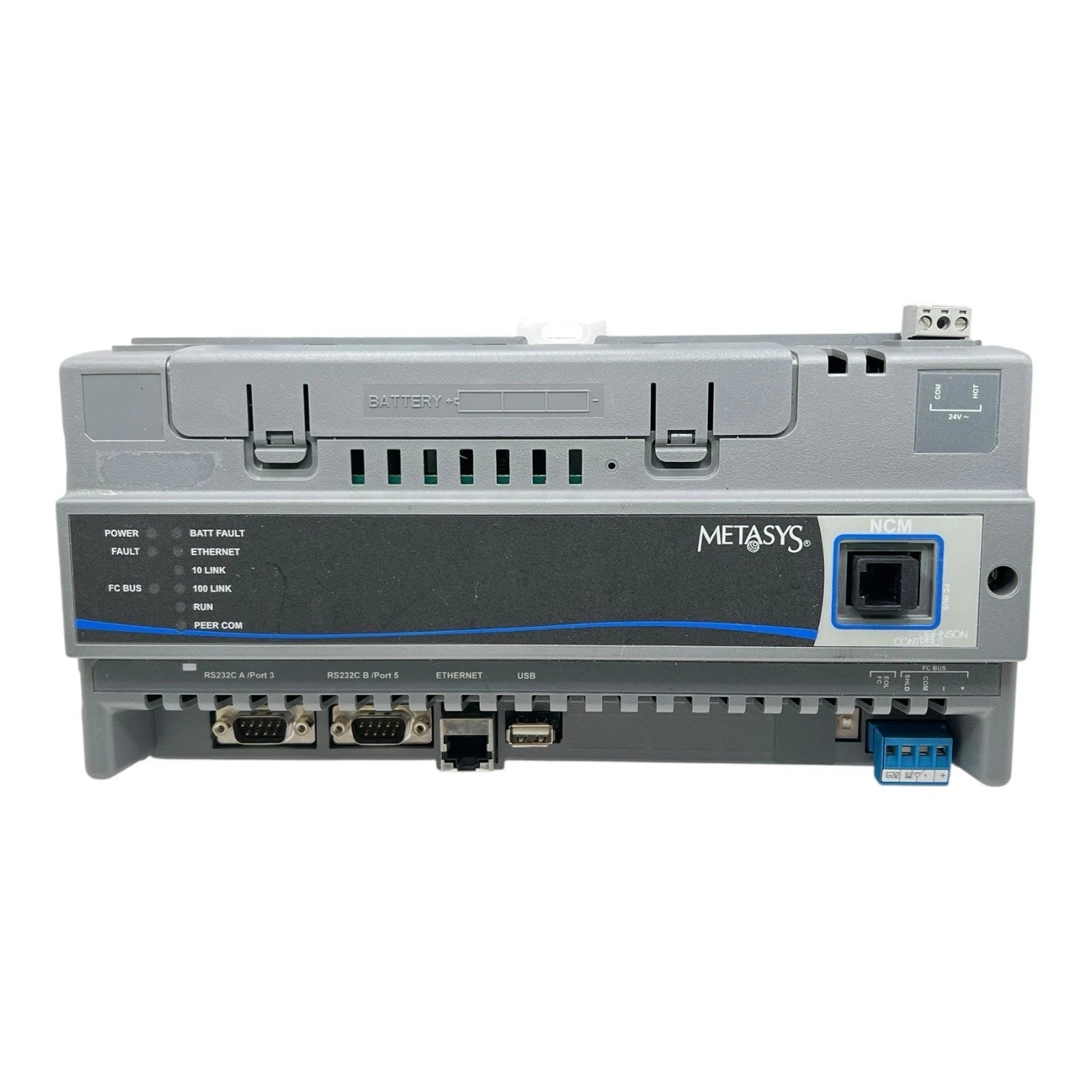

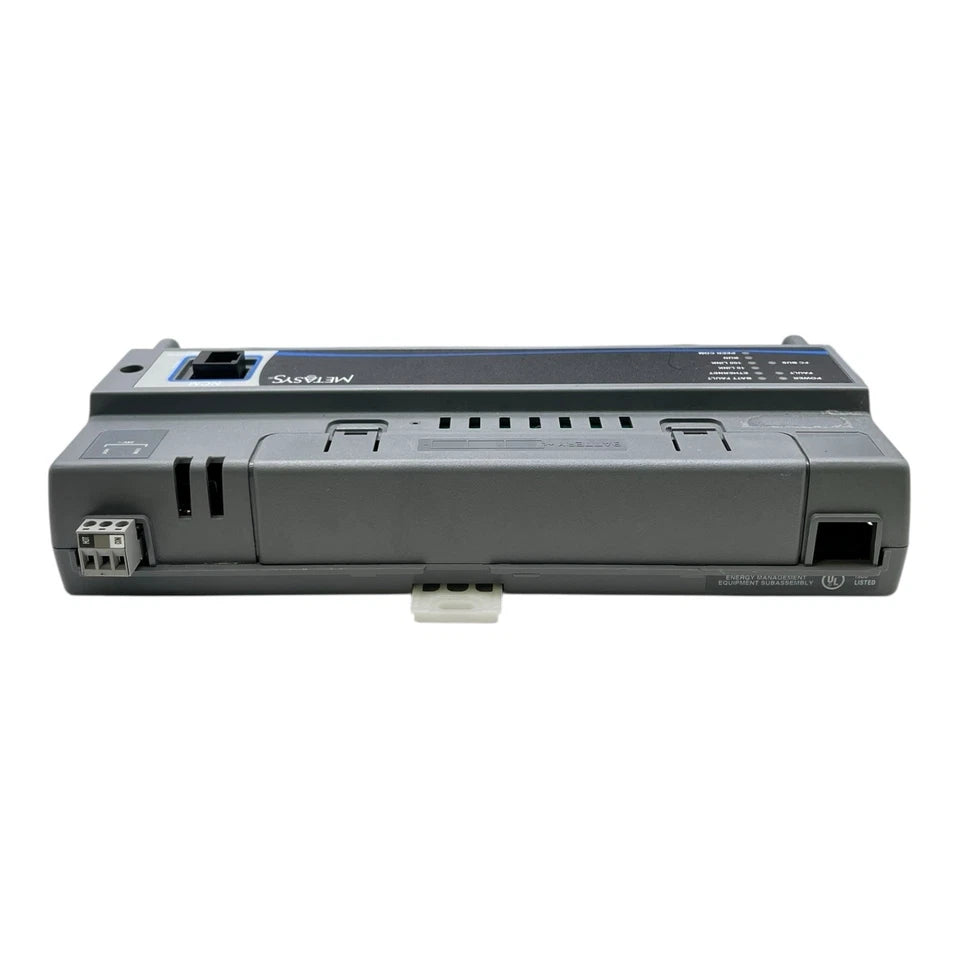

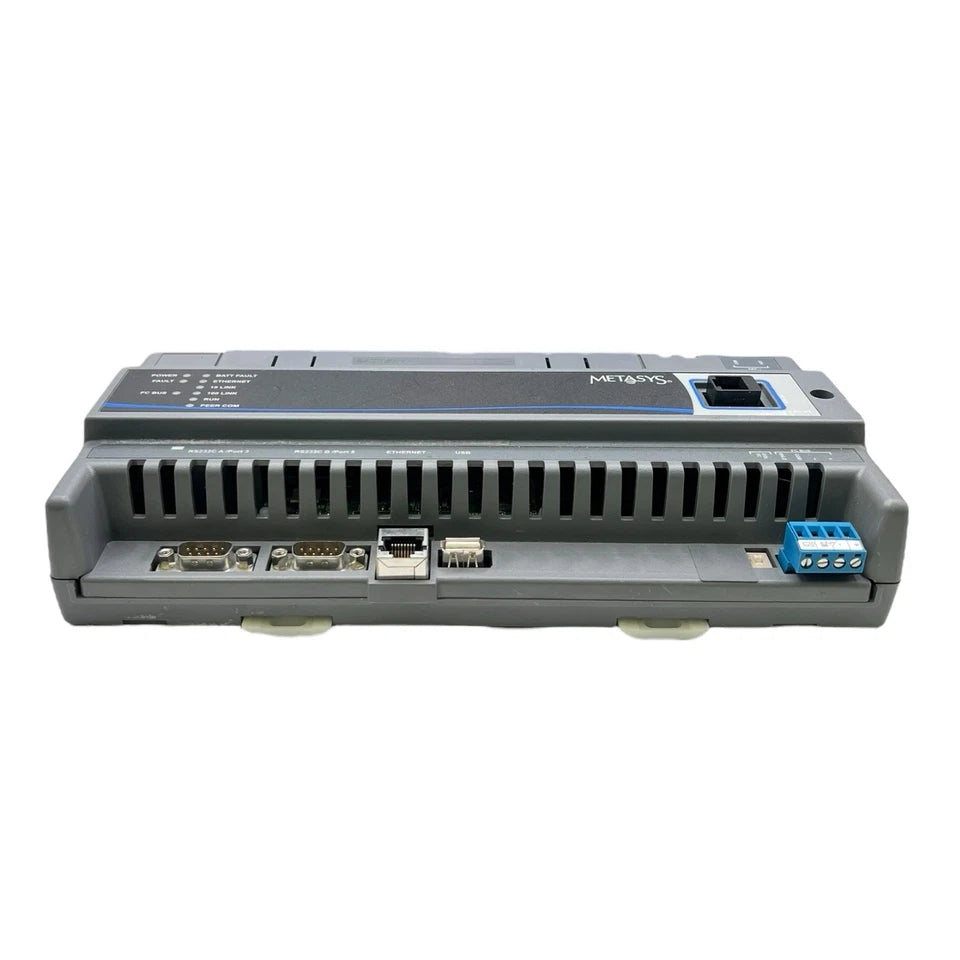

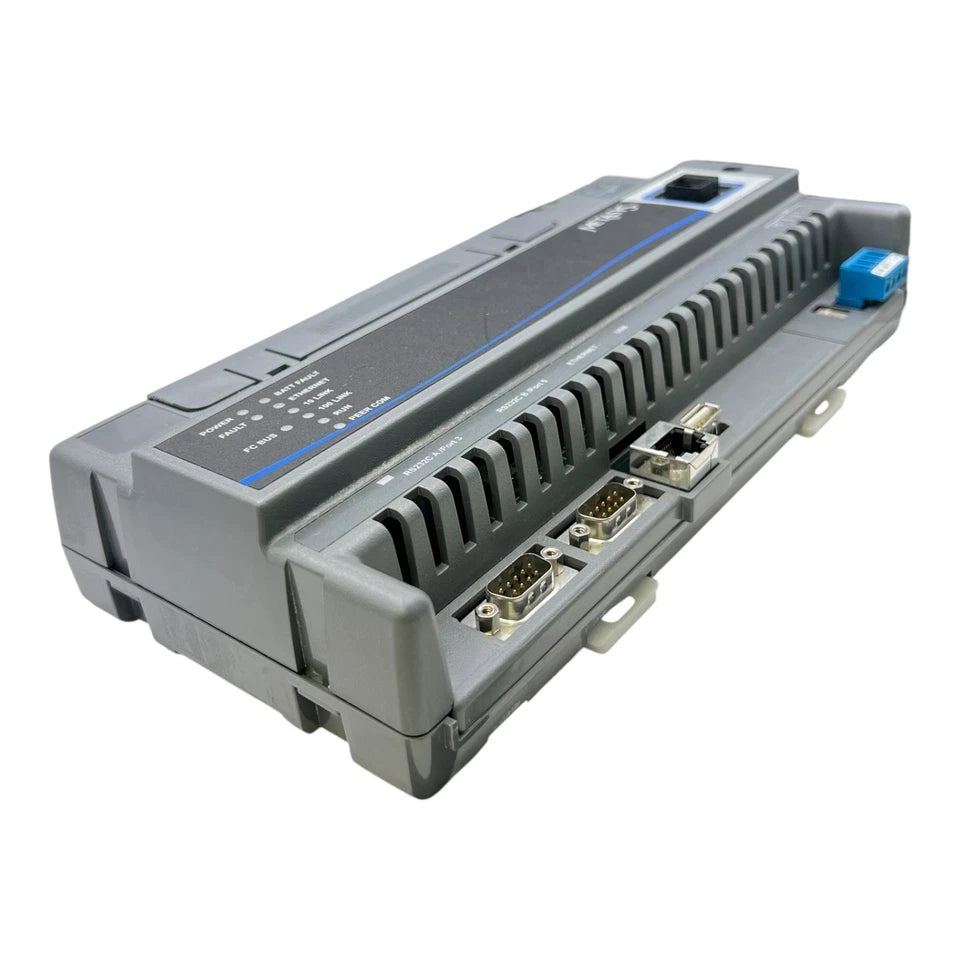

Johnson Controls MS-NCM4510-2 Network Control Module for Metasys Building Automation Systems
- Regular price
- $2,499.00
- Sale price
- $2,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NCM4510-2
Description
The Johnson Controls MS-NCM4510-2 is a Network Control Module designed to provide supervisory control and centralized management for Metasys building automation systems. It monitors and coordinates field-level HVAC equipment, controllers, alarms, and scheduling functions while operating from a dedicated 24 VAC power supply. The MS-NCM4510-2 features DIN rail mounting, LED status indicators, and N2 network support for reliable building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-NCM4510-2 |
| Subcategory | PLC Module/Rack |
| Product Type | Network Control Module |
| Series | NCM45x0-2 Series |
| Supply Voltage | 24 VAC Class 2 (20–30 VAC), 50/60 Hz |
| Power Consumption | 25 VA Maximum |
| Network Support | One N2 Trunk (RS-485) |
| Maximum Devices | Up to 100 Devices per N2 Trunk |
| Ethernet Port | 1 RJ-45 Ethernet Port |
| RS-232-C Ports | 2 |
| USB Serial Ports | 1 |
| Processor | 192 MHz Renesas SH4 32-Bit RISC Processor |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Data Protection Battery | Rechargeable NiMH Battery |
| Mounting | 35 mm DIN Rail or Panel Mount |
| Status Indication | LED Status Indicators |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.75 kg |
Information About MS-NCM4510-2
The MS-NCM4510-2 is part of the Johnson Controls NCM45x0-2 Series, developed as a fully programmable supervisory controller for commercial building automation systems. It manages field controllers, archives operational data, processes alarms, and coordinates communication across Metasys networks using the N2 protocol. The controller communicates with other Metasys Network Control Units over the N1 Network while supporting one N2 trunk with up to 100 field devices, depending on the installation configuration. Its high-performance 32-bit processor, integrated Ethernet connectivity, rechargeable data protection battery, and DIN rail mounting make it suitable for commercial offices, hospitals, educational facilities, and industrial buildings.
Key Features:
- Supervisory Network Controller: Provides centralized control and monitoring for Metasys building automation systems.
- N2 Network Support: Supports one RS-485 N2 trunk for field controller communication.
- Ethernet Connectivity: Includes an integrated Ethernet port for network communication and system integration.
- Multiple Serial Interfaces: Equipped with two RS-232-C serial ports and one USB serial port.
- DIN Rail Mountable: Designed for quick installation in industrial and HVAC control panels.
- LED Status Indicators: Provides visual diagnostics for power, communication, and controller status.
- Data Protection Battery: Includes a rechargeable battery to preserve operational data during power interruptions.
- High Device Capacity: Supports up to 100 field devices on a single N2 trunk.
The MS-NCM4510-2 delivers the reliability and precision required for centralized HVAC supervision and commercial building automation management.
