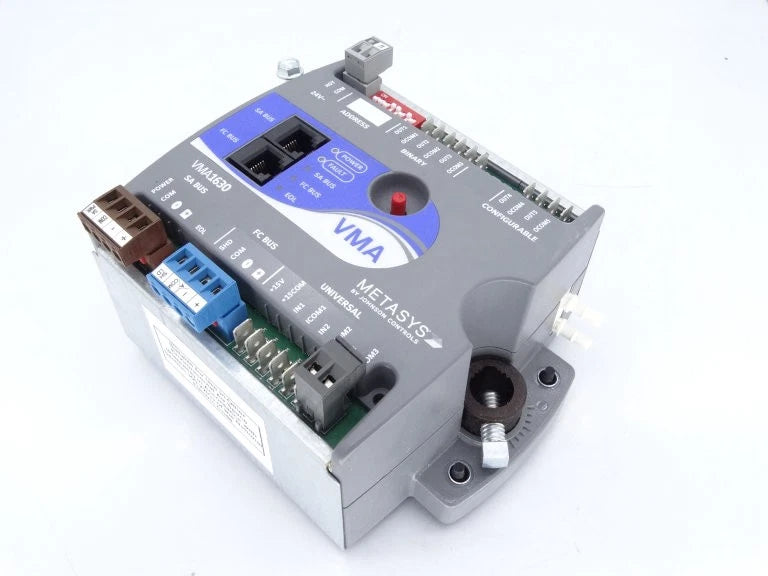

Johnson Controls MS-VMA1630-0 VMA16 Variable Air Volume Controller Actuator Assembly 24 VAC
- Regular price
- $787.00
- Sale price
- $787.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-VMA1630-0
Description
The Johnson Controls MS-VMA1630-0 is an integrated Variable Air Volume (VAV) controller and actuator assembly designed to regulate airflow and temperature in commercial HVAC systems. Combining programmable control, a built-in actuator, and an integrated differential pressure sensor, the MS-VMA1630-0 delivers precise zone control for cooling and reheat applications while operating from a 24 VAC Class 2 power supply. Although discontinued by the manufacturer, it remains widely used for servicing existing Metasys building automation installations and has been superseded by the MS-VMA1630-1.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-VMA1630-0 |
| Subcategory | PLC Module/Rack |
| Series | VMA16 Series |
| Product Type | Variable Air Volume Controller/Actuator Assembly |
| Application | Cooling / Reheat |
| Supply Voltage | 24 VAC Class 2 (20–30 VAC), 50/60 Hz |
| Input Current | 2.5 A |
| Output Rating | 0.5 A at 24 VAC |
| Communication Protocol | BACnet MS/TP, N2 |
| Inputs/Outputs | 3 Universal Inputs, 3 Binary Outputs, 2 Configurable Outputs |
| Processor | 32-bit Renesas Microcontroller |
| Memory | 1 MB Flash, 512 KB RAM |
| Integrated Sensor | Differential Pressure Transducer |
| Actuator Torque | 35 Inch-Pounds |
| Actuator Stroke Time | 60 Seconds |
| Suggested Replacement | MS-VMA1630-1 |
| Weight | 0.68 kg |
Information About MS-VMA1630-0
The MS-VMA1630-0 is part of the Johnson Controls VMA16 Series of programmable VAV controllers developed for the Metasys building automation platform. It integrates a 32-bit programmable controller, damper actuator, and differential pressure transducer into a compact assembly that minimizes installation time and simplifies VAV box control. The controller communicates using BACnet MS/TP or N2 protocols over the FC Bus and SA Bus, allowing seamless integration with Metasys supervisory controllers, network sensors, and other field devices. Its compact design, programmable inputs and outputs, and integrated actuator make it suitable for commercial office buildings, educational facilities, hospitals, and other HVAC systems requiring accurate airflow regulation.
Key Features:
- Integrated Controller and Actuator: Combines programmable HVAC control, damper actuator, and pressure sensing in one assembly.
- VMA16 Series Platform: Designed for Johnson Controls Metasys VAV applications.
- BACnet MS/TP and N2 Communication: Supports integration with modern and legacy building automation networks.
- 24 VAC Class 2 Operation: Uses a standard low-voltage HVAC power supply.
- Integrated Differential Pressure Sensor: Measures airflow for accurate VAV box control.
- High-Torque Actuator: Provides 35 inch-pounds of torque with a 60-second actuator stroke.
- Flexible Input and Output Configuration: Includes 3 universal inputs, 3 binary outputs, and 2 configurable outputs.
- Replacement Available: Superseded by the Johnson Controls MS-VMA1630-1 for newer installations.
The MS-VMA1630-0 delivers the reliability and precision required for variable air volume control and commercial HVAC automation systems.
