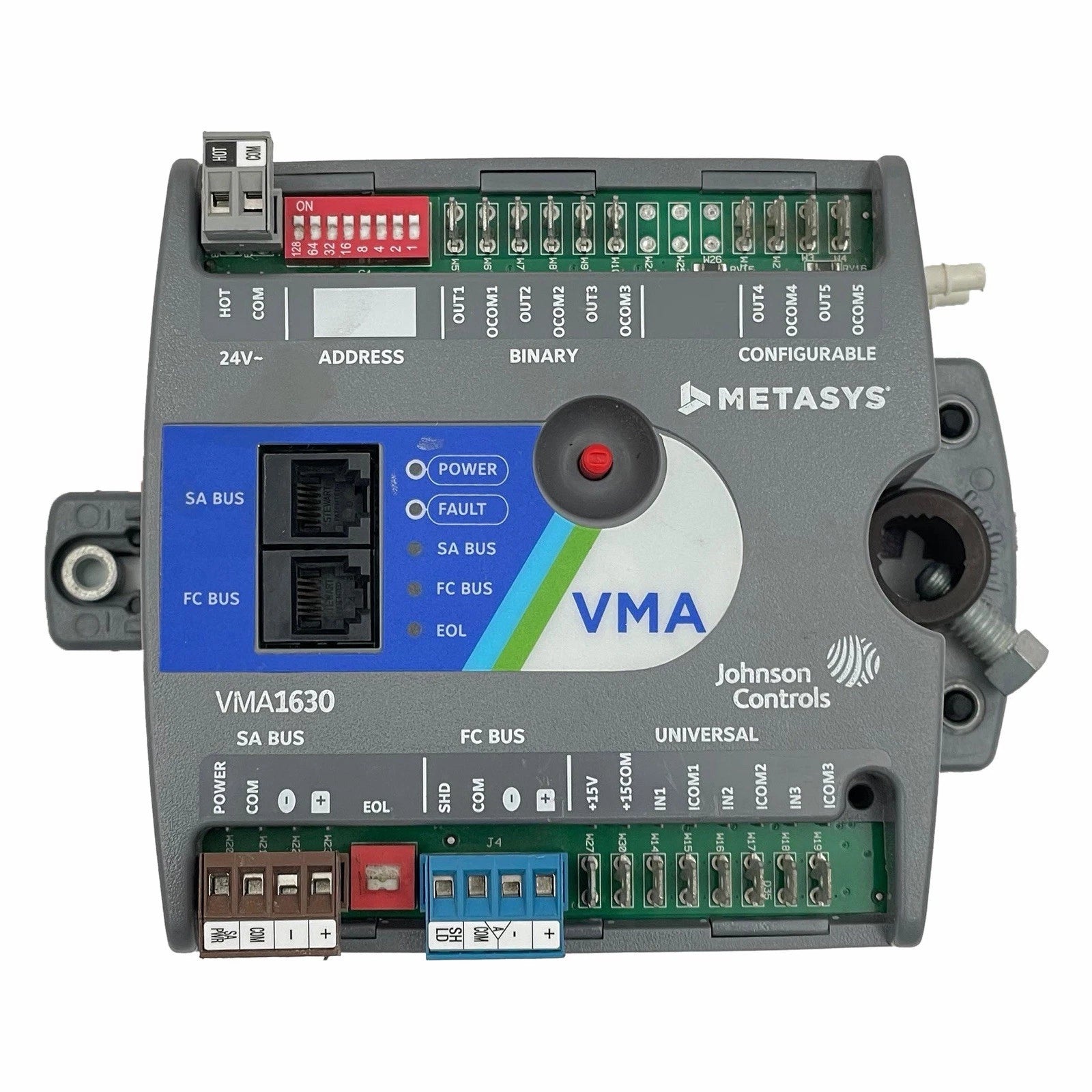

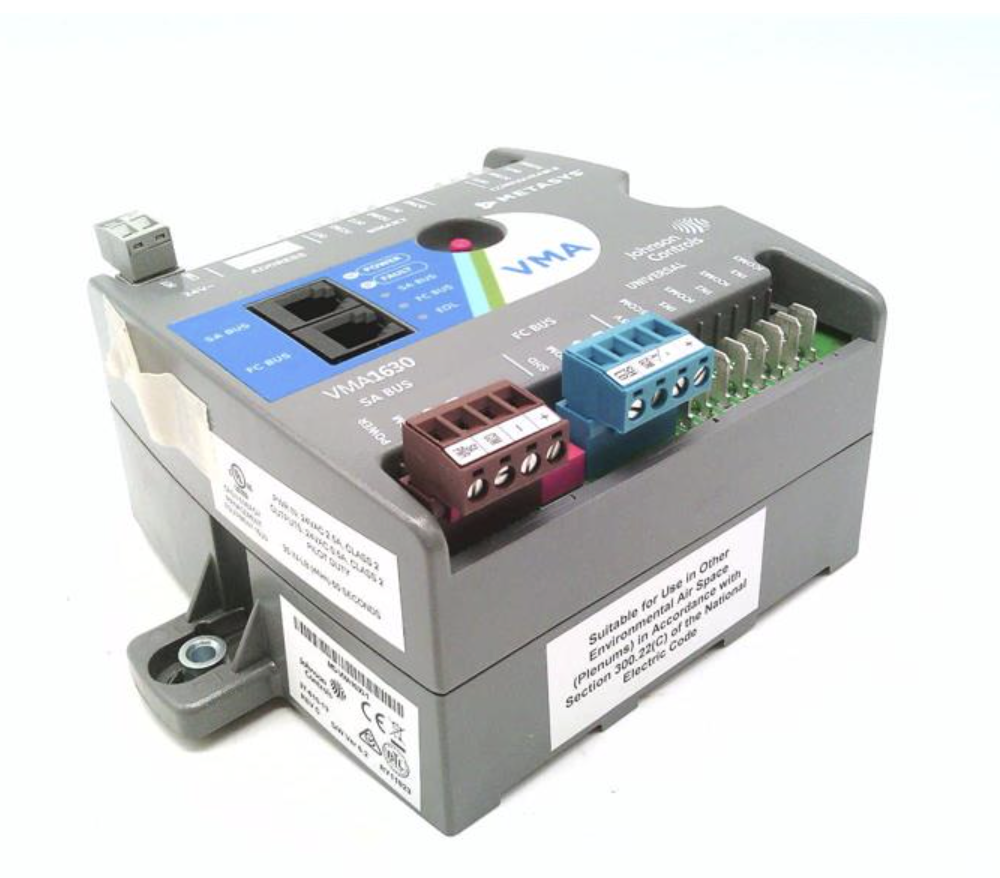

Johnson Controls MS-VMA1630-1 Programmable Variable Air Volume Controller with Integrated Actuator and Differential Pressure Transducer
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-VMA1630-1
Description
The Johnson Controls MS-VMA1630-1 is a programmable Variable Air Volume (VAV) controller that integrates a controller, actuator, and differential pressure transducer into a single compact assembly for commercial HVAC applications. Designed for precise airflow regulation and zone temperature control, the MS-VMA1630-1 operates from a 24 VAC power supply and communicates over FC Bus and SA Bus networks using BACnet MS/TP. Although discontinued by the manufacturer, it remains widely deployed in Metasys building automation systems and has been replaced by the M4-CVM03050-0.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-VMA1630-1 |
| Subcategory | HVAC Control System Board |
| Product Type | Variable Air Volume Controller |
| Series | VMA1630 Series |
| Controller Type | Programmable 32-Bit Integrated VAV Controller/Actuator/Differential Pressure Transducer |
| Universal Inputs | 3 |
| Binary Outputs | 3 |
| Configurable Outputs | 2 |
| Supply Voltage | 24 VAC Class 2, 50/60 Hz |
| Communication Protocol | BACnet MS/TP |
| Communication Interface | FC Bus and SA Bus |
| Actuator Torque | 35 Inch-Pounds |
| Actuator Stroke Time | 60 Seconds |
| Manual Override | Yes |
| Suggested Replacement | M4-CVM03050-0 |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.77 kg |
Information About MS-VMA1630-1
The MS-VMA1630-1 is part of the Johnson Controls VMA16 Series, developed for pressure-independent Variable Air Volume terminal units in commercial buildings. It combines a programmable 32-bit controller, integrated damper actuator, and differential pressure transducer into a single device, reducing installation complexity while providing accurate airflow measurement and control. The controller supports BACnet MS/TP communication over the FC Bus and SA Bus, allowing seamless integration with Metasys building automation systems and compatible field devices. It is commonly installed in office buildings, educational facilities, healthcare environments, and other commercial HVAC systems requiring dependable airflow regulation and energy-efficient zone control.
Key Features:
- Integrated VAV Controller: Combines programmable control, actuator, and differential pressure transducer in one assembly.
- 32-Bit Processing: Utilizes a high-performance 32-bit processor for reliable HVAC control.
- BACnet MS/TP Communication: Supports FC Bus and SA Bus integration with Metasys building automation systems.
- Flexible I/O Configuration: Provides 3 universal inputs, 3 binary outputs, and 2 configurable outputs.
- 24 VAC Operation: Designed for standard Class 2 HVAC control power systems.
- High-Torque Actuator: Delivers 35 inch-pounds of torque for dependable damper positioning.
- Manual Override Capability: Allows convenient commissioning and maintenance of VAV equipment.
- Modern Replacement Path: Superseded by the Johnson Controls M4-CVM03050-0 controller.
The MS-VMA1630-1 delivers the reliability and precision required for variable air volume control and commercial HVAC automation systems.
