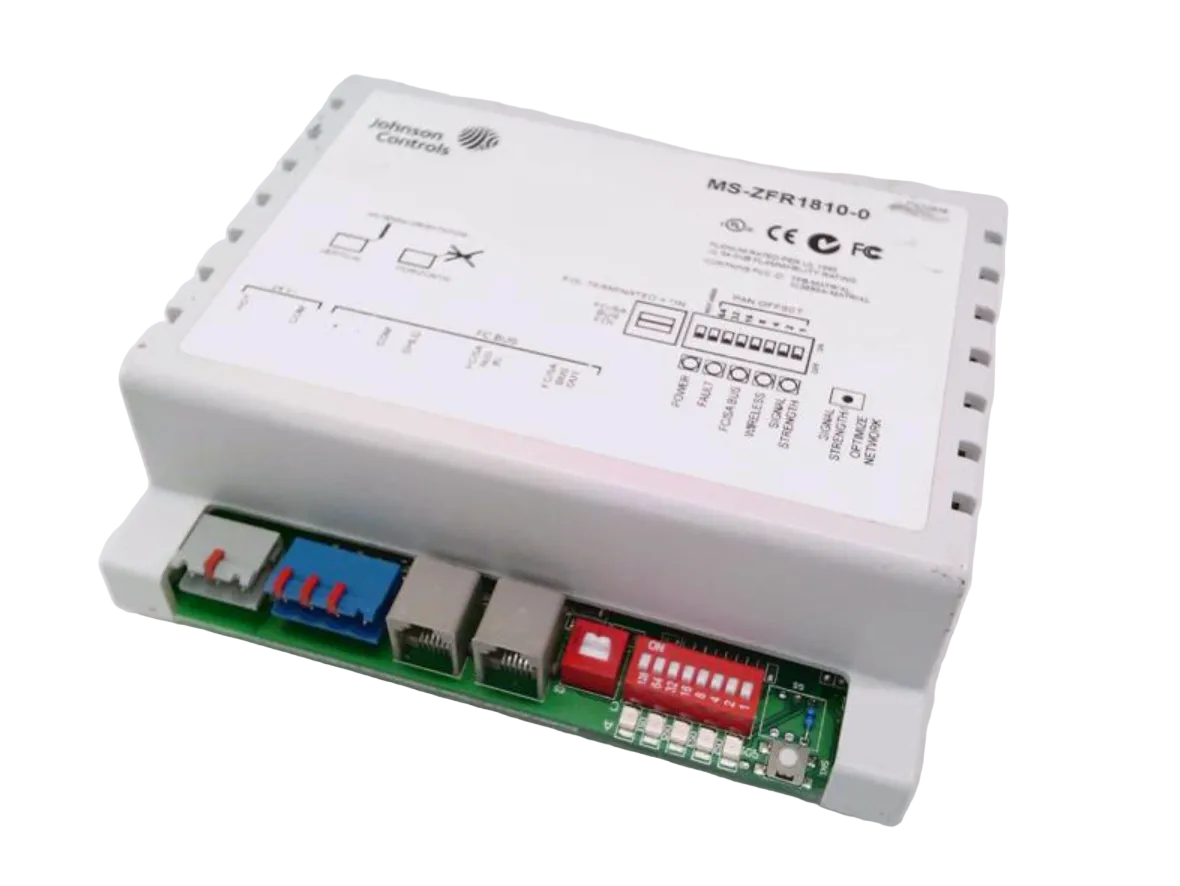

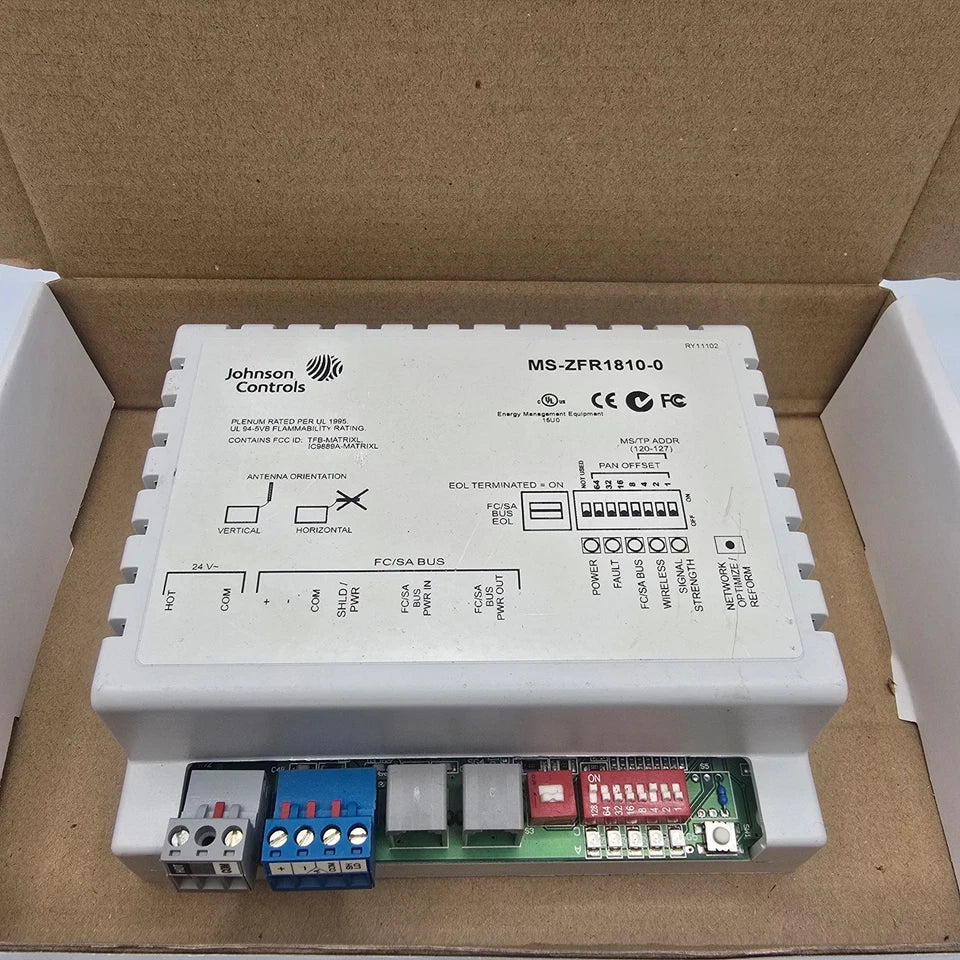

Johnson Controls MS-ZFR1810-0 ZFR1800 Wireless Field Bus Coordinator 10 mW
- Regular price
- $1,122.00
- Sale price
- $1,122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-ZFR1810-0
Description
The Johnson Controls MS-ZFR1810-0 is a Wireless Field Bus Coordinator designed to establish wireless communication between Metasys field controllers and supervisory devices in commercial building automation systems. Operating with a maximum transmission power of 10 mW, it replaces wired field bus segments with a secure wireless mesh network while maintaining reliable communication for HVAC control applications. Although discontinued by the manufacturer, the MS-ZFR1810-0 remains a dependable solution for expanding existing ZFR1800 Series wireless installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Computer |
| Part Number | MS-ZFR1810-0 |
| Subcategory | Networking Router |
| Product Type | Wireless Field Bus Coordinator |
| Series | ZFR1800 Series |
| Transmission Power | 10 mW Maximum |
| Wireless Band | 2.4 GHz ISM, Direct-Sequence Spread-Spectrum |
| Transmission Range | Up to 76.2 m (250 ft) Line-of-Sight |
| Power Supply | 24 VAC Class 2 or 15 VDC via FC Bus |
| Power Consumption | 2.5 VA Maximum |
| Communication Interfaces | RS-485, RJ-12 FC/SA Bus In, RJ-12 FC/SA Bus Out |
| Address Configuration | Field Adjustable DIP Switches |
| Housing Material | White Plenum-Rated Plastic |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Mounting | Surface Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.44 kg |
Information About MS-ZFR1810-0
The MS-ZFR1810-0 is part of the Johnson Controls ZFR1800 Series Wireless Field Bus System developed for Metasys building automation networks. It functions as the wireless coordinator that manages communication between wireless routers and supervisory controllers while supporting BACnet MS/TP field bus communications. The coordinator operates in the 2.4 GHz ISM frequency band using Direct-Sequence Spread-Spectrum technology and features configurable addressing through onboard DIP switches. Its compact enclosure, plenum-rated housing, and flexible power options make it suitable for commercial HVAC installations where wireless field bus communication simplifies deployment and expansion.
Key Features:
- Wireless Field Bus Coordinator: Serves as the central coordinator for ZFR1800 Series wireless field bus networks.
- 10 mW Transmission Power: Provides dependable wireless communication while complying with low-power transmission requirements.
- 2.4 GHz Wireless Operation: Utilizes Direct-Sequence Spread-Spectrum technology in the ISM band.
- Flexible Power Options: Supports 24 VAC Class 2 power or 15 VDC supplied from the FC Bus.
- BACnet MS/TP Integration: Connects seamlessly with Metasys field controllers and supervisory engines.
- DIP Switch Addressing: Allows simple field configuration of network addressing.
- RJ-12 and RS-485 Connectivity: Includes communication interfaces for controller integration and commissioning tools.
- Plenum-Rated Enclosure: Designed for commercial HVAC installations with UL-rated housing.
The MS-ZFR1810-0 delivers the reliability and precision required for wireless field bus communication in commercial HVAC and building automation systems.
