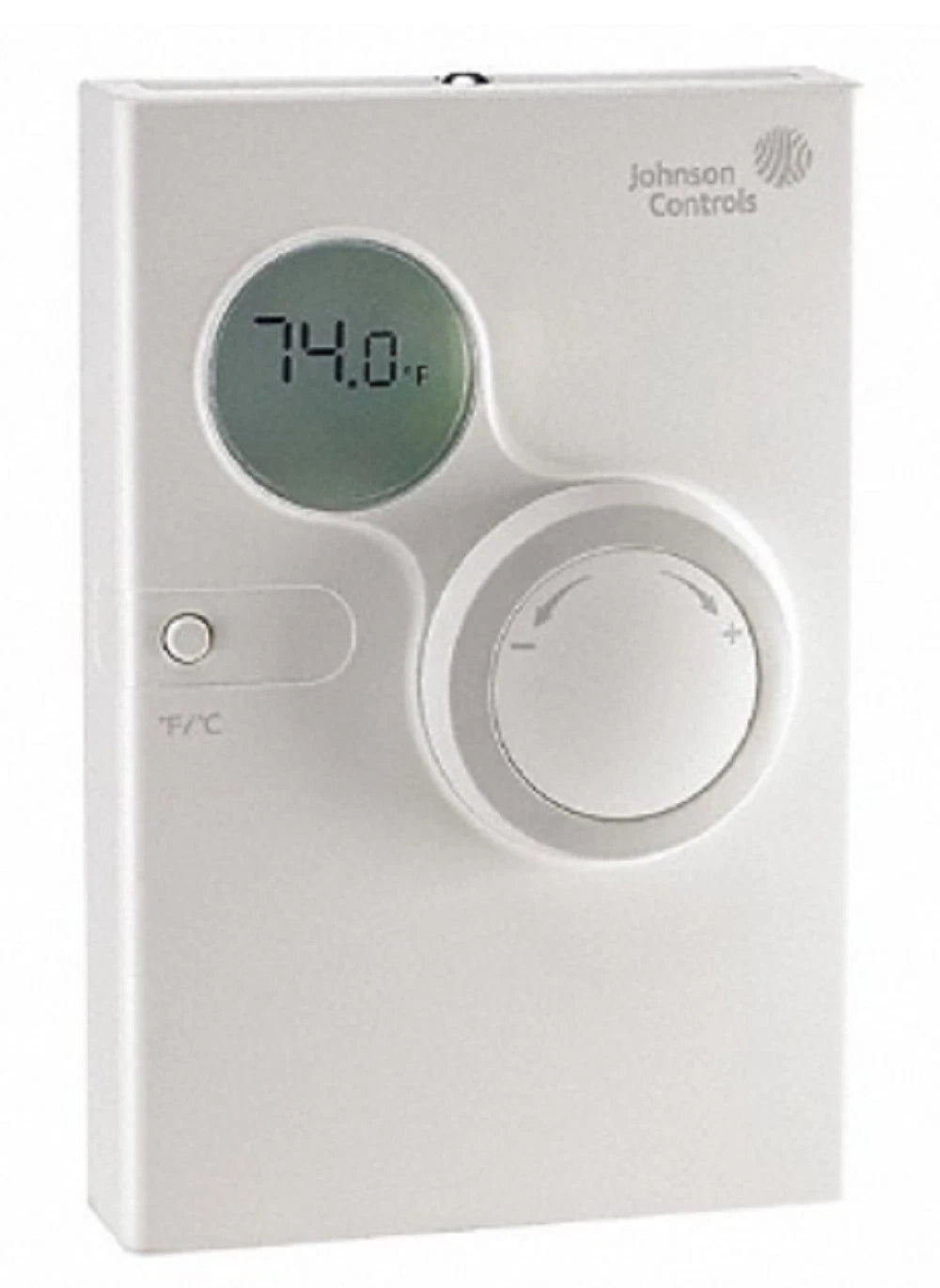

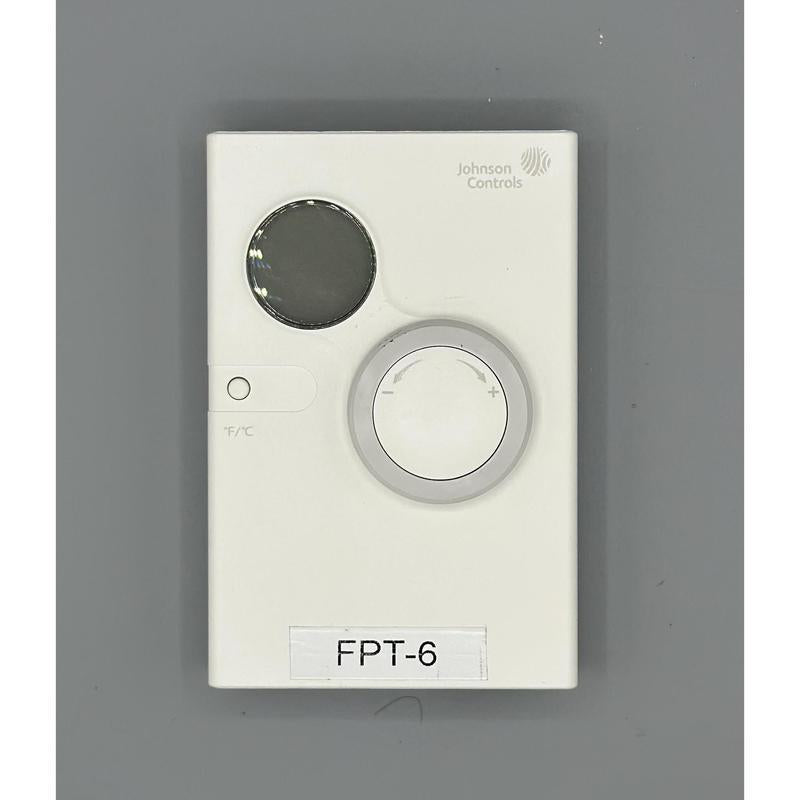

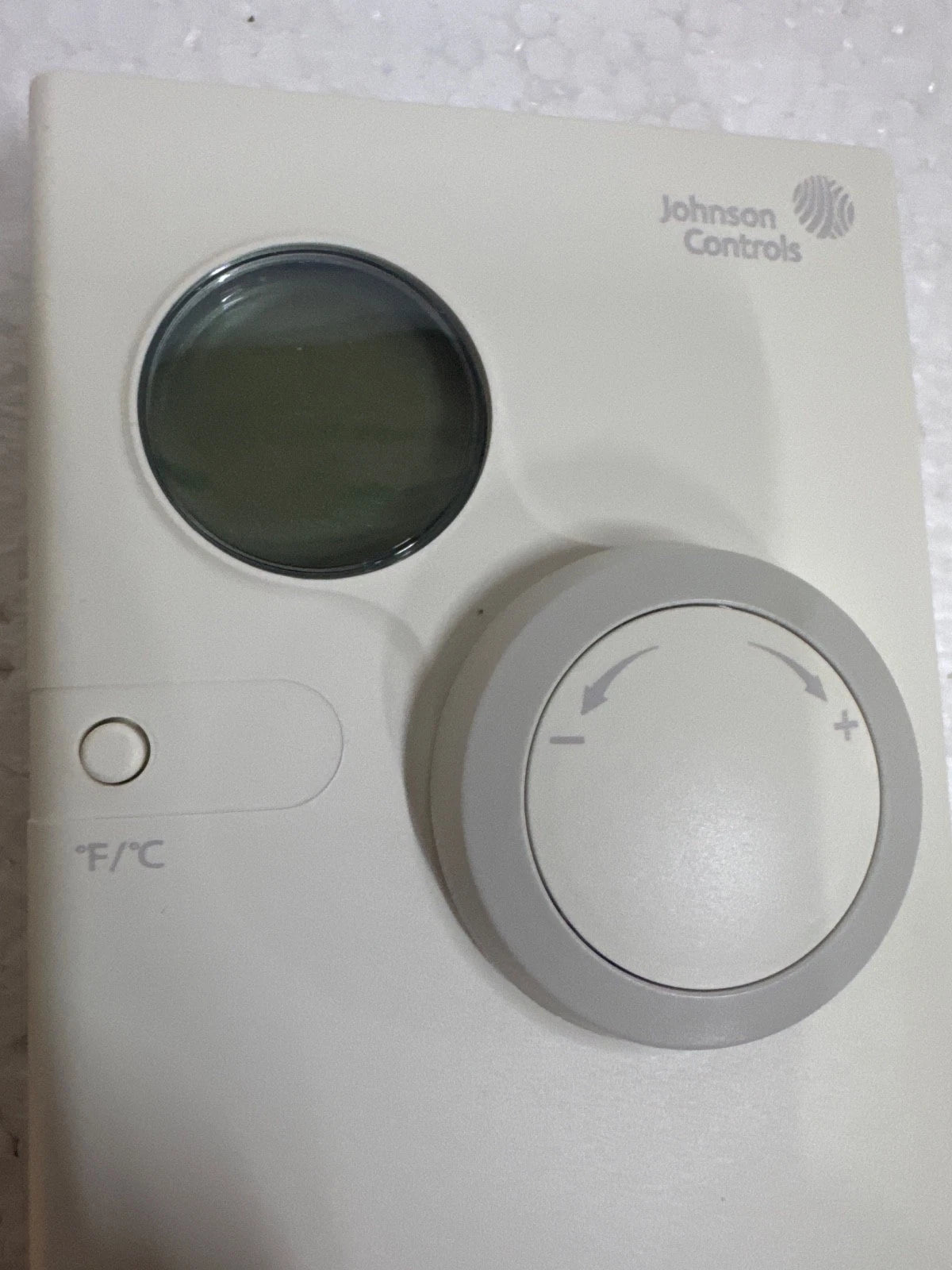

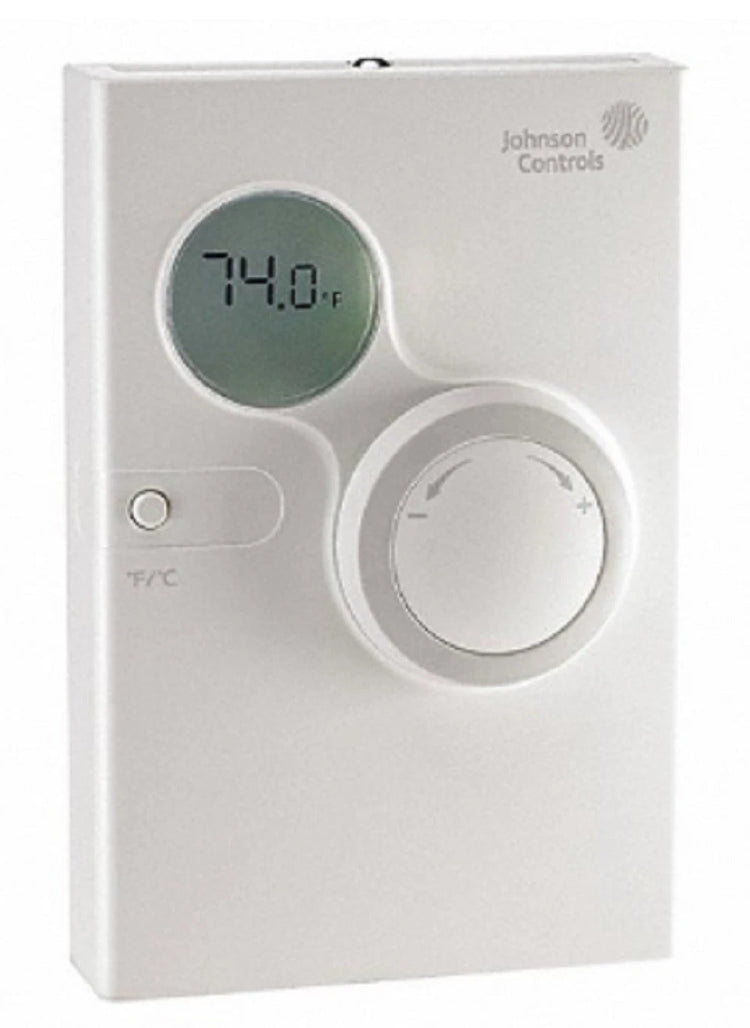

Johnson Controls NS-BTB7003-0 Network Temperature Sensor with LCD Display and Setpoint Control
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NS-BTB7003-0
Description
The Johnson Controls NS-BTB7003-0 is a network temperature sensor designed for use with Metasys® and Facility Explorer building automation systems. It provides accurate room temperature sensing while allowing occupants to adjust the temperature setpoint and activate an occupancy override from a wall-mounted interface. The sensor is intended for commercial HVAC applications where reliable environmental monitoring and local user interaction are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | NS-BTB7003-0 |
| Subcategory | Thermostat |
| Product Type | Network Temperature Sensor |
| Series | NS Series Network Sensors |
| Mounting | Wall Mount / Surface Mount |
| Dimensions | 120 × 80 mm |
| Display | LCD |
| Temperature Adjustment | Setpoint Dial |
| Occupancy Override | Yes |
| Communication | SA Bus Network |
| Terminations | Screw Terminal Block |
| Addressing | DIP Switch (Addresses 200–203) |
| Replacement Part | NS-B8BTN240-0 |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.94 lbs |
Information About NS-BTB7003-0
The NS-BTB7003-0 is a member of the Johnson Controls NS Series Network Sensors and is designed for wall or surface mounting in commercial buildings. It features an LCD display, temperature setpoint adjustment dial, occupancy override button, and screw terminal connections for integration with SA Bus-compatible Metasys and Facility Explorer controllers. The sensor includes configurable DIP-switch addressing from 200 to 203, enabling installation of multiple network sensors on compatible systems. Originally developed for intelligent building automation, the NS-BTB7003-0 has been discontinued and replaced by the Johnson Controls NS-B8BTN240-0 network sensor.
Key Features:
- Network Temperature Sensor: Provides accurate room temperature measurement for building automation systems.
- LCD Display: Displays room temperature and operating information for local occupants.
- Setpoint Adjustment: Integrated dial allows occupants to adjust the temperature setpoint within programmed limits.
- Occupancy Override: Built-in override button enables temporary occupancy requests during scheduled unoccupied periods.
- Addressable Device: DIP switches support network addresses 200 through 203 for SA Bus installations.
- Flexible Mounting: Designed for wallbox or surface mounting with a 120 × 80 mm enclosure.
- Screw Terminal Connections: Supports secure field wiring for reliable communication.
- Metasys Compatibility: Designed for Johnson Controls Metasys and Facility Explorer HVAC control systems.
The NS-BTB7003-0 delivers the reliability and precision required for commercial HVAC room temperature sensing and occupant comfort control.
