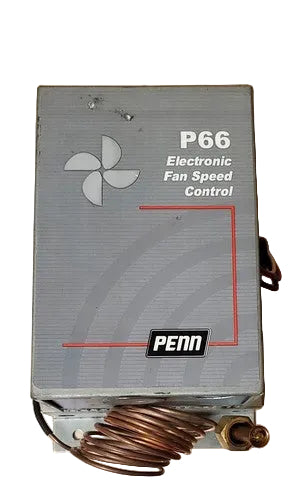

Johnson Controls P66AAB-25C Pressure-Actuated Condenser Fan Speed Control With 120-Inch Capillary
- Regular price
- $1,092.00
- Sale price
- $1,092.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P66AAB-25C
Description
The Johnson Controls P66AAB-25C is a pressure-actuated electronic fan speed control for condenser fans in refrigeration and air conditioning equipment. It adjusts motor voltage in response to refrigerant pressure across a 180–240 psig operating range, helping maintain condenser pressure as cooling conditions change.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | P66AAB-25C |
| Subcategory | Pressure Controls |
| Series | P66 |
| Control Type | Pressure-actuated electronic condenser fan speed control |
| Pressure Input | Single sensor |
| Operating Pressure Range | 180–240 psig |
| Effective Throttling Range | 60 psi |
| Capillary Length | 120 inches / 10 feet |
| Pressure Connection | 1/4-inch flare nut with valve depressor |
| Control Power | 24 VAC, Class 2; 1 A |
| Motor Line Voltage | 208–240, 277, or 480 VAC; 60 Hz |
| Motor Current Ratings | 8 A at 208/240 VAC; 6.9 A at 277 VAC; 4 A at 480 VAC |
| Start Voltage | 10% of applied line voltage |
| Compatible Motor Type | Single-phase, ball-bearing permanent split-capacitor motor approved for speed control |
| Enclosure and Mounting | NEMA 1 galvanized steel case; vertical mounting |
| Lifecycle and Replacement Reference | Discontinued model; replaces P66AAB-18 |
| Weight | 3.20 lbs |
Information About P66AAB-25C
The P66AAB-25C is a single-sensor model in the Johnson Controls/PENN P66 Series. Its galvanized steel enclosure houses electronic speed-control circuitry connected to a refrigerant pressure sensor through a 120-inch capillary. It is intended for single-phase, ball-bearing permanent split-capacitor motors approved by their manufacturer for solid-state speed control. Johnson Controls identifies this model as the replacement for P66AAB-18 in its published replacement guide.
Key Features:
- Pressure-responsive operation: Varies condenser fan motor voltage according to sensed refrigerant pressure.
- Defined operating range: Provides modulation across 180–240 psig.
- Single pressure input: Uses one sensing connection for the controlled refrigerant circuit.
- Extended capillary: Includes a 120-inch tube for positioning the pressure connection.
- Model-specific start voltage: Begins modulation at 10% of the applied line voltage.
- Soft start capability: Reduces abrupt changes in fan speed during startup.
- Separate control supply: Uses 24 VAC control power alongside the motor line-voltage circuit.
- Service replacement: Replaces the earlier P66AAB-18 control in compatible applications.
The P66AAB-25C delivers the reliability and precision required for pressure-responsive condenser fan regulation in compatible refrigeration and air conditioning systems.
