Johnson Controls P70LB-1C Dual Pressure Control With Automatic Reset and 36-Inch Capillary Connections
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P70LB-1C
Description
The Johnson Controls P70LB-1C is an electromechanical dual pressure control for commercial refrigeration and air conditioning systems. It monitors both low-side and high-side refrigerant pressure and operates a single switch to control compressor operation within configured pressure limits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Sensors & Switches |
| Part Number | P70LB-1C |
| Subcategory | Pressure Switches |
| Series | P70 / PENN |
| Product Type | Electromechanical dual pressure control |
| Switch Configuration | Single-pole, single-throw |
| Low-Pressure Range | 20 inches of mercury vacuum to 100 psig |
| Low-Pressure Differential | Adjustable, approximately 6–50 psi |
| High-Pressure Range | 100–500 psig |
| High-Pressure Differential | Fixed, approximately 65 psi |
| Reset Action | Automatic on both pressure sides |
| Capillary Length | 36 inches |
| Pressure Connections | 1/4-inch flare nuts |
| Refrigerant Compatibility | Compatible non-corrosive refrigerants; not the ammonia-compatible version |
| Adjustment Feature | Limited low-pressure cutout knob adjustment |
| Enclosure | NEMA 1; steel case and cover |
| Application | Commercial refrigeration and air conditioning compressor control |
| Weight | 3.00 lbs |
Information About P70LB-1C

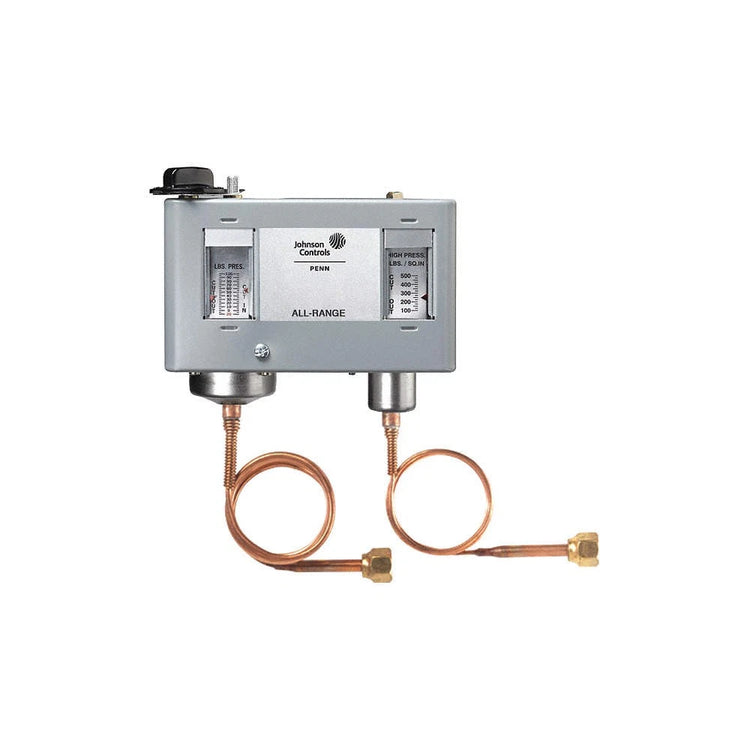

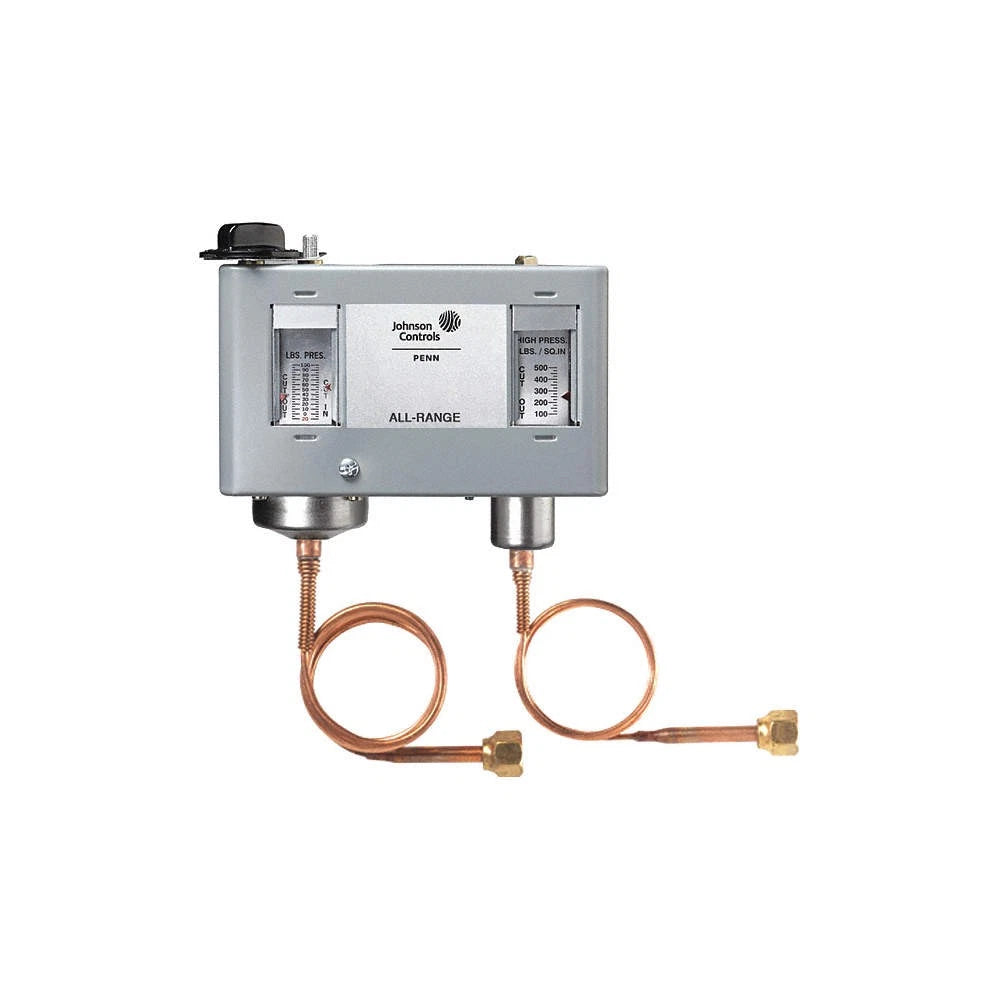

The P70LB-1C is an all-range model in the Johnson Controls/PENN P70 Series. Its steel case encloses pressure-actuated bellows and a mechanically operated switching mechanism. The control connects to compatible non-corrosive refrigerant circuits through capillary tubing with flare fittings. Visible pressure scales and an external low-pressure adjustment knob support setting and checking the operating thresholds.
Key Features:
- Dual pressure sensing: Combines high-side and low-side pressure control in one device.
- Low-pressure adjustment: Covers a range from 20 inches of mercury vacuum to 100 psig.
- High-pressure adjustment: Provides a setting range of 100–500 psig.
- Automatic reset: Resets after pressure returns to the applicable operating threshold.
- Single switching circuit: Uses single-pole, single-throw contacts for the connected control circuit.
- Remote pressure connections: Includes 36-inch capillaries with 1/4-inch flare nuts.
- External setting visibility: Provides calibrated pressure scales for checking adjustments.
- Protective enclosure: Uses a NEMA 1 steel case for indoor installation.
The P70LB-1C delivers the reliability and precision required for combined high- and low-pressure compressor control in compatible refrigeration systems.
