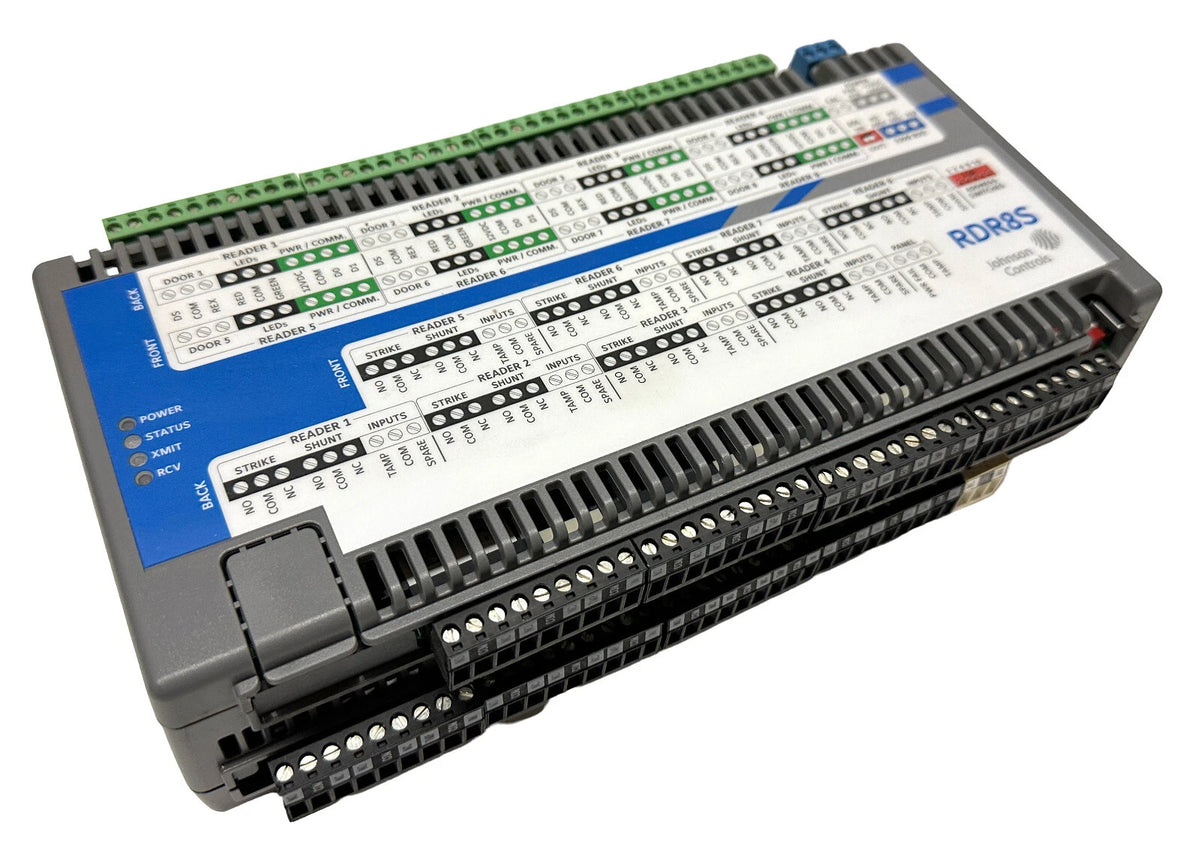

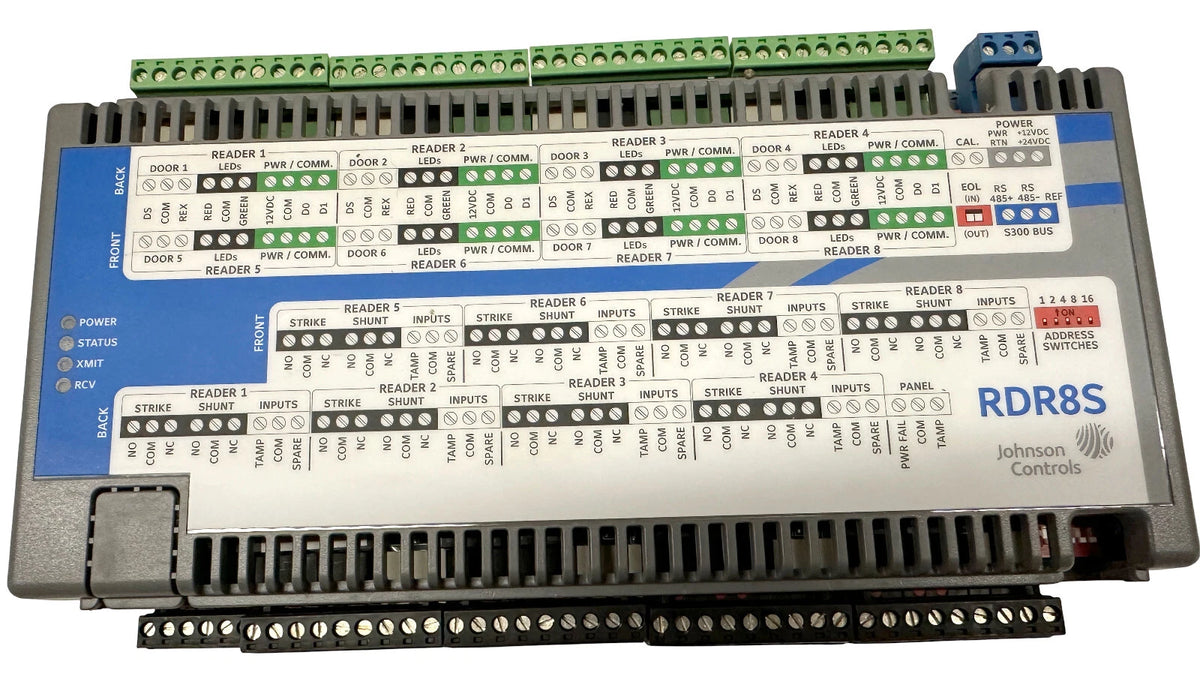

Johnson Controls S300-DIN-RDR8S Eight-Door Access Control Interface Module
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: S300-DIN-RDR8S
Description
The Johnson Controls S300-DIN-RDR8S is an eight-door access control interface module designed for building security and electronic access management systems. It connects card readers, door monitoring sensors, request-to-exit devices, and door control relays to compatible Johnson Controls security controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Access Control |
| Part Number | S300-DIN-RDR8S |
| Subcategory | Door Access Control Modules |
| Product Type | Eight-Door Access Control Interface Module |
| Product Series | S300 Series |
| Door Capacity | Up to 8 doors |
| Input Voltage | 12–24 V DC |
| Communication Interface | RS-485 |
| Communication Speed | 9,600 or 19,200 baud |
| Reader Interface | Wiegand Data0/Data1; supported reader configurations |
| Inputs | Supervised door, request-to-exit, tamper, and spare inputs |
| Relay Outputs | Door strike and alarm shunt relays per door interface |
| Indicator Outputs | Red and green reader LED drivers |
| Reader Power Output | 12 V DC, 250 mA per reader |
| Mounting Type | DIN rail or flat surface |
| Dimensions (H × W × D) | 5.15 × 10.58 × 2.50 in |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | 10–85% |
| Certifications | FCC Class B, CE, C-Tick, ICES-003 Class B |
| Weight | 2.75 lb |
Information About S300-DIN-RDR8S
The S300-DIN-RDR8S belongs to the Johnson Controls S300 Series of modular access control hardware. It supports up to eight door interfaces, with each interface providing reader communication, supervised inputs, relay outputs, and red and green indicator control. The module communicates with compatible controllers over an RS-485 bus and accepts a nominal 12–24 V DC power supply. Its DIN-rail or flat-surface mounting options support installation in compatible security control enclosures.
-
Eight-Door Support: Provides access control interfaces for up to eight doors.
-
Reader Interface: Supports compatible Wiegand card readers and specified reader protocols.
-
Supervised Inputs: Monitors door status, request-to-exit, tamper, and spare input circuits.
-
Door Strike Relays: Provides relay outputs for compatible door-lock control circuits.
-
Alarm Shunt Relays: Supports alarm shunting during authorized access events.
-
Communication Protocol: Uses RS-485 communication at 9,600 or 19,200 baud.
-
Power Supply: Accepts a nominal input voltage of 12–24 V DC.
-
Mounting Options: Supports DIN-rail or flat-surface installation.
The S300-DIN-RDR8S delivers the reliability and precision required for multi-door access control and security system integration.
