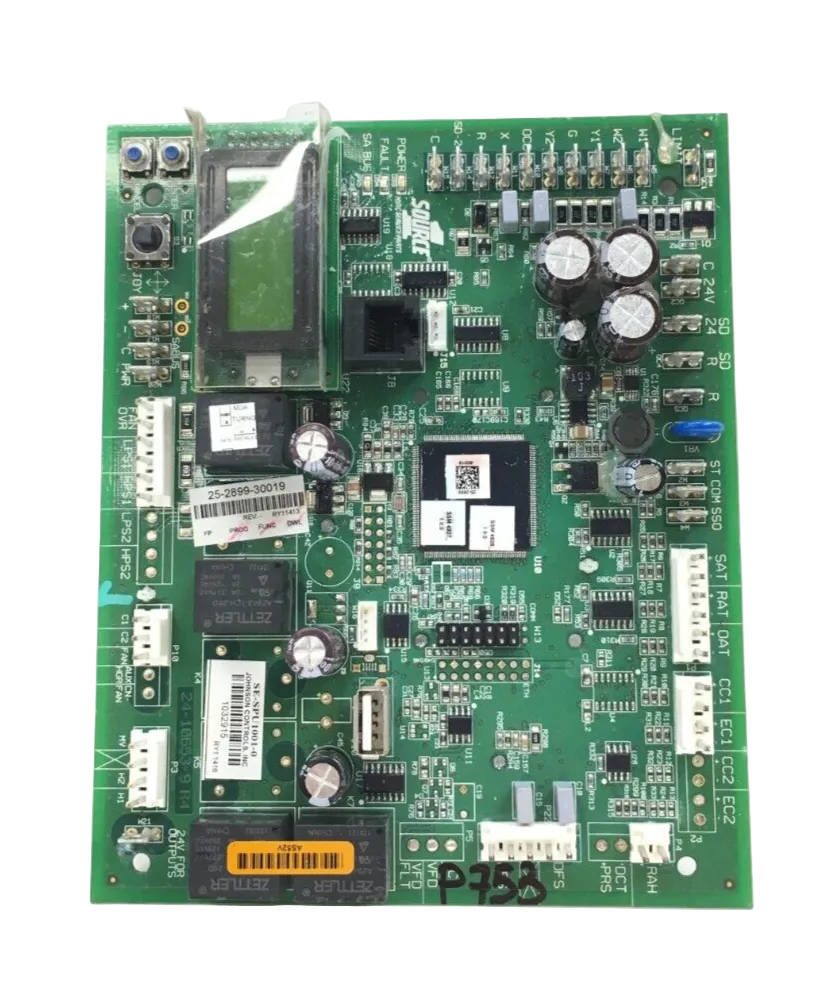

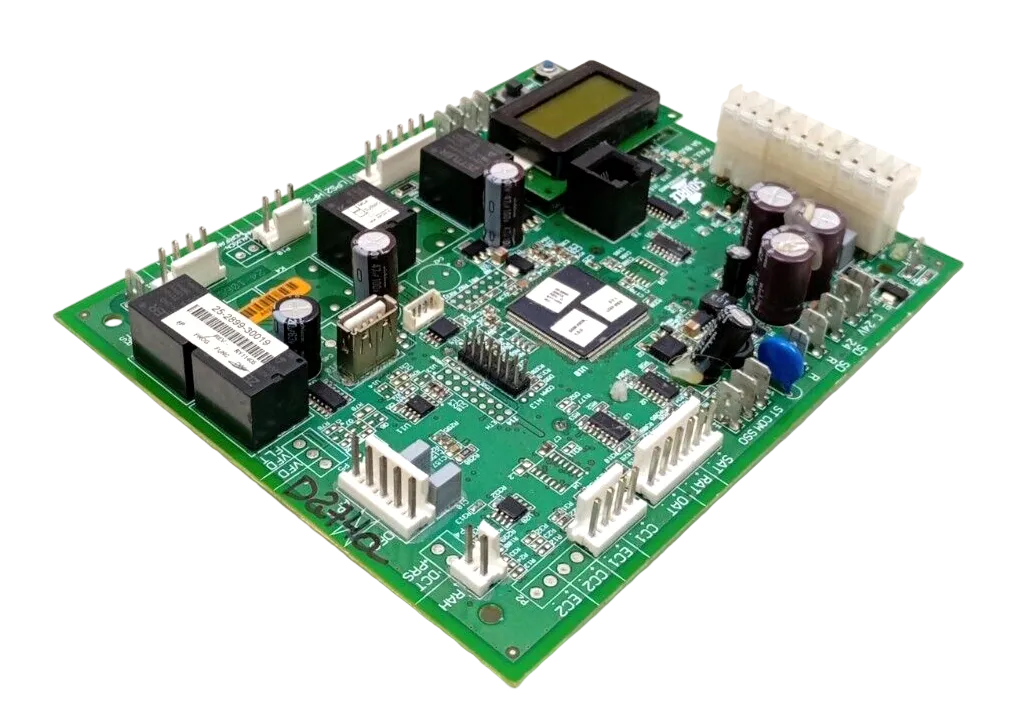

Johnson Controls SE-SPU1001-0 Single-Stage HVAC Unit Control Board
- Regular price
- $2,215.00
- Sale price
- $2,215.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE-SPU1001-0
Description
The Johnson Controls SE-SPU1001-0 is a single-stage unit control board designed to manage heating and cooling functions in compatible commercial HVAC equipment. It processes temperature sensor signals, equipment status inputs, and control commands to coordinate system operation.
Technical Specifications
| Condition | New/Never Used Surplus3.30 |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | SE-SPU1001-0 |
| Subcategory | Unit Control Boards |
| Product Type | Single-Stage Unit Control Board |
| Product Series | SE-SPU Series |
| Control Technology | Direct Digital Control (DDC) |
| Power Supply | 24 VAC nominal |
| Allowable Input Voltage | 20–30 VAC |
| Power Supply Frequency | 50/60 Hz |
| Maximum Power Consumption | 15 VA, excluding peripheral loads |
| Analog Inputs | 9 |
| Binary Inputs | 13 |
| Binary Outputs | 5 |
| Processor | Renesas RX631 Microcontroller |
| Memory | 2 MB internal program flash, 32 KB internal E2Data flash, 4 MB external serial flash |
| Construction | Unpackaged printed circuit board with silkscreen labels |
| Mounting | Nylon standoffs |
| Dimensions (H × W × D) | 1.44 × 6.50 × 5.27 in |
| Weight | 3.30 lb |
Information About SE-SPU1001-0
The SE-SPU1001-0 belongs to the Johnson Controls SE-SPU Series of Smart Equipment unit control boards. Its direct digital control architecture supports single-stage HVAC applications, including monitoring temperature sensors and safety circuits while controlling connected equipment. The SE-SPU1001 platform provides nine analog inputs, 13 binary inputs, and five binary outputs for equipment monitoring and control. The board uses a Renesas RX631 microcontroller and an unpackaged printed circuit board design mounted on nylon standoffs.
-
Control Configuration: Designed for single-stage HVAC equipment.
-
Analog Inputs: Nine inputs support temperature sensors and other compatible analog signals.
-
Binary Inputs: Thirteen inputs support equipment status and safety monitoring.
-
Binary Outputs: Five outputs provide switching and control functions.
-
Sensor Compatibility: Supports 10k RTD temperature sensors, 0–10 VDC signals, and 24 VAC voltage monitoring.
-
Processor: Uses a Renesas RX631 microcontroller for control processing.
-
PCB Construction: Unpackaged circuit board with silkscreen labels for component identification.
-
Mounting: Installs using nylon standoffs within compatible HVAC equipment.
The SE-SPU1001-0 delivers the reliability and precision required for single-stage HVAC control, sensor monitoring, and equipment sequencing.
