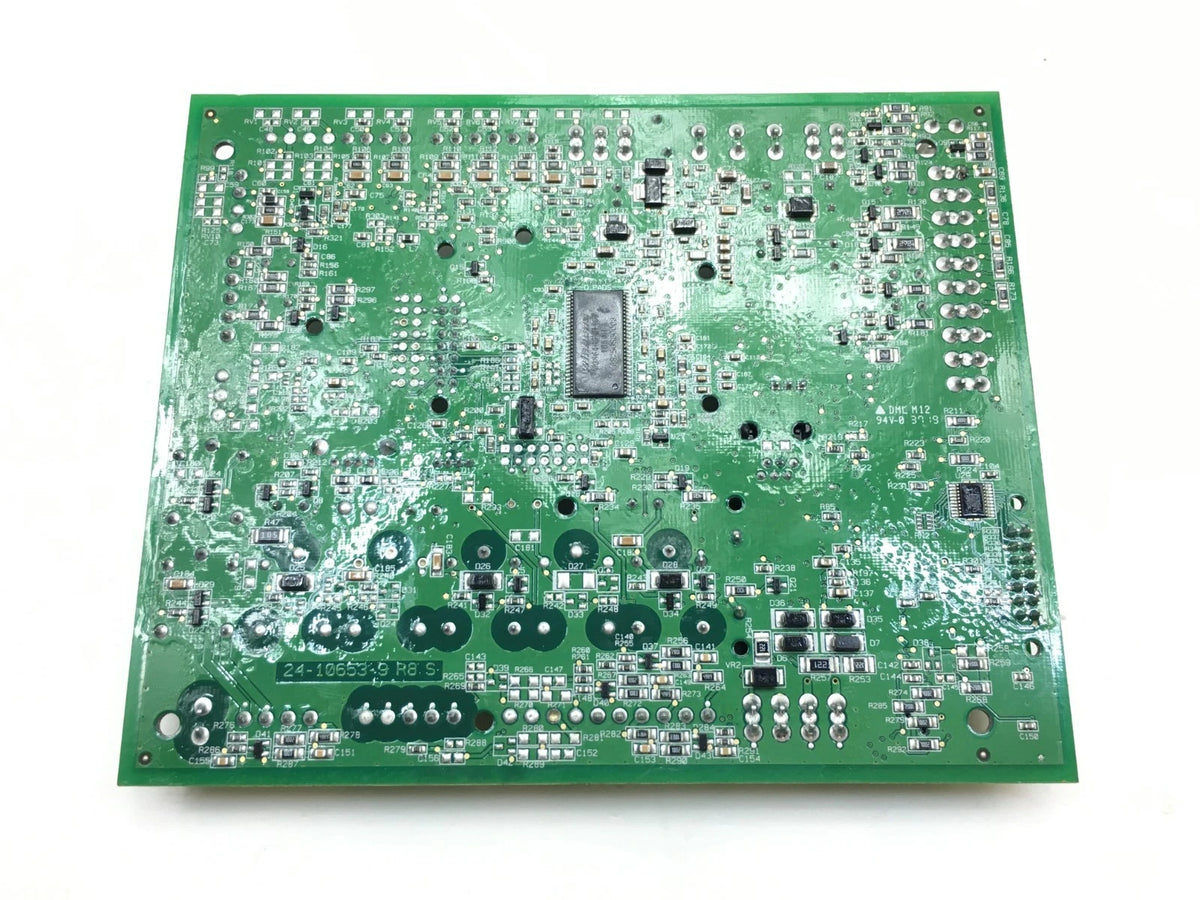

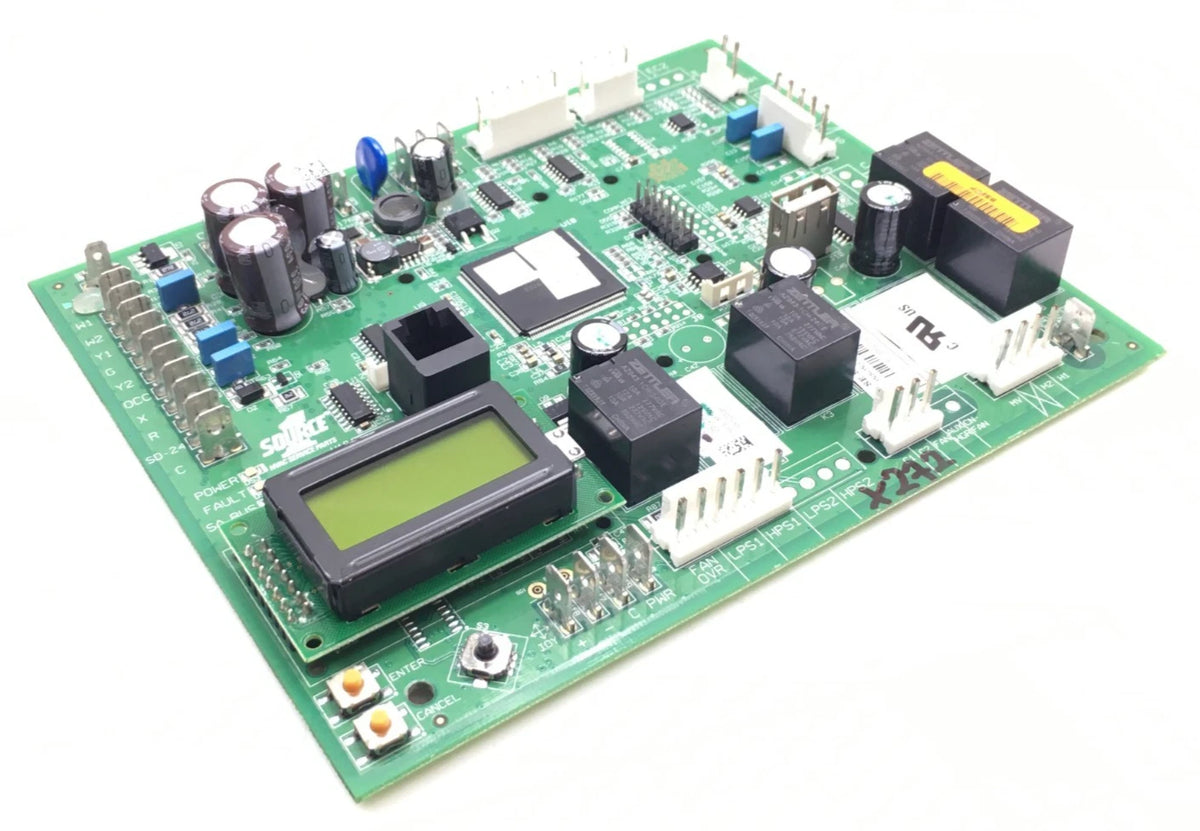

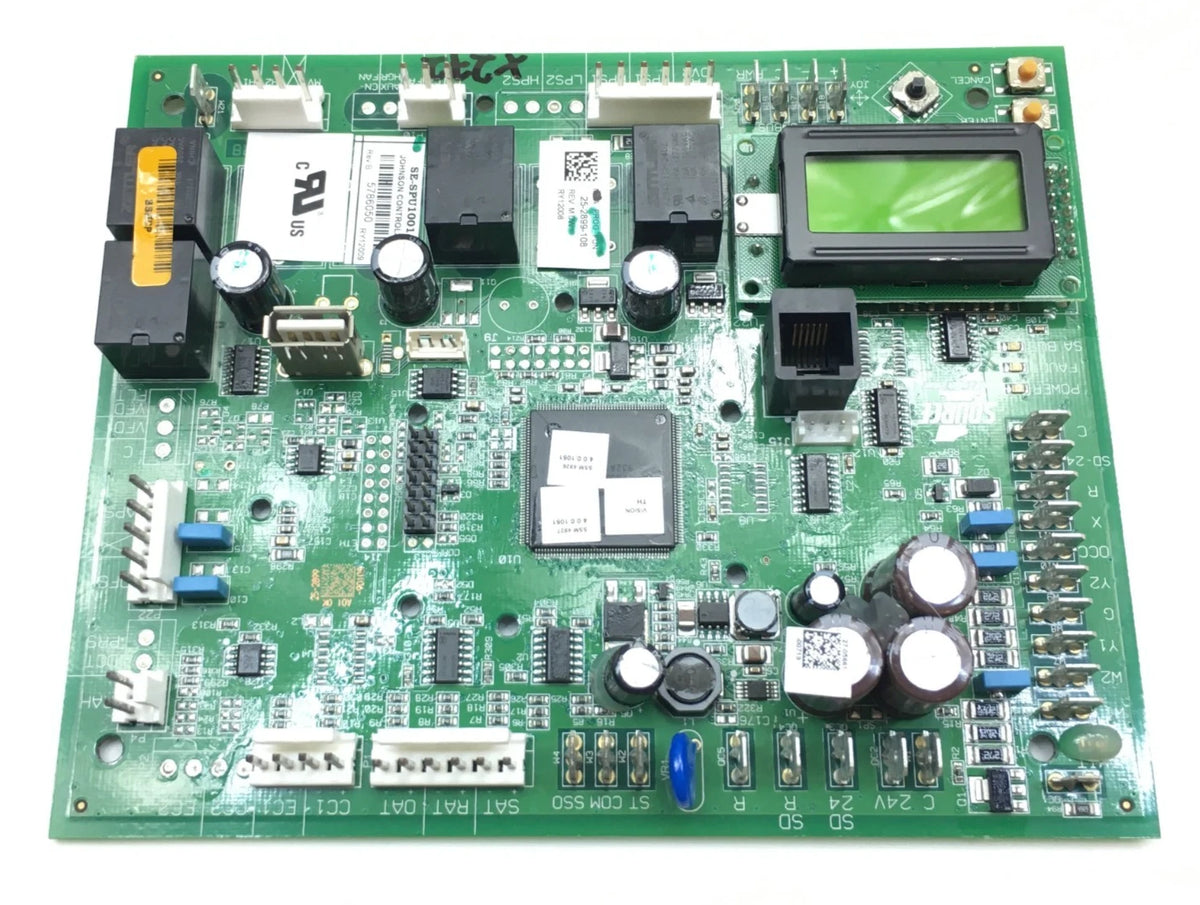

Johnson Controls SE-SPU1001-7 Single-Stage Smart Equipment Control Board
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE-SPU1001-7
Description
Johnson Controls SE-SPU1001-7 is a single-stage unit control board for Smart Equipment HVAC systems. It coordinates unit operation through connected sensors, safety inputs, and control outputs, and is specified as the version without a communication card.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Unit Control Boards |
| Part Number | SE-SPU1001-7 |
| Subcategory | Single-Stage Unit Control Boards |
| Product Family | Smart Equipment SE-SPU |
| Board Configuration | Single-stage UCB, without communication card |
| Power Supply | 24 VAC nominal, Class 2 (SE-SPU1001 series specification) |
| Analog Inputs | 9 on the related SE-SPU1001 configuration |
| Binary Inputs | 13 on the related SE-SPU1001 configuration |
| Binary Outputs | 5 on the related SE-SPU1001 configuration |
| Output Types | 4 relay outputs and 1 transistor output on the related SE-SPU1001 configuration |
| Board Dimensions | Approx. 36 × 165 × 133 mm, SE-SPU series specification |
| Weight | 1.5 kg |
Information About SE-SPU1001-7
The SE-SPU1001-7 is part of Johnson Controls’ Smart Equipment SE-SPU unit control board family. It is configured for single-stage equipment and is identified for installations without a communication card. The SE-SPU series uses analog inputs, binary inputs, and relay or transistor outputs to interface with HVAC sensors, safety circuits, and equipment functions. The related SE-SPU1001 single-stage configuration is specified for 24 VAC Class 2 power and includes 9 analog inputs, 13 binary inputs, and 5 binary outputs; verify the board revision and equipment setup before replacement.
Key Features:
- Single-Stage Unit Control: Controls compatible HVAC equipment configured for one heating or cooling stage.
- No Communication Card: Identified as the SE-SPU1001-7 version without a communication card.
- Sensor Input Interface: The related SE-SPU1001 configuration provides analog inputs for temperature and voltage sensing.
- Binary Input Connections: Supports equipment and safety status inputs through the board’s binary input channels.
- Switching Outputs: The SE-SPU1001 configuration includes relay and transistor outputs for unit control functions.
- Smart Equipment Board: Serves as a central control board in compatible Johnson Controls Smart Equipment HVAC systems.
The SE-SPU1001-7 delivers the reliability and precision required for single-stage HVAC unit control.
