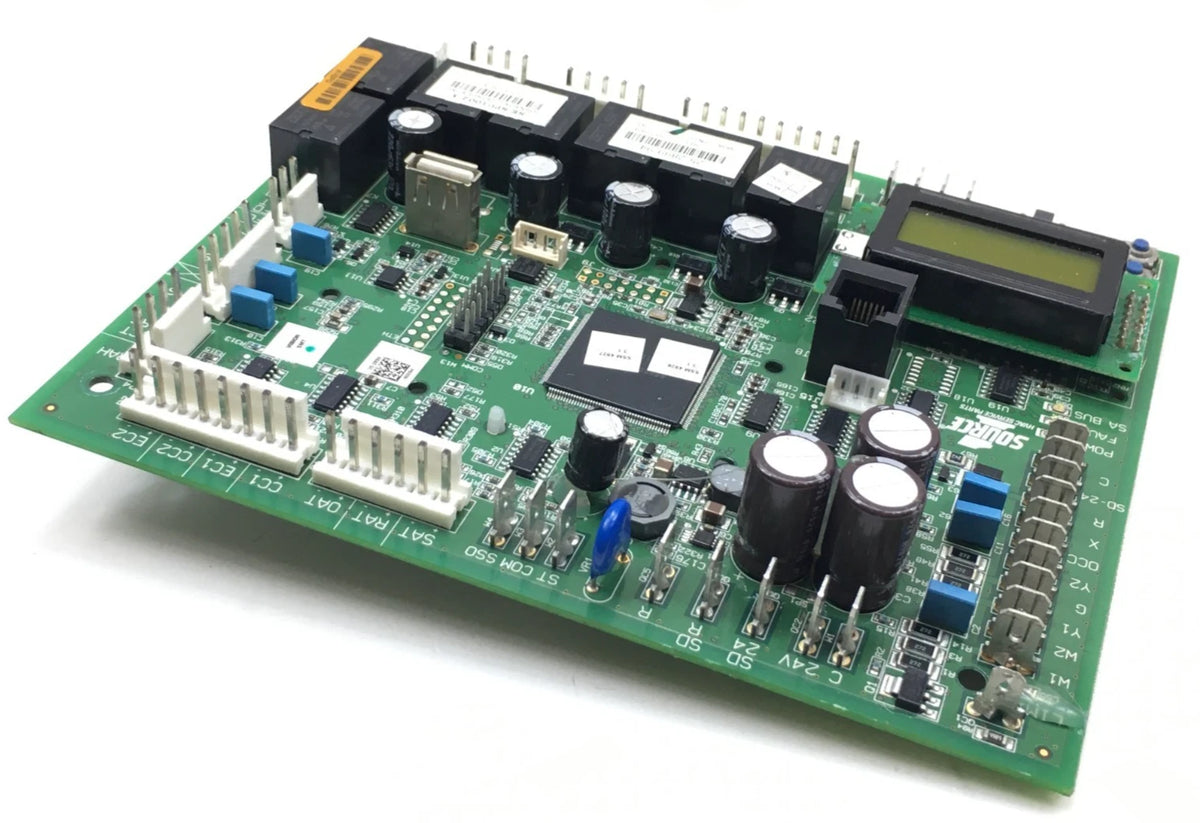

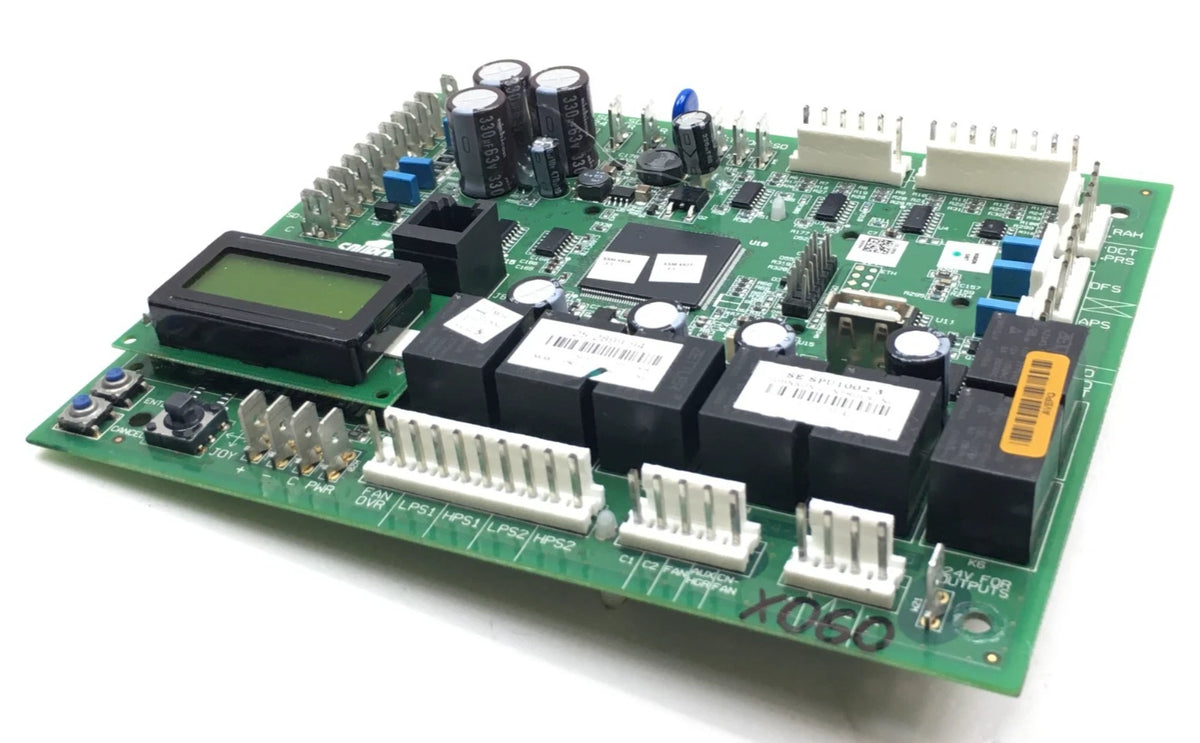

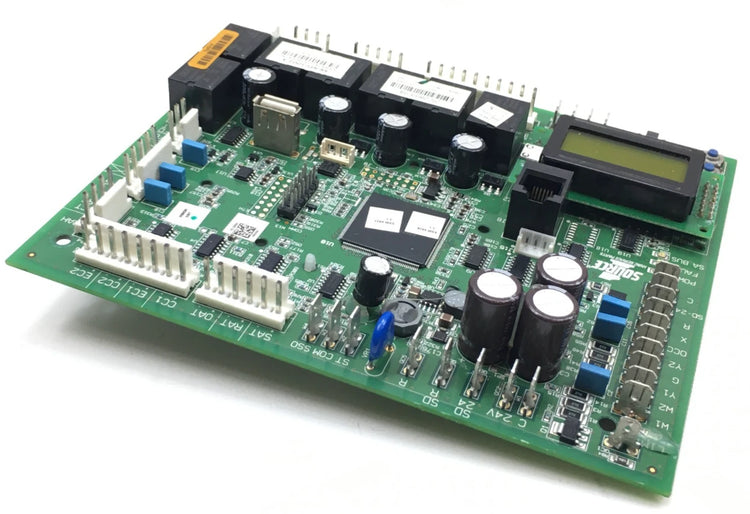

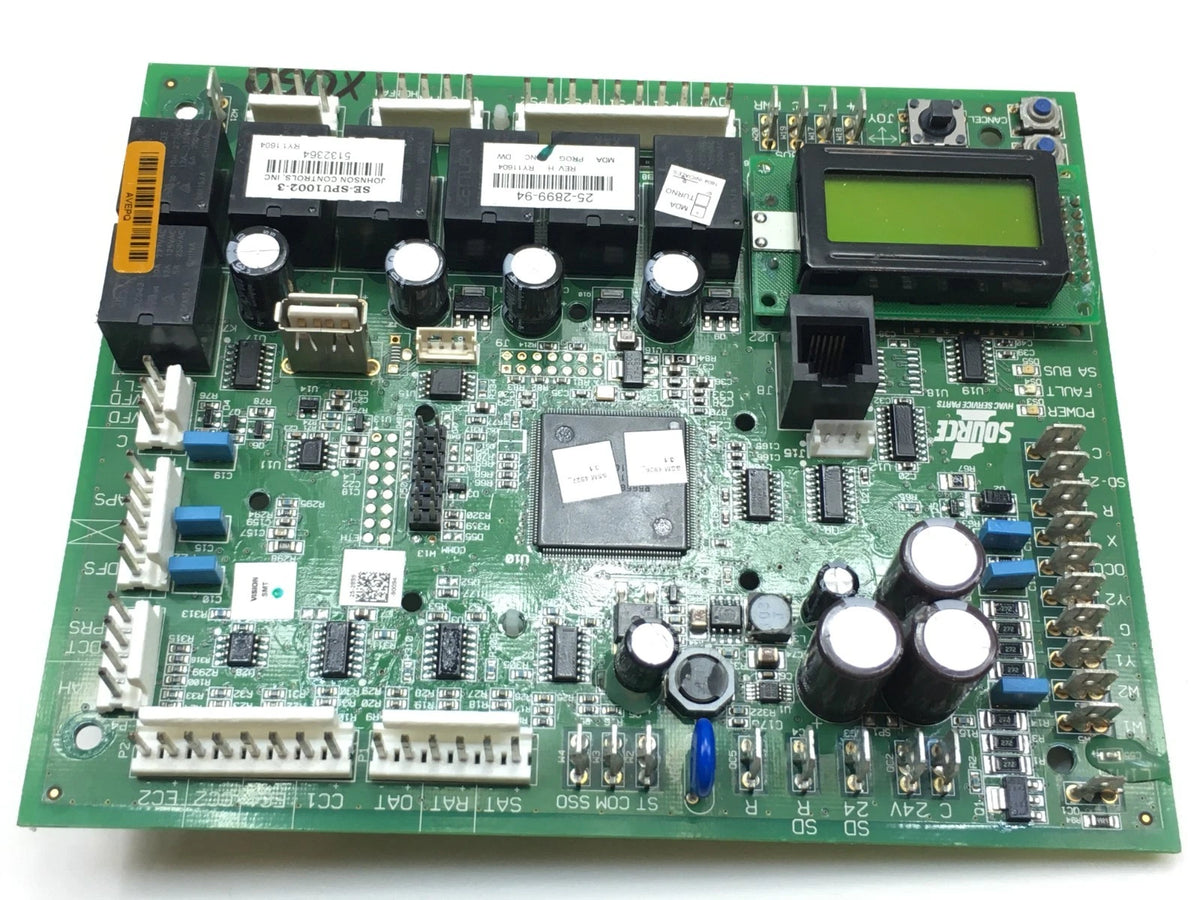

Johnson Controls SE-SPU1002-3 Dual-Stage Smart Equipment Unit Control Board With Digital Display
- Regular price
- $2,212.00
- Sale price
- $2,212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE-SPU1002-3
Description
The Johnson Controls SE-SPU1002-3 is a dual-stage unit control board for compatible commercial heating and cooling equipment. It combines digital equipment control with a local display for configuration, operating information, and diagnostics.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | SE-SPU1002-3 |
| Subcategory | Unit Control Boards |
| Product Family | SE-SPU; Simplicity Smart Equipment |
| Controller Type | Dual-stage unit control board |
| Control Technology | Microprocessor-based direct digital control |
| Construction | Printed circuit board assembly |
| Nominal Power Supply | 24 VAC |
| Supply Voltage Range | 20–30 VAC, according to SE-SPU1002 family specifications |
| Supply Frequency | 50/60 Hz |
| User Interface | Local digital display with navigation controls |
| Memory Revision | 8 MB hardware associated with version 3.1 |
| Documented Original Firmware | Version 3.1.0.0128; installed firmware may differ |
| Field Communications | Expansion board not included in the standard SE-SPU1002-3 configuration |
| Firmware Service Functions | USB updating and supported accessory-controller auto-update |
| Replacement Reference | SE-SPU1002-1 |
| Service Part Reference | S1-03103508000 |
| Weight | 2.00 lbs |
Information About SE-SPU1002-3
The SE-SPU1002-3 is part of the Simplicity Smart Equipment SE-SPU controller family. Its printed circuit board integrates a microprocessor, equipment connections, and a local operator interface. Johnson Controls identifies this revision as a two-stage controller without the field communications option, with a separate communications board available for supported installations. The version 3.1 hardware incorporates expanded memory to support automatic firmware updates of compatible connected accessory controllers.
Key Features:
- Dual-stage operation: Coordinates heating and cooling stages in supported equipment configurations.
- Digital display: Provides local access to operating status, configuration settings, and diagnostic information.
- Equipment interfaces: Connects controller logic to compatible thermostat signals, sensors, and controlled outputs.
- Low-voltage supply: Uses nominal 24 VAC power within the Smart Equipment control architecture.
- Expanded memory: Incorporates the 8 MB memory hardware associated with version 3.1 controllers.
- Accessory updates: Supports automatic firmware synchronization with compatible accessory boards when supported firmware is installed.
- Replacement reference: Replaces SE-SPU1002-1, subject to equipment configuration and firmware requirements.
- Optional communications: Uses a separate field communications expansion board for supported network integration.
The SE-SPU1002-3 delivers the reliability and precision required for staged equipment operation and local diagnostics in compatible commercial climate control systems.
