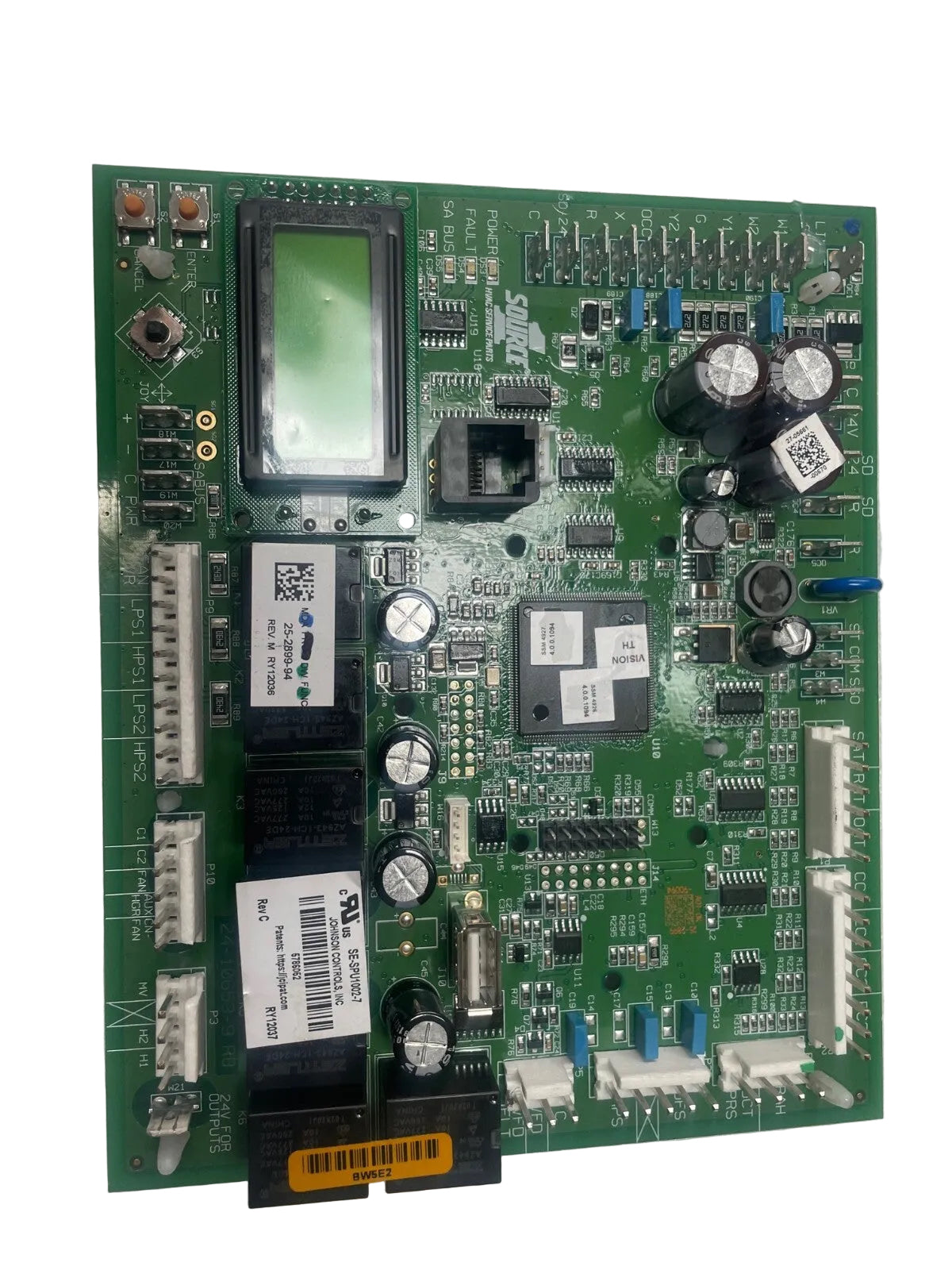

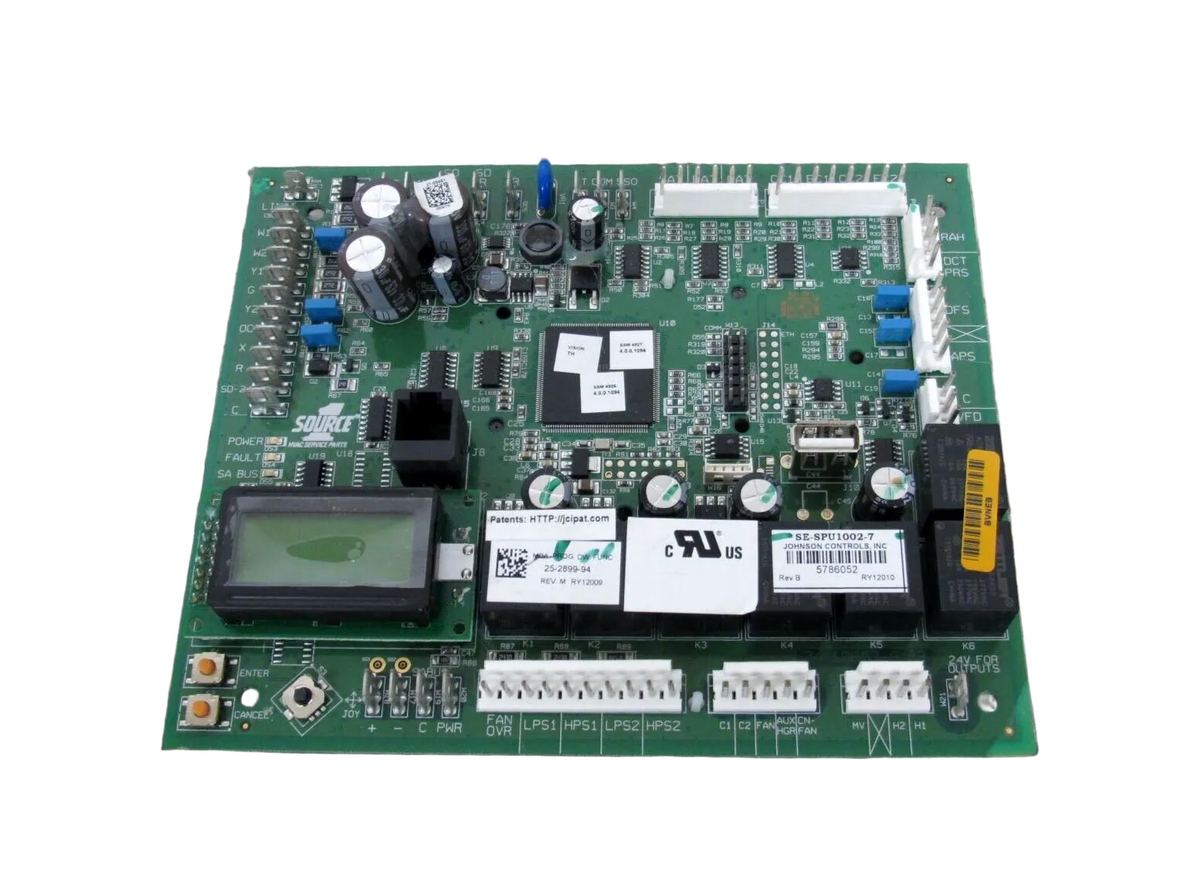

Johnson Controls SE-SPU1002-7 Simplicity SE Dual-Stage HVAC Control Board
- Regular price
- $462.00
- Sale price
- $462.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE-SPU1002-7
Description
The Johnson Controls SE-SPU1002-7 is a dual-stage HVAC unit control board designed to manage heating and cooling equipment functions. It processes sensor inputs and control signals to coordinate equipment operation in compatible Simplicity SE rooftop units.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | SE-SPU1002-7 |
| Subcategory | Unit Control Boards |
| Product Type | HVAC Control Board |
| Product Series | Simplicity SE |
| Control Configuration | Dual-Stage |
| Analog Inputs | 12 |
| Binary Inputs | 16 |
| Binary Outputs | 8 |
| Analog Outputs | 1 |
| Board Construction | Printed Circuit Board (PCB) |
| Application | Commercial HVAC Equipment Control |
| Weight | 1.00 lb |
Information About SE-SPU1002-7
The SE-SPU1002-7 belongs to the Johnson Controls Simplicity SE unit control board family. Its control architecture supports dual-stage equipment and integrates analog inputs, binary inputs, and switched outputs for HVAC monitoring and control. The related SE-SPU1002 platform provides 12 analog inputs, 16 binary inputs, eight binary outputs, and one analog output. This board is intended for compatible unit configurations, so the exact revision and equipment compatibility should be confirmed before replacement.
-
Control Function: Coordinates operating sequences in compatible HVAC equipment.
-
Control Type: Supports dual-stage heating and cooling applications.
-
Analog Inputs: The SE-SPU1002 platform supports 12 analog inputs.
-
Binary Inputs: Supports 16 binary inputs on the related control platform.
-
Binary Outputs: Provides eight binary outputs on the related platform.
-
Analog Output: Includes one analog output on the related platform.
-
Equipment Compatibility: Designed for supported Johnson Controls Simplicity SE systems.
-
Circuit Board Design: Electronic PCB assembly for integration into HVAC control equipment.
The SE-SPU1002-7 delivers the reliability and precision required for HVAC equipment sequencing, monitoring, and control.
