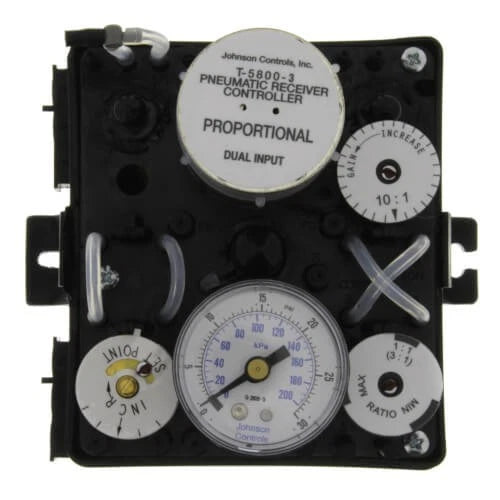

Johnson Controls T-5800-3 Dual-Input Pneumatic Receiver Controller
Part #:
T-5800-3
Manufactured by:
Johnson Controls
- Regular price
- $2,189.00
- Sale price
- $2,189.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Johnson Controls T-5800-3 is a dual-input proportional pneumatic receiver-controller designed to process remote transm...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: T-5800-3
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: T-5800-3
Description / Specifications
Description
Johnson Controls T-5800-3 is a dual-input pneumatic receiver-controller designed for proportional control of HVAC and process variables. It accepts pneumatic signals from remote temperature, humidity, pressure, or other compatible transmitters and provides a 3–15 PSIG output for controlling pneumatic devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | T-5800-3 |
| Subcategory | Pneumatic Controller |
| Series | T-5800 |
| Product Type | Pneumatic Receiver-Controller |
| Control Type | Proportional Only |
| Number of Inputs | 2 |
| Control Action | Direct or Reverse |
| Input Signal Range | 3–15 PSIG (21–105 kPa) |
| Output Signal Range | 3–15 PSIG |
| Supply Pressure | 20 PSIG Nominal |
| Operating Supply Range | 18–22 PSIG |
| Proportional Gain Range | 0.5:1 to 15:1 |
| Air Consumption | 60 SCIM |
| Maximum Output Capacity | 1000 SCIM |
| Tubing Connection | 1/4 in O.D. Poly Tubing |
| Set Point Adjustment | Local or Remote, Field Selectable |
| Output Pressure Gauge | Built-In |
| Body Material | Corrosion-Resistant Noryl |
| Weight | 1.18 lbs |
Information About T-5800-3
Key Features:
- Dual-Input Design: Provides controlled variable and master pneumatic inputs for flexible control applications.
- Proportional Control: Uses proportional-only regulation for HVAC and process control systems.
- 3–15 PSIG Signal Range: Accepts standard pneumatic transmitter signals from compatible remote devices.
- High-Volume Output: Provides substantial pneumatic output capacity for connected control devices.
- Adjustable Gain: Allows field adjustment of proportional gain to match application requirements.
- Selectable Control Action: Supports direct or reverse control action through field configuration.
- Built-In Pressure Gauge: Provides convenient monitoring of controller output pressure.
- Test Points and Snap-On Connections: Simplifies pressure testing, installation, and servicing of pneumatic lines.
The T-5800-3 delivers the proportional pneumatic control functionality required for compatible HVAC and process control applications.
