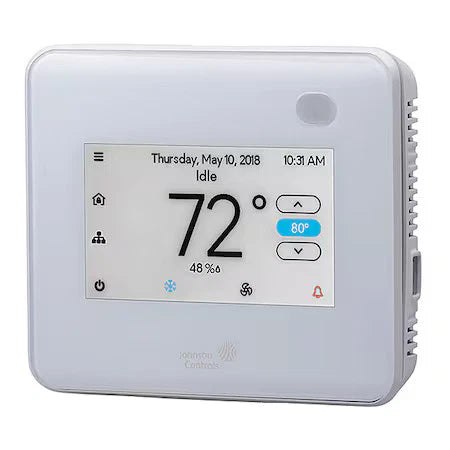

Johnson Controls TEC3622-14-000 BACnet Touchscreen Low Voltage Thermostat
- Regular price
- $529.00
- Sale price
- $529.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TEC3622-14-000
Description
Johnson Controls TEC3622-14-000 is a low-voltage touchscreen thermostat designed for fan coil units and zoning systems in commercial HVAC applications. It supports proportional 0–10 VDC control, BACnet MS/TP and N2 network integration, and configurable heating and cooling operation from a 19–30 VAC power supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | TEC3622-14-000 |
| Subcategory | Networked Thermostats |
| Product Type | Low Voltage Thermostat |
| Application | Heating and Cooling |
| Compatible Systems | Fan Coil Units, Zoning Systems |
| Supply Voltage | 19–30 VAC |
| Frequency | 50/60 Hz |
| Control Type | Touchscreen |
| Control Output | Up to 10 VDC Proportional |
| Network Protocols | BACnet MS/TP, N2 |
| Programming Capability | 7-Day or Nonprogrammable |
| System Settings | Auto, Heat, Cool, Off |
| Fan Settings | High, Medium, Low, Auto, Quiet |
| Temperature Control Range | 40°F to 100°F |
| Operating Temperature Range | 32°F to 122°F |
| Temperature Sensitivity | ±0.9°F |
| Humidification Control | Yes |
| Dehumidification Control | Yes |
| Dimensions | 5-5/8 in W × 4-3/4 in H × 1-7/16 in D |
| Weight | 0.76 lb |
Information About TEC3622-14-000
The TEC3622-14-000 is a Johnson Controls networked thermostat designed for temperature and equipment control within compatible building automation systems. Its touchscreen interface provides local access to operating modes, temperature settings, fan functions, and configurable HVAC parameters. The controller supports BACnet MS/TP and N2 communication while providing proportional output for fan coil and zoning applications. Built-in sensing, configurable 7-day or nonprogrammable operation, and humidification and dehumidification functions provide flexible room-level HVAC management.
Key Features:
- Touchscreen Interface: Provides an illuminated local interface for temperature, fan, and system adjustments.
- BACnet MS/TP Connectivity: Supports communication with compatible BACnet building automation networks.
- N2 Protocol Support: Provides compatibility with applicable Johnson Controls N2 control networks.
- Proportional Output: Supports up to 10 VDC proportional control for compatible fan coil and zoning equipment.
- Heating and Cooling Control: Supports configurations with up to two heating and two cooling stages depending on system type.
- Humidity Control: Supports humidification and dehumidification functions for compatible HVAC configurations.
- Flexible Fan Settings: Provides High, Medium, Low, Auto, and Quiet fan operating selections.
- Configurable Operation: Supports 7-day programming or nonprogrammable operation and includes USB port configuration capability.
The TEC3622-14-000 delivers the reliability and precision required for networked temperature, fan, and HVAC zone control in commercial building automation systems.
