Johnson Controls TEC3630-14-000 Networked Full-Color HVAC Thermostat
- Regular price
- $814.00
- Sale price
- $814.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TEC3630-14-000
Description

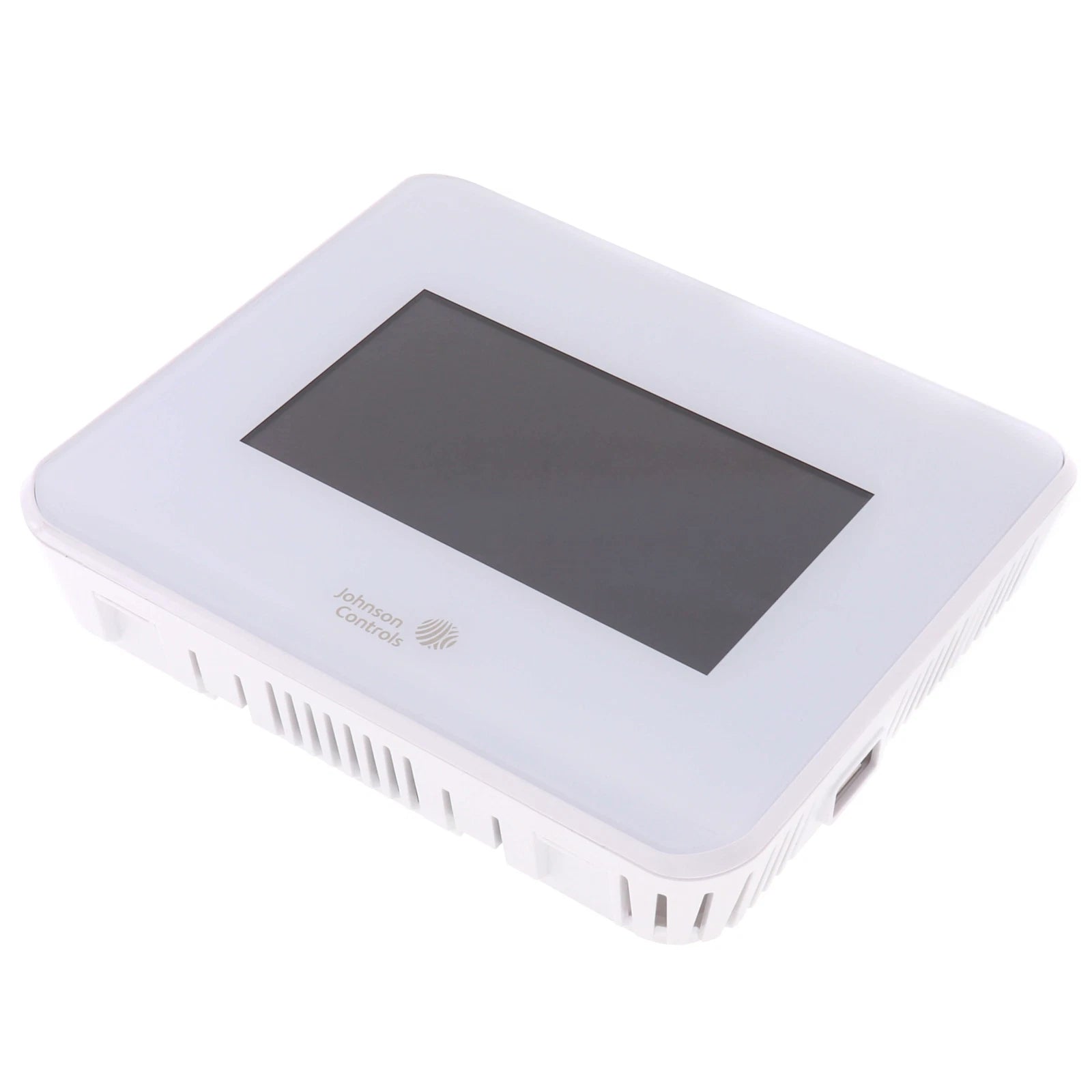

The Johnson Controls TEC3630-14-000 is a networked thermostat controller designed for rooftop unit and heat pump applications with an economizer. It supports field-selectable BACnet MS/TP or N2 communication and features a full-color display in a white housing with a Johnson Controls logo.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | TEC3630-14-000 |
| Subcategory | Networked Thermostats |
| Product Series | TEC3000 Color Series |
| Product Type | Networked HVAC Thermostat Controller |
| Communication | BACnet MS/TP or N2, Field-Selectable |
| Control Application | Single- or Two-Stage RTU / Heat Pump with Economizer |
| Supply Voltage | 19–30 VAC |
| Display | Backlit Full-Color LCD Touchscreen |
| Temperature Accuracy | ±0.9°F / ±0.5°C at 70°F / 21°C Typical |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | Up to 95% RH, Non-Condensing |
| USB Configuration | Supported |
| Integral Humidity Sensor | Yes |
| Color | White |
| BACnet Classification | BTL Listed B-AAC |
| Weight | 0.75 lb (0.34 kg) |
Information About TEC3630-14-000
The TEC3630-14-000 belongs to the Johnson Controls Thermostats family and is designed for networked HVAC control applications. Its field-selectable communication architecture allows operation on either BACnet MS/TP or N2 networks. The controller supports single- or two-stage RTU and heat pump equipment with economizer functionality. The unit measures 1.25 × 4.80 × 5.65 inches and has a listed net weight of 0.75 lbs.
Key Features:
- Networked Thermostat: Provides thermostat control for compatible networked HVAC equipment.
- BACnet MS/TP: Supports BACnet MS/TP communication for building automation integration.
- N2 Communication: Provides field-selectable N2 network operation.
- RTU Compatibility: Designed for single- or two-stage rooftop unit applications.
- Heat Pump Control: Supports compatible single- or two-stage heat pump equipment.
- Economizer Support: Designed for HVAC systems equipped with an economizer.

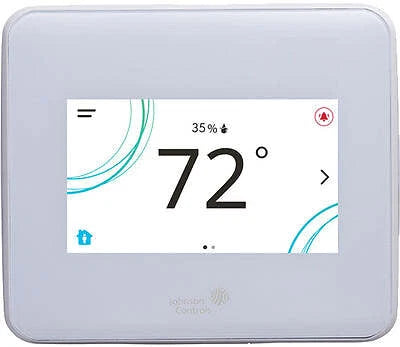

- Full-Color Display: Provides a full-color user interface for local thermostat operation.
- White Housing: Supplied in a white enclosure featuring the Johnson Controls logo.
The TEC3630-14-000 delivers the reliability and precision required for networked HVAC thermostat and building automation applications.
