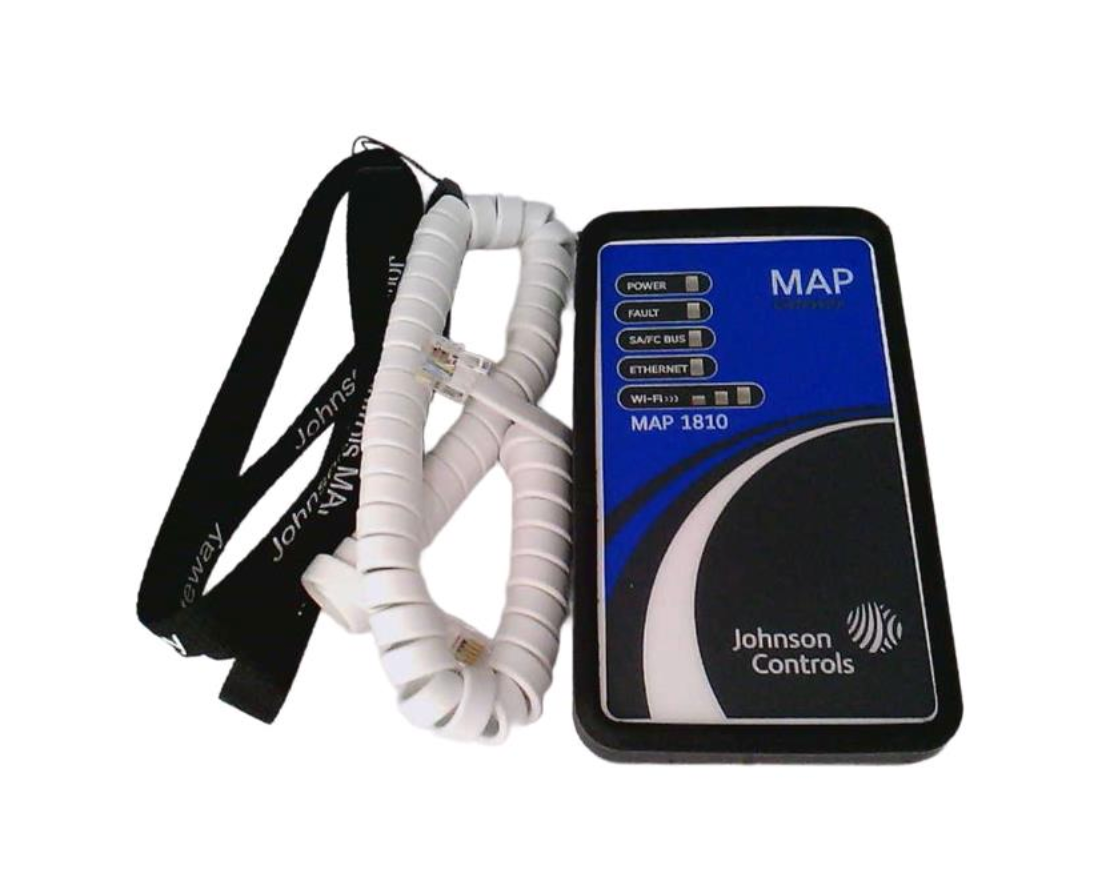

Johnson Controls TL-MAP1810-0P Portable Mobile Access Portal Gateway with Wi-Fi and Ethernet Connectivity
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TL-MAP1810-0P
Description
The Johnson Controls TL-MAP1810-0P is a portable Mobile Access Portal (MAP) Gateway that provides wireless access to Metasys®, Facility Explorer®, BCPro™, and compatible BACnet field controllers through a standard web browser. Featuring integrated Wi-Fi, Ethernet connectivity, and an RJ-12 field bus interface, the gateway enables technicians to commission, monitor, configure, and troubleshoot building automation equipment without dedicated display hardware. Its compact, portable design makes it an effective service tool for commercial HVAC and building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Computer |
| Part Number | TL-MAP1810-0P |
| Subcategory | Networking Router |
| Product Type | Portable Mobile Access Portal Gateway |
| Series | Mobile Access Portal (MAP) Gateway |
| Status | Discontinued by Manufacturer |
| Embedded Function | Web Server |
| Communication Protocol | BACnet MS/TP |
| Network Interfaces | Wi-Fi, Ethernet |
| Field Bus Connection | RJ-12 |
| Power Input | 15 VDC from SA/FC Bus |
| Maximum Power Consumption | 2.7 VA |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Typical Application | Building Automation Commissioning and Diagnostics |
| Weight | 0.50 lb (0.23 kg) |
Information About TL-MAP1810-0P
The TL-MAP1810-0P is a portable gateway within the Johnson Controls Mobile Access Portal (MAP) product family, designed to simplify commissioning and servicing of building automation systems. The device creates a secure Wi-Fi access point and embedded web server that allows smartphones, tablets, and computers to communicate directly with Metasys®, Facility Explorer®, BCPro™, TEC3000 thermostats, Smart Equipment rooftop units, and other supported BACnet MS/TP controllers through a standard web browser. In addition to portable field use, the gateway can also be permanently installed and connected through Ethernet to provide convenient local access to field devices. The MAP Gateway supports viewing and editing controller parameters, alarms, schedules, trends, and setpoints while eliminating the need for dedicated operator terminals or software installation.
Key Features:
- Portable MAP Gateway: Pocket-sized commissioning and diagnostic gateway for field service applications.
- Integrated Web Server: Provides browser-based access without requiring dedicated software installation.
- Secure Wi-Fi Connectivity: Connects smartphones, tablets, and computers directly to supported controllers.
- Ethernet and RJ-12 Interfaces: Supports wired Ethernet networking and direct MS/TP field bus connections.
- BACnet MS/TP Support: Communicates with Metasys®, Facility Explorer®, BCPro™, and compatible BACnet controllers.
- Mobile Commissioning Tool: Allows technicians to view, configure, override, and troubleshoot connected equipment.
- Alarm and Trend Access: Displays schedules, alarms, trends, and controller data through an intuitive web interface.
- Portable or Permanent Installation: Can be carried between job sites or mounted for continuous local access.
The TL-MAP1810-0P delivers the reliability and precision required for commissioning, diagnostics, and maintenance of commercial building automation and HVAC control systems.
