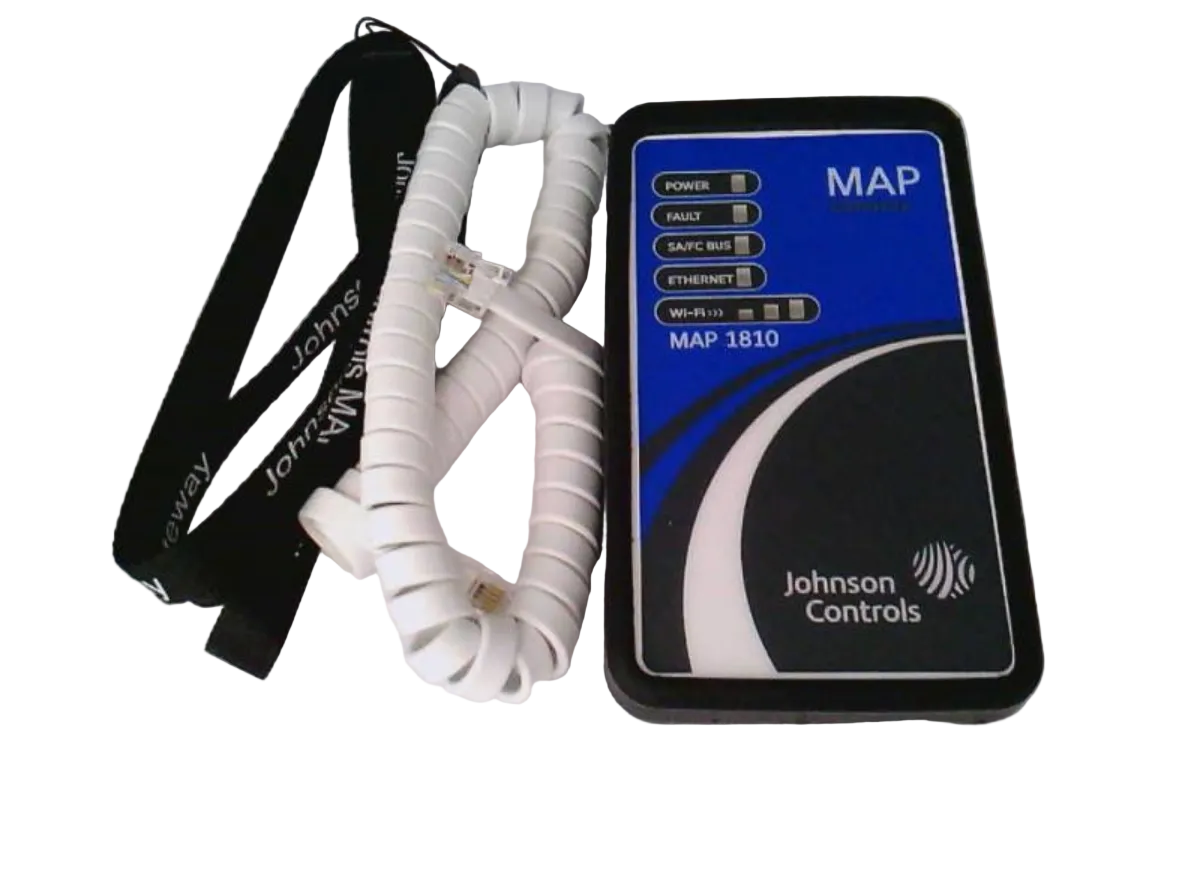

Johnson Controls TLMAP1810-0S Mobile Access Portal Gateway Web Server with Ethernet and Wi-Fi Connectivity
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TLMAP1810-0S
Description
The Johnson Controls TLMAP1810-0S is a stationary Mobile Access Portal (MAP) Gateway that provides wireless and Ethernet access to building automation controllers through a browser-based interface. Designed as a compact web server, the TLMAP1810-0S enables technicians to commission, configure, monitor, and troubleshoot Metasys, Facility Explorer, BCPro, and compatible BACnet devices using smartphones, tablets, or computers. Its integrated Wi-Fi and Ethernet connectivity simplify local access to field equipment without requiring dedicated software.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Computer |
| Part Number | TLMAP1810-0S |
| Subcategory | Networking Router |
| Product Type | Mobile Access Portal Gateway |
| Gateway Model | MAP 1810 Gateway Web Server |
| Communication Ports | RJ-12 SA/FC Bus, Ethernet, USB Micro-B |
| Ethernet Interface | 10/100 Mbps |
| Wireless Communication | IEEE 802.11 b/g/n Wi-Fi (2.4 GHz) |
| Supported Protocols | BACnet MS/TP, BACnet/IP |
| Power Source | 15 VDC from SA/FC Bus or External Power Supply |
| Power Consumption | 2.7 VA Maximum |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Mounting | Stationary Wall or Panel Mount |
| Security | WPA2 Wireless Security, SSL Support |
| Compatible Systems | Metasys, Facility Explorer, BCPro, TEC3000, Smart Equipment |
| Weight | Approximately 0.40 kg |
Information About TLMAP1810-0S
The TLMAP1810-0S is a member of the Johnson Controls Mobile Access Portal Gateway family developed for local access to building automation equipment through standard web browsers. It functions as a portable web server and network gateway that communicates with compatible BACnet MS/TP and BACnet/IP controllers while providing secure wireless and Ethernet connectivity. The gateway supports Johnson Controls Metasys, Facility Explorer, BCPro, TEC3000 Series thermostats, Smart Equipment rooftop units, and other compatible BACnet devices, making it a valuable commissioning and maintenance tool. Its compact design, integrated RJ-12 field bus connection, built-in Wi-Fi access point, and Ethernet interface allow technicians to quickly connect to field controllers for configuration and diagnostics.
Key Features:
- Mobile Access Portal Gateway: Provides browser-based access to compatible building automation controllers.
- Integrated Web Server: Allows configuration and monitoring without installing dedicated software.
- Dual Network Connectivity: Supports both Ethernet and integrated Wi-Fi communication.
- RJ-12 Field Bus Interface: Connects directly to SA Bus and FC Bus field controllers.
- BACnet Compatibility: Communicates with BACnet MS/TP and BACnet/IP building automation devices.
- Multi-Platform Support: Compatible with smartphones, tablets, laptops, and desktop computers using HTML5 web browsers.
- Secure Wireless Access: Supports WPA2 wireless security and encrypted communications.
- Compact Stationary Design: Intended for permanent installation with supplied mounting hardware and power supply.
The TLMAP1810-0S delivers the reliability and precision required for local building automation connectivity, controller commissioning, and network diagnostics.
