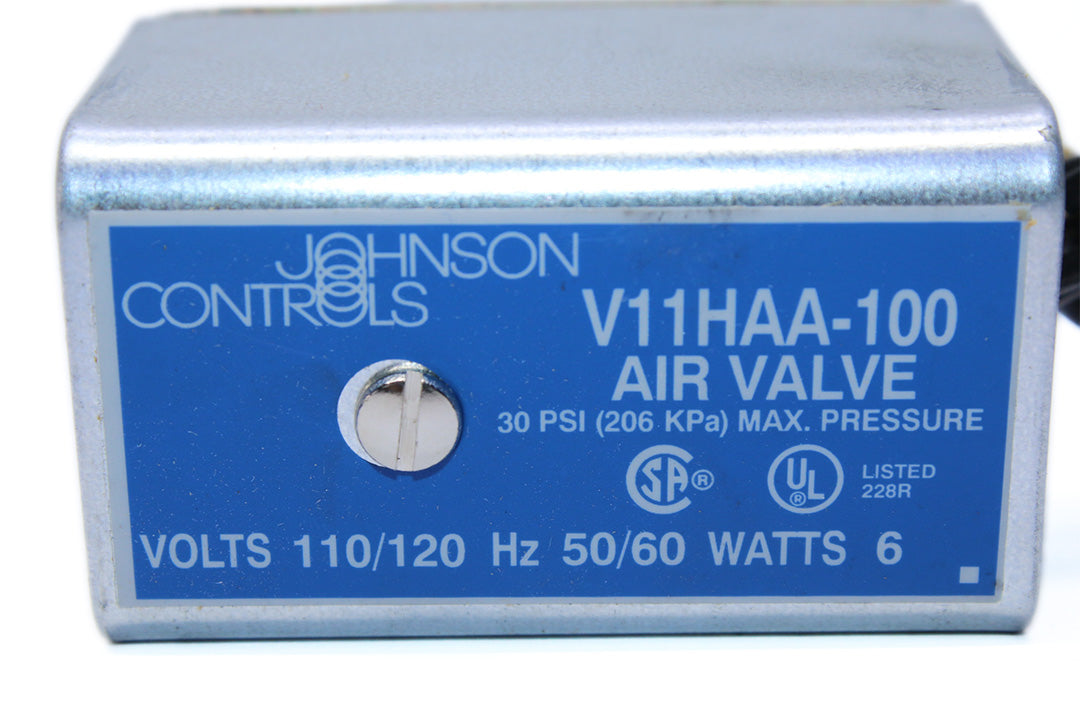

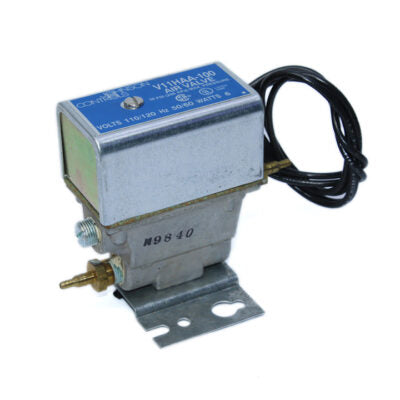

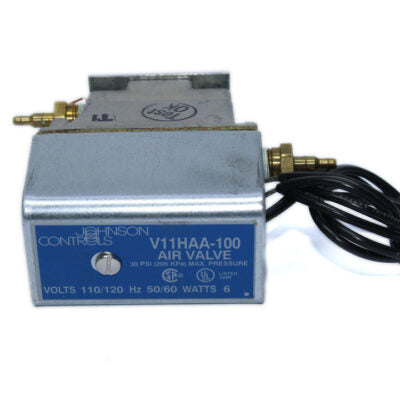

Johnson Controls V11HAA-100 Three-Way Pneumatic Solenoid Air Valve
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V11HAA-100
Description
The Johnson Controls V11HAA-100 is a three-way solenoid air valve that connects electrical control circuits to pneumatic devices. Operating on 110/120 V AC at 50/60 Hz, it switches between supply and exhaust paths for HVAC actuators and other pneumatic controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Valves |
| Part Number | V11HAA-100 |
| Subcategory | Solenoid Valve |
| Series | V11 |
| Valve Configuration | Three-way, two-position |
| Operating Medium | Air |
| Coil Voltage | 110/120 V AC |
| Supply Frequency | 50/60 Hz |
| Power Consumption | 6 W |
| Operating Pressure | 0–25 psig at all three ports |
| Maximum Pressure Rating | 30 psig |
| Rated Airflow | 1.5 CFM with 15 psig inlet pressure and 0 psig outlet pressure |
| Common and Normally Closed Connections | 1/4-inch barb |
| Normally Open Connection | 1/8-inch female NPT |
| Electrical Connection | 18-inch wire leads; 7/8-inch-diameter conduit opening |
| Ambient Temperature | 0 °C to +60 °C |
| Construction Materials | Die-cast aluminum body; cold-rolled steel cover and case |
| Mounting | Any position; attached bracket |
| Weight | 0.45 kg |
Information About V11HAA-100
The V11HAA-100 is part of the Johnson Controls V11 series of two-position air valves. Its common, normally closed, and normally open ports allow the pneumatic action to be selected through the supply and exhaust connections. In a typical arrangement, energizing the coil supplies air to the connected device, while de-energizing it allows that device to exhaust. An attached mounting bracket and unrestricted mounting orientation support installation in mechanical equipment and control assemblies.
Key Features:
- Three-Way Switching: Routes the common port between normally closed and normally open connections.
- Electrical Actuation: Operates from a 110/120 V AC control signal at 50/60 Hz.
- Reversible Pneumatic Action: Allows supply and exhaust connections to be arranged for the required operating sequence.
- Barbed Tubing Connections: Provides 1/4-inch barbs on the common and normally closed ports.
- Threaded Third Port: Uses a 1/8-inch female NPT connection on the normally open port.
- Flexible Installation: Supports mounting in any position using the attached bracket where needed.
- Manual Operation Option: Accepts the optional Y99AA-4C opener key for local valve operation.
- Metal Construction: Combines a die-cast aluminum valve body with a steel cover and case.
The V11HAA-100 delivers the reliability and precision required for electrical switching of pneumatic devices in HVAC and building control systems.
