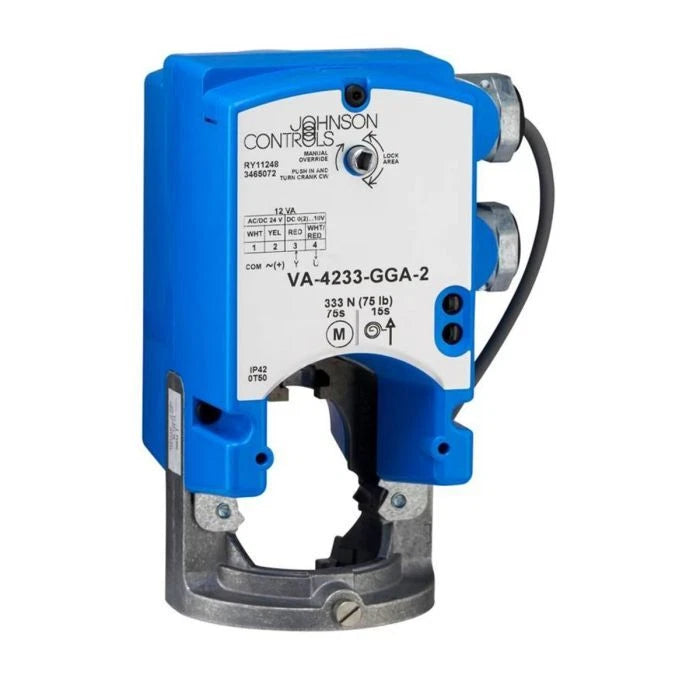

Johnson Controls VA-4233-GGA-2 24V Spring Return Globe Valve Actuator 61 in-lb
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VA-4233-GGA-2
Description
The Johnson Controls VA-4233-GGA-2 is a spring-return electric globe valve actuator designed for proportional HVAC control applications. It operates on 24 VAC/VDC power and provides 61 in-lb of torque for compatible two-way and three-way VG7000 series valve bodies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Control Equipment |
| Part Number | VA-4233-GGA-2 |
| Subcategory | Globe Valve Actuators |
| Product Type | Electric Globe Valve Actuator |
| Return Action | Spring Return |
| Input Power | 24 VAC / VDC |
| Frequency | 50/60 Hz |
| Control Signal | Proportional |
| Torque | 61 in-lb |
| Torque Range | 50–99 lb-in |
| Cycle Time | 76 sec |
| Stroke Length | 7/8 in |
| Auxiliary Switches | 0 |
| Fail Position | Failsafe |
| Electrical Lead Length | 4 ft |
| Electrical Connection | Cable |
| NEMA Rating | 2 |
| Mounting Type | Direct Mount |
| Compatible Series | VG7000 |
| Compatible Valve Bodies | Two-Way and Three-Way |
| Application | Chilled/Hot Water Control; Steam Control |
| Close-Off Pressure | 345 psi |
| Operating Temperature | 32°F to 122°F |
| Power Consumption | 12 VA |
| Electrical Leads | Included |
| Overall Height | 6-3/8 in |
| Overall Width | 4-1/8 in |
| Overall Depth | 3-5/8 in |
| Standards | CSA C22.2 No. 139; UL 873 |
| Country of Origin | Mexico |
| Weight | 3.045 lbs |
Information About VA-4233-GGA-2
The VA-4233-GGA-2 is a direct-mount actuator compatible with selected Johnson Controls VG7000 series globe valves. Its proportional control configuration is combined with a spring-return mechanism for fail-safe valve positioning. The actuator includes a 4-foot electrical lead, hardware kit, and cable connection for installation with compatible valve assemblies. It is suitable for chilled water, hot water, and steam control applications within an operating range of 32°F to 122°F.
Key Features:
- Proportional Control: Provides proportional operation for precise positioning of compatible globe valves.
- Spring Return: Uses a spring-return mechanism to provide fail-safe operation.
- 24 VAC/VDC Power: Operates from 24 VAC or 24 VDC at 50/60 Hz.
- 61 in-lb Torque: Provides 61 in-lb of actuator torque for compatible valve bodies.
- VG7000 Compatibility: Designed for selected Johnson Controls VG7000 series valve assemblies.
- Two-Way and Three-Way: Compatible with both two-way and three-way valve body configurations.
- Direct Mounting: Installs directly onto compatible valve bodies using the included hardware kit.
- Electrical Lead: Includes a 4-foot cable for connection to the control system.
The VA-4233-GGA-2 delivers the reliability and precision required for proportional HVAC valve control, hydronic systems, and fail-safe flow regulation.
