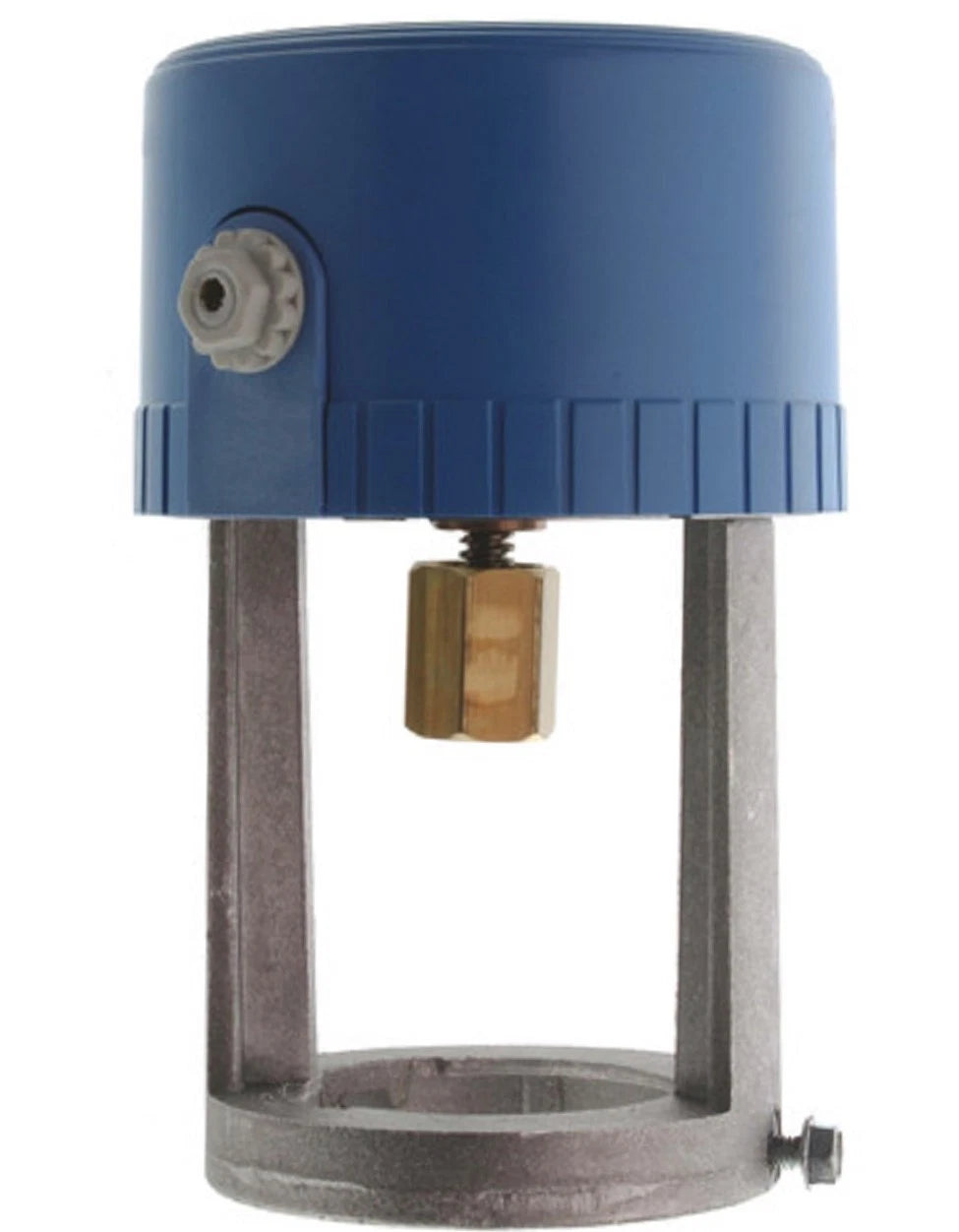

Johnson Controls VA-7150-1001 24V Three-Wire Floating Electric Globe Valve Actuator 90 lbf
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VA-7150-1001
Description
The Johnson Controls VA-7150-1001 is a three-wire floating electric valve actuator designed for incremental control of hydronic valves in commercial heating, ventilation, and air conditioning systems. Johnson Controls part number VA-7150-1001 operates on 24 VAC power and provides a minimum linear output force of 90 lbf (400 N) for positioning compatible globe valves. Its non-spring-return design, synchronous motor drive, and magnetic clutch support controlled valve movement and reliable operation in HVAC applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Johnson Controls |
|
Category |
HVAC & Building Automation |
|
Part Number |
VA-7150-1001 |
|
Subcategory |
Electric Valve Actuators |
|
Series |
VA-715x Series |
|
Product Type |
Three-Wire Floating Electric Globe Valve Actuator |
|
Actuator Technology |
Synchronous Motor-Driven Linear Actuator |
|
Control Type |
Incremental / Three-Wire Floating |
|
Operating Voltage |
24 VAC (20–30 VAC) |
|
Frequency |
50/60 Hz |
|
Power Consumption |
2.7 VA Nominal |
|
Control Input |
24 VAC Incremental |
|
Rated Output Force |
90 lbf (400 N) Minimum |
|
Stroke Range |
5/16–25/32 in (8–20 mm) |
|
Nominal Stroke Time at 60 Hz |
70 sec (5/16 in), 110 sec (1/2 in), 165 sec (3/4 in) |
|
Nominal Stroke Time at 50 Hz |
85 sec (5/16 in), 135 sec (1/2 in), 200 sec (3/4 in) |
|
Return Action |
Non-Spring Return |
|
Motor Protection |
Magnetic Clutch |
|
Compatible Valve Series |
VT, VG7000, VBC, Selected Flare Valves |
|
Valve Stem Connection |
1/4-28 UNF Thread |
|
Electrical Connections |
Screw Terminals, 16 AWG Maximum |
|
Enclosure Rating |
NEMA 2 / IP42 |
|
Operating Temperature |
0°F to 140°F (-18°C to 60°C) |
|
Storage Temperature |
-4°F to 150°F (-20°C to 65°C) |
|
Relative Humidity |
10–90%, Non-Condensing |
|
Maximum Media Temperature |
280°F (138°C) |
|
Dimensions |
3.84 in Diameter × 6.06 in Height |
|
Certifications |
UL 873 Listed, CSA C22.2 No. 139 Certified |
|
Position Feedback |
Not Included |
|
Weight |
1.4 lb |
Information About VA-7150-1001
The VA-7150-1001 is part of the Johnson Controls VA-715x Series of compact synchronous motor-driven actuators, engineered for incremental control of HVAC terminal unit valves and hydronic systems. Its three-wire floating control arrangement uses separate electrical commands to extend or retract the actuator stem, allowing a compatible controller to regulate valve position through timed motor operation. The actuator incorporates a magnetic clutch that maintains consistent output force, protects the motor during stall conditions, and supports positive valve closeoff. Designed for field installation or factory coupling with compatible VT Series, VG7000 Series, and VBC Series valves, the unit features a specialized mounting yoke and supports linear strokes up to 25/32 inch (20 mm).
Key Features:
-
Three-Wire Floating Control: Uses incremental 24 VAC control signals to extend or retract the valve actuator stem.
-
90 lbf Output Force: Provides a minimum linear force of 90 pounds (400 N) for operation of compatible HVAC valves.
-
24 VAC Power Supply: Operates from a 20–30 VAC electrical supply at 50/60 Hz.
-
Non-Spring-Return Operation: Does not use a spring mechanism to return the valve automatically when power is removed.
-
Synchronous Motor Drive: Provides controlled linear movement through an electromechanical drive assembly.
-
Magnetic Clutch Protection: Maintains consistent output force while protecting the motor against stall conditions.
-
Incremental Valve Positioning: Supports intermediate valve positions through timed extend and retract commands.
-
Extended Stroke Range: Accommodates valve stem travel up to 25/32 inch (20 mm).
-
Compatible Valve Families: Supports selected Johnson Controls VT, VG7000, VBC, and compatible flare valve assemblies.
-
Simplified Field Mounting: Features a specialized yoke design that reduces installation and stroke adjustment requirements.
-
Screw Terminal Connections: Accepts field wiring up to 16 AWG for connection to compatible HVAC controllers.
-
NEMA 2 / IP42 Enclosure: Provides protection for installation in suitable indoor mechanical and HVAC control environments.
The VA-7150-1001 delivers the reliability and precision required for incremental hydronic valve positioning, HVAC temperature regulation, and three-wire floating control applications.
