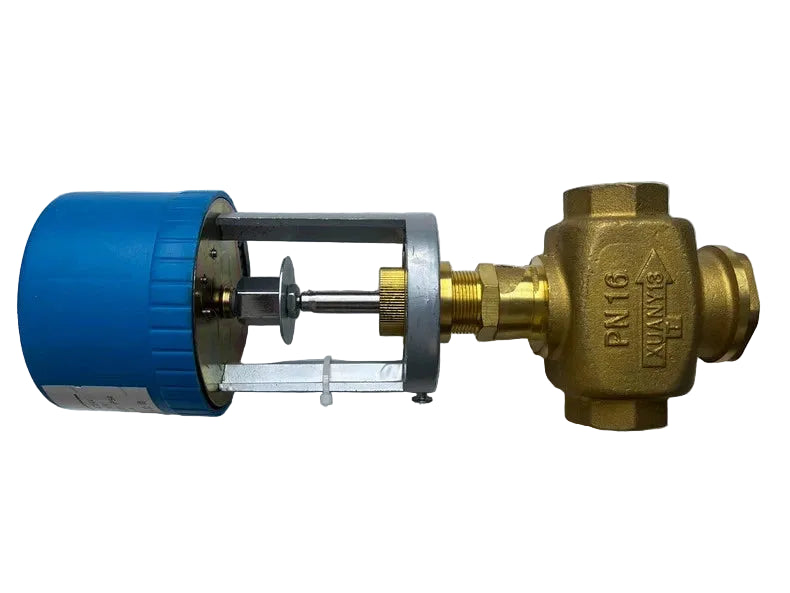

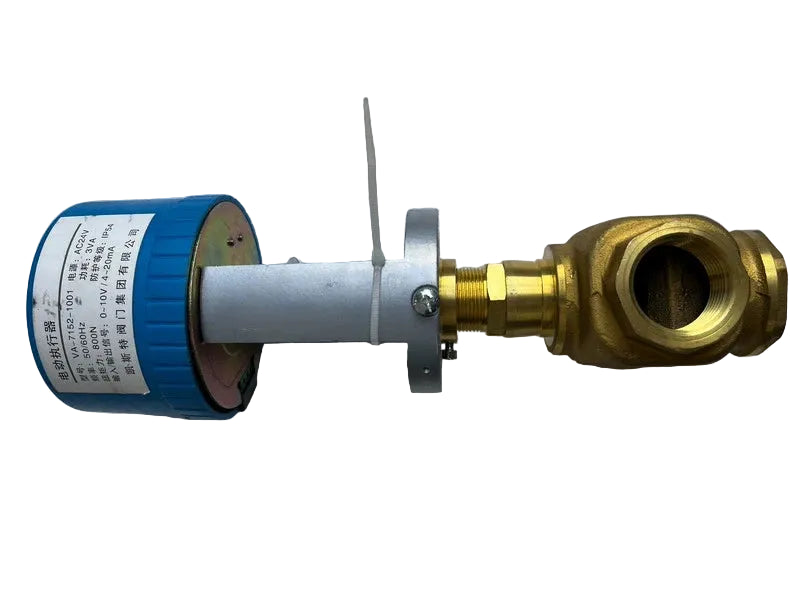

Johnson Controls VA-7152-1001 24V Proportional Electric Globe Valve Actuator 90 lbf
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VA-7152-1001
Description
The Johnson Controls VA-7152-1001 is a proportional electric valve actuator designed for precise control of water flow in commercial heating, ventilation, and air conditioning systems. Johnson Controls part number VA-7152-1001 operates on 24 VAC power and uses a 0–10 VDC control signal to position compatible globe valves. Its compact non-spring-return construction delivers a minimum linear force of 90 lbf (400 N) and supports valve strokes up to 25/32 inch (20 mm).
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Johnson Controls |
|
Category |
HVAC & Building Automation |
|
Part Number |
VA-7152-1001 |
|
Subcategory |
Electric Valve Actuators |
|
Series |
VA-715x Series |
|
Product Type |
Proportional Electric Globe Valve Actuator |
|
Actuator Technology |
Synchronous Motor-Driven Linear Actuator |
|
Control Type |
Proportional |
|
Operating Voltage |
24 VAC (20–30 VAC) |
|
Frequency |
50/60 Hz |
|
Power Consumption |
2.7 VA Nominal |
|
Control Signal |
0–10 VDC |
|
Selectable Input Ranges |
0–10 VDC, 0–5 VDC, 5–10 VDC |
|
Input Impedance |
100 kΩ |
|
Control Direction |
Direct Acting / Reverse Acting, Jumper Selectable |
|
Factory Calibration |
1–9 VDC ±0.5 VDC, Direct Acting |
|
Rated Output Force |
90 lbf (400 N) Minimum |
|
Maximum Stroke |
25/32 in (20 mm) |
|
Nominal Stroke Time at 60 Hz |
70 sec (5/16 in), 110 sec (1/2 in), 165 sec (3/4 in) |
|
Nominal Stroke Time at 50 Hz |
85 sec (5/16 in), 135 sec (1/2 in), 200 sec (3/4 in) |
|
Return Action |
Non-Spring Return |
|
Motor Protection |
Magnetic Clutch |
|
Compatible Valve Series |
VT, VG7000, VBC, Selected VTF |
|
Valve Stem Connection |
1/4-28 UNF-2B Thread |
|
Electrical Connections |
Screw Terminals, 16 AWG Maximum |
|
Enclosure Rating |
NEMA 2 / IP42 |
|
Operating Temperature |
0°F to 140°F (-18°C to 60°C) |
|
Relative Humidity |
10–90%, Non-Condensing |
|
Maximum Dew Point |
86°F (30°C) |
|
Dimensions |
3.84 in Diameter × 6.06 in Height |
|
Auxiliary Switches |
None |
|
Primary Application |
HVAC Hydronic Valve Control |
|
Weight |
1.7 lbs |
Information About VA-7152-1001
The VA-7152-1001 is part of the Johnson Controls VA-715x Series of synchronous motor-driven linear valve actuators, engineered for proportional control of HVAC terminal units and hydronic systems. Its durable electromechanical construction incorporates a magnetic clutch that maintains consistent output force, supports positive valve closeoff, and protects the motor during stall conditions. The actuator features selectable direct-acting or reverse-acting operation, adjustable voltage input ranges, and a specialized yoke design for simplified installation on compatible VT Series, VG7000 Series, VBC Series, and selected flare valves. Designed for commercial HVAC applications, the unit provides controlled valve positioning for heating coils, cooling coils, fan coil units, and other systems requiring modulating water-flow regulation.
Key Features:
-
Proportional Valve Control: Uses a 0–10 VDC analog input signal for accurate positioning of compatible HVAC control valves.
-
90 lbf Linear Output: Delivers a minimum 90 pounds of linear force for reliable valve operation and closeoff.
-
24 VAC Operation: Operates from a 20–30 VAC power supply at 50/60 Hz.
-
Non-Spring-Return Design: Maintains its mechanical position when electrical power is removed rather than automatically returning to a predetermined position.
-
Magnetic Clutch Protection: Maintains consistent actuator force while protecting the motor against mechanical overload and stall conditions.
-
Selectable Control Ranges: Supports jumper-selectable 0–10 VDC, 0–5 VDC, and 5–10 VDC proportional input configurations.
-
Direct/Reverse Action Selection: Allows field configuration of valve movement direction in response to increasing control voltage.
-
Extended Stroke Capability: Supports linear valve strokes up to 25/32 inch (20 mm).
-
Synchronous Motor Drive: Provides controlled linear movement for modulating valve applications.
-
Versatile Valve Compatibility: Supports compatible Johnson Controls VT, VG7000, VBC, and selected VTF Series valve assemblies.
-
NEMA 2 / IP42 Enclosure: Provides protection suitable for indoor HVAC equipment and control installations.
-
Simplified Field Installation: Features a specialized mounting yoke, threaded valve stem connection, and screw terminals for electrical wiring.
The VA-7152-1001 delivers the reliability and precision required for proportional hydronic valve positioning, HVAC temperature regulation, and commercial building automation systems.
