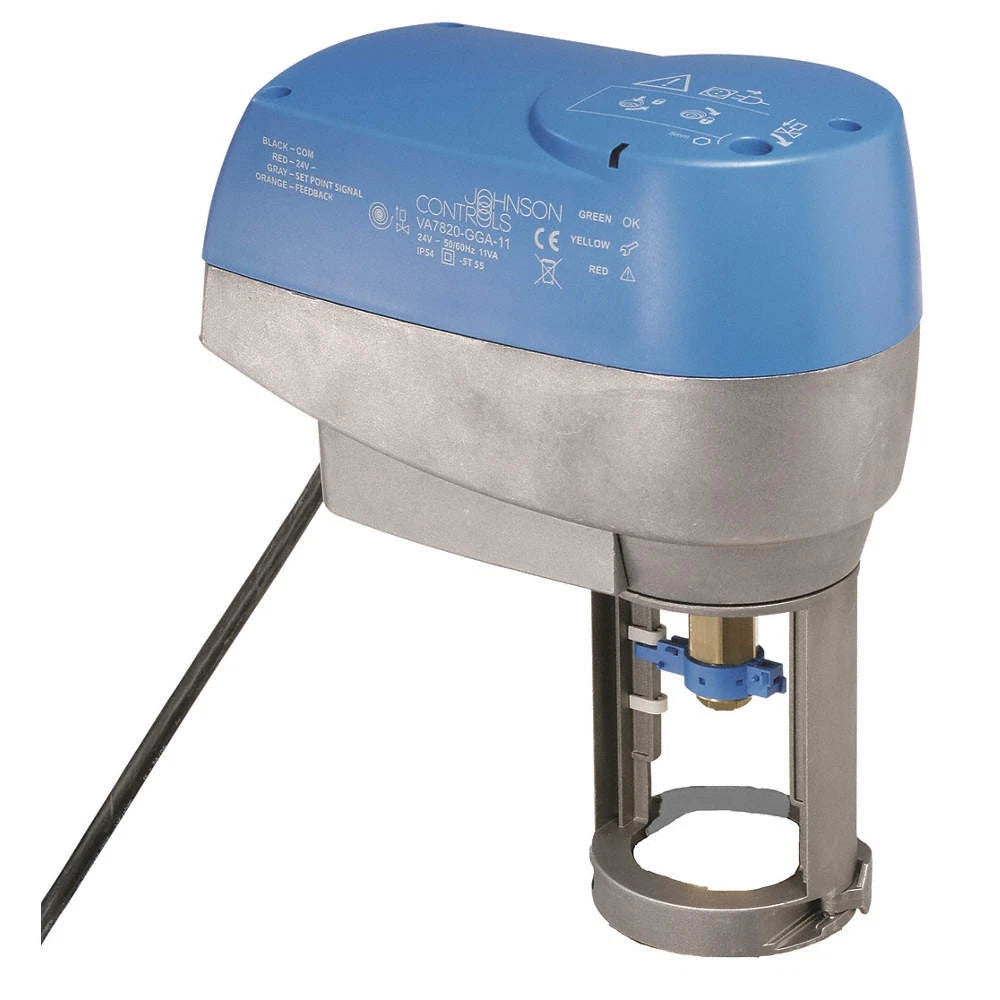

Johnson Controls VA7810-HGA-2 24VAC Globe Valve Actuator 180 lb-in Proportional
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VA7810-HGA-2
Description
The Johnson Controls VA7810-HGA-2 is a non-spring return direct-coupled globe valve actuator designed for HVAC control applications. It provides two-position, floating, or proportional control with 24 VAC/VDC power, up to 180 lb-in of torque, and a 5/16 to 1 inch stroke.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Control Equipment |
| Part Number | VA7810-HGA-2 |
| Subcategory | Globe Valve Actuators |
| Product Type | Direct-Coupled Globe Valve Actuator |
| Control Type | Two-Position, Floating, Proportional |
| Input Power | 24 VAC / VDC |
| Input Signal | Proportional |
| Supported Signals | 0–10 VDC, 2–10 VDC, 0/4–20 mA |
| Torque | 180 lb-in |
| Torque Range | 150–199 lb-in |
| Stroke | 5/16–1 in |
| Auxiliary Switch | None |
| Cable Length | 48 in |
| Coupling Type | Direct Coupled |
| Application | HVAC / Building Automation |
| Country of Origin | Germany |
| Weight | 4.05 lbs |
Information About VA7810-HGA-2
The VA7810-HGA-2 is a direct-coupled actuator designed for operation with compatible globe valves in building automation and HVAC systems. It supports proportional control signals including 0–10 VDC, 2–10 VDC, and 0/4–20 mA, as well as two-position and floating control modes. The actuator uses a non-spring return mechanism and includes a manual override for local positioning. It is manufactured in Germany and includes a 48-inch cable for electrical connection.
Key Features:
- Control Type: Supports two-position, floating, and proportional valve control.
- Input Signals: Compatible with 0–10 VDC, 2–10 VDC, and 0/4–20 mA control signals.
- Power Supply: Operates from 24 VAC or 24 VDC input power.
- Torque Rating: Provides up to 180 lb-in of actuator torque.
- Stroke Range: Supports valve strokes from 5/16 to 1 inch.
- Return Mechanism: Uses a non-spring return configuration for controlled valve positioning.
- Manual Override: Provides manual positioning capability for service and adjustment.
- Cable Length: Includes a 48-inch cable for connection to the control system.
The VA7810-HGA-2 delivers the reliability and precision required for HVAC valve control, building automation, and proportional flow regulation applications.
