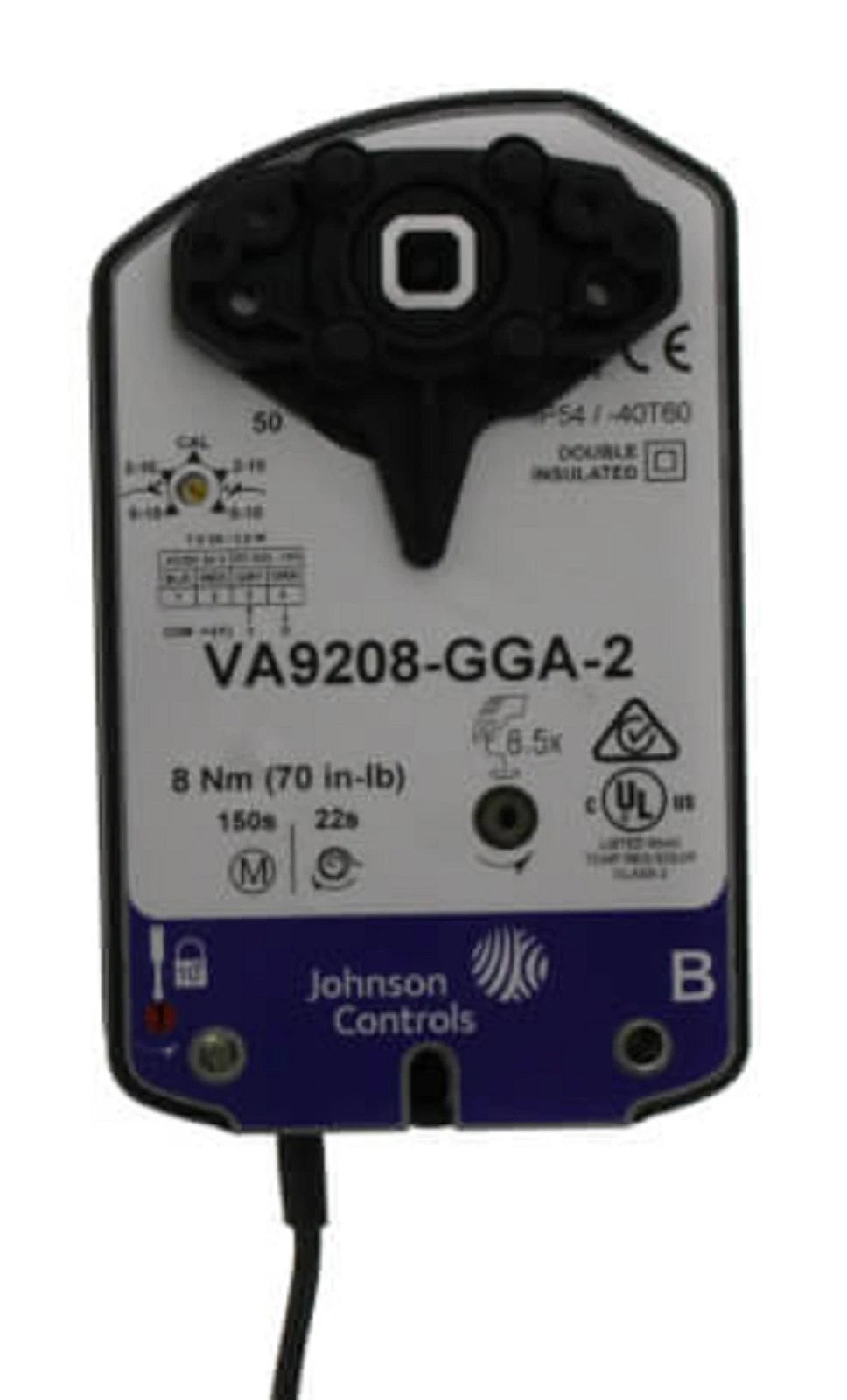

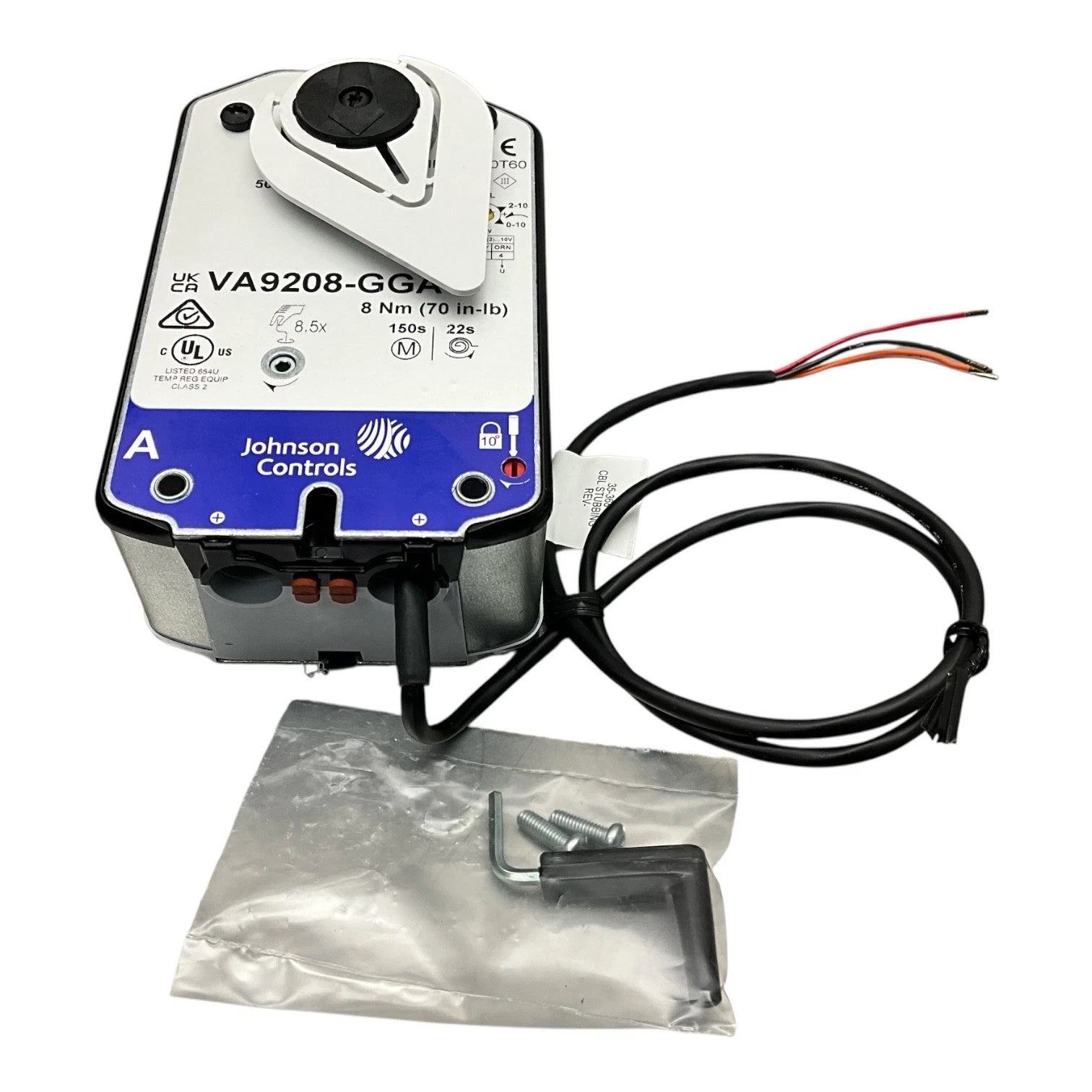

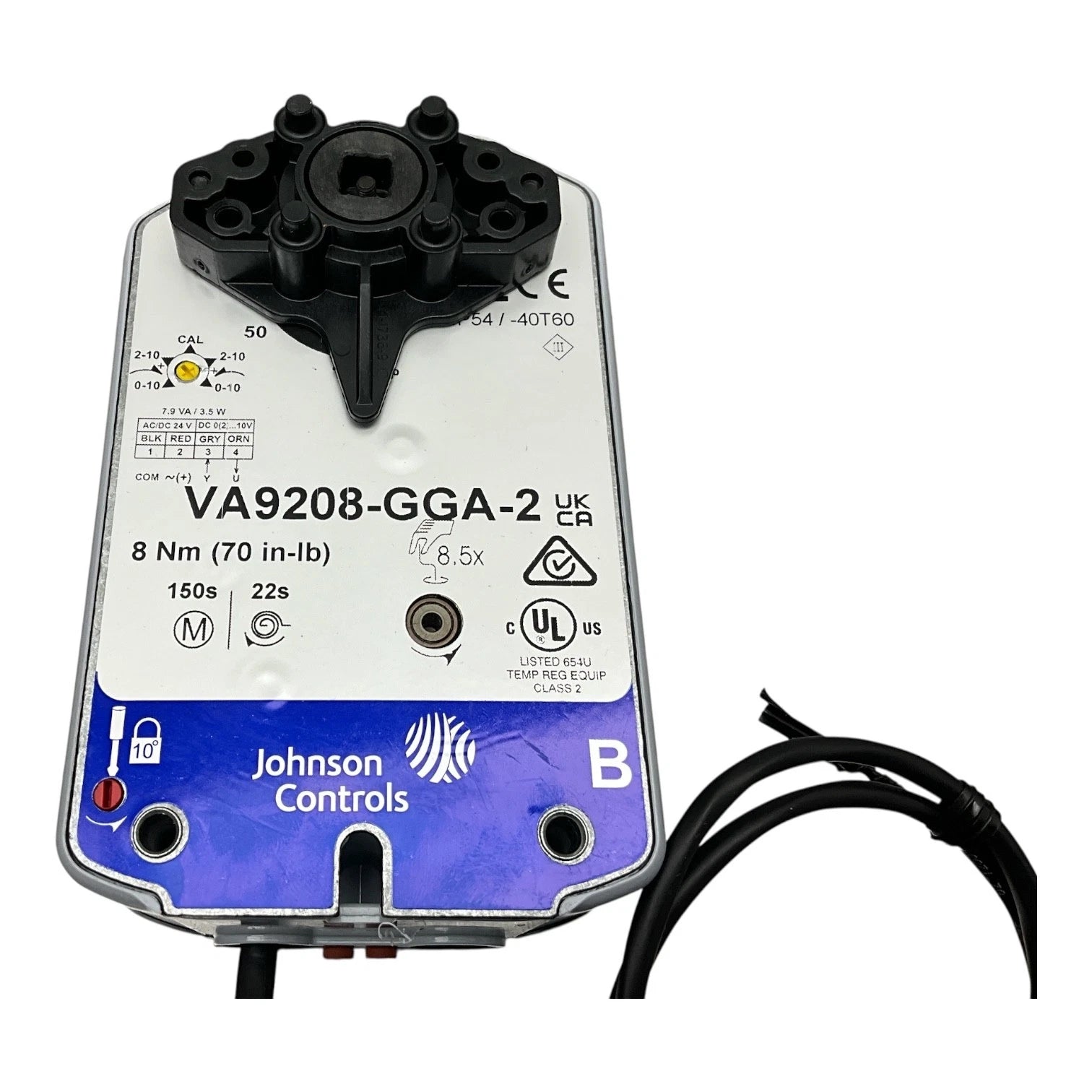

Johnson Controls VA9208-GGA-2 Proportional Spring Return Valve Actuator
- Regular price
- $552.00
- Sale price
- $552.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VA9208-GGA-2
Description
The Johnson Controls VA9208-GGA-2 is a spring-return electric valve actuator designed for proportional control of VG1000 Series 1-1/4, 1-1/2, and 2 inch ball valves. It provides 70 lb-in (8 N-m) torque, supports multiple proportional control signals, and returns the valve to a defined fail-safe position when power is interrupted.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Valve Actuators |
| Part Number | VA9208-GGA-2 |
| Subcategory | Proportional Spring Return Valve Actuators |
| Actuator Type | Electric spring return |
| Valve Compatibility | Johnson Controls VG1000 Series |
| Compatible Valve Sizes | 1-1/4, 1-1/2, and 2 in. |
| Torque | 70 lb-in (8 N-m) |
| Supply Voltage | 24 VAC / 24 VDC |
| Supply Frequency | 50/60 Hz |
| Control Signals | 0(2)–10 VDC or 0(4)–20 mA |
| Current Input Resistor | 500 ohm external resistor |
| Feedback Signal | 0–10 VDC or 2–10 VDC |
| Run Time | 150 seconds, power on |
| Power Consumption | 7.9 VA / 8 VA rating |
| Mounting | Direct-coupled, bidirectional |
| Return Type | Mechanical spring return |
| Enclosure Rating | NEMA 2 / IP54 |
| Cable Length | 120 in. plenum-rated cable |
| Cable Connector | Integral 3/8 in. FMC connector |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Expected Cycle Life | Minimum 200,000 full cycles |
| Certifications | UL Listed, CE Marked |
| Dimensions | 12 × 7 × 5 in. |
| Weight | 5 lb |
Information About VA9208-GGA-2
The VA9208-GGA-2 uses direct-coupled mounting for bidirectional operation with compatible Johnson Controls VG1000 Series valves. Its proportional control system accepts voltage or current input signals and provides selectable 0–10 VDC or 2–10 VDC position feedback for monitoring and master-slave configurations. A mechanical spring-return mechanism establishes the actuator's safety position during a power failure. The actuator is supplied with a 120-inch plenum-rated cable and integral 3/8-inch FMC connector for installations involving environmental air-handling spaces.
Key Features:
- Spring Return: Mechanically drives the connected valve to a defined fail-safe position during power interruption.
- Proportional Control: Accepts 0(2)–10 VDC or 0(4)–20 mA control signals with an external 500 ohm resistor.
- High Torque Output: Provides 70 lb-in (8 N-m) torque for compatible ball valve applications.
- Direct Coupling: Mounts directly to compatible VG1000 Series valves to reduce mechanical play.
- Position Feedback: Provides selectable 0–10 VDC or 2–10 VDC feedback for position monitoring.
- Plenum-Rated Cable: Includes a 120-inch cable with an integral 3/8-inch FMC connector.
- Environmental Protection: Uses a NEMA 2 / IP54 enclosure for suitable HVAC installations.
- Cycle Life: Designed for a minimum expectancy of 200,000 full cycles.
The VA9208-GGA-2 delivers the reliability and precision required for proportional HVAC valve control and fail-safe flow regulation applications.
