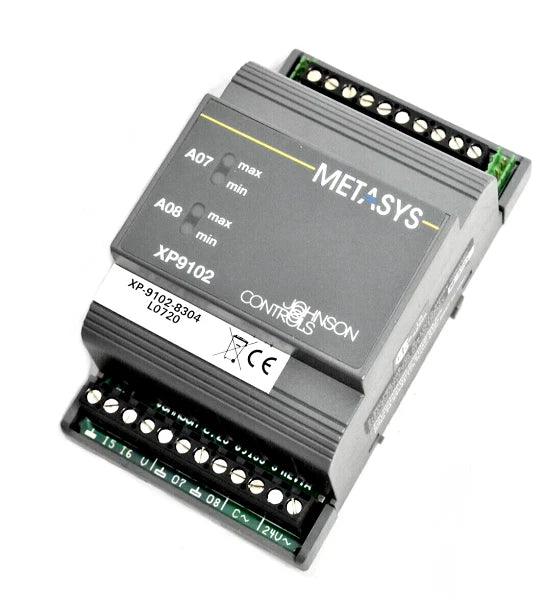

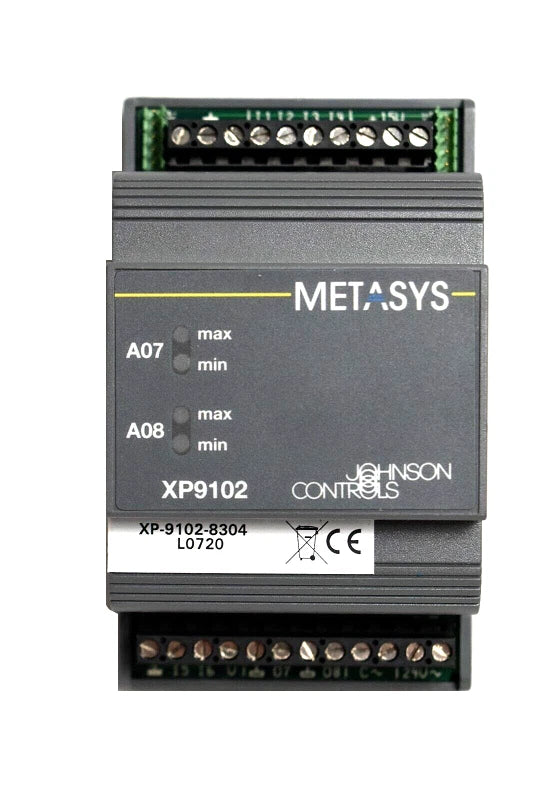

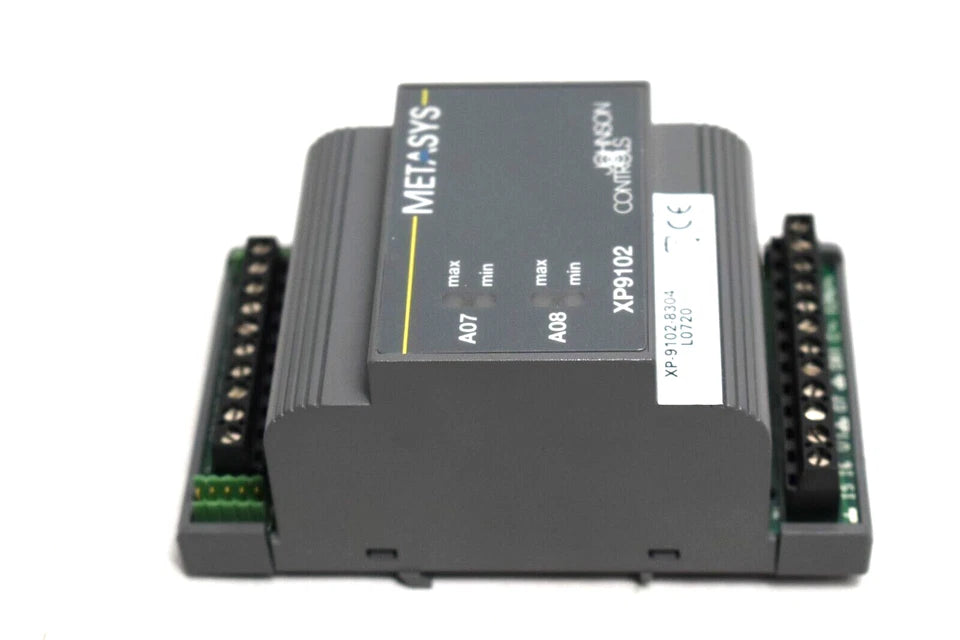

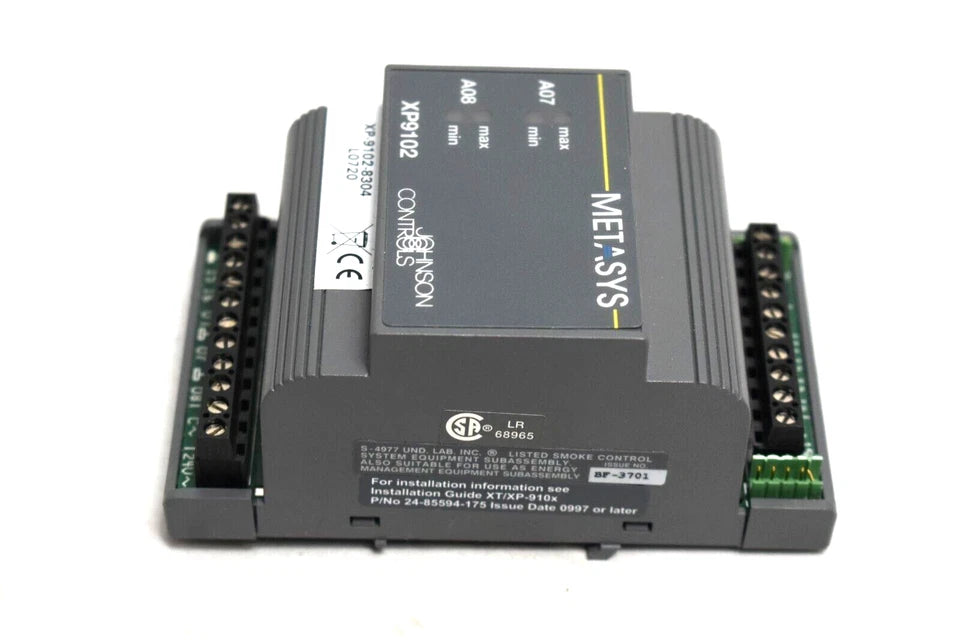

Johnson Controls XP-9102-8304 Analog Expansion Module with 6 Inputs and 2 Outputs
- Regular price
- $609.00
- Sale price
- $609.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XP-9102-8304
Description
The Johnson Controls XP-9102-8304 is an expansion module designed to increase the analog input and output capacity of DX-9100 Series extended digital controllers in Metasys building automation systems. It provides six analog inputs and two analog outputs for monitoring sensors and controlling field devices in commercial HVAC applications. Although discontinued by the manufacturer, the XP-9102-8304 remains a practical solution for maintaining legacy Johnson Controls automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | XP-9102-8304 |
| Subcategory | Boiler Control |
| Product Type | Expansion Module |
| Series | XP-9100 Series |
| Analog Inputs | 6 |
| Analog Outputs | 2 |
| Power Supply | 24 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 3 VA |
| Communication Interface | XT Bus |
| Compatible Controllers | DX-9100, DX-9121, XT/XTM Systems |
| Mounting | DIN Rail Mount |
| Application | HVAC and Building Automation Expansion |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.25 kg |
Information About XP-9102-8304
The XP-9102-8304 is part of the Johnson Controls XP-9100 Series of expansion modules developed for use with DX-9100, DX-9121, and compatible XT/XTM controller platforms. It expands the available I/O capacity by adding six analog inputs and two analog outputs without requiring replacement of the host controller. The module communicates through the XT Bus and may be installed adjacent to the controller or remotely, providing flexible installation options for building automation systems. Its compact design and low power consumption make it suitable for commercial HVAC systems, including air handling units, boilers, chillers, and central plant control applications.
Key Features:
- Analog I/O Expansion: Adds six analog inputs and two analog outputs to compatible controllers.
- DX-9100 Compatibility: Designed for DX-9100, DX-9121, and XT/XTM controller systems.
- XT Bus Communication: Connects directly to the host controller through the XT Bus interface.
- 24 VAC Operation: Operates from a 24 VAC, 50/60 Hz power supply.
- Low Power Consumption: Requires only 3 VA during normal operation.
- Flexible Installation: Supports local or remote mounting up to the maximum XT Bus distance.
- HVAC System Integration: Suitable for monitoring temperature, pressure, humidity, and other analog process variables.
- Compact Expansion Design: Increases controller capacity without replacing the primary controller.
The XP-9102-8304 delivers the reliability and precision required for expanding analog control and monitoring capabilities in commercial HVAC and building automation systems.
