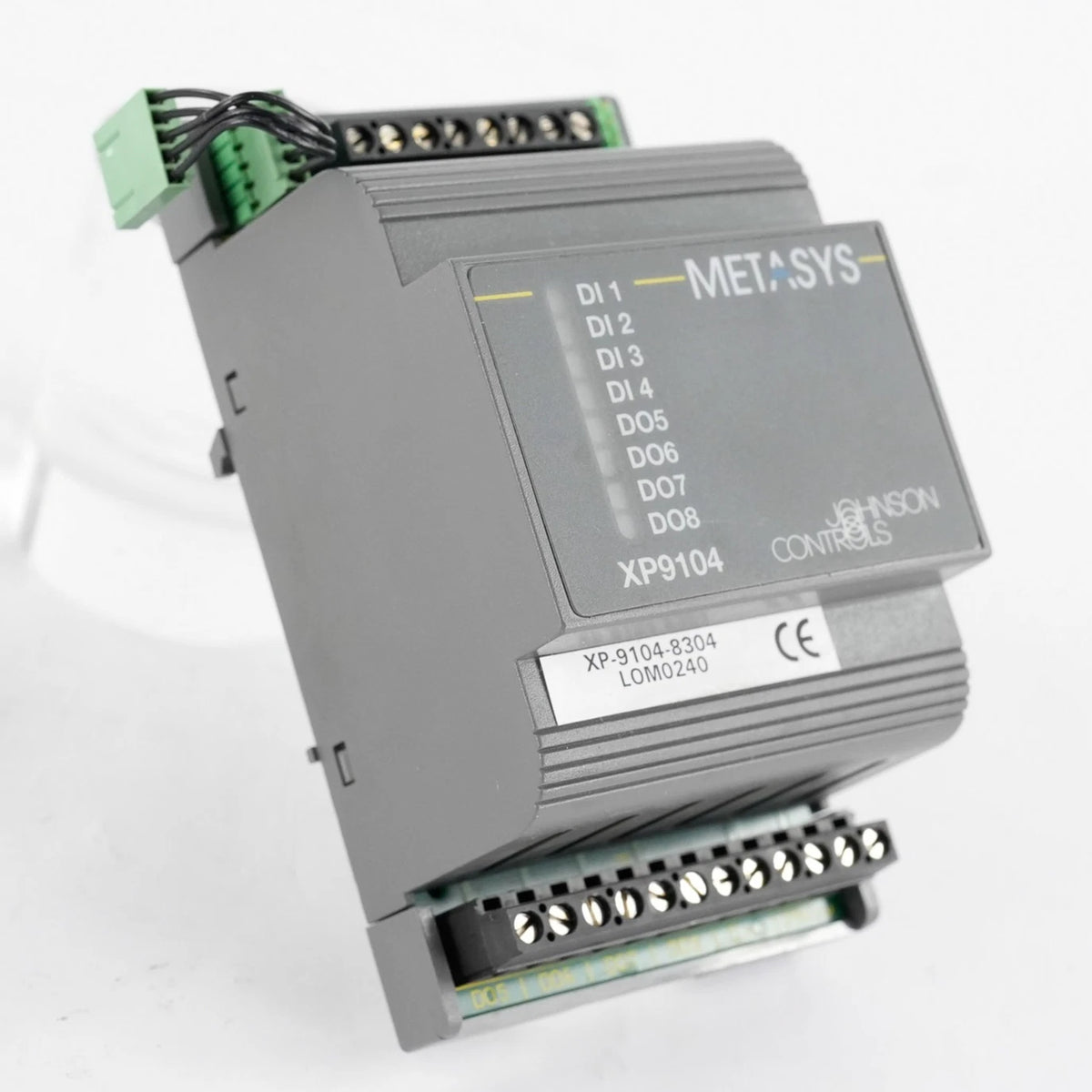

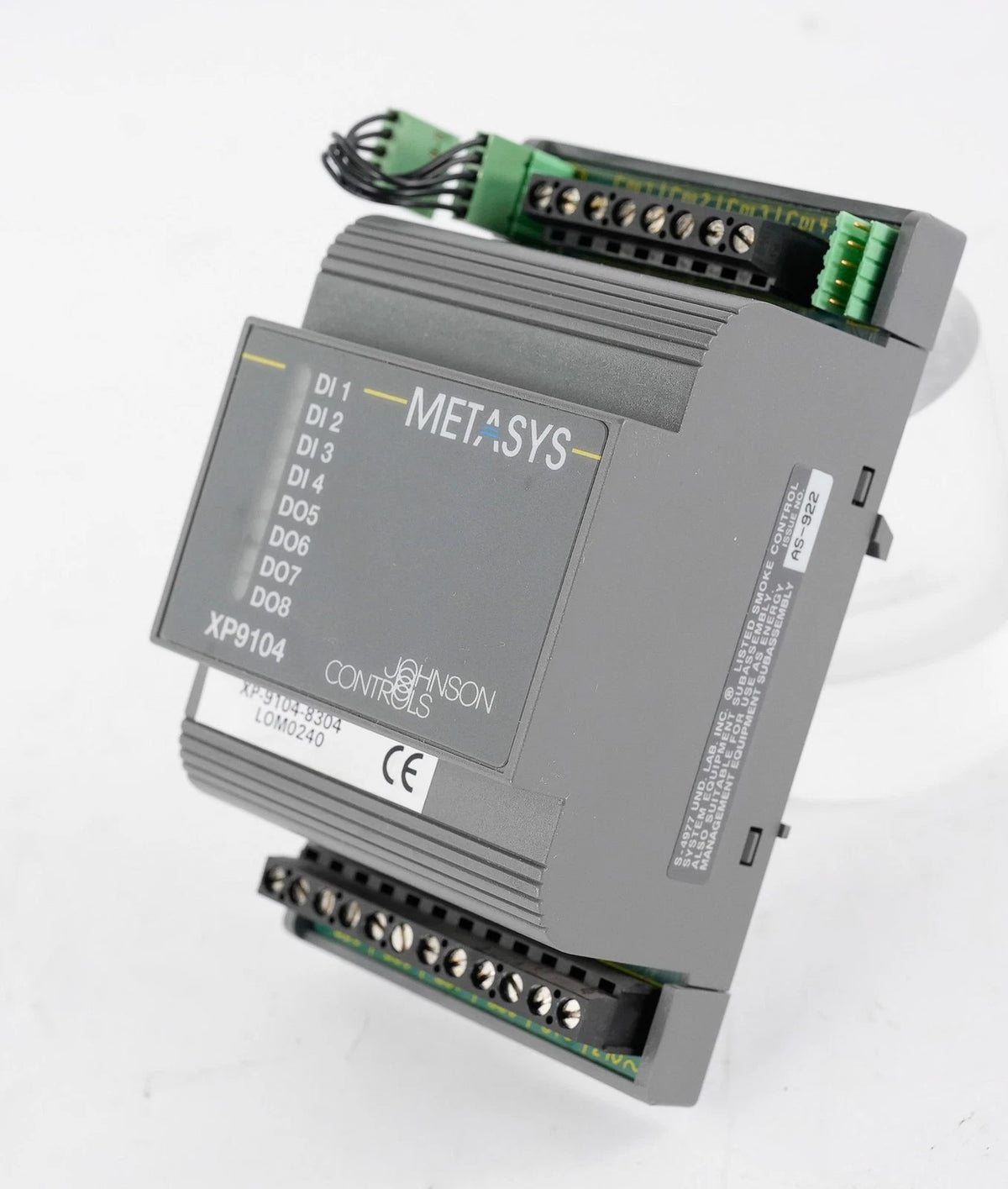

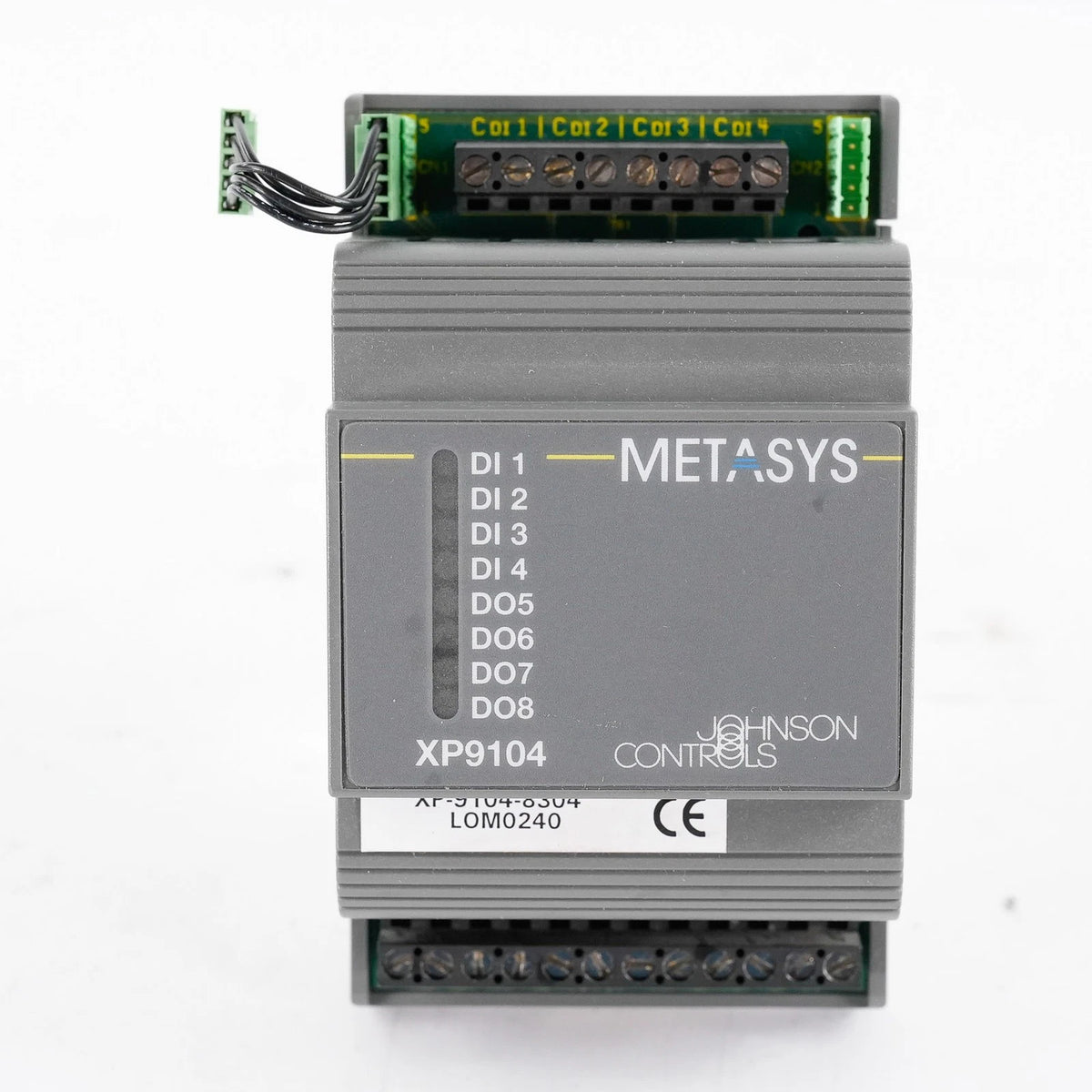

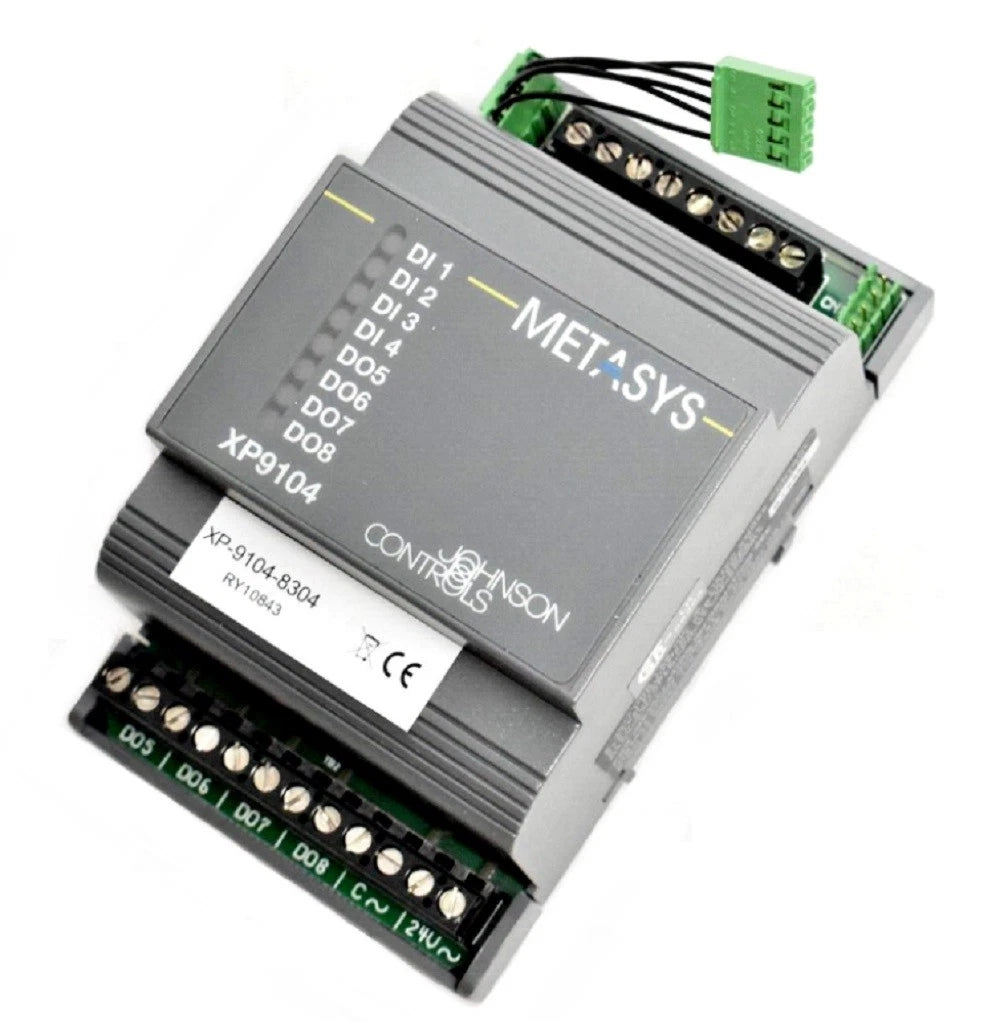

Johnson Controls XP-9104-8304 Digital I/O Expansion Module for DX-9100 and DX-9200 Controllers
- Regular price
- $305.00
- Sale price
- $305.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XP-9104-8304
Description
Johnson Controls XP-9104-8304 is an expansion module for DX-9100 and DX-9200 building automation controllers. It adds four digital inputs and four triac digital outputs for monitoring and controlling HVAC equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Control Modules |
| Part Number | XP-9104-8304 |
| Subcategory | Digital I/O Expansion Modules |
| Module Type | Digital I/O expansion module |
| Compatible Controllers | DX-9100 and DX-9200 |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Output Type | Triac |
| Application | Building automation and HVAC control |
| Weight | 0.46 lb |
Information About XP-9104-8304
The XP-9104-8304 is part of the Johnson Controls 9100 controller expansion module series. Its board provides four digital inputs and four digital outputs using triacs, as specified in the manufacturer’s DX-9100 documentation. The module is designed to extend the I/O capacity of compatible DX-9100 and DX-9200 controllers. It is used in building automation installations where additional binary status monitoring and switched control points are needed.
Key Features:
- Digital Input Expansion: Adds four digital input points for receiving binary status signals from connected equipment.
- Triac Output Control: Provides four digital outputs using triacs for switching compatible control loads.
- DX-9100 Compatibility: Designed as an expansion module for the Johnson Controls DX-9100 extended digital controller family.
- HVAC Equipment Integration: Supports additional monitoring and control points in building automation systems.
- Compact Expansion Board: Adds I/O capacity within the controller system without requiring a separate standalone controller.
The XP-9104-8304 delivers the reliability and precision required for expanding digital monitoring and control in building automation systems.
