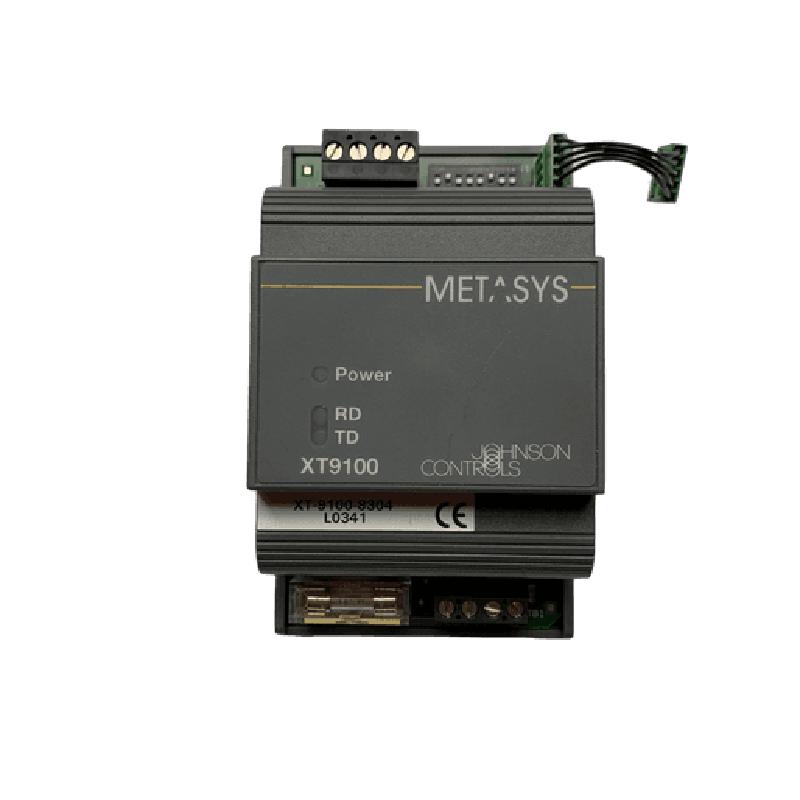

Johnson Controls XT-9100-8304 DX-9100 Controller Expansion Module for Metasys HVAC Systems
- Regular price
- $385.00
- Sale price
- $385.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XT-9100-8304
Description
The Johnson Controls XT-9100-8304 is an expansion module designed to extend the input and output capabilities of the DX-9100 Extended Digital Controller in Metasys building automation systems. Supporting 0–10 V analog I/O and reliable communication with compatible XP expansion modules, the XT-9100-8304 enhances HVAC control flexibility while maintaining dependable operation in commercial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Building Automation |
| Part Number | XT-9100-8304 |
| Subcategory | Controller Expansion Module |
| Series | DX-9100 Series |
| Product Type | I/O Expansion Module |
| Compatible Controller | Johnson Controls DX-9100 Extended Digital Controller |
| System Compatibility | Johnson Controls Metasys Building Automation Systems |
| Input/Output Support | 0–10 V Analog I/O |
| Expansion Support | Compatible with XP Series Expansion Modules |
| Supply Voltage | 24 VAC, 50/60 Hz, Class 2 |
| Status Indication | LED Operating and Communication Indicators |
| Communication Interface | Proprietary DX Expansion Bus |
| Mounting | DIN Rail or Panel Mount |
| Construction | Industrial Electronic Module |
| Application | HVAC Equipment Expansion, Air Handling Units, Chillers, Rooftop Units, Building Automation |
| Operating Environment | Indoor Control Cabinet Installation |
| Weight | Approximately 0.4 kg |
Information About XT-9100-8304
The XT-9100-8304 is part of the Johnson Controls DX-9100 Series of modular building automation controllers developed for advanced HVAC control. Installed alongside a DX-9100 controller, the module expands available field I/O capacity, allowing larger and more complex air handling units, chiller plants, rooftop units, and other mechanical systems to be controlled from a single automation platform. The module communicates directly with compatible DX and XP expansion modules while providing reliable analog signal processing and system diagnostics. Its compact design, DIN rail compatibility, and industrial construction make it suitable for long-term installation inside commercial control panels.
Key Features:
- DX-9100 expansion module: Extends the capabilities of compatible DX-9100 controllers.
- Analog I/O support: Compatible with 0–10 V input and output signals.
- XP module connectivity: Provides communication with compatible Johnson Controls XP expansion modules.
- Metasys integration: Designed for seamless operation within Johnson Controls building automation systems.
- LED status indicators: Displays module operating and communication status.
- 24 VAC operation: Powered from a standard Class 2 HVAC control transformer.
- Modular architecture: Allows scalable expansion of HVAC control systems.
- Reliable field communication: Ensures dependable exchange of data between controllers and expansion modules.
- Industrial design: Built for continuous operation in commercial environments.
- Flexible installation: Suitable for panel and DIN rail mounting.
- Low maintenance: Requires minimal servicing after installation.
- Optimized for HVAC automation: Supports large and complex mechanical equipment control.
The XT-9100-8304 delivers the reliability and precision required for expanding HVAC control systems, distributed building automation, and advanced equipment management.
