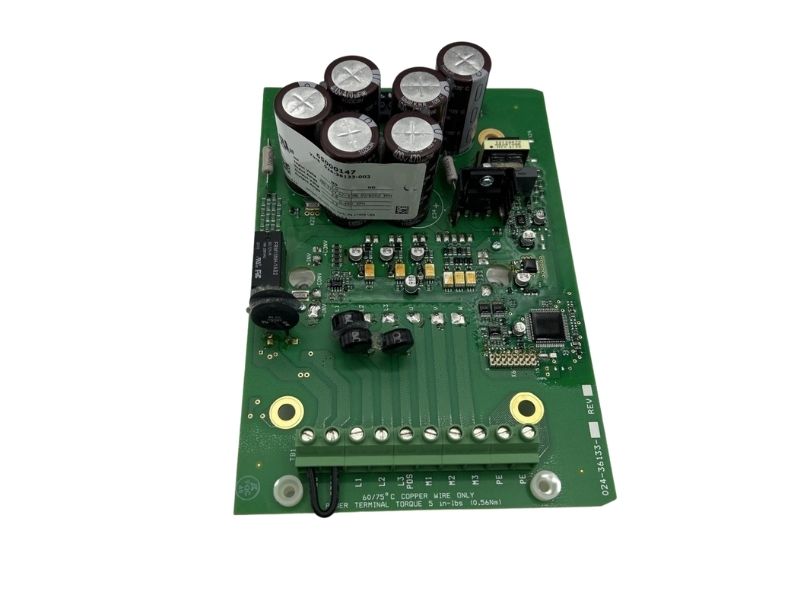

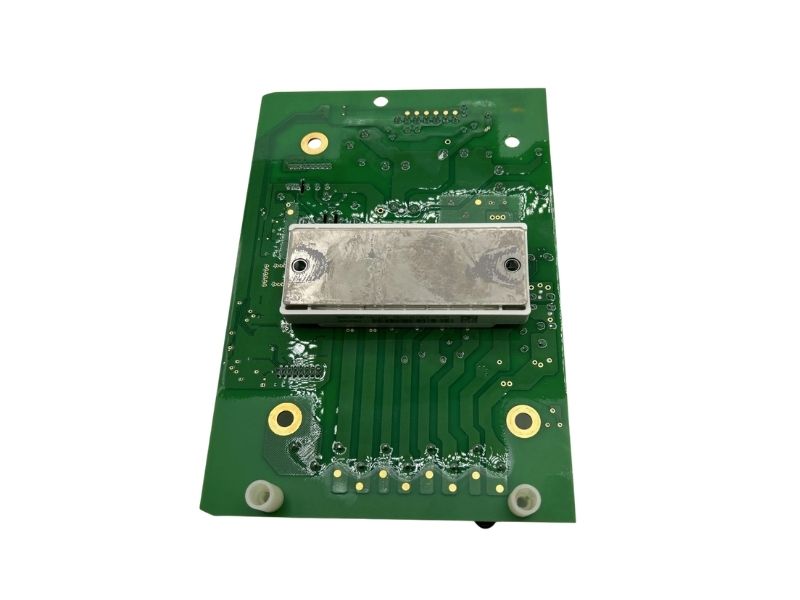

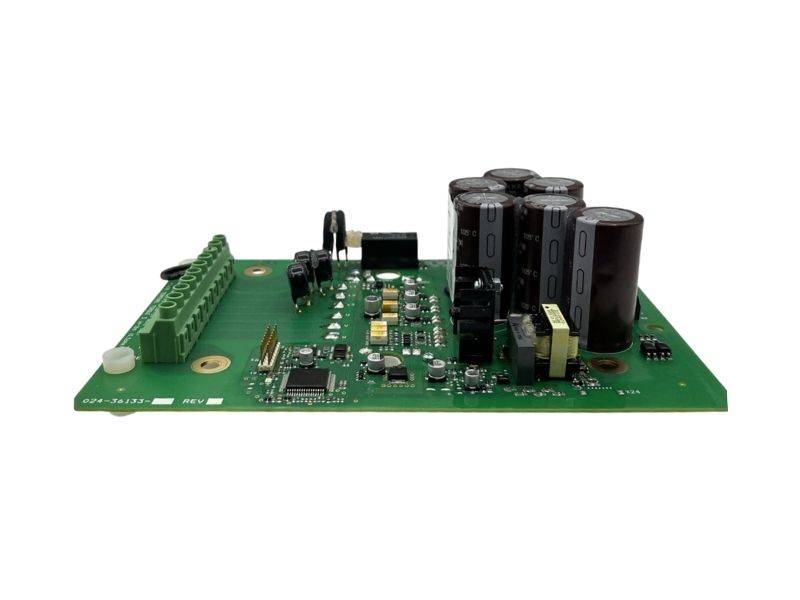

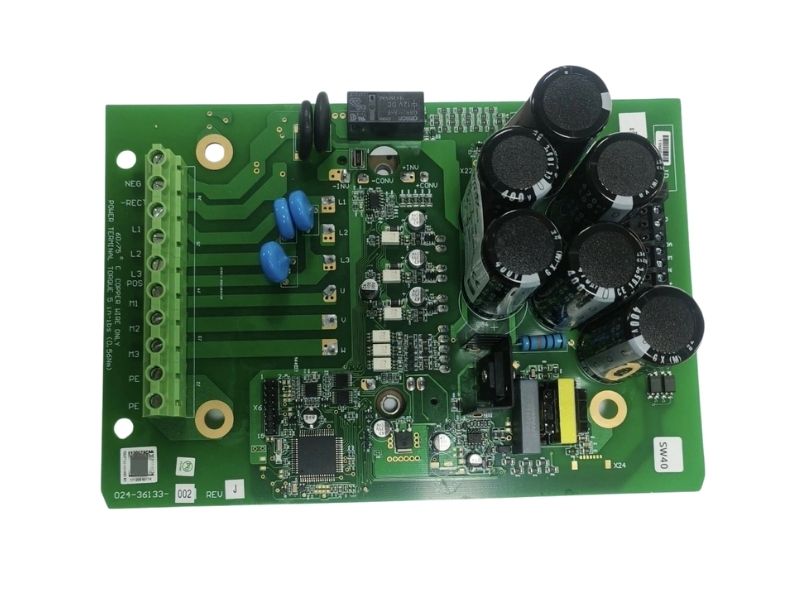

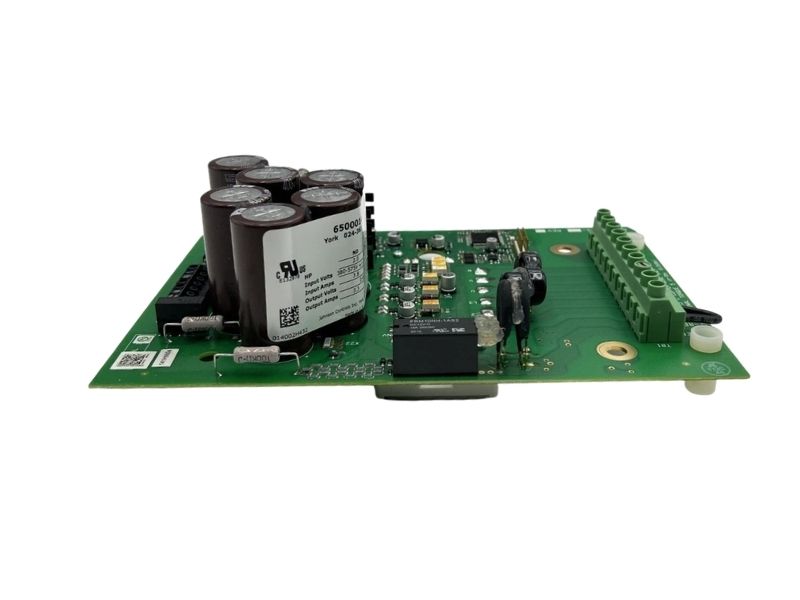

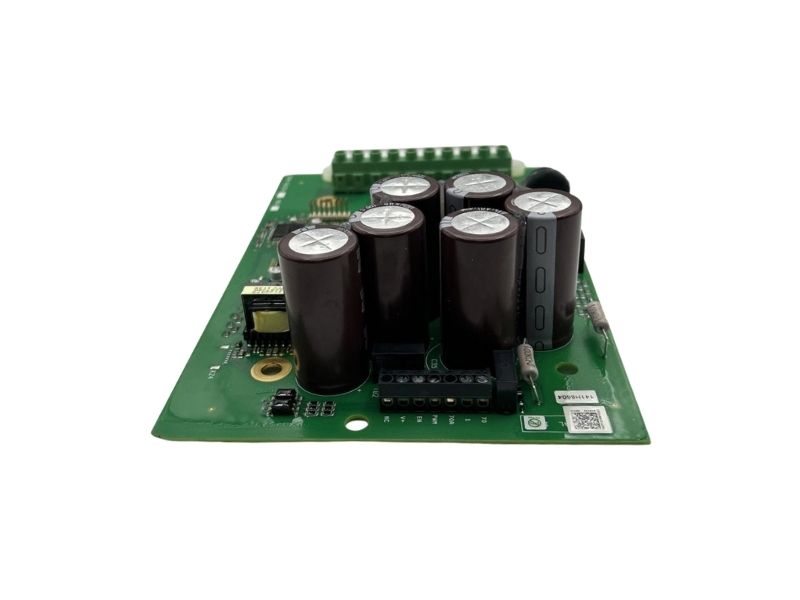

Johnson Controls YORK 024-36133-002 Drive Board 2HP 380-575VAC 3 Phase Oil Pump Control
- Regular price
- $1,897.00
- Sale price
- $1,897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 024-36133-002
Description
The Johnson Controls YORK 024-36133-002 is a drive control board designed for oil pump applications in HVAC and industrial systems. It supports 3-phase input voltage from 380 to 575 VAC and is rated for 2 HP motor operation with controlled current output. This board is used to regulate and manage oil pump drive performance within YORK equipment systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls YORK |
| Category | Drives |
| Part Number | 024-36133-002 |
| Subcategory | Drive Board |
| Type | Drive PC Board |
| Application | Oil Pump Drive |
| Motor Power Rating | 2 HP |
| Input Voltage | 380–575 VAC |
| Phase | 3 Phase |
| Frequency | 50/60 Hz |
| Input Current | 3.8 A |
| Output Current | 3.3 A |
| Product Status | Discontinued by Manufacturer |
| Weight | 2 lbs |
Information About 024-36133-002
The 024-36133-002 is a drive PC board manufactured by Johnson Controls YORK for use in variable speed oil pump systems. It is designed to operate with three-phase power input and provides controlled output suitable for motor-driven pump applications. The board is engineered to handle input currents of up to 3.8 A and output currents up to 3.3 A, ensuring stable operation under load conditions. It is typically installed within HVAC equipment to support lubrication systems and maintain proper oil circulation in compressor assemblies.
Key Features:
-
Designed for oil pump drive control: Provides control functionality for oil pump motors in HVAC systems.
-
2 HP motor support: Suitable for applications requiring up to 2 horsepower drive capacity.
-
Wide voltage input range: Operates on 380–575 VAC three-phase power systems.
-
50/60 Hz compatibility: Supports standard industrial power frequencies.
-
Controlled current output: Handles up to 3.3 A output for stable motor operation.
-
Integrated drive board design: Combines control and power regulation functions in a single PCB.
-
HVAC system compatibility: Designed for use within YORK equipment and related systems.
-
Compact PCB form factor: Allows installation within existing control assemblies.
The 024-36133-002 delivers the reliability and precision required for oil pump drive control in HVAC and industrial equipment systems.
