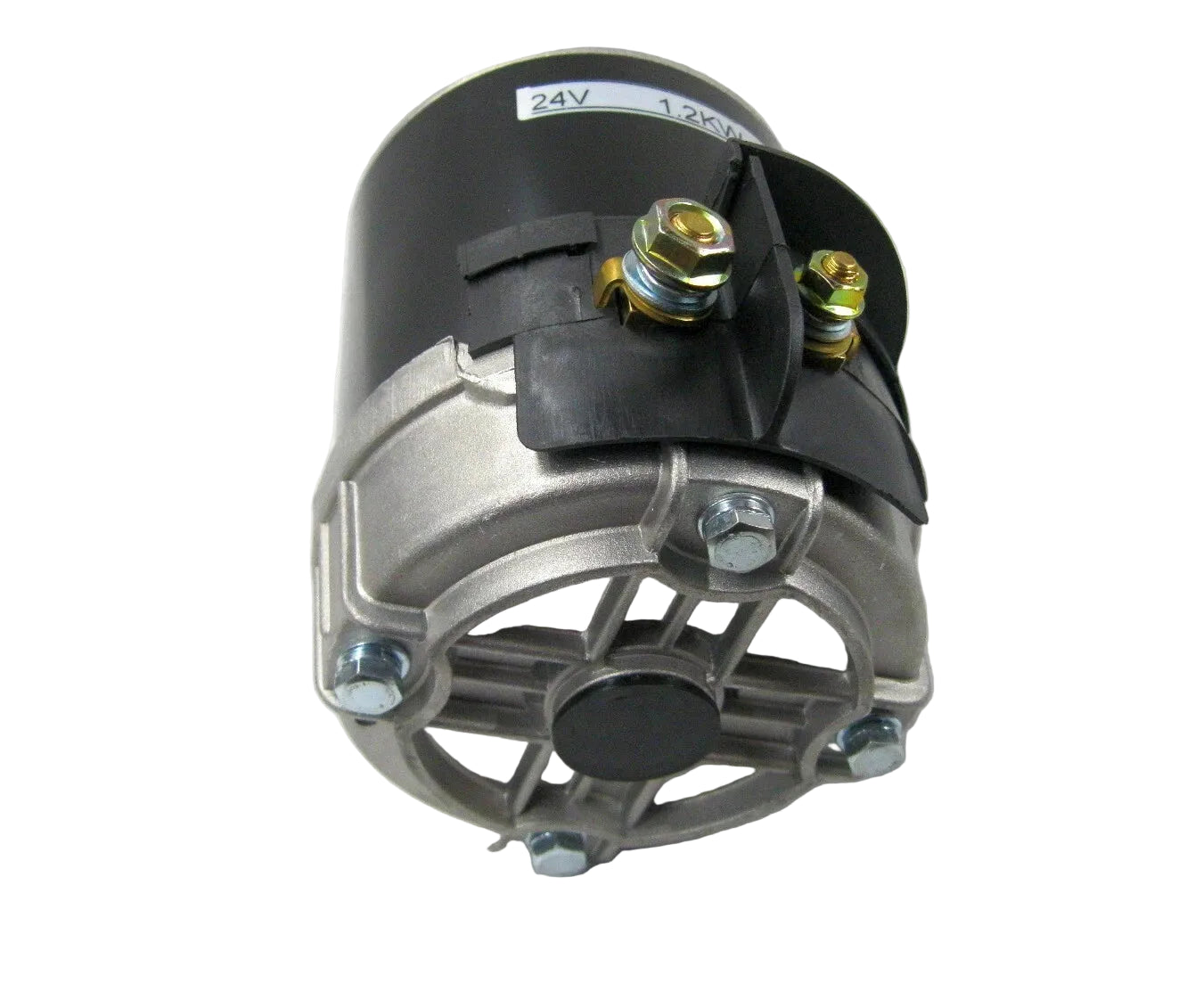

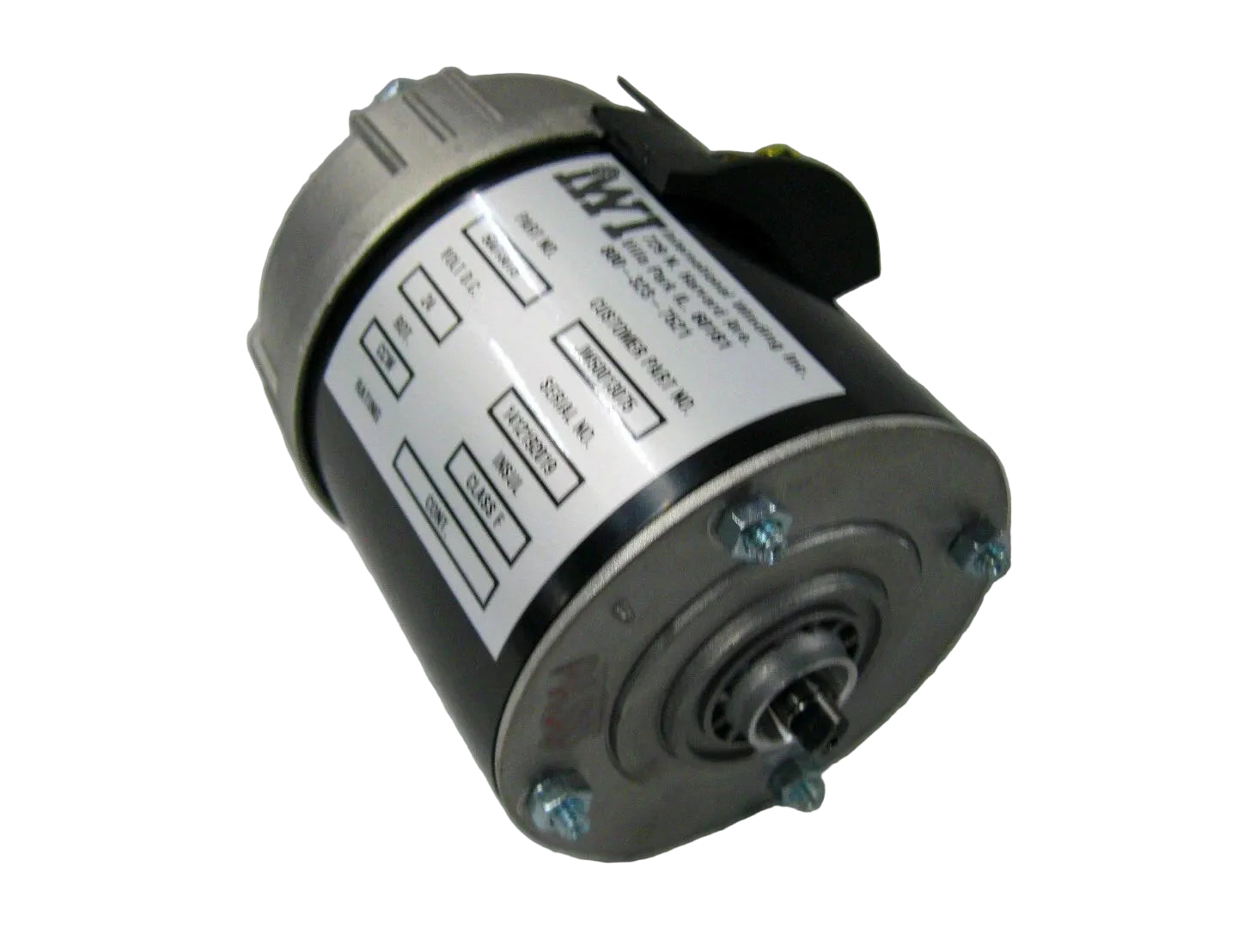

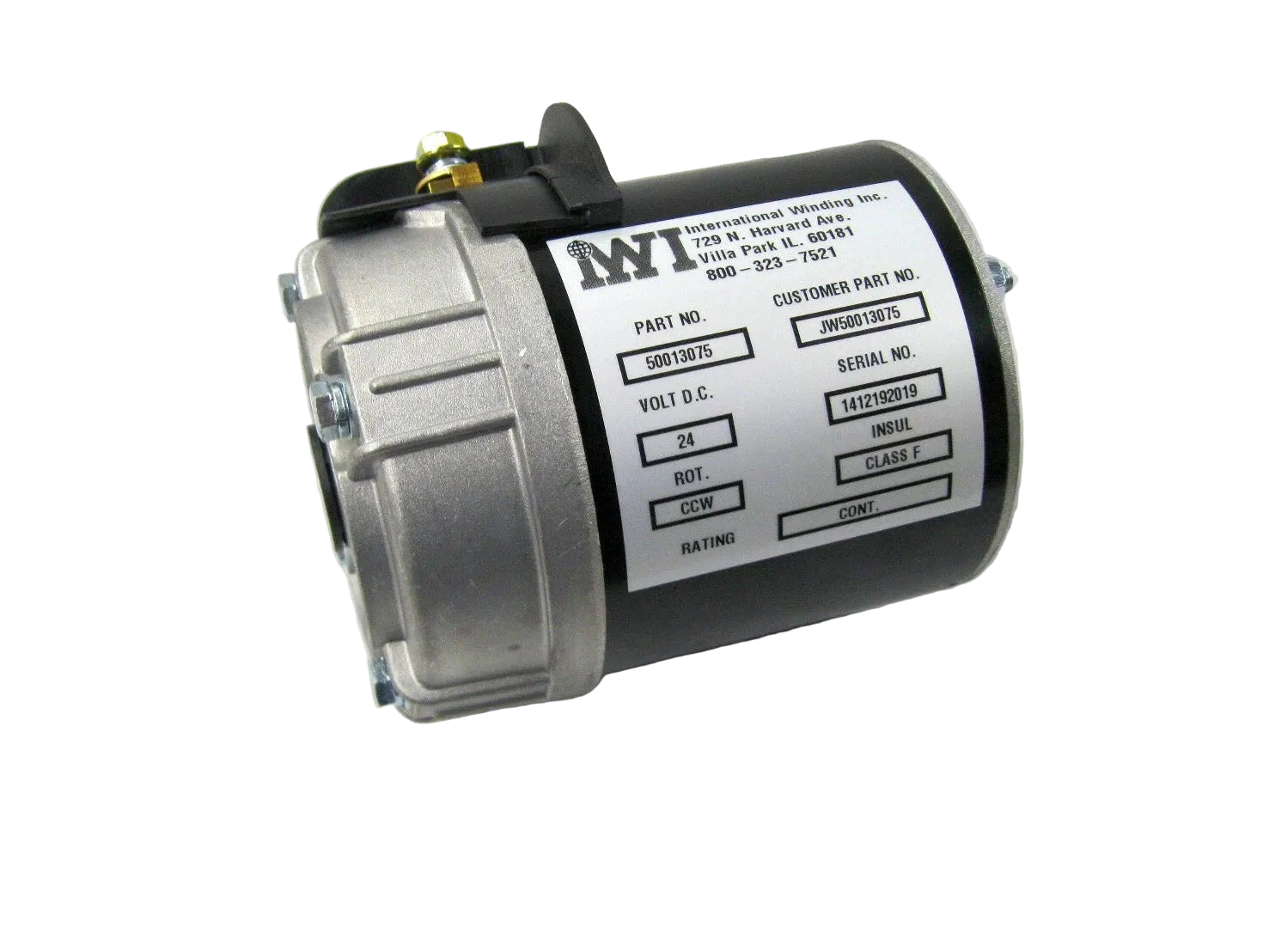

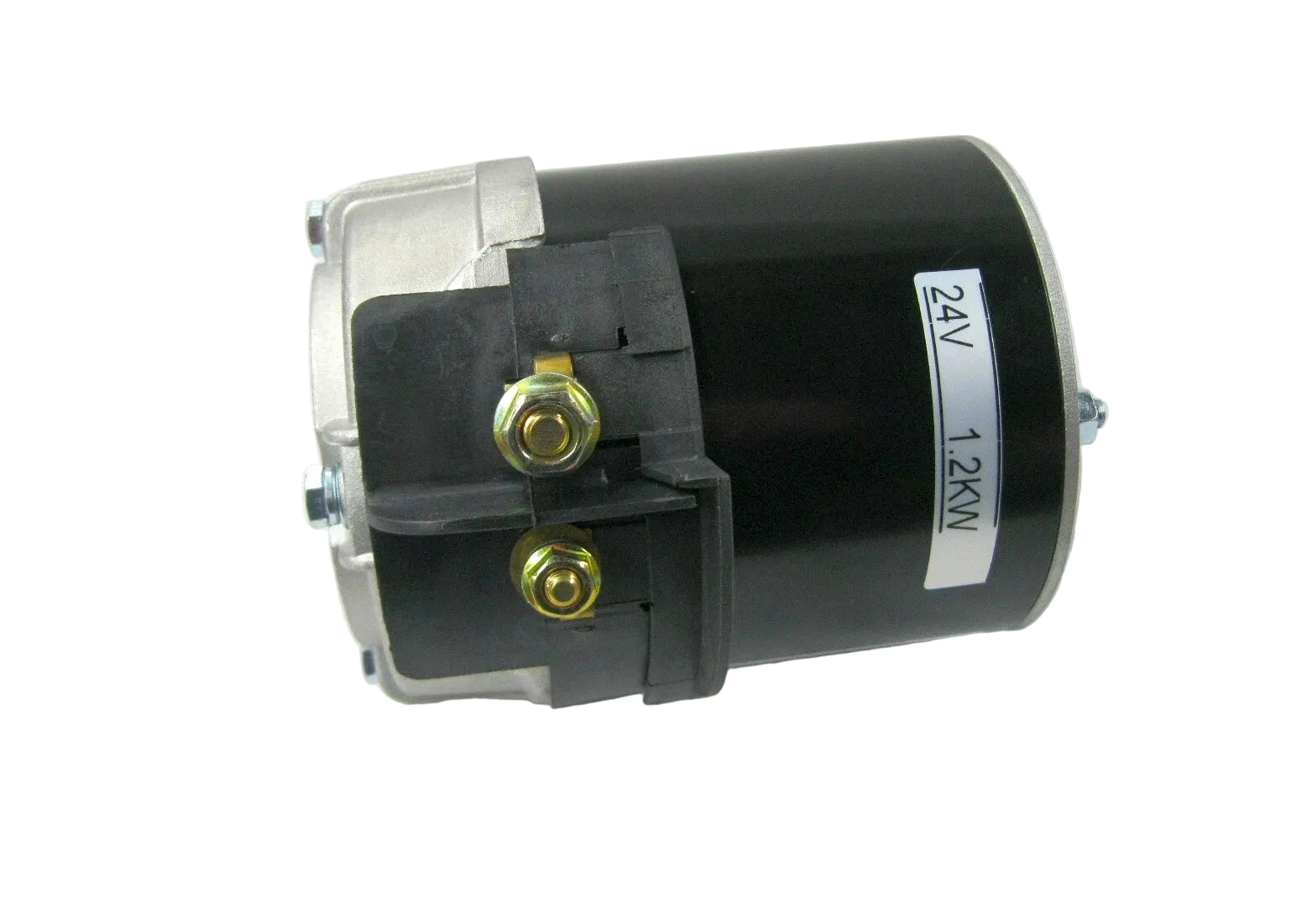

Jungheinrich 50013075 24V 1.2kW Hydraulic Pump Motor
- Regular price
- $802.00
- Sale price
- $802.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50013075
Description
The Jungheinrich 50013075 is a 24V DC electric pump motor designed to power hydraulic lift systems in compatible material handling equipment. Rated at 1.2 kW and approximately 3,500 RPM, it provides the rotational power required to operate the hydraulic pump during lifting functions. The motor is primarily used in Jungheinrich electric pallet trucks and stackers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Jungheinrich |
| Category | Forklift Motors |
| Part Number | 50013075 |
| Subcategory | Hydraulic Pump Motors |
| Component Type | Electric Hydraulic Pump Motor |
| Motor Type | Brushed DC Motor |
| Operating Voltage | 24 VDC |
| Rated Power | 1.2 kW |
| Rated Current | Approx. 65 A |
| Rotational Speed | Approx. 3,500 RPM |
| Electrical Connection | 2 Terminal Studs |
| Mounting Design | Front Flange |
| Cooling Configuration | No External Cooling Fan |
| Primary Application | Hydraulic Lift Pump Drive |
| Compatible Equipment | Electric Pallet Trucks and Stackers |
| Compatible Series | EJE, EMC, EMB, ELE, ELS |
| Cross-Reference Numbers | 77800503, 28715950, 50103337 |
| Weight | 8.82 lbs (4.00 kg) |
Information About 50013075
The 50013075 is a 24V brushed DC pump motor developed for hydraulic applications in Jungheinrich electric material handling equipment. Its compact cylindrical construction incorporates a front-flange mounting arrangement and two electrical terminal connections for integration with the truck's hydraulic power unit. The motor operates at approximately 3,500 RPM with a rated output of 1.2 kW and a current rating of approximately 65 A. It is associated with multiple Jungheinrich EJE, EMC, EMB, ELE, and ELS models and can be cross-referenced with several related pump motor numbers.
Key Features:
- 24V DC Operation: Designed for 24-volt electrical systems used in compatible electric material handling equipment.
- 1.2 kW Output: Provides rated mechanical power for driving the connected hydraulic pump.
- 3,500 RPM Speed: Operates at approximately 3,500 revolutions per minute for hydraulic lift applications.
- 65 A Current Rating: Electrical configuration is rated at approximately 65 amperes under specified operating conditions.
- Brushed DC Design: Uses a conventional DC motor architecture suitable for intermittent hydraulic pump operation.
- Front-Flange Mounting: Motor housing incorporates a front mounting flange for connection to the hydraulic pump assembly.
- Two-Terminal Connection: Uses two primary electrical terminal studs for integration with the equipment power circuit.
- Cross-Reference Support: Associated with replacement numbers 77800503, 28715950, and 50103337.
The 50013075 delivers the reliability and precision required for hydraulic pump operation and controlled lifting functions in compatible electric material handling equipment.
