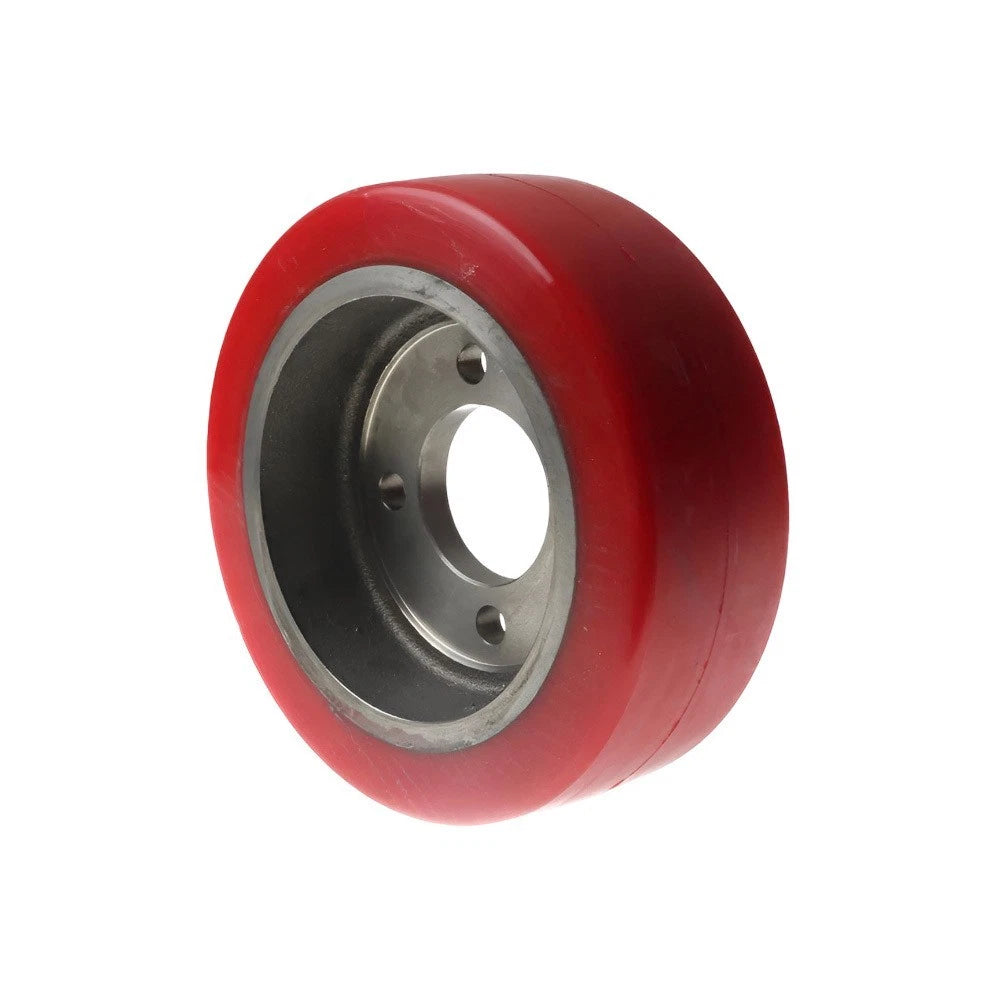

Jungheinrich 77800067 Polyurethane Drive Wheel Assembly
- Regular price
- $917.00
- Sale price
- $917.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 77800067
Description
The Jungheinrich 77800067 is a polyurethane drive wheel designed to transfer traction from the drive system to the floor on compatible electric material handling equipment. Its polyurethane tread and metal hub construction support controlled travel, load handling, and repeated operation on warehouse surfaces. The wheel is used on selected Jungheinrich, CAT, and Multiton pallet trucks and stackers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Jungheinrich |
| Category | Forklift Wheels |
| Part Number | 77800067 |
| Subcategory | Drive Wheels |
| Component Type | Drive Wheel Assembly |
| Tread Material | Polyurethane / Vulkollan-Type |
| Hub Material | Metal |
| Tread Profile | Smooth |
| Mounting Configuration | 4 Bolt Holes |
| Pitch Circle Diameter | 95 mm |
| Maximum Load Capacity | Approx. 1,680 kg (3,704 lbs) |
| Primary Function | Traction and Drive Force Transfer |
| Equipment Type | Electric Pallet Trucks and Stackers |
| Compatible Series | EMC, EJC, EMB |
| Documented Models | EMC 10, EMC B10, EMC 110, EMB 10, EJC 110, EJC 112 |
| Cross-Brand Applications | CAT, Multiton |
| Weight | 2.47 lbs (1.12 kg) |
Information About 77800067
The 77800067 is a drive wheel assembly used in the traction systems of compact electric pallet trucks and pedestrian stackers. It combines a heavy-duty polyurethane tread with a rigid metal hub to provide traction while supporting substantial operating loads. The wheel uses a four-hole mounting configuration with a 95 mm pitch circle diameter and is rated for loads up to approximately 1,680 kg. Compatibility includes selected Jungheinrich EMC, EJC, and EMB equipment, with the same part number also appearing in CAT and Multiton applications.
Key Features:
- Polyurethane Tread: Provides a durable contact surface suitable for repeated travel on industrial warehouse floors.
- Drive Wheel Function: Transfers motor-driven rotational force into traction for equipment movement.
- High Load Capacity: Rated for loads up to approximately 1,680 kg under applicable operating conditions.
- Four-Hole Mounting: Uses a four-hole mounting pattern for attachment to the compatible drive assembly.
- 95 mm PCD: Mounting holes are arranged on an approximately 95 mm pitch circle diameter.
- Metal Hub Construction: Rigid hub supports the polyurethane tread and maintains alignment under operating loads.
- Material Handling Application: Designed for electric pedestrian pallet trucks, stackers, and related warehouse equipment.
- Cross-Brand Usage: Part number 77800067 is documented in Jungheinrich, CAT, and Multiton parts applications.
The 77800067 delivers the reliability and precision required for traction, load support, and controlled travel in compatible electric material handling equipment.
