K22A36U2 | Burndy Aluminum Universal Terminal 2 Hole
- Regular price
- $112.00
- Sale price
- $112.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: K22A36U2
Description

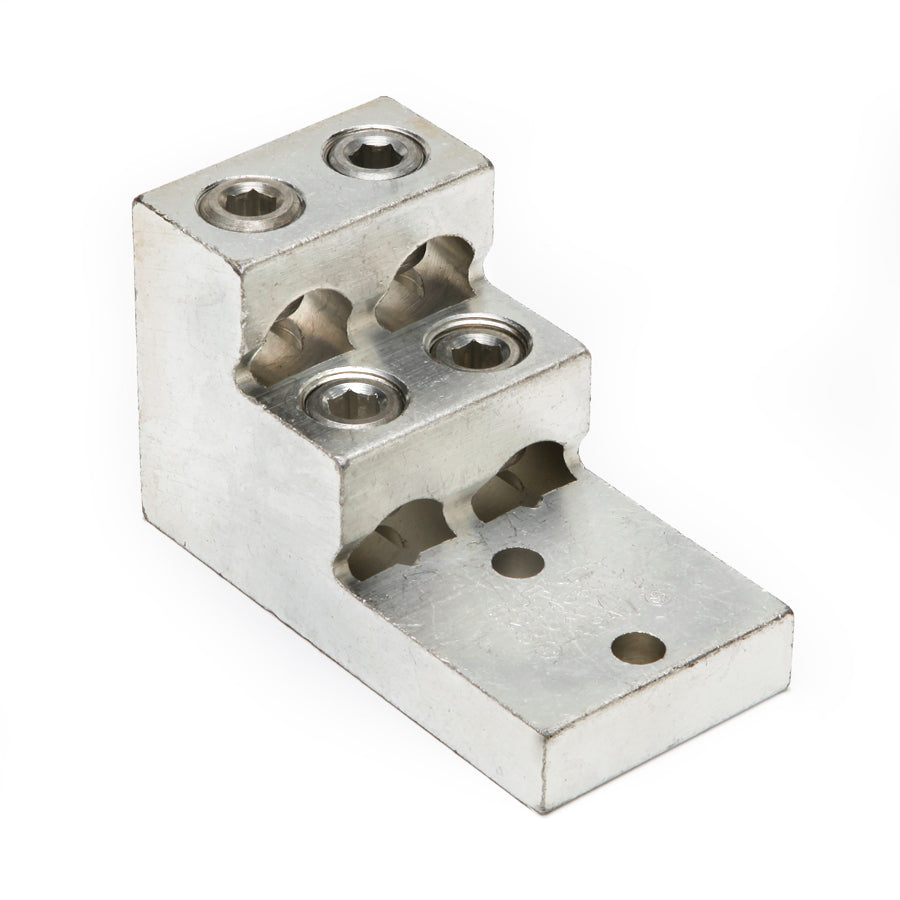

The Burndy K22A36U2 Aluminum Universal Terminal is a 2-hole lug box terminal designed for secure and efficient electrical connections. Constructed from high-strength extruded aluminum alloy, this universal terminal offers durability, low contact resistance, and superior conductivity for demanding electrical applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Burndy |
| Category | Connectors |
| Part Number | K22A36U2 |
| Subcategory | Electrical Lugs & Connectors |
| Series | K22A-U |
| Conductor Type |
Copper/Stranded Aluminum
|
|
Conductor Size
|
2 AWG to 600 kcmil |
| Stud Size | 3/8 in |
| Number of Bolt Holes | 4 |
| Tongue Size | 2.31 in W x 0.75 in THK |
| Tongue Type | Straight |
| Material |
Aluminum
|
| Finish |
Electro-Zinc Plated
|
| Dimensions |
4.91 in L x 2.5 in W x 3.03 in H
|
Information About K22A36U2
The K22A36U2 terminal is designed for use with conductors ranging from 2 AWG (Stranded) to 600 kcmil. Its 3/8-inch stud holes with a 1.38-inch stud spacing ensure compatibility with standard mounting configurations. The terminal’s tin-plated finish enhances resistance to corrosion and ensures low contact resistance, improving electrical performance over time. With its Al/Cu (Aluminum/Copper) rating, this terminal can be safely used with both aluminum and copper conductors, providing installation flexibility.
Key Features
- Material: Constructed from high-strength extruded aluminum alloy for durability.
- Conductor Compatibility: Accommodates 2 AWG (Stranded) to 600 kcmil cables for versatile use.
- Stud Size: Features 3/8-inch stud holes for secure mounting.
- Stud Hole Spacing: Spaced at 1.38 inches for industry-standard configurations.
- Tin-Plated Finish: Provides low contact resistance and enhances corrosion resistance.
- Al/Cu Rated: Compatible with both aluminum and copper conductors.
- 4 Screws Design: Ensures secure connections and improved conductivity.
- Durable and Reliable: Engineered for long-term performance in electrical installations.
The Burndy K22A36U2 Aluminum Universal Terminal offers a robust, reliable, and secure connection solution, ensuring optimal performance in demanding environments.
