K22A39U2 | Burndy Universal Terminal
- Regular price
- $204.00
- Sale price
- $204.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: K22A39U2
Description

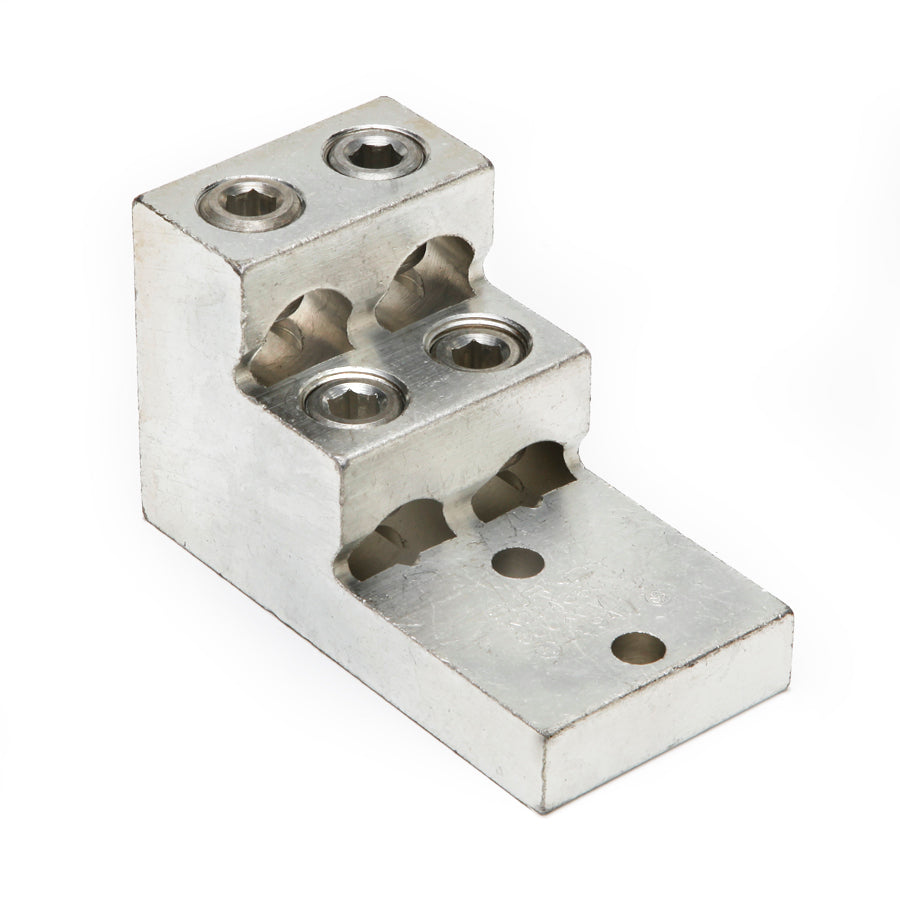

The BURNDY K22A39U2 is a dual-rated universal mechanical bolted lug and terminal designed to terminate multiple conductors onto equipment pads, panel boards, or switchgear.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Burndy |
| Category |
Electronic Components
|
| Part Number | K22A39U2 |
| Subcategory |
Electrical Connectors, Terminals, & Pins
|
| Type | Dual Rated Universal |
| Series | K22A-U |
| Conductor Type | Copper/Stranded Aluminum |
| Conductor Size | 1/0 AWG to 750 kcmil |
| Stud Size | 3/8 in |
| Number of Bolt Holes | 4 |
| Tongue Size | 2.31 in W x 0.75 in THK |
| Tongue Type | Straight |
| Specifications |
(4) 2.6 in L Collar, Hex Screw, 1.38 in Mounting Hole Spacing, 4-Conductor
|
| Temperature Rating | 194°F |
| Material | Aluminum |
| Finish | Electro-Zinc Plated |
| Dimensions | 4.91 in L x 3.06 in W x 3.02 in H |
| Weight | 0.07 kgs |
Information About K22A39U2
The K22A39U2 is a dual-rated universal mechanical bolted lug and terminal manufactured by BURNDY®. Designed for both aluminum and copper conductors, it accommodates wire sizes ranging from 1/0 AWG to 750 kcmil.
Key Features:
-
Material: Constructed from high-strength extruded aluminum alloy, the terminal is electro tin-plated to ensure low contact resistance.
-
Design: Features a 2-hole configuration suitable for four conductors, each secured by four screws. The stud size is 3/8 inches with a stud hole spacing of 1.38 inches.
-
Dimensions: The terminal measures 4.91 inches in length, 3.06 inches in width, and 3.02 inches in height.
-
Temperature Rating: Rated for a maximum operating temperature of 194°F (90°C).
-
Certifications: Complies with UL 486A-486B standards and is CSA certified.
This terminal is suitable for terminating power and ground connections inside panelboards, making it a versatile choice for various electrical applications.
