K3GN-NDT1-L1 | Omron 1/32 DIN Digital Panel Meter
- Regular price
- $940.00
- Sale price
- $940.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: K3GN-NDT1-L1
Description

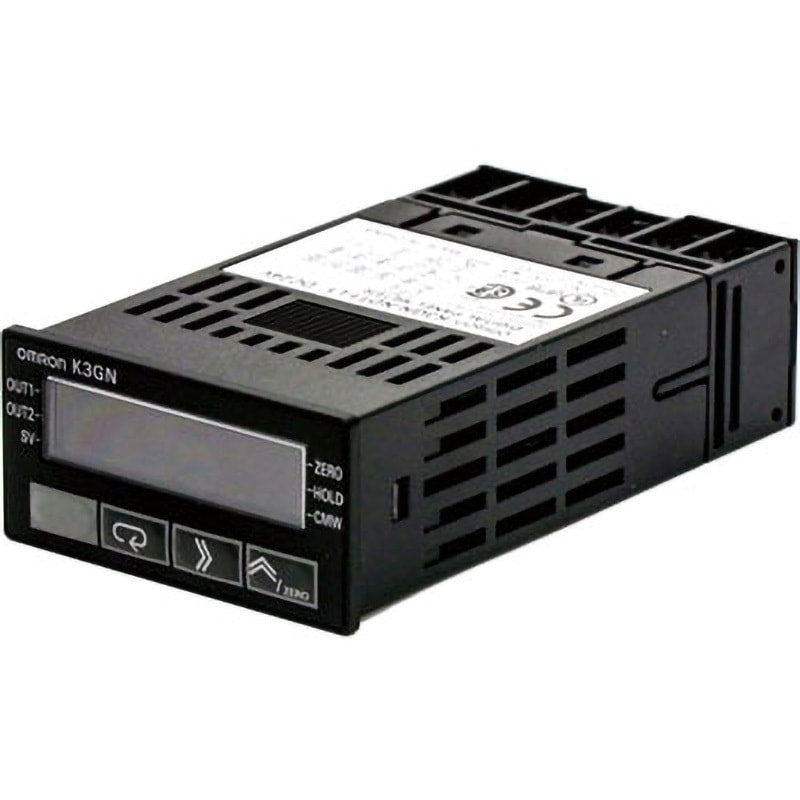

The Omron K3GN-NDT1-L1 is a compact 1/32 DIN digital panel meter for monitoring DC voltage, current, or NPN pulse signals. It features a 5-digit LED display, NPN transistor outputs, and a 4–20 mA analog transfer output for reliable data integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Measurement & Display Equipment |
| Part Number | K3GN-NDT1-L1 |
| Subcategory | Digital Panel Meters |
| Power Supply Voltage | 24 VDC |
| Allowable Voltage Range | 85%–110% of rated voltage |
| Power Consumption | 2.5 W max |
| Input Type | DC voltage, DC current, Pulse (NPN) |
| Output Type | NPN Transistor (Judgment), Linear 4–20 mA (Analog) |
| Measurement Range | 4–20 mA |
| Indication Range | 0.00 to 22.00 mA |
| Accuracy | ±0.1% FS ±1 digit (at 23±3 °C) |
| Input Impedance | 60 Ω max |
| A/D Conversion | Double integral method |
| Sampling Period | 250 ms |
| Output Response Time | 750 ms max |
| Display Type | Negative LCD, 5-digit (green/red), 7 mm height |
| Communication Ports | None |
| Insulation Resistance | 20 MΩ min (at 500 VDC) |
| Dielectric Strength | 1000 VAC for 1 min |
| Ambient Temperature | Operating: -10 to 55 °C / Storage: -25 to 65 °C |
| Ambient Humidity | 25% to 85% (non-condensing) |
| Degree of Protection | Front: NEMA4X/IP66, Terminals: IP00/IP20 |
| Noise Immunity | ±480 V (normal), ±1500 V (common mode) |
| Vibration Resistance | 10–55 Hz, 0.35 mm amplitude (3 axes) |
| Shock Resistance | 150 m/s² (6 directions, 3 times) |
| Memory Protection | EEPROM, 100,000 write cycles |
| Accessories | Terminal cover, rubber packing, fixtures, manual |
| Dimensions (HxWxD) | Standard 1/32 DIN format |
| Weight | Approx. 100 g |
Information About K3GN-NDT1-L1
The K3GN-NDT1-L1 belongs to Omron’s K3GN series of digital panel meters, designed for versatile input signal measurement and output signaling in control panels. It accepts DC voltage, current, or NPN pulse inputs and provides transistor-based judgment outputs along with linear current output (4–20 mA). With a 24 VDC power supply, 5-digit display resolution, and selectable output modes, it supports both monitoring and control functions in industrial settings. The unit includes memory protection, noise immunity, and complies with NEMA4X/IP66 front panel standards, making it suitable for reliable measurement in harsh environments.
Key Features:
-
Multi-Input Signal Compatibility: Accepts DC voltage, DC current, and NPN pulse inputs for flexible monitoring applications.
-
Dual Output Types: Provides judgment output via NPN open collector transistor and analog transfer output (linear 4–20 mA).
-
High-Resolution Display: 5-digit negative LCD with 7-segment green/red display for clear real-time readout (±19,999 to 99,999).
-
Fast Response Time: 750 ms max for both judgment and analog outputs, enabling near real-time feedback to control systems.
-
Compact 1/32 DIN Format: Designed for minimal panel space usage while delivering full functionality and visibility.
-
Noise, Vibration & Shock Resistant: Designed to withstand ±480 V noise, 10–55 Hz vibration, and 150 m/s² shock conditions.
-
Rugged Environmental Protection: NEMA4X/IP66-rated front face and IP20/IP00 terminals for durability in industrial settings.
-
Non-Volatile Memory: Internal EEPROM retains settings through power loss with up to 100,000 write cycles.
The K3GN-NDT1-L1 delivers the reliability and precision required for high-accuracy signal monitoring and control feedback in compact industrial panel meter applications.
