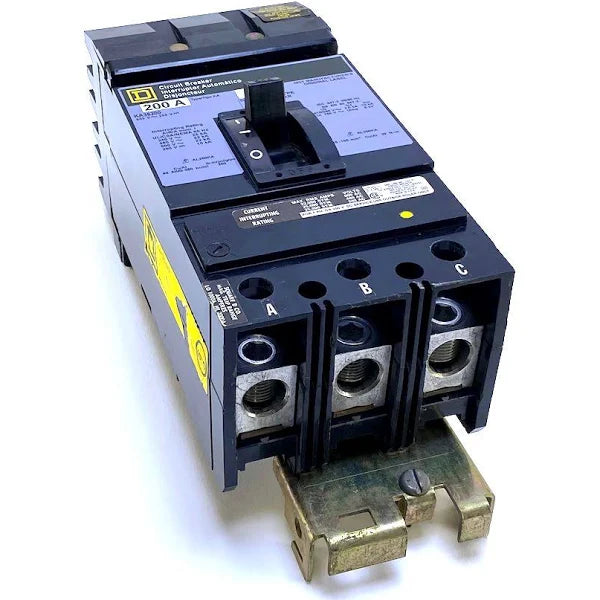

KA36200 | Square D 200A 3-Pole 600V I-Line Molded Case Circuit Breaker
- Regular price
- $1,425.00
- Sale price
- $1,425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KA36200
Description
The Square D KA36200 is a 200-amp, 3-pole molded case circuit breaker engineered for three-phase systems in industrial power distribution. Operating at up to 600 volts, it provides dependable thermal-magnetic protection against overloads and short-circuit events. With an interrupting rating of 25kA at 480V, the KA36200 supports standard industrial fault-handling requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | KA36200 |
| Subcategory | Molded Case Circuit Breaker 200 AMP |
| Manufacturer | Schneider Electric |
| Poles | 3 |
| Amperage Rating | 200A |
| Voltage Rating | 600 VAC |
| Interrupting Capacity | 25kA @ 480V |
| Series / System | I-Line |
| Mounting Style | Plug-In |
| Trip Type | Thermal-Magnetic |
| Type | KA |
| Phase | Three-Phase |
| Frame Type | KA Frame (Square D) |
| Frequency Rating | 50/60 Hz |
| Operating Temperature | Up to 40°C |
| Application | Industrial and commercial power distribution |
| Protection Functions | Overload and short-circuit protection |
Information About KA36200
The KA36200 is part of the Square D I-Line Series, a family of molded case circuit breakers designed for secure, panel-mounted power distribution. Built with a Type KA thermal-magnetic trip unit, it features a robust molded housing and internal mechanisms optimized for stable performance. The breaker integrates directly into I-Line busway and panelboard systems using its plug-in connection style. Commonly used in industrial and commercial facilities, its 200A rating, 3-pole configuration, and 600V capability support reliable protection of three-phase equipment and feeder circuits.
Key Features
- 200A molded case breaker: Provides stable overcurrent protection for industrial circuits.
- 3-pole configuration: Supports three-phase power distribution.
- 600V operational rating: Suitable for higher-voltage commercial and industrial applications.
- Type KA thermal-magnetic trip: Ensures accurate response to overload and fault conditions.
- I-Line plug-in design: Simplifies installation within Square D I-Line systems.
- 25kA interrupting capacity: Meets standard fault-handling requirements at 480V.
- Rugged molded case construction: Built for demanding operating environments.
- Temperature rated to 40°C: Supports operation in typical industrial ambient conditions.
The KA36200 delivers the reliability and precision required for dependable three-phase power distribution protection.
