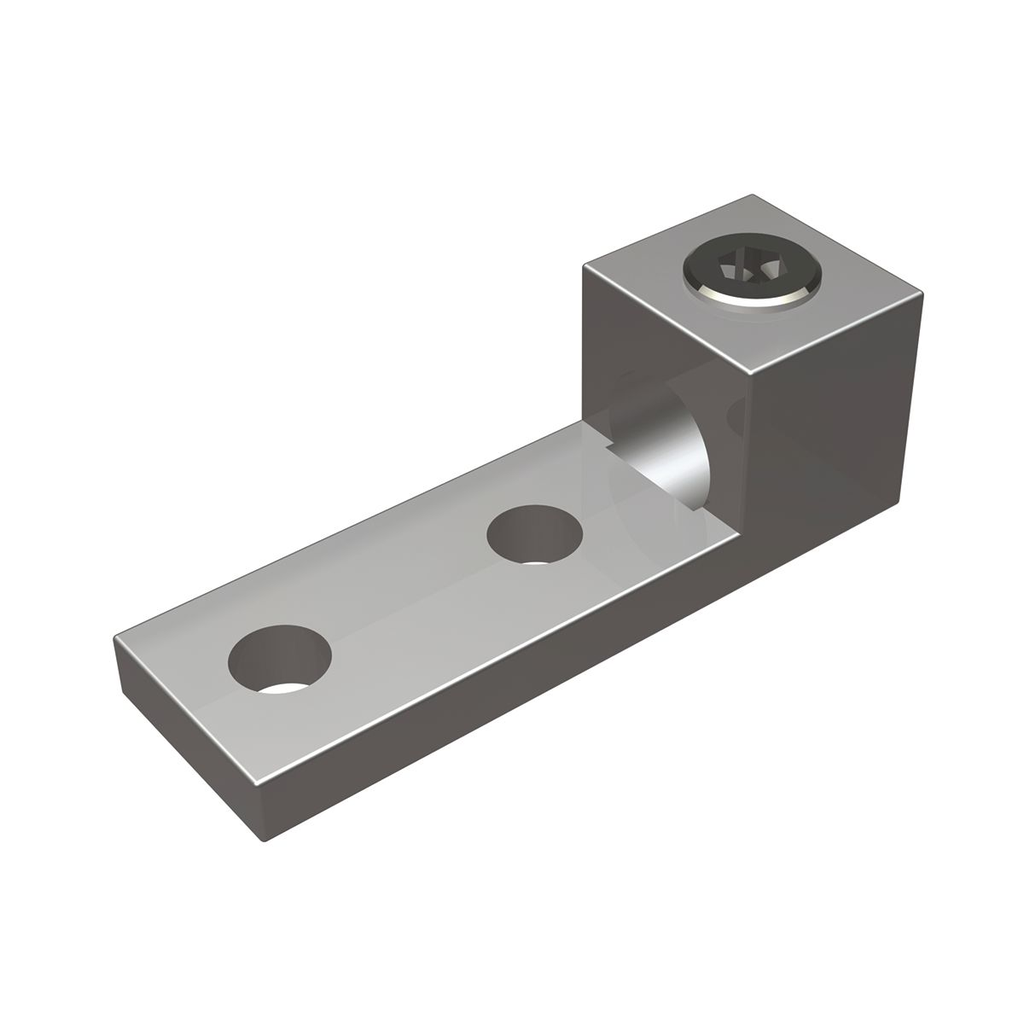

KA36U2N | Burndy Aluminum Universal Terminal
- Regular price
- $34.00
- Sale price
- $34.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KA36U2N
Description
The Burndy KA36U2N is an aluminum universal terminal designed for secure electrical connections. It features a high-conductivity aluminum body, dual-rated for aluminum and copper conductors, and is tin-plated for corrosion resistance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Burndy |
| Category |
Electrical Components & Power Distribution
|
| Part Number | KA36U2N |
| Subcategory | Electrical Components |
|
Weight |
0.42 lbs |
|
Conductor Type |
Lugs & Terminals |
|
Conductor Size |
2 AWG to 600 kcmil |
|
Stud Size |
1/2 in |
|
Number of Bolt Holes |
2 |
|
Tongue Size |
1.52 in W x 0.44 in THK |
|
Tongue Type |
Straight |
|
Temperature Rating |
194 °F |
|
Material |
Aluminum |
|
Finish |
Electro-Zinc Plated |
|
Dimensions |
4.69 in L x 1.5 in W |
Information About KA36U2N
The Burndy KA36U2N is a dual-rated aluminum universal terminal lug designed for reliable electrical connections with both aluminum and copper conductors. Constructed from high-strength aluminum alloy and electro tin-plated, it ensures low contact resistance and durability. citeturn0search0
Key Features:
-
Conductor Compatibility: Accommodates conductor sizes ranging from 2 AWG to 600 kcmil for both aluminum and copper stranded conductors.
-
Design Specifications: Features a 2-hole design with 1/2-inch stud size and 1.75-inch stud hole spacing.
- Certifications: Complies with UL 486A-486B standards and is CSA approved, ensuring adherence to industry safety and performance requirements.
This terminal lug is suitable for various industrial and commercial applications, providing a secure and efficient connection for electrical systems.
