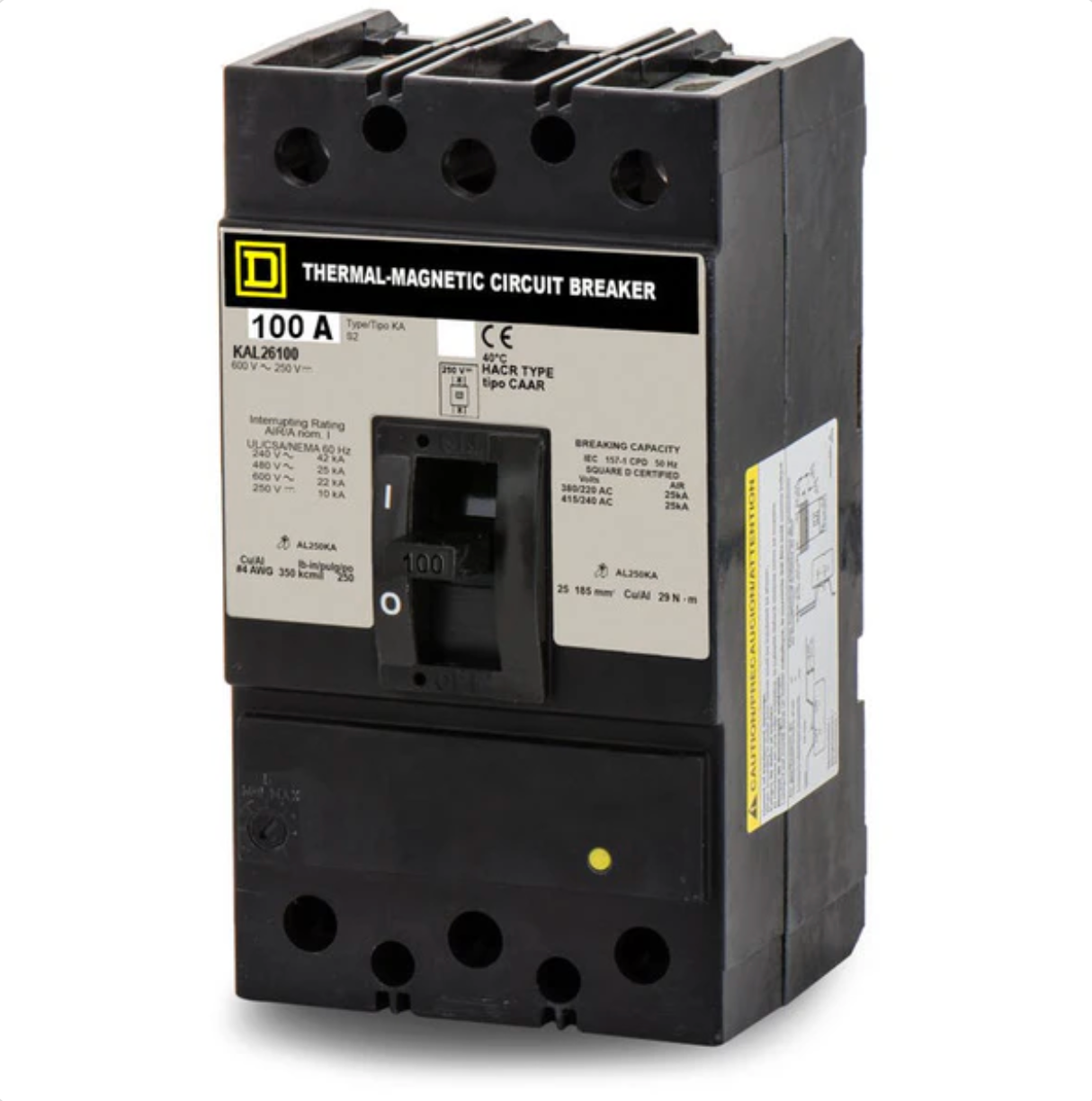

KAL26100 | Square D 100A 2-Pole 600VAC/250VDC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KAL26100
Description
The Square D KAL26100 is a 2-pole thermal magnetic molded case circuit breaker designed for dependable circuit protection in commercial and industrial applications. With a current rating of 100 amps and a voltage rating of 600VAC/250VDC, it provides reliable overload and short-circuit protection. The KAL26100 features a feed-thru connection and a high interrupting rating of 25kAIC at 480V, ensuring robust performance in demanding electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | KAL26100 |
| Subcategory | Molded Case Circuit Breaker |
| Series | KAL |
| Frame Type | K-Frame |
| Type | Thermal Magnetic |
| Amperage Rating | 100A |
| Voltage Rating | 600VAC / 250VDC |
| Interrupting Rating | 25kAIC @ 480V |
| Poles | 2 |
| Phase | Single Phase (1PH) |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Feed-Thru (Lugs on Both Ends) |
| Wire Size Range | #4 AWG–350 kcmil (Cu/Al) |
| Mounting Type | Individual / Panel Mount |
| Certifications | UL 489, CSA C22.2, IEC 60947-2, Federal W-C-375B/GEN |
| Protection Type | Thermal Magnetic |
| Operating Temperature | 40°C (104°F) |
| Dimensions (HxWxD) | 8" x 4.5" x 4.75" |
| Weight | 8 lb (3.63 kg) |
Information About KAL26100
The KAL26100 is part of Square D’s KAL Series of molded case circuit breakers, known for their rugged design and precision trip characteristics. Built with a K-Frame structure, this breaker offers enhanced mechanical durability and consistent thermal magnetic performance. It includes both long-time and instantaneous trip functions to protect circuits from sustained overloads and short-circuit faults. The breaker supports both AC and DC operation, making it suitable for industrial power distribution systems and heavy-duty control panels where versatility and safety compliance are critical.
Key Features:
- High Interrupting Capacity: Rated at 25kAIC at 480V for reliable fault current interruption.
- Dual Voltage Compatibility: Operates at 600VAC and 250VDC for flexible system integration.
- Thermal Magnetic Trip Unit: Provides both overload and short-circuit protection for stable performance.
- Feed-Thru Connection Type: Allows secure and efficient wiring for line and load circuits.
- Rugged K-Frame Construction: Engineered for durability and consistent performance under high electrical stress.
- UL, CSA, and IEC Certified: Meets global safety and performance standards for industrial applications.
- Wide Wire Range: Accommodates #4 AWG to 350 kcmil conductors for flexible installation.
- Ambient Temperature Rated (40°C): Ensures reliable operation in standard industrial environments.
The KAL26100 delivers the reliability and precision required for industrial power distribution and protection systems.
