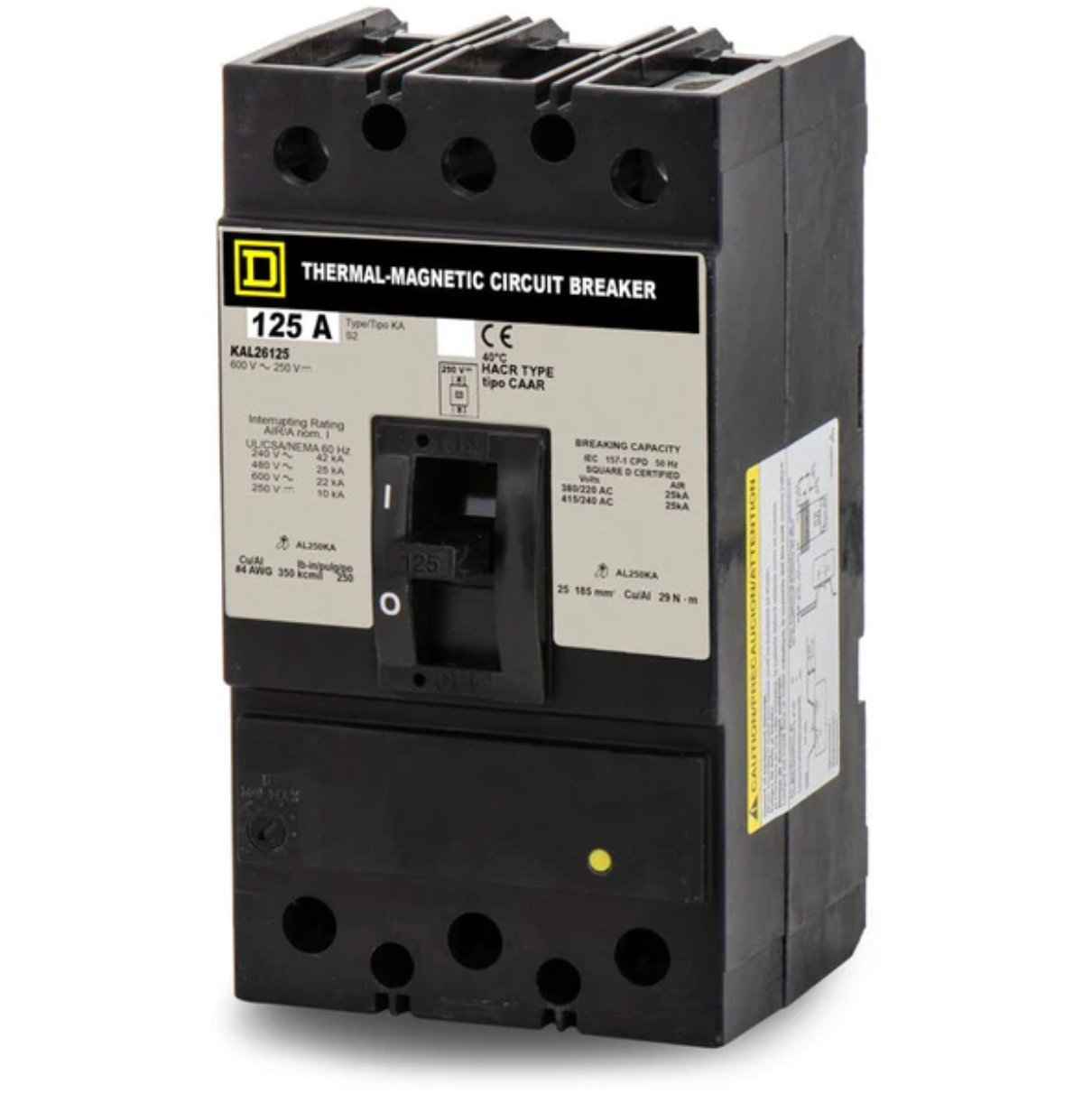

KAL26125 | Square D 125A 2-Pole 600VAC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KAL26125
Description
The Square D KAL26125 is a 2-pole thermal magnetic molded case circuit breaker designed to provide reliable protection for electrical systems operating up to 600VAC. With a 125-amp current rating and a 25kA interrupting capacity at 480V, it safeguards circuits against overloads and short circuits in industrial and commercial environments. The KAL26125 features a feed-thru connection design and includes both long-time and instantaneous trip functions for precise operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | KAL26125 |
| Subcategory | Molded Case Circuit Breakers |
| Series | KAL |
| Frame Type | K Frame |
| Amperage Rating | 125A |
| Voltage Rating | 600VAC |
| Interrupting Rating | 25kAIC @ 480V |
| Poles | 2 |
| Phase | 1 |
| Trip Type | Thermal Magnetic (LI – Long-Time and Instantaneous) |
| Connection Type | Feed-Thru |
| Terminal Type | Line and Load Side Lugs |
| Protection Type | Overload and Short-Circuit |
| Mounting Type | Molded Case |
| Certifications | UL Listed, CSA Certified |
| Temperature Rating | 40°C |
| Weight | 8 lb (3.63 kg) |
Information About KAL26125
The KAL26125 is part of the Square D KAL Series, engineered for dependable circuit protection in demanding electrical distribution systems. It utilizes a thermal magnetic trip mechanism that combines temperature-sensitive and electromagnetic protection elements for optimal performance under varying load conditions. This 2-pole breaker supports 1-phase 600VAC applications and includes line and load side lug terminals for secure installation. Built with a robust K-frame housing, the KAL26125 is suitable for use in control panels, switchboards, and heavy-duty industrial power systems where high interrupting ratings are required.
Key Features:
- High Current Rating: Provides 125A of reliable protection for industrial and commercial electrical systems.
- Voltage Compatibility: Supports operation up to 600VAC for a wide range of power distribution setups.
- Interrupting Capacity: Rated at 25kAIC at 480V for safe fault interruption.
- Thermal Magnetic Trip Unit: Combines long-time and instantaneous trip elements for accurate overload and short-circuit protection.
- Feed-Thru Connection: Enables straightforward installation with line and load lugs on both ends.
- Durable K-Frame Design: Offers mechanical strength and heat resistance in heavy-duty environments.
- Certified Quality: UL Listed and CSA Certified for compliance with global electrical standards.
- Easy Maintenance: Simplified access and installation design for minimal downtime.
The KAL26125 delivers the reliability and precision required for industrial power protection and electrical distribution systems.
