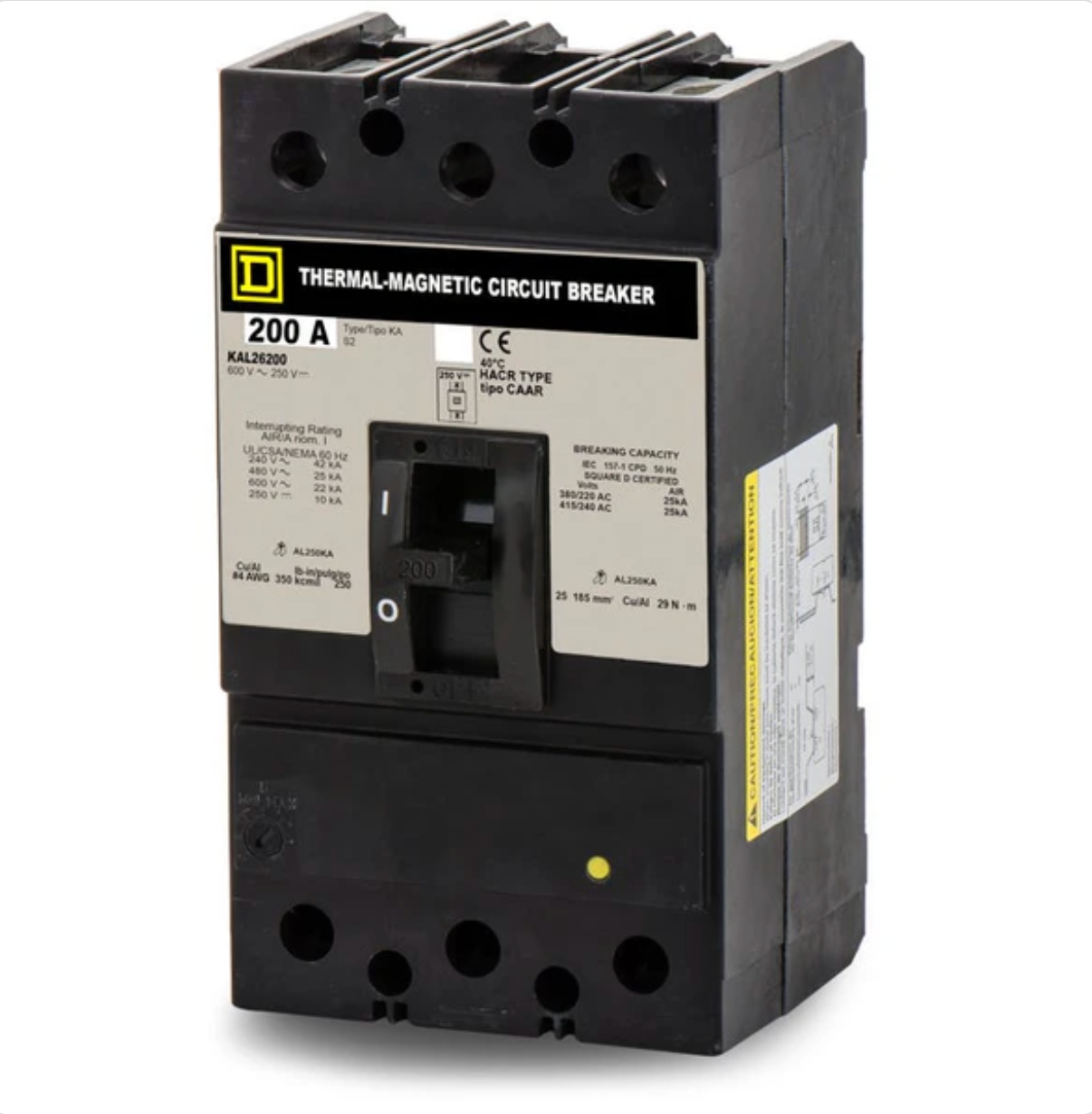

KAL26200 | Square D 200A 2-Pole 600VAC Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KAL26200
Description
The Square D KAL26200 is a 2-pole thermal magnetic molded case circuit breaker designed to deliver dependable circuit protection for industrial and commercial applications. Rated at 200 amps and 600VAC, it provides efficient overload and short-circuit protection with a 25kAIC interrupting capacity at 480V. The KAL26200 features a feed-thru connection with lugs on both ends, offering reliable performance and simplified installation in demanding power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | KAL26200 |
| Subcategory | Molded Case Circuit Breaker |
| Series | KAL |
| Frame Type | K-Frame |
| Type | Thermal Magnetic |
| Amperage Rating | 200A |
| Voltage Rating | 600VAC |
| Interrupting Rating | 25kAIC @ 480V |
| Poles | 2 |
| Phase | Single Phase (1PH) |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Feed-Thru (Lugs on Both Ends) |
| Terminal Connection | Line and Load Side Lug |
| Protection Type | Thermal Magnetic |
| Mounting Type | Molded Case / Panel Mount |
| Certifications | UL Listed, CSA Certified |
| Operating Temperature | 40°C (104°F) |
| Weight | 8 lb (3.63 kg) |
Information About KAL26200
The KAL26200 is part of the Square D KAL Series, a robust line of molded case circuit breakers built for high-performance power protection. It utilizes a K-frame design known for its mechanical durability and precise trip characteristics. Equipped with a thermal magnetic trip unit, the breaker provides long-time and instantaneous trip functions to safeguard circuits from sustained overloads and short-circuit conditions. Designed for single-phase applications up to 600VAC, the KAL26200 is ideal for industrial switchboards, control panels, and OEM systems requiring consistent, high-capacity circuit protection.
Key Features:
- High Current Rating: Supports up to 200A for industrial-grade power distribution.
- Wide Voltage Range: Operates efficiently at up to 600VAC for single-phase systems.
- High Interrupting Capacity: Rated at 25kAIC at 480V for reliable fault interruption.
- Thermal Magnetic Trip Unit: Provides long-time and instantaneous trip functions for overload and short-circuit protection.
- Feed-Thru Connection Design: Includes lugs on both line and load sides for straightforward installation.
- Durable K-Frame Construction: Ensures long operational life in harsh environments.
- Certified Performance: Complies with UL and CSA standards for verified safety and reliability.
- Ambient Temperature Rated (40°C): Suitable for standard industrial operating conditions.
The KAL26200 delivers the reliability and precision required for industrial and commercial power protection applications.
