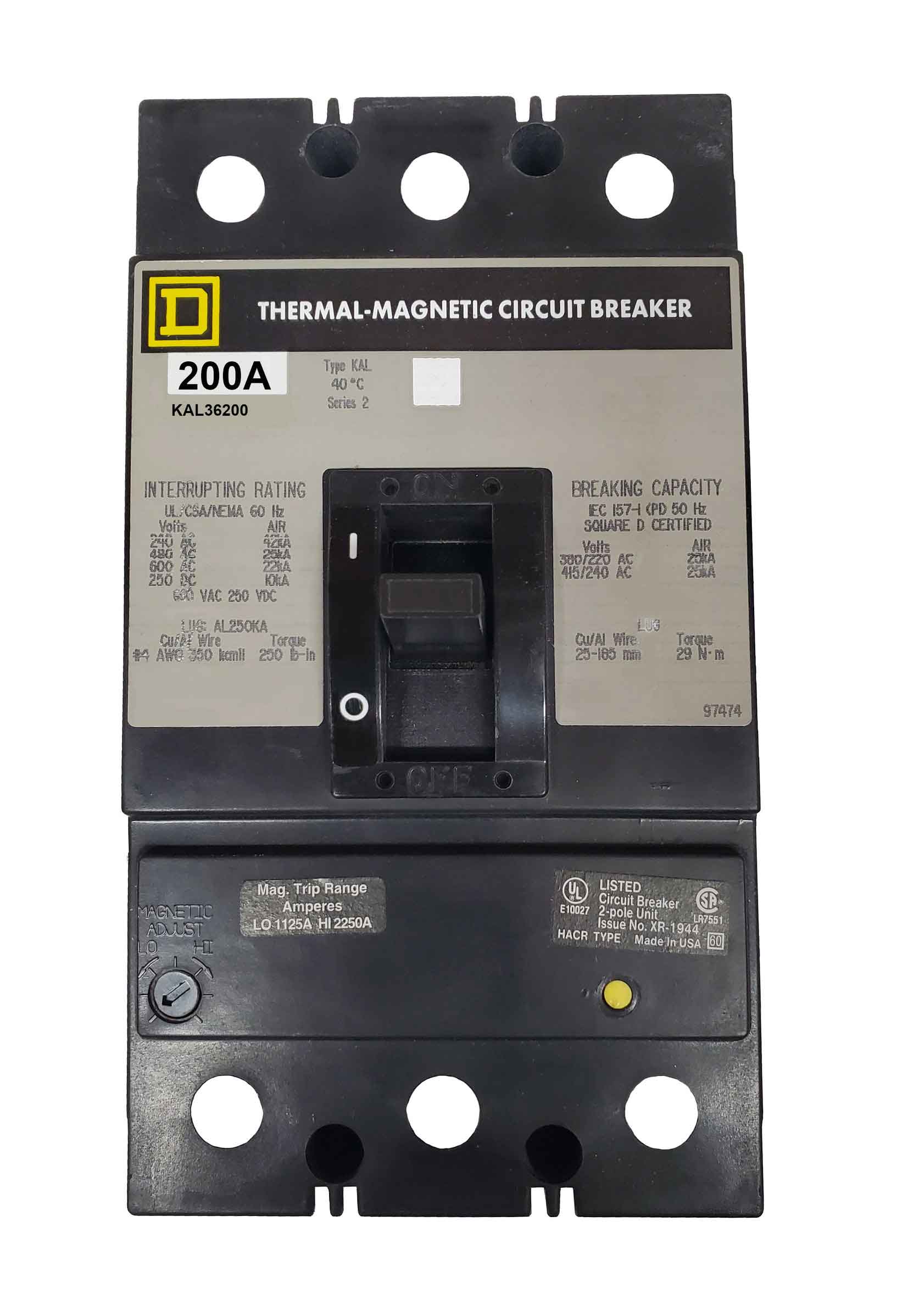

KAL36200 | Schneider Electric 200A 600V 3-pole KAL Series molded case circuit breaker
- Regular price
- $1,140.00
- Sale price
- $1,140.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KAL36200
Description
The Schneider Electric KAL36200 is a heavy-duty molded case circuit breaker designed for industrial power distribution systems. With a 200-ampere rating and thermal-magnetic trip technology, it delivers reliable protection against overloads and short-circuit conditions. Rated for up to 600 VAC and 250 VDC, it provides dependable operation in demanding environments requiring robust electrical protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | KAL36200 |
| Subcategory | Molded Case Circuit Breaker |
| Family | KAL Series |
| Type | KAL |
| Voltage Rating | 600 VAC / 250 VDC |
| Amperage Rating | 200 A |
| Frame Type | K Frame |
| Number of Poles | 3 |
| Phase | 3 |
| Connection Type | Feed-Thru |
| Trip Type | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Interrupt Rating | 25kA @ 480V |
| Magnetic Trip Setting | 1000 A AC |
| Dimensions | 8.00 in L × 4.50 in W × 4.75 in H |
| Temperature Rating | 40°C |
| Mounting Style | Panel / MCCB Mount |
| Body Material | Molded Case |
Information About KAL36200
The KAL36200 belongs to Schneider Electric’s KAL Series, engineered for high-performance industrial applications. Built on the durable K Frame, it offers a sturdy construction suitable for harsh operating conditions. Featuring a feed-thru connection, it integrates easily into three-phase systems while ensuring secure and stable electrical continuity. With long-time and instantaneous (LI) trip functions, thermal-magnetic protection, and a 25 kA interrupt rating at 480V, the KAL36200 delivers precise and dependable fault protection commonly required in manufacturing, commercial facilities, and power distribution systems.
Key Features:
- 200A rated molded case design: Supports demanding industrial load requirements.
- 600 VAC / 250 VDC voltage capability: Suitable for a wide range of power distribution applications.
- Thermal-magnetic trip: Provides accurate overload and short-circuit protection.
- LI trip functions: Long-time and instantaneous response for tailored circuit protection.
- High interrupt rating: 25kA @ 480V ensures safe fault clearing under heavy load conditions.
- K Frame construction: Rugged and durable build for industrial reliability.
- Feed-thru connection: Simplifies installation and wiring within panel systems.
- Compact footprint: Measures 8.00" × 4.50" × 4.75", allowing efficient use of panel space.
The KAL36200 delivers the reliability and precision required for industrial molded case circuit protection.
