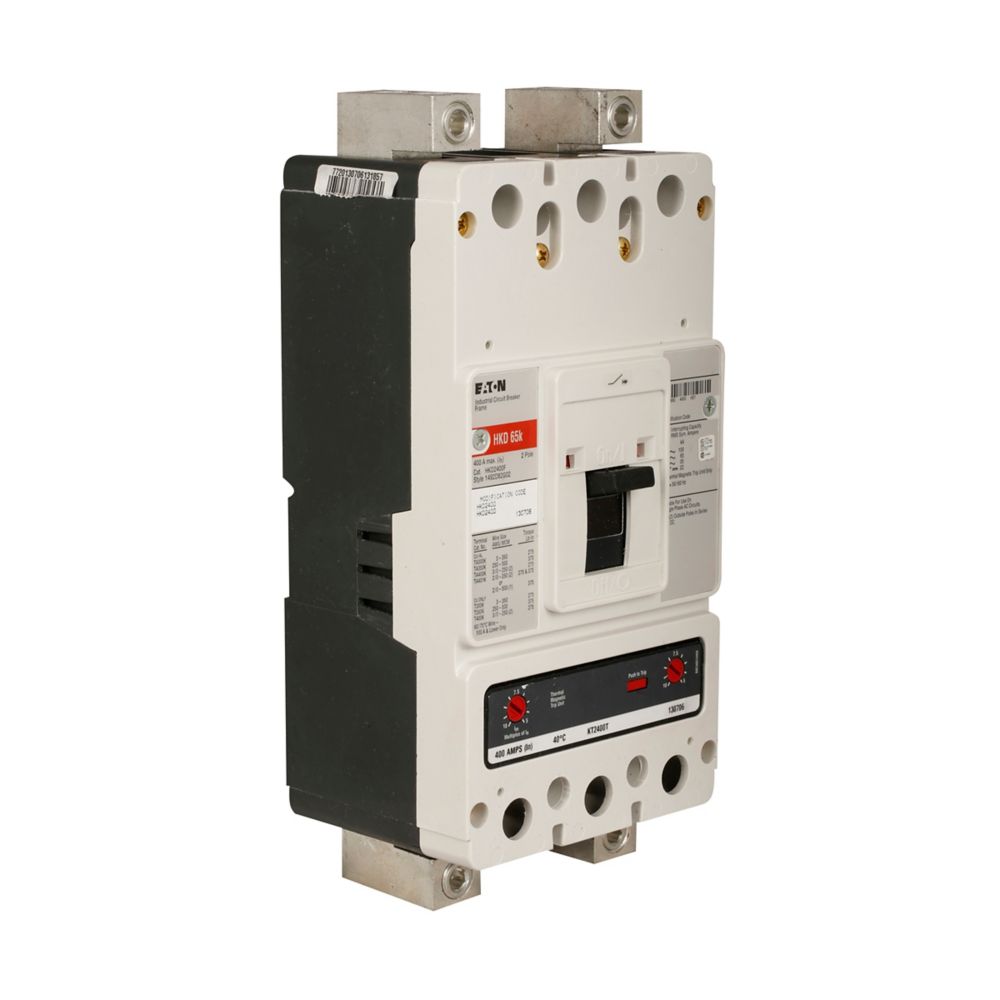

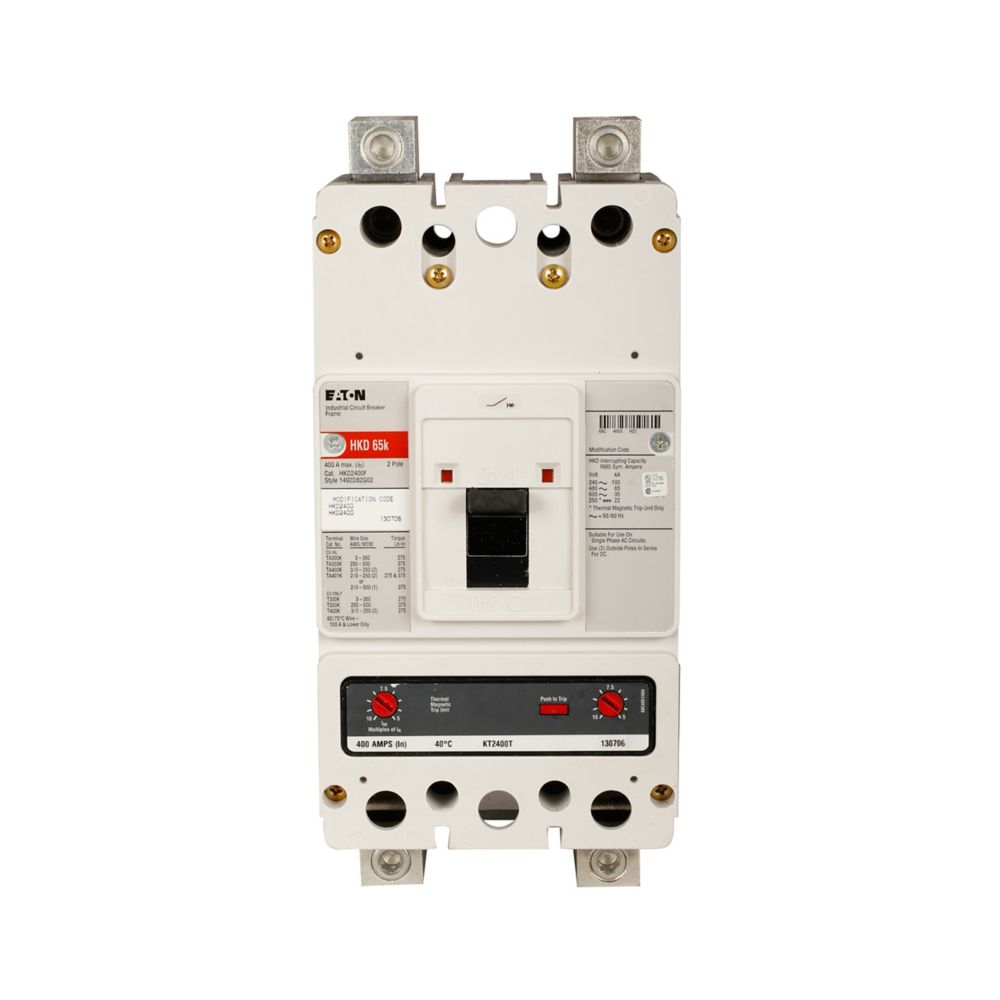

KD2400F | Eaton 400A 2-Pole 600V Series C K-Frame Bolt-On Molded Case Circuit Breaker Frame
- Regular price
- $1,855.00
- Sale price
- $1,855.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KD2400F
Description
The Eaton/Cutler-Hammer KD2400F is a 2-pole molded case circuit breaker frame designed for 400-amp electrical systems rated up to 600 VAC or 250 VDC. It provides dependable circuit protection with interrupting capacities of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, ensuring reliable operation under demanding conditions. The bolt-on mounting design allows for secure installation in industrial and commercial power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton/Cutler-Hammer |
| Category | Circuit Breakers |
| Part Number | KD2400F |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | K-Frame (KD) |
| Number of Poles | 2 |
| Amperage Rating | 400 A |
| Voltage Rating | 600 VAC, 250 VDC |
| Interrupting Rating | 65 kAIC @ 240 VAC, 35 kAIC @ 480 VAC |
| Trip Unit Type | Fixed Thermal, Fixed Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Mounting Type | Bolt-On |
| Connection Type | Bolt-On Terminals |
| Frequency Rating | 50/60 Hz |
| Approvals/Certifications | UL Listed |
| Application | Power distribution and overcurrent protection |
| Dimensions (H x W x D) | 5.5 x 5.5 x 4.1 in (140 x 140 x 104 mm) |
| Weight | 8.85 lbs (4.02 kg) |
Information About KD2400F
The KD2400F is part of the Eaton Series C K-Frame molded case circuit breaker family, engineered for precision, durability, and versatility in power management applications. Built with a fixed thermal and fixed magnetic trip unit, it offers long-time and instantaneous trip protection to guard against overloads and short circuits. The frame supports bolt-on connections for firm mechanical stability and optimal conductivity. Compatible with various Series C accessories and mounting configurations, the KD2400F meets UL standards and operates reliably in both AC and DC environments.
Key Features:
- Rated Current: Supports 400 amps continuous current for heavy-duty power distribution.
- High Voltage Compatibility: Operates at up to 600 VAC or 250 VDC for versatile installation options.
- Interrupting Capacity: 65kAIC at 240V and 35kAIC at 480V for robust fault interruption.
- Trip Technology: Fixed thermal and fixed magnetic trip unit provides long-time and instantaneous protection.
- Mounting Type: Bolt-on design ensures strong and secure electrical connections.
- Construction: Durable K-frame molded case engineered for high mechanical and electrical endurance.
- Compliance: UL listed for verified performance and safety standards.
- Applications: Suitable for industrial motor control centers, switchboards, and power distribution panels.
The KD2400F delivers the reliability and precision required for safe, efficient, and long-term circuit protection in industrial and commercial systems.
