KD3400F | Eaton Series C Molded Case Circuit Breaker Frame
- Regular price
- $1,659.00
- Sale price
- $1,659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KD3400F
Description

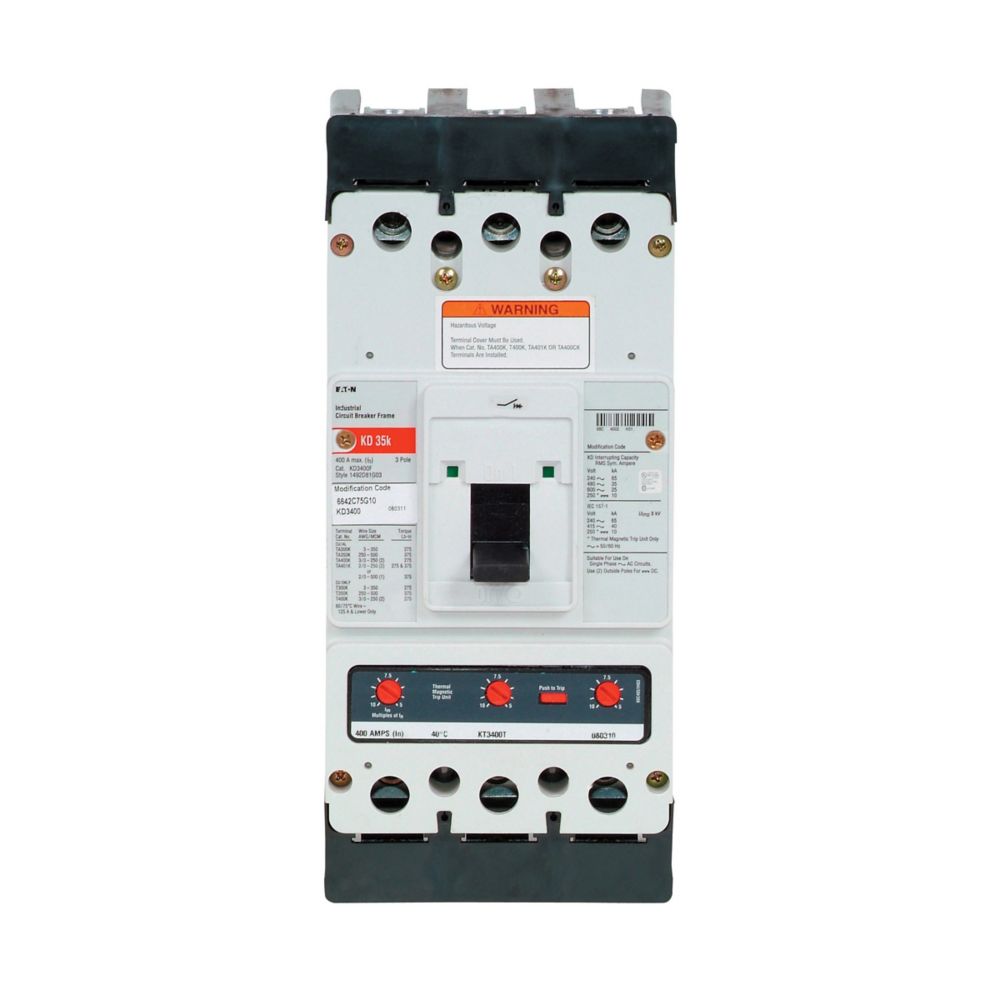

The KD3400F is a molded case circuit breaker frame manufactured by Eaton as part of the Series C lineup. It belongs to the K-frame category and is specifically designated as type KD. This frame is intended for use as a frame only, accommodating various types of circuit breakers.
Equipped with fixed thermal and fixed magnetic trip mechanisms, the KD3400F ensures reliable overcurrent protection. It is configured with three poles and has a current rating of 400 A, making it suitable for medium to high-power applications.
Technical Specifications
|
Product Name |
Eaton Series C molded case circuit breaker frame |
|
Catalog Number |
KD3400F |
|
UPC |
786679763551 |
|
Product Length/Depth |
4.1 in |
|
Product Height |
5.5 in |
|
Product Width |
5.5 in |
|
Product Weight |
9.65 lb |
|
Type |
Frame only |
|
Amperage Rating |
400 A |
|
Voltage Rating |
600 Vac, 250 Vdc |
|
Trip Type |
Fixed thermal, fixed magnetic |
|
Circuit Breaker Type |
KD |
|
Circuit Breaker Frame Type |
Frame only |
|
Series |
Series C |
|
Frame |
K |
|
Frequency Rating |
50 to 60 Hz |
|
Interrupt Rating |
35 kAIC at 480 Vac, 65 kAIC at 240 Vac |
|
Number of Poles |
Three-pole |
Information About KD3400F
The KD3400F, manufactured by Eaton, is a molded case circuit breaker frame belonging to the Series C lineup. Classified as a K-frame, it is specifically designated as type KD. This frame is designed as a standalone component, serving as the frame only without an integrated circuit breaker.
Featuring fixed thermal and fixed magnetic trip mechanisms, the KD3400F provides reliable overcurrent protection. It is configured with three poles, suitable for three-phase electrical systems. With a current rating of 400 A, it is capable of handling medium to high-power applications.
The KD3400F is rated for a voltage of 600 Vac (volts alternating current) and 250 Vdc (volts direct current), ensuring compatibility with various electrical systems. It has an interrupting capacity of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, indicating its ability to safely interrupt high fault currents under specified conditions.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
