KDM-R2 | Notifier Backlit Keypad Module 80-Ch
- Regular price
- $710.00
- Sale price
- $710.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KDM-R2
Description

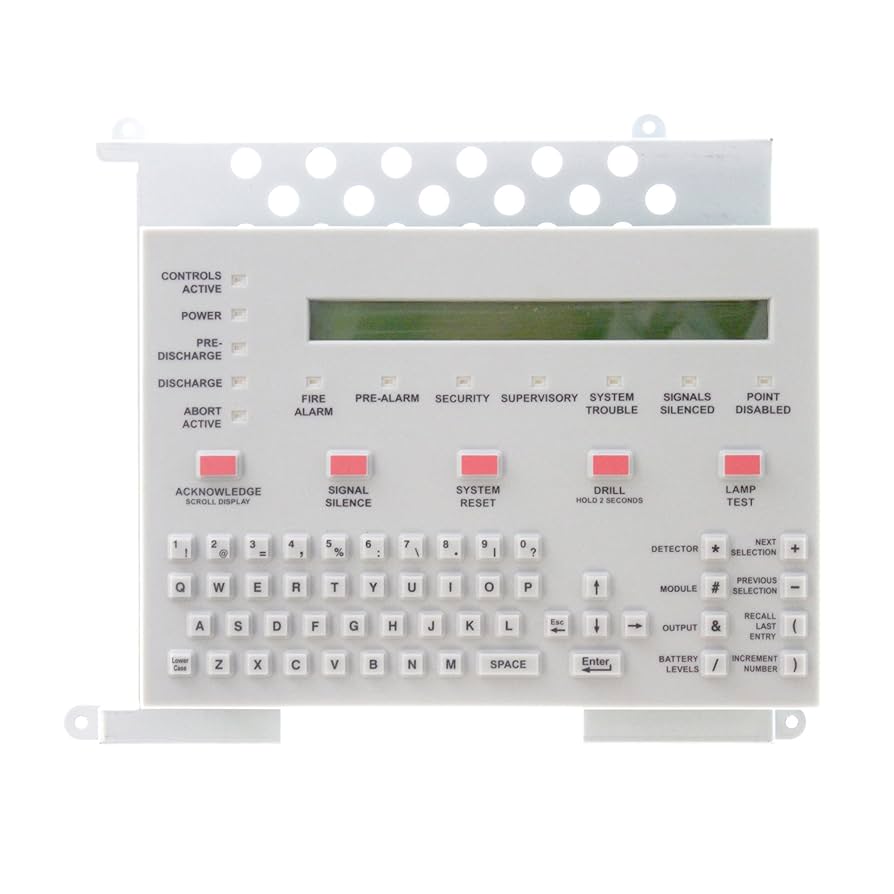

The Notifier KDM-R2 is an 80-character backlit LCD display and QWERTY keypad module designed for system configuration and event control in fire alarm systems. It provides local display and programming capability for ONYX Series panels in both stand-alone and networked installations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Controls & Indicators
|
| Part Number | KDM-R2 |
| Subcategory | Control Accessory |
| Display | 80-character backlit LCD |
| Keypad | QWERTY-style programming and control keypad |
| LED Indicators | 12 LED status indicators |
| Mounting Requirement | Top row of cabinet; requires BMP-1 blanks and DP-DISP2 plate |
| Compatibility | NFS-320, NFS2-640 |
| Series | ONYX Series |
| Network Role | Displays local node information; requires NCA-2/NCS for network |
| Use Case | Standalone or node-mounted control/display |
| Dimensions | 4.00 × 10.00 × 12.00 in |
| Weight | 2.00 lbs |
Information About KDM-R2
The KDM-R2 is a user interface module designed specifically for the Notifier ONYX Series, including NFS-320 and NFS2-640 panels. It features an 80-character backlit LCD screen paired with a full QWERTY programming and control keypad. This module is installed in the top row of the fire alarm cabinet and requires two BMP-1 blank modules and a DP-DISP2 mounting plate (all sold separately). It serves as the primary interface for operators to view system events, alarms, and perform configuration tasks.
When installed in networked systems, the KDM-R2 displays node-specific (local) information. For complete network-wide event monitoring, at least one centralized network display — such as the NCA-2 or NCS/ONYXWorks — is required in the system. Its intuitive display and keypad interface, combined with LED status indicators, make it a practical and efficient component in modern fire alarm systems.
Key Features:
This intelligent display and control interface provides streamlined monitoring and programming functionality:
- 80-Character LCD Display: Large, backlit interface for clear viewing of events, alarms, and status messages.
- QWERTY Control Keypad: Full keypad for intuitive programming, password entry, and command navigation.
- Panel Top-Row Installation: Requires the top row of the cabinet and uses two BMP-1 blanks with DP-DISP2 plate.
- Local Node Display Support: Displays local events in networked systems; requires NCA-2 or NCS for full network monitoring.
- LED Indicators: Includes 12 LEDs for system status, alarm conditions, and other alerts.
- ONYX Series Compatible: Designed for seamless integration with NFS-320 and NFS2-640 fire panels.
- Standalone or Node-Mounted: Suitable for use as the primary interface in standalone systems or as a local display in networks.
- Red Panel Mount Design: Features control panel markings for fire system environments.
The KDM-R2 offers critical visual and programming access for fire alarm control systems, ensuring that both standalone and networked configurations remain fully operable and user-friendly.
