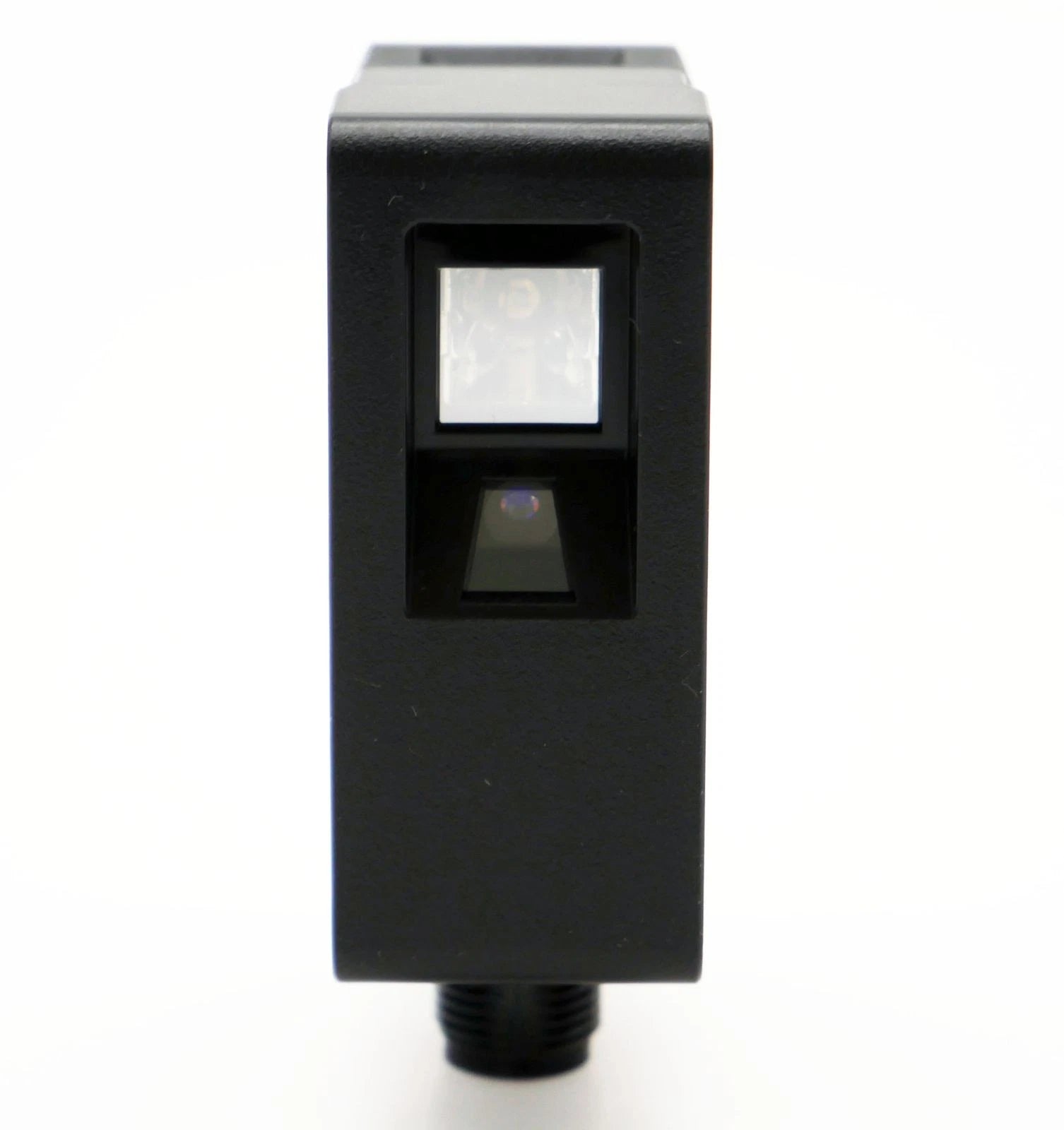

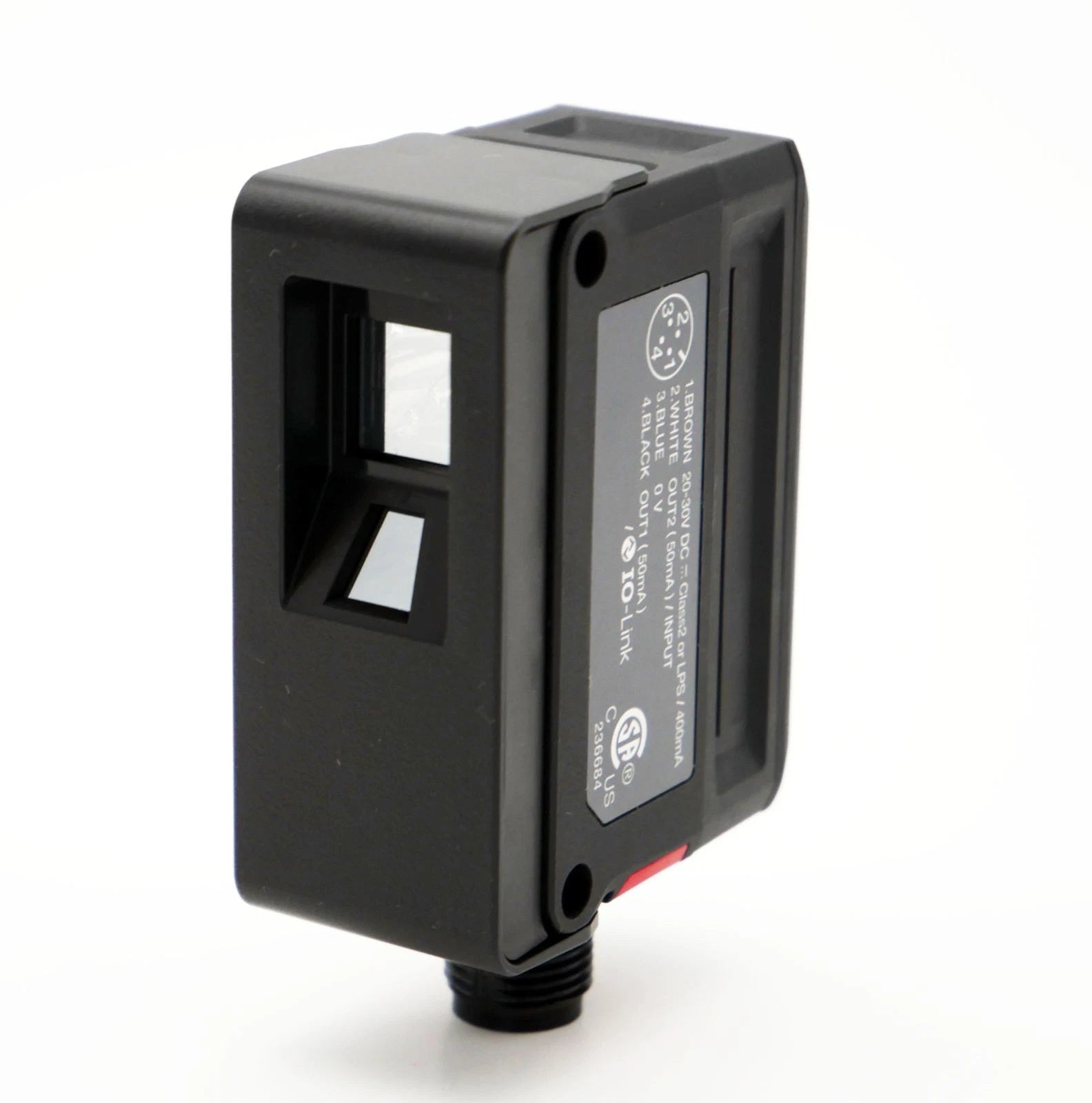

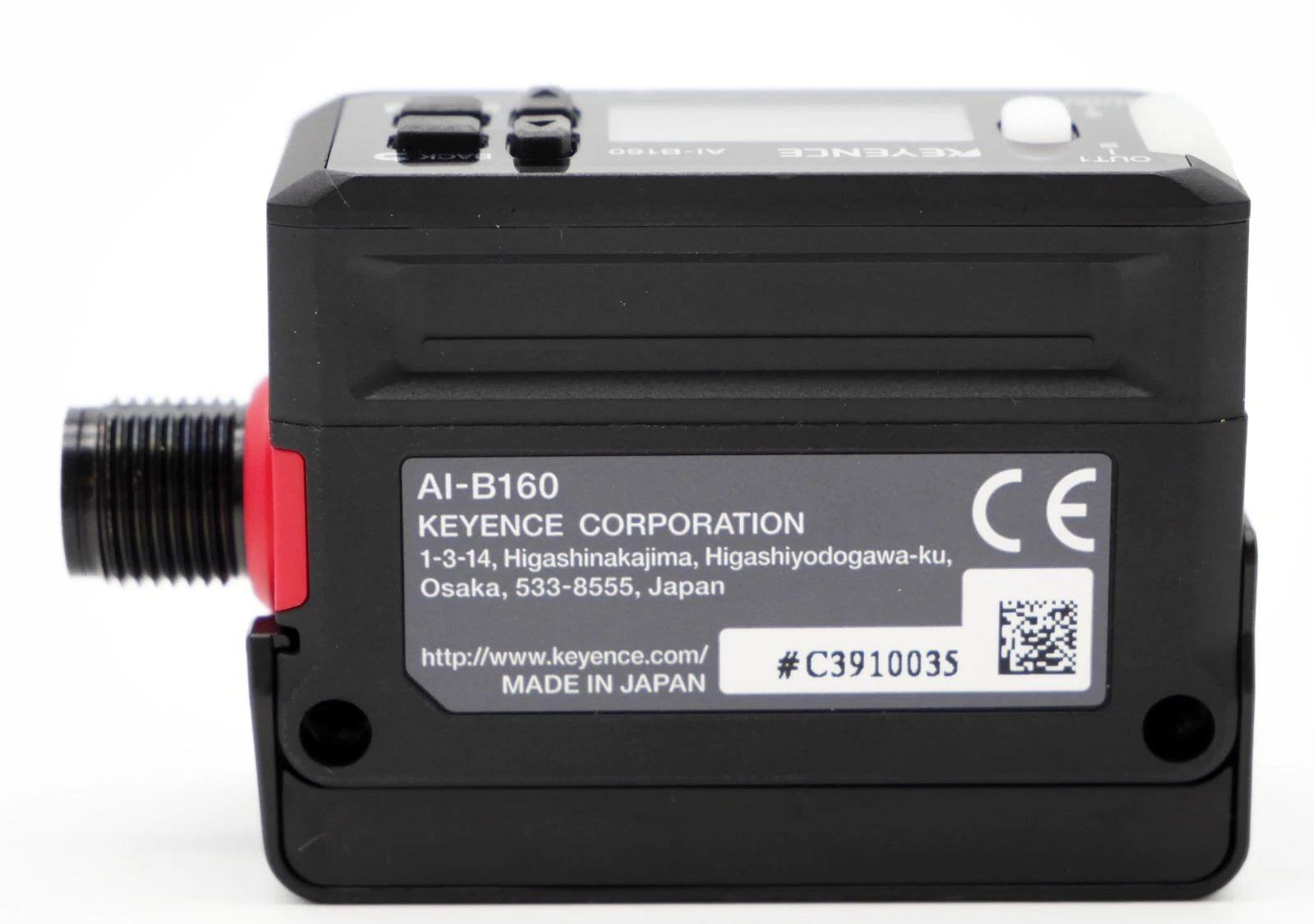

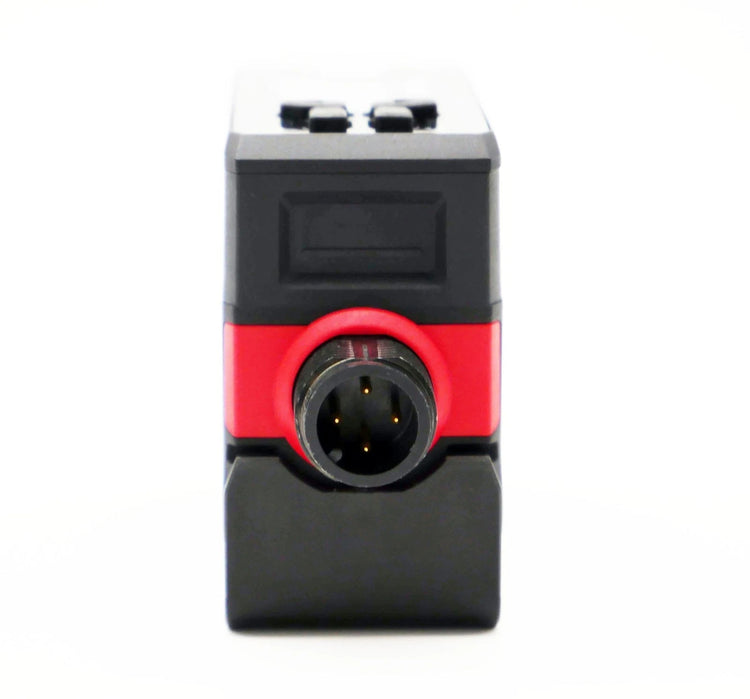

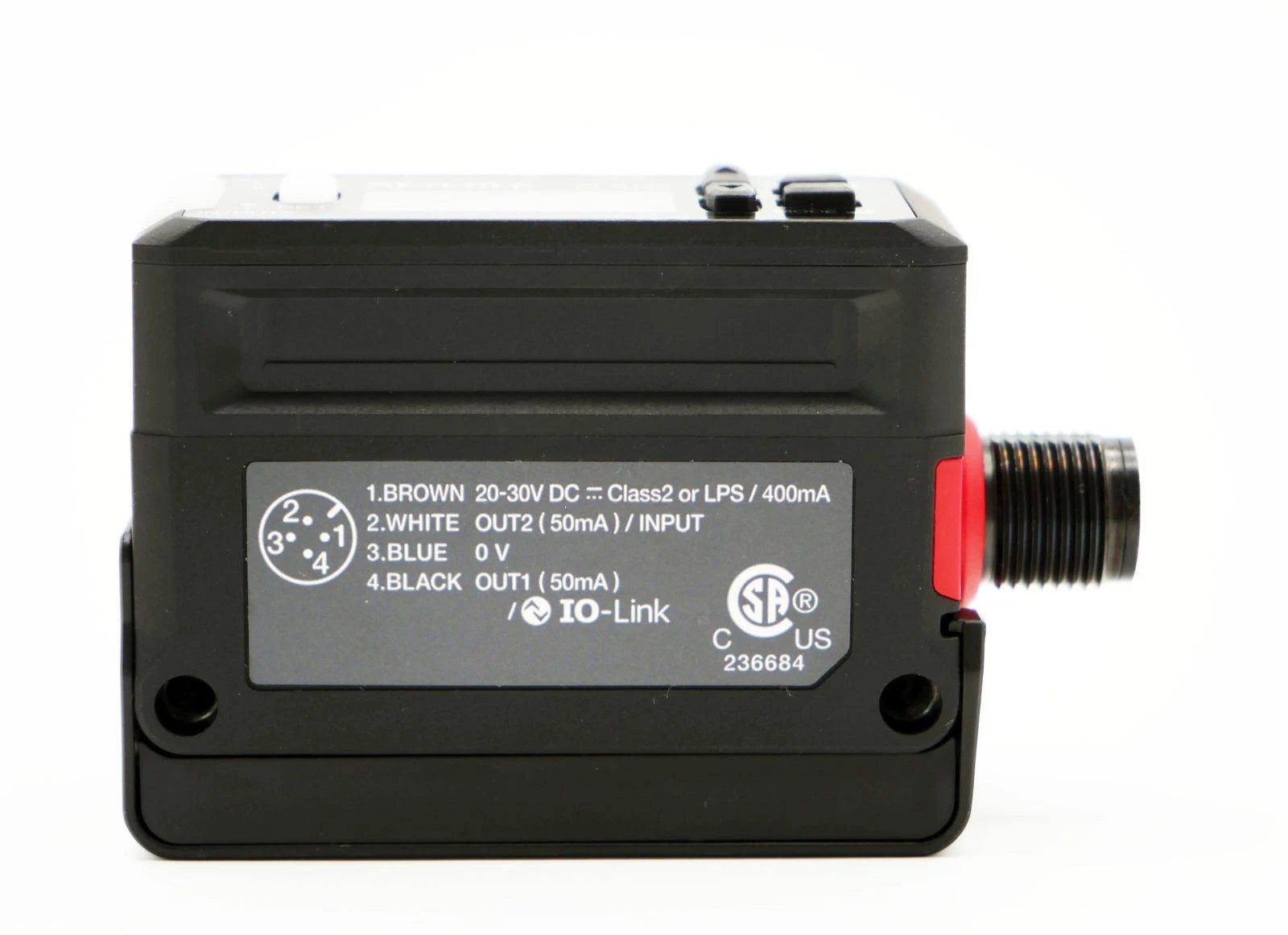

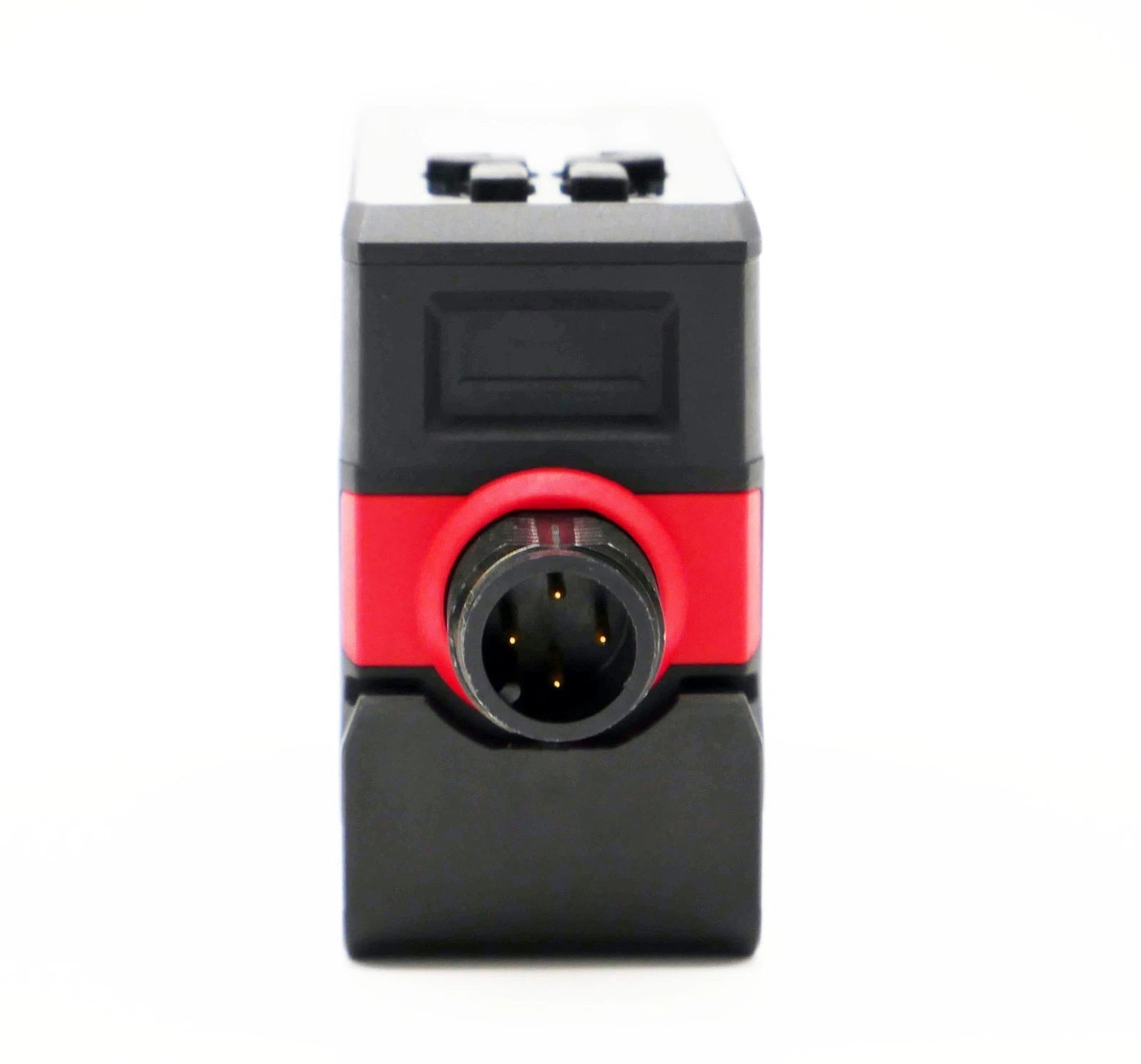

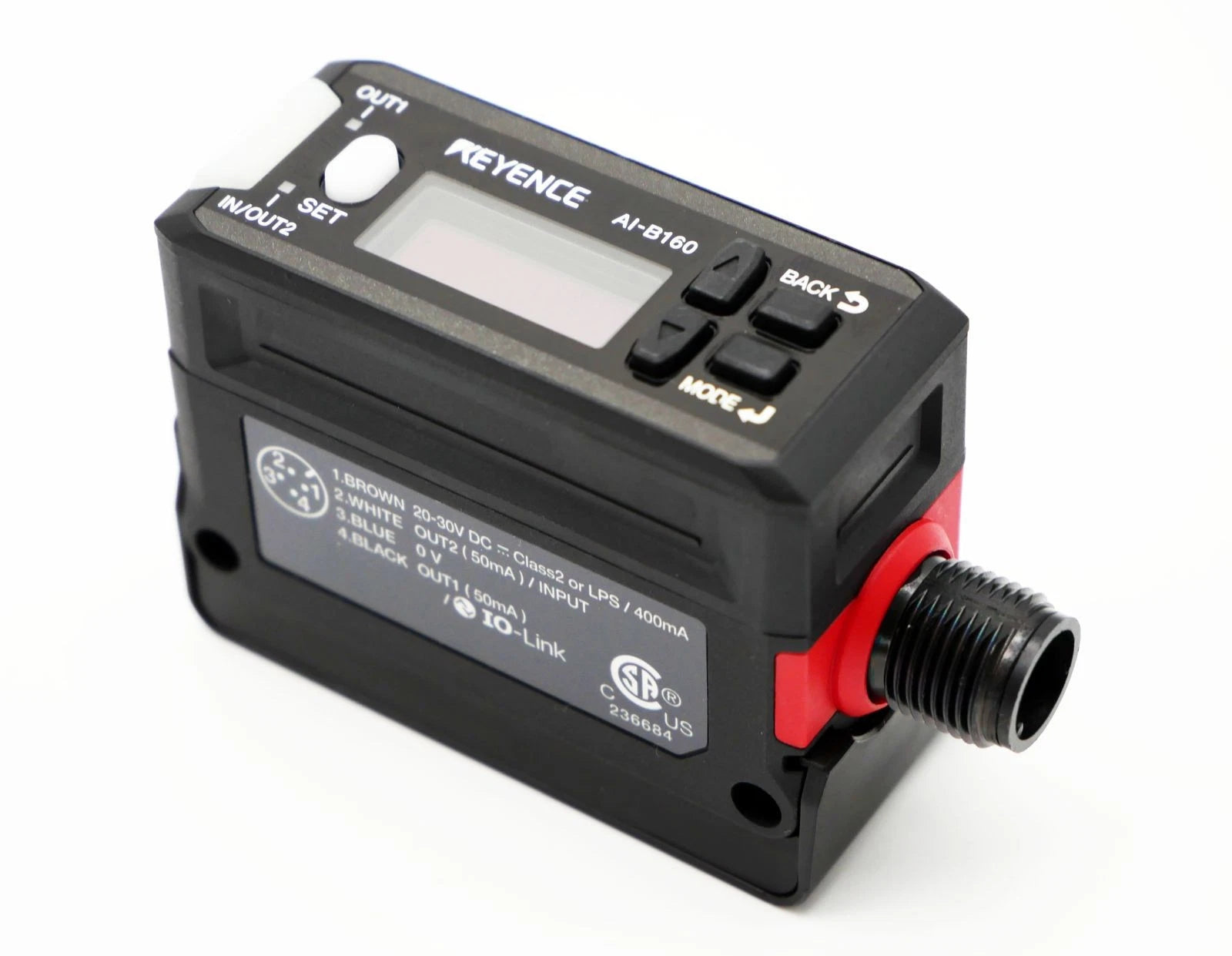

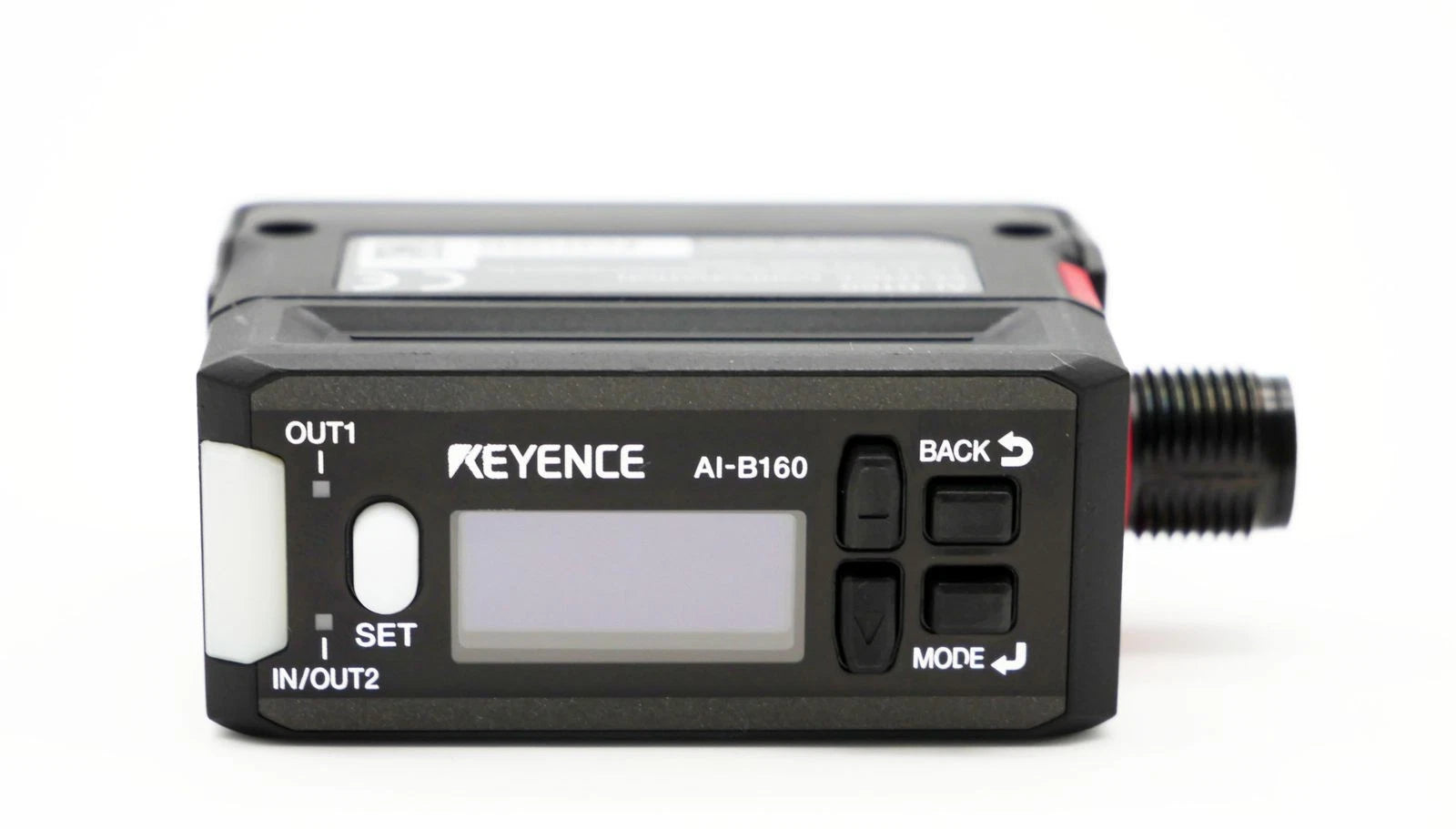

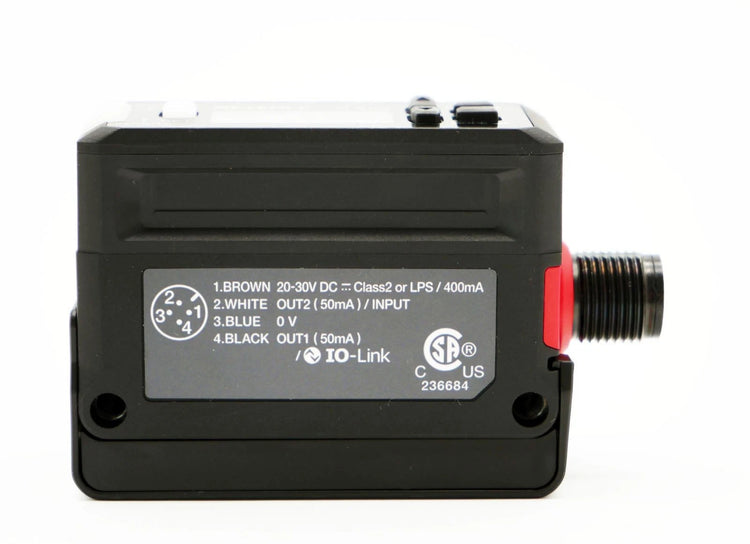

Keyence AI-B160 Vision Sensor Built-In Amplifier 160mm Detection Range IP67
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AI-B160
Description
The Keyence AI-B160 is a compact vision sensor with a built-in amplifier designed for reliable presence detection and inspection tasks in industrial automation. Featuring a 160 mm installation range and integrated infrared illumination, the AI-B160 delivers stable detection performance without requiring external controllers. This sensor is optimized for fast response and consistent operation in production and assembly environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | AI-B160 |
| Subcategory | Vision Sensors |
| Series | AI-B Series |
| Installation Distance | 140 to 180 mm |
| Detection Area | 13 × 13 mm to 52 × 52 mm |
| Imaging Sensor | BW CMOS |
| Light Source | Infrared LED (850 nm) |
| Detection Modes | Presence, difference, feeder mode |
| Response Time | 3 ms to 100 ms selectable |
| Display Type | OLED display |
| Input Type | Switchable voltage/non-voltage input |
| Output Type | Open collector (NPN/PNP selectable) |
| Communication | IO-Link (COM2, 38.4 kbps) |
| Power Supply | 20 to 30 V DC |
| Current Consumption | ≤ 0.3 A |
| Protection Rating | IP67 |
| Operating Temperature | -10°C to +50°C |
| Material | Zinc die-cast/PBT housing with acrylic front |
| Weight | Approx. 120 g |
Information About AI-B160
The AI-B160 is part of Keyence’s AI-B series, a line of all-in-one vision sensors combining imaging, processing, and output capabilities in a single unit. It is designed to simplify installation and reduce system complexity by eliminating the need for separate amplifiers or controllers. Equipped with a CMOS imaging element and infrared LED lighting, it supports stable detection across varying surface conditions and materials. The sensor includes advanced processing functions such as filtering, orientation detection, and interference prevention, making it suitable for diverse inspection and automation tasks.
Key Features:
- Built-In Amplifier Design: Eliminates need for external controllers, simplifying installation
- Integrated Vision Sensor: Combines imaging and processing in a single compact unit
- Infrared LED Illumination: 850 nm light source ensures stable detection across materials
- Flexible Detection Modes: Supports presence, difference, and feeder detection modes
- Adjustable Response Time: Configurable from 3 ms to 100 ms for application flexibility
- OLED Display: Clear onboard display for configuration and status monitoring
- Advanced Image Processing: Includes filtering, orientation detection, and blur suppression
- Interference Prevention: Reduces false detections in multi-sensor environments
- IO-Link Communication: Enables integration with industrial networks and parameter control
- Compact and Rugged Design: IP67-rated housing for industrial environments
- Configurable Outputs: Supports NPN/PNP and normally open/closed output switching
- Multi-Language Support: Interface available in multiple languages for ease of use
The AI-B160 delivers the reliability and precision required for presence detection, part verification, and automated inspection in industrial systems.
