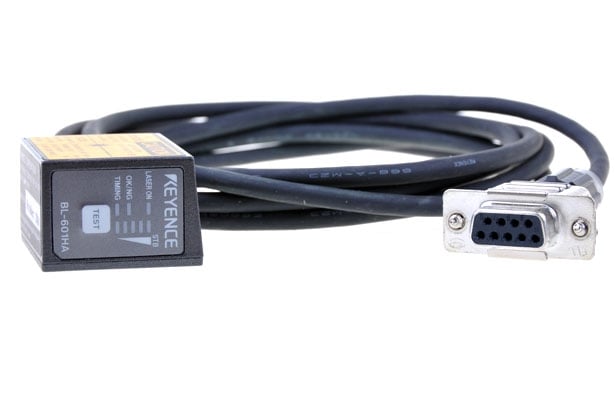

Keyence BL-601HA High-Resolution Laser Barcode Reader with Raster Scanning
- Regular price
- $245.00
- Sale price
- $245.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BL-601HA
Description
The Keyence BL-601HA is a compact, high-resolution laser barcode reader designed for automatic reading of 1D barcodes in industrial applications. It uses a visible red semiconductor laser and a raster scanning method to read narrow barcode elements at distances of 55–190 mm, supporting product identification, tracking, and automated data collection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Barcode Readers |
| Part Number | BL-601HA |
| Subcategory | Laser Barcode Readers |
| Series | BL-600 |
| Reader Type | High-resolution laser barcode reader |
| Reading Direction | Front |
| Scanning Method | Raster |
| Light Source | Red semiconductor laser |
| Wavelength | 655 nm |
| Laser Class | Class 2 |
| Reading Distance | 55–190 mm |
| Barcode Width | 0.125–1.0 mm |
| Scan Rate | 500 scans/s |
| Max. Read Length | 32 digits; up to 64 for Code 128 |
| Serial Interface | RS-232C |
| Baud Rate | 600–38,400 bit/s |
| Power Supply | 5 VDC ±5% |
| Current Consumption | 330 mA max. |
| Operating Temperature | 0 to +45°C |
| Humidity | 35–85% RH, non-condensing |
| Weight | 115 g |
Information About BL-601HA
The BL-601HA belongs to the Keyence BL-600 series of ultra-compact laser barcode readers and features a front-reading configuration with raster scanning. Its optical system uses a 655 nm visible laser to decode compatible barcode formats, including Code 39, Code 128, Code 93, ITF, NW-7, and EAN/UPC. The reader communicates through an RS-232C-compatible serial interface with selectable baud rates and configurable data framing. An NPN open-collector OK/NG output and external timing input support integration with industrial controllers and automated inspection equipment.
Key Features:
- High-Resolution Reading: Reads narrow barcode elements from 0.125 to 1.0 mm for supported symbologies.
- Raster Scanning: Uses a raster scan pattern to support barcode reading across a wider scan area.
- Red Laser Source: Operates with a visible 655 nm semiconductor laser.
- Reading Distance: Supports a reading range of 55–190 mm under specified barcode conditions.
- Serial Communication: Uses an RS-232C-compatible interface with multiple selectable baud rates.
- Status Output: Provides an NPN open-collector OK/NG output for integration with control systems.
- Compact Construction: Weighs approximately 115 g and features an IP65 enclosure rating.
The BL-601HA delivers the reliability and precision required for industrial barcode reading, product traceability, and automated identification systems.
