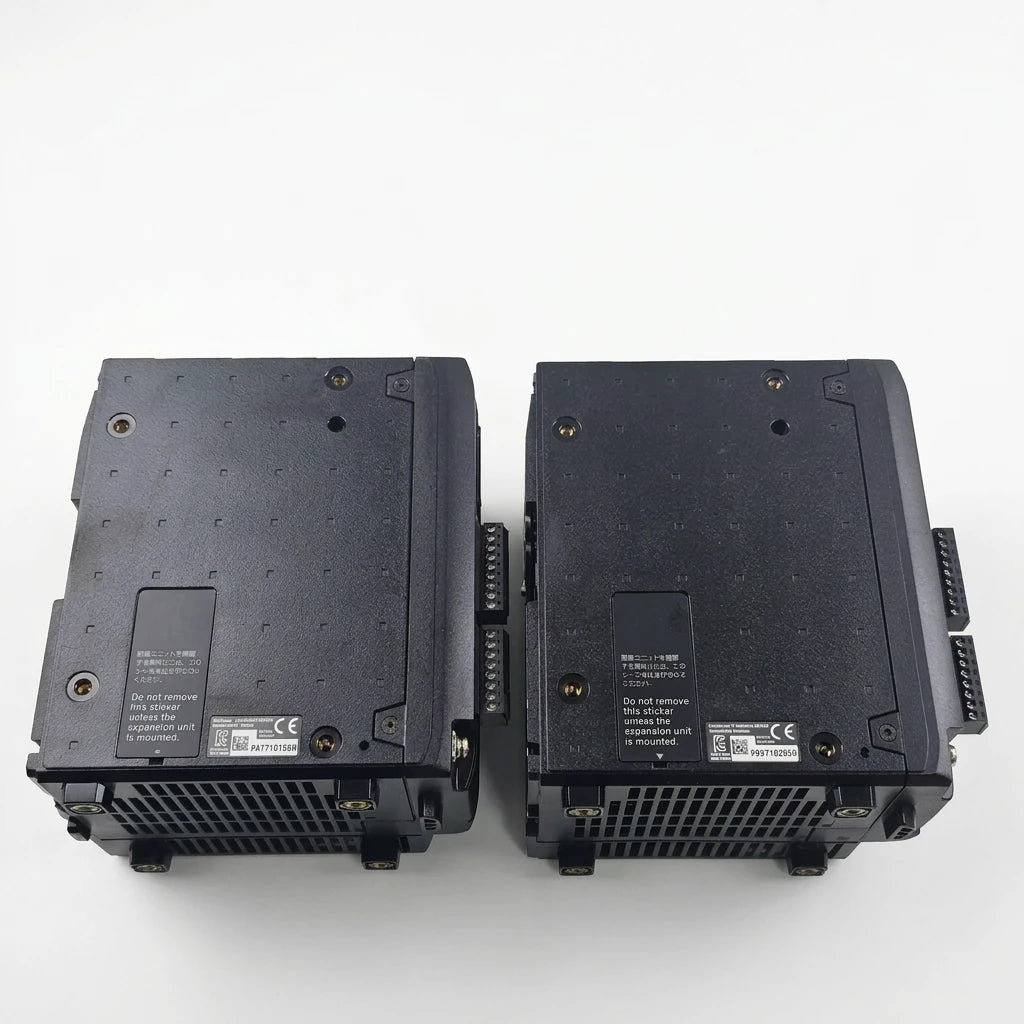

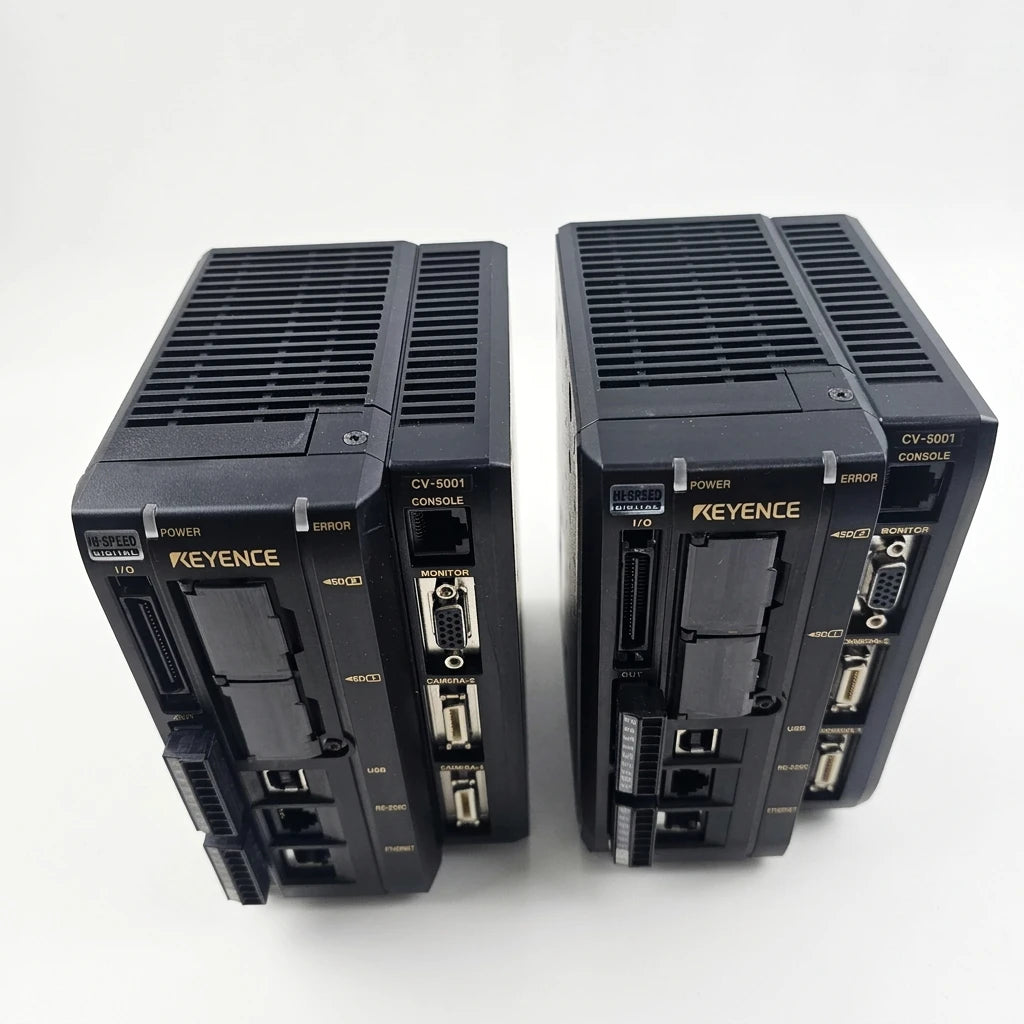

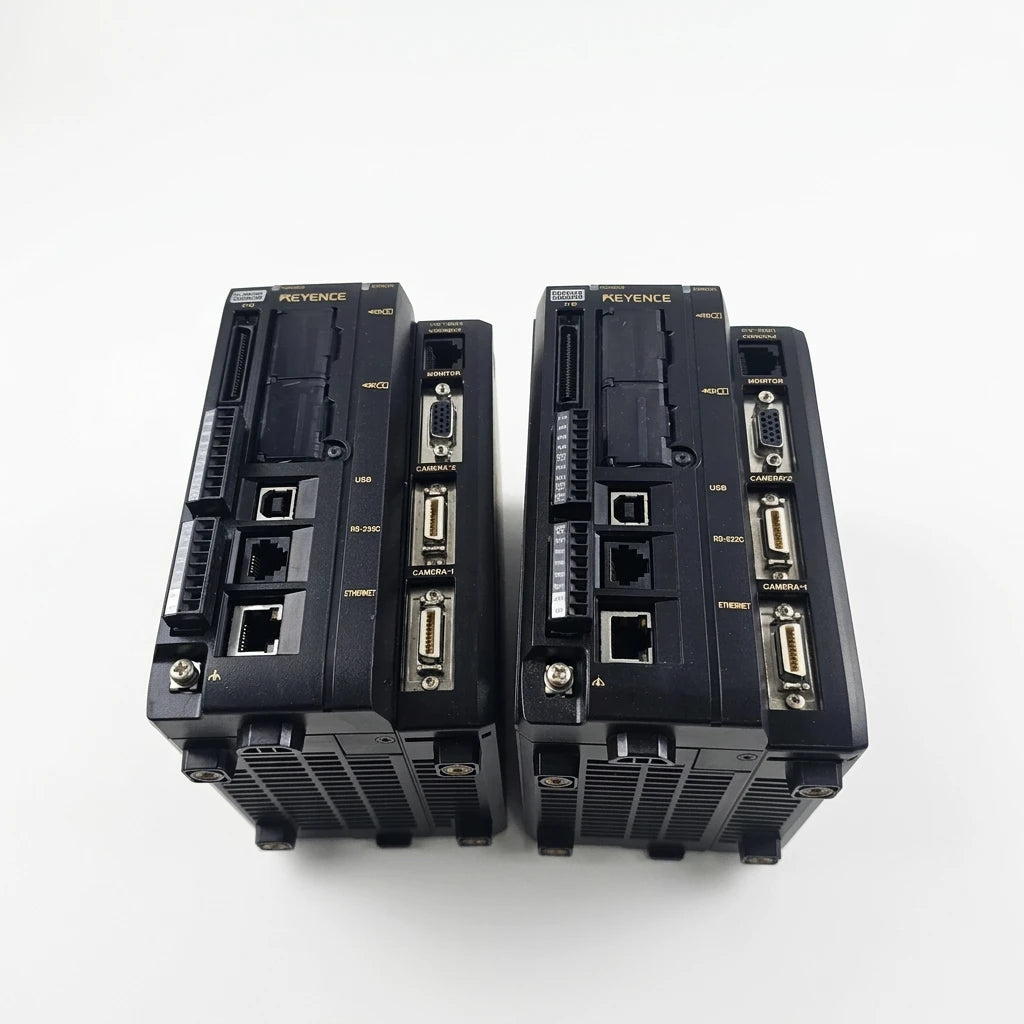

Keyence CV-5001 Dual-Camera DSP Vision System Controller 24 VDC
- Regular price
- $1,285.00
- Sale price
- $1,285.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CV-5001
Description
The Keyence CV-5001 vision controller is a high-speed DSP-based processing unit engineered for multi-camera automated optical inspection. Supporting up to two color or monochrome cameras, it delivers rapid image acquisition with flexible resolution modes up to 310,000 pixels. Operating on 24 VDC power, this controller features dual SDHC card slots, comprehensive fieldbus communication options, and advanced vision toolsets for demanding inline industrial quality verification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | CV-5001 |
| Subcategory | Sensor Accessory |
| Controller Type | Multi-Camera Vision System Controller |
| Processor Type | Digital Signal Processor (DSP) |
| Camera Inputs | 2 Channels (Color / Monochrome Mixed) |
| Supply Voltage | 24 VDC (±10%) |
| Current Draw | 2.2 A Max |
| Monitor Output | SVGA 800 x 600 (24-bit Color) |
| Communication Ports | Ethernet (100BASE-TX), RS-232C, USB 2.0 |
| Fieldbus Protocols | EtherNet/IP, PLC Link, CC-Link (via CA-NCL10E) |
| Memory Storage | Dual SDHC Slots (Up to 1000 Programs) |
| Operating Temperature | 0 to +50 °C |
| Weight | 1.25 kg |
Information About CV-5001
The CV-5001 belongs to Keyence's high-performance CV-5000 Series of standalone vision systems designed to streamline complex machine vision inspection tasks. Powered by an onboard Digital Signal Processor (DSP), it executes advanced vision algorithms including ShapeTrax2 pattern search, stain detection, trend edge flaw inspection, and multi-line OCR. Compatibility covers CV-035/S035/H035 camera models, optional CA-DC21E illumination expansion modules, and fieldbus protocol adapters. It is widely deployed in automotive part assembly, semiconductor handling, pharmaceutical packaging, and high-speed electronics manufacturing.
Key Features:
- Camera Capacity: Connects up to two color or monochrome cameras with mixed input support
- Image Processor: High-speed onboard DSP for real-time vision algorithms
- Network Connectivity: Integrated Ethernet, RS-232C, USB 2.0, PLC Link, and EtherNet/IP
- Program Storage: Dual SD card slots (SDHC) supporting up to 1000 registered programs
- Vision Tools: ShapeTrax2, pattern search, blob analysis, trend edge flaw, and OCR
- Display Output: SVGA 800x600 24-bit color monitor port
- Operating Power: 24 VDC (±10%) supply voltage at 2.2 A maximum consumption
- Enclosure Weight: Compact 1.25 kg controller assembly
The CV-5001 delivers the reliability and precision required for automated machine vision inspection and real-time process monitoring.
