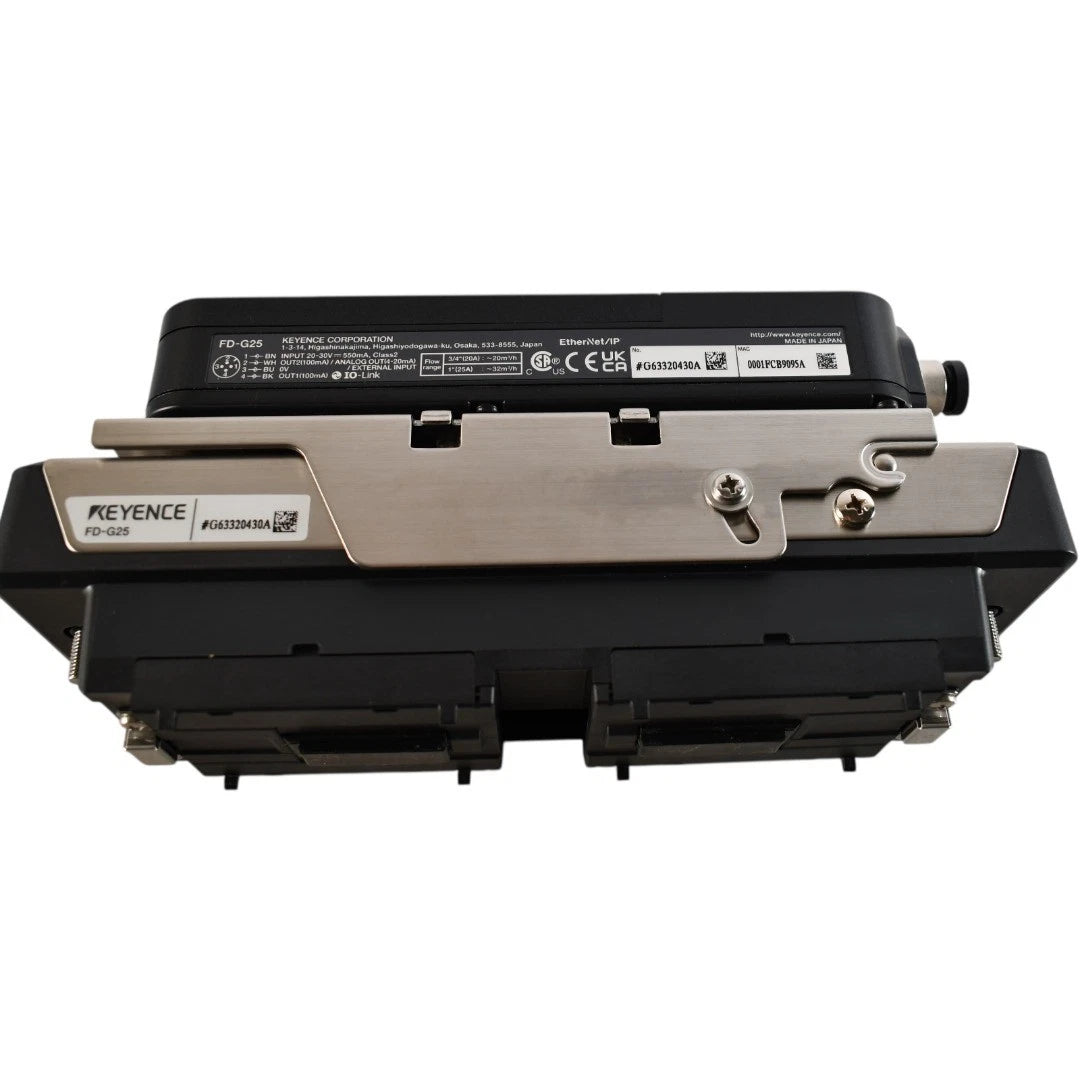

Keyence FD-G25 Clamp-On Gas Flow Meter DN20A DN25A Industrial Flow Sensor
- Regular price
- $1,717.00
- Sale price
- $1,717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FD-G25
Description
The Keyence FD-G25 is a clamp-on gas flow meter designed for accurate measurement of compressed air, nitrogen, and other gases in industrial piping systems. It enables non-intrusive flow monitoring without cutting pipes, ensuring minimal installation effort and system downtime. This unit provides reliable and high-precision flow measurement for energy management and process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | FD-G25 |
| Subcategory | Flow Sensors |
| Series | FD-G Series |
| Sensor Type | Clamp-On Gas Flow Meter |
| Pipe Size Compatibility | DN 20A / 25A (3/4", 1") |
| Pipe Outer Diameter | 25–29 mm / 32–36 mm |
| Supported Pipe Materials | Iron, steel, stainless steel |
| Supported Fluids | Air, nitrogen, industrial gases |
| Fluid Temperature Range | 0 to 60°C |
| Rated Flow Velocity | Up to 15 m/s |
| Flow Range | Up to 540 L/min |
| Measurement Accuracy | ±1% to ±2% of F.S. |
| Display | 2.2" QVGA color LCD |
| Display Resolution | 0.01 m³/h, 0.1 L/min, 0.001 CFM |
| Outputs | NPN/PNP, analog 4–20 mA / 0–20 mA |
| Communication | USB, Modbus TCP, EtherNet/IP, IO-Link |
| Power Supply | 20 to 30 VDC |
| Protection Rating | IP65 / IP67 |
| Operating Temperature | -10 to 60°C |
| Weight | Approx. 4.85 lbs |
Information About FD-G25
The FD-G25 is part of the Keyence FD-G Series, engineered for gas flow measurement using clamp-on ultrasonic sensing technology. It mounts externally on metal pipes, allowing measurement without direct contact with the gas, reducing maintenance requirements and eliminating pressure loss. The device supports pipe sizes 20A and 25A and provides accurate flow monitoring across a wide range of operating conditions. Designed for integration into industrial networks, it features advanced communication capabilities and a built-in display for real-time monitoring and diagnostics.
Key Features:
- Clamp-On Measurement Technology: Enables non-invasive installation without pipe modification
- Gas Flow Compatibility: Measures compressed air, nitrogen, and other industrial gases
- Dual Pipe Size Support: Compatible with 20A and 25A pipe diameters
- High Measurement Accuracy: Provides ±1% to ±2% of full-scale accuracy
- Wide Flow Range: Supports flow rates up to 540 L/min depending on pipe size
- Integrated LCD Display: 2.2-inch color screen for real-time monitoring and configuration
- Multiple Output Options: Supports NPN/PNP outputs and analog signals for system integration
- Advanced Communication: Compatible with Modbus TCP, EtherNet/IP, IO-Link, and USB
- Flexible Detection Modes: Supports multiple flow and monitoring modes
- Robust Industrial Design: IP65/IP67 rated for harsh environments
- Data Logging Capability: Stores consumption and leakage data for long-term analysis
- Easy Installation: External mounting reduces downtime and simplifies setup
The FD-G25 delivers the reliability and precision required for gas flow monitoring, energy management, and industrial process optimization.
