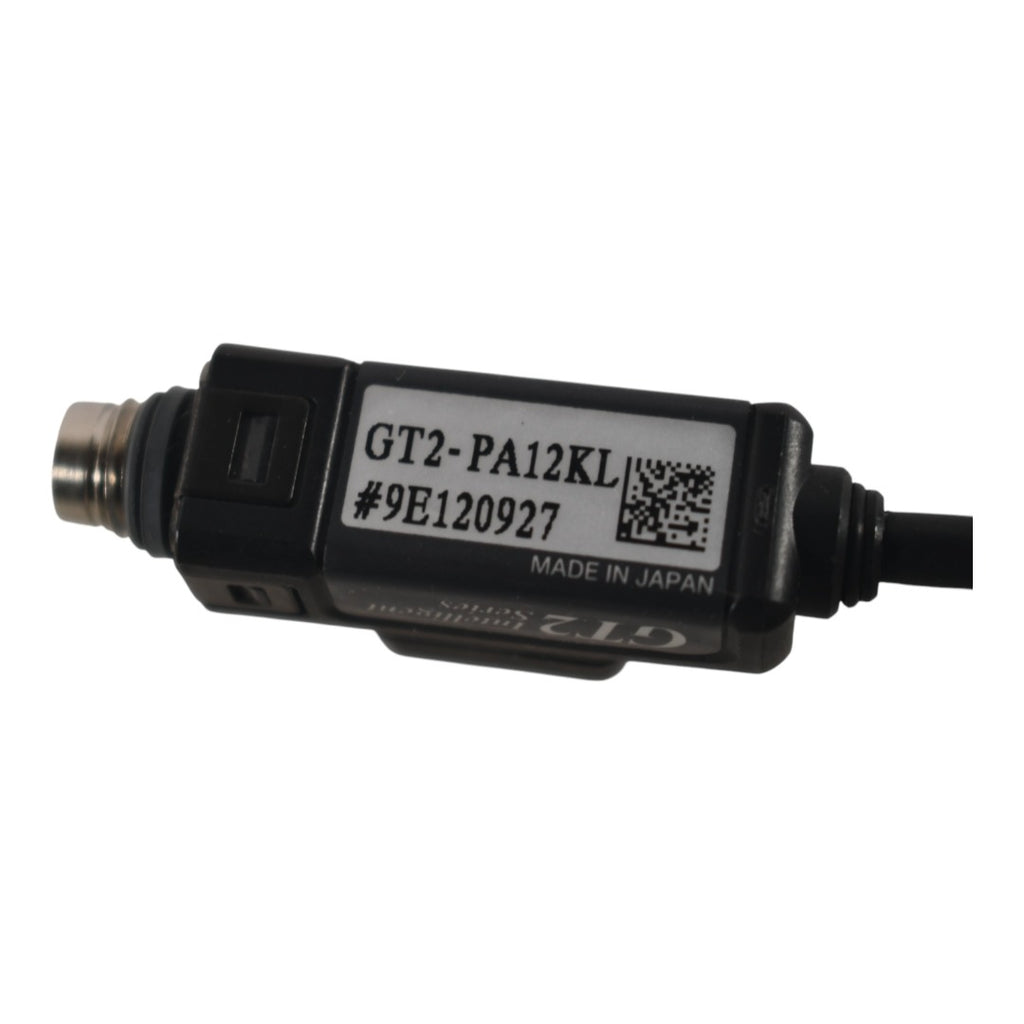

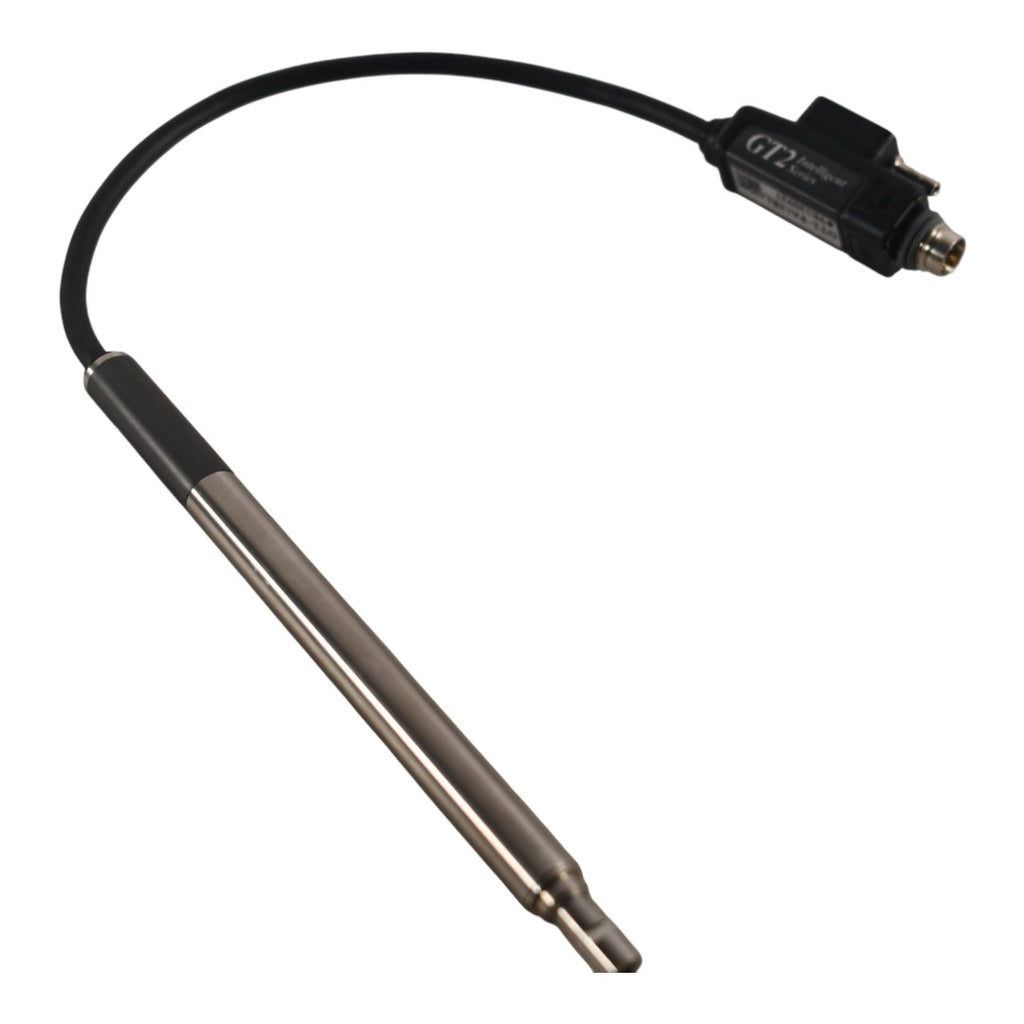

KEYENCE GT2-PA12KL High-Precision Contact Sensor Head, 12 mm Range, Low Measuring Force
- Regular price
- $775.00
- Sale price
- $775.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GT2-PA12KL
Description
The KEYENCE GT2-PA12KL is a high-precision digital contact sensor head designed for accurate dimensional measurement and position verification in industrial automation systems. Featuring a 12 mm measuring range, 0.1 µm resolution, and low contact force, it is suitable for inspecting delicate workpieces and measuring small dimensional changes while minimizing the mechanical load applied to the target.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | GT2-PA12KL |
| Subcategory | Contact Sensors |
| Product Type | High-precision digital contact sensor head |
| Series | GT2 Series |

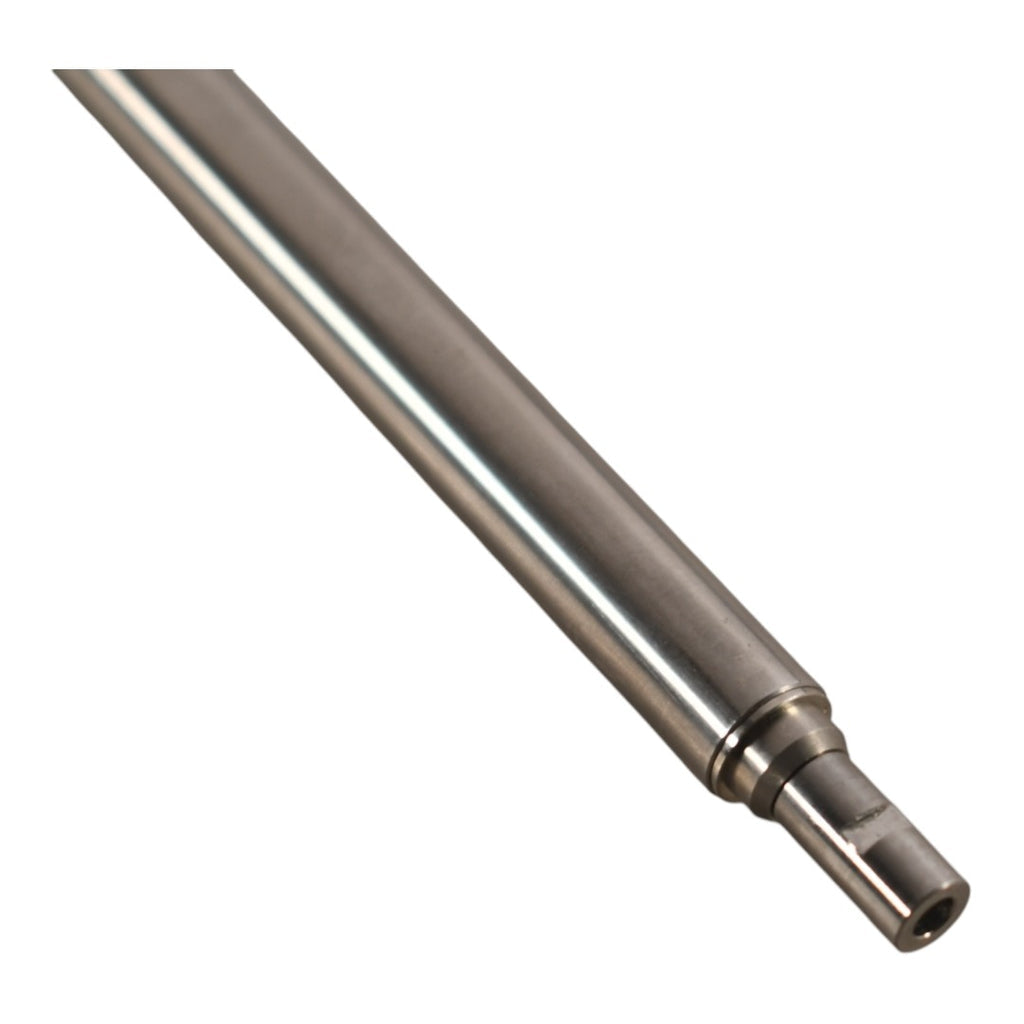

| Sensor Design | Pencil type, air-cylinder type |
| Detection System | Scale Shot System II, absolute type |
| Measuring Range | 12 mm |
| Indicated Accuracy | 1 µm peak-to-peak |
| Measuring Force — Downward | Approx. 0.4 N |
| Measuring Force — Sideways | Approx. 0.35 N |
| Measuring Force — Upward | Approx. 0.3 N |
| Sampling Cycle | 4 ms |
| Operating Fluid | Clean, dry air |
| Pressure Resistance | 0.5 MPa |
| Operation Indicator | Two-color LED (red/green) |
| Ambient Temperature | 0 to +55 °C, non-freezing |
| Relative Humidity | 35–85% RH, non-condensing |
| Shock Resistance | 1,000 m/s², IEC 60068-2-27 |
| Main Body Material | SUS 303 stainless steel |
| Contact Material | SUS304 and cemented tungsten carbide; contact options may be sold separately |
| Sensor Head Cable | Optional; connects to the relay connector |
| Weight | 35 g |
Information About GT2-PA12KL
The GT2-PA12KL is part of KEYENCE’s GT2 series of high-accuracy digital contact sensors and uses the Scale Shot System II absolute detection method to avoid tracking errors. Its air-cylinder mechanism operates with clean, dry air at a specified pressure range of 0.05 to 0.07 MPa, supporting consistent low-force contact measurement. The sensor provides an indicated accuracy of 1 µm peak-to-peak and a 4 ms sampling cycle for precision inspection tasks. It is intended for use with compatible GT2-series controller equipment, and the sensor head cable is optional and connects through a relay connector.
Key Feature:
-
12 mm Measuring Range: Supports contact-based dimensional inspection across a 12 mm measurement span.
-
0.1 µm Resolution: Detects very small measurement changes for fine inspection tasks.
-
1 µm Indicated Accuracy: Provides 1 µm peak-to-peak indicated accuracy under the manufacturer’s specified conditions.
-
Low Measuring Force: Applies approximately 0.4 N downward, 0.35 N sideways, or 0.3 N upward at the center of the range under the specified air pressure.
-
Absolute Detection System: Uses Scale Shot System II to avoid tracking errors during measurement.
-
Air-Cylinder Operation: Uses clean, dry air with an applied pressure range of 0.05–0.07 MPa.
-
Fast Sampling Cycle: Provides a 4 ms sampling cycle for responsive inspection and measurement.
-
Industrial Construction: Uses a SUS 303 main body case and a two-color red/green operation indicator.
The GT2-PA12KL delivers the reliability and precision required for low-force dimensional inspection, automated quality control, and repeatable measurement of sensitive components.
