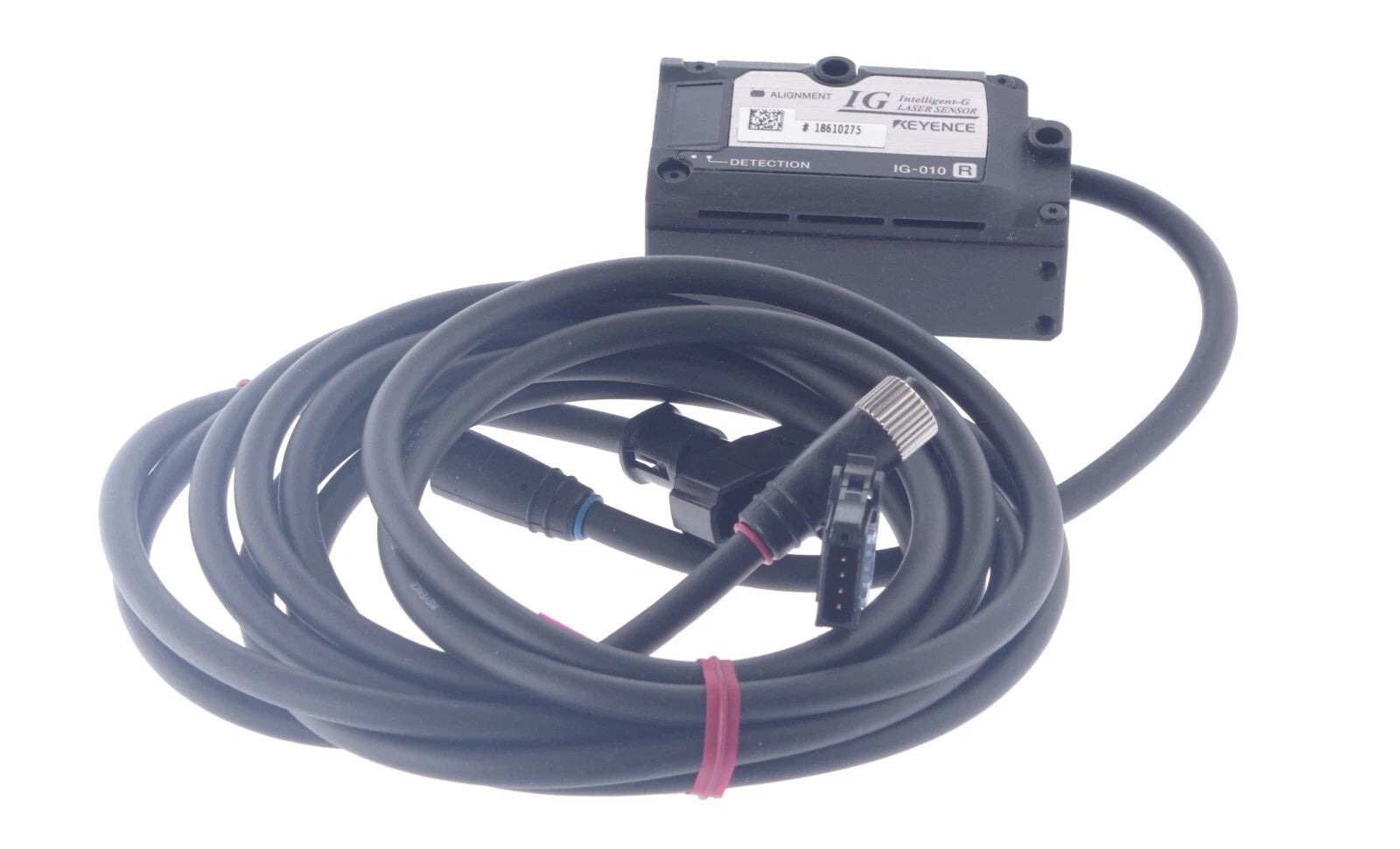

Keyence IG-010 CCD Laser Positioning Sensor Head High Precision IP67
- Regular price
- $1,442.00
- Sale price
- $1,442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IG-010
Description
The Keyence IG-010 is a positioning sensor head designed for precise object detection and measurement using CCD laser micrometer technology. Utilizing a visible semiconductor laser, the IG-010 delivers stable and accurate positioning feedback across a wide detection range. This sensor is optimized for high-precision alignment, positioning, and inspection tasks in industrial automation systems.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | IG-010 |
| Subcategory | Laser Positioning Sensors |
| Measurement Method | CCD laser micrometer |
| Light Source | 660 nm visible semiconductor laser |
| Laser Class | Class 1 (IEC/JIS, FDA) |
| Mounting Distance | 0 to 1000 mm |
| Measurement Range | 10 mm |
| Sampling Cycle | 980 ยตs |
| Minimum Detectable Object | 0.1 mm (high sensitivity) |
| Repeatability | 5 ยตm to 80 ยตm (depending on distance) |
| Linearity | ยฑ0.28% of F.S. |
| Protection Rating | IP67 |
| Operating Temperature | -10ยฐC to +45ยฐC |
| Humidity Range | 35โ85% RH (non-condensing) |
| Material | Zinc die-cast, PBT, SUS304 components |
| Included Components | Transmitter, receiver, cables |
| Weight | Approx. 380 g |
ย
ย
Information About IG-010
The IG-010 is part of Keyenceโs IG series, which combines CCD-based optical sensing with laser measurement for reliable positioning applications. It operates using a transmitter and receiver configuration, allowing accurate detection of object position and displacement without contact. The sensor supports a wide mounting distance and provides high sensitivity detection for small objects, making it suitable for precision manufacturing processes. Built with a rugged IP67-rated housing, it is designed for stable operation in harsh industrial environments.
Key Features:
- CCD Measurement Method: Ensures high-accuracy positioning and detection
- Laser-Based Detection: 660 nm visible semiconductor laser for precise measurement
- Wide Detection Range: Supports mounting distances from 0 to 1000 mm
- High Sensitivity Mode: Detects objects as small as 0.1 mm
- Fast Sampling Cycle: 980 ยตs for rapid measurement response
- High Repeatability: Achieves repeatability down to 5 ยตm depending on distance
- Stable Linear Performance: ยฑ0.28% of full scale for reliable measurements
- Dual Component System: Includes transmitter and receiver for accurate alignment
- Visual Indicators: LED indicators for alignment and operation status
- Rugged Construction: IP67-rated for industrial environments
- Flexible Installation: Suitable for various positioning and inspection setups
- Durable Materials: Zinc die-cast and engineered plastics for long-term reliability
The IG-010 delivers the reliability and precision required for positioning, alignment, and high-accuracy measurement in industrial automation systems.
