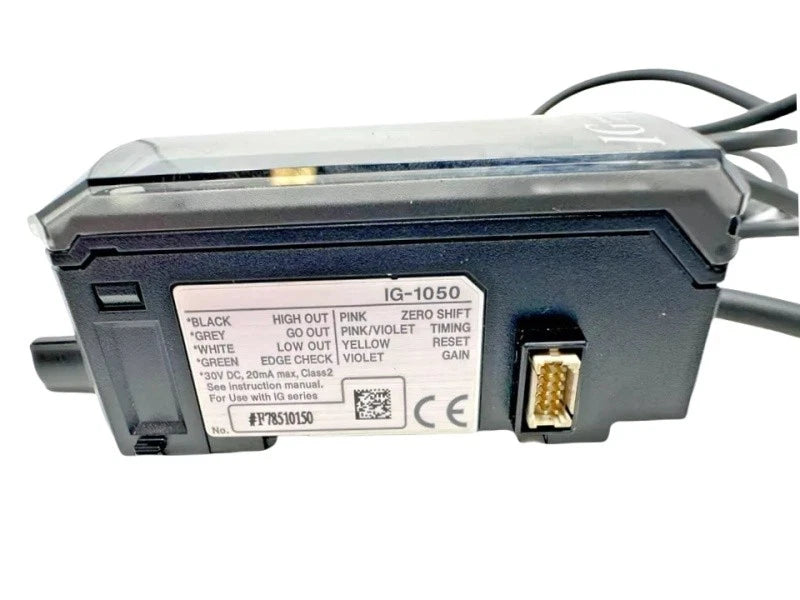

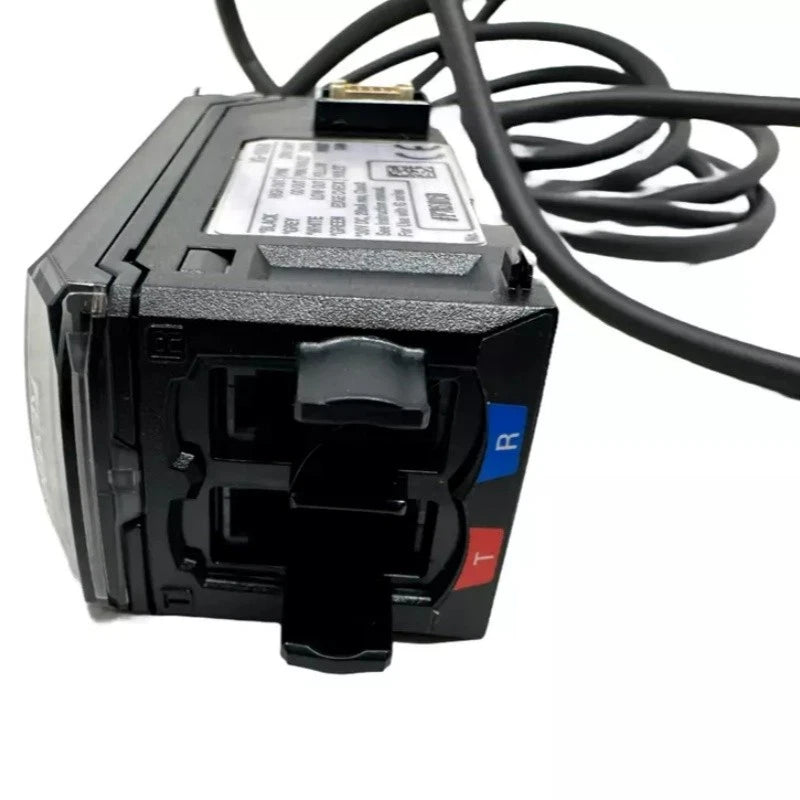

Keyence IG-1050 DIN Rail Laser Micrometer Amplifier Expansion Unit
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IG-1050
Description
The Keyence IG-1050 is a DIN rail-mounted amplifier expansion unit designed for use with the IG series multi-purpose CCD laser micrometer system. It processes measurement signals and provides configurable judgement outputs for dimensional inspection, edge detection, and precision positioning applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | IG-1050 |
| Subcategory | Laser Micrometer Amplifiers |
| Series | IG |
| Unit Type | Expansion amplifier |
| Mounting | DIN rail |
| Display | Dual 5-digit red/green LED |
| Display Resolution | 1, 10, 100, 1000 μm |
| Display Range | ±99 to ±99.999 |
| Judgement Outputs | 3 channels, NPN/PNP |
| Edge-Check Output | 1 channel, NPN/PNP |
| Max. Output Voltage | 30 VDC |
| Max. Output Current | 50 mA/channel; 20 mA with expansion |
| Output Logic | N.O./N.C. selectable |
| Response Time | Judgement: 1.96–4031.72 ms; edge: 20 ms |
| Power Supply | 10–30 VDC |
| Operating Temperature | -10 to +50°C |
| Humidity | 35–85% RH, non-condensing |
| Weight | 140 g |
Information About IG-1050
The IG-1050 belongs to the Keyence IG series and operates as an expansion unit connected to a compatible main amplifier. Its dual five-digit display uses red and green seven-segment indicators to present measurement values with selectable display ranges and resolutions. The unit provides three configurable judgement output channels and one edge-check output, with selectable NPN or PNP open-collector operation. Designed for DIN rail installation, it supports external inputs for gain adjustment, reset, timing, zero shift, bank selection, and laser emission control.
Key Features:
- Expansion Unit: Extends compatible IG series laser micrometer systems.
- DIN Rail Mounting: Designed for installation in industrial control cabinets.
- Dual Digital Display: Red and green five-digit displays for measurement values.
- Selectable Resolution: Supports display increments of 1, 10, 100, or 1000 μm.
- Judgement Outputs: Three configurable NPN/PNP open-collector output channels.
- External Inputs: Supports reset, timing, zero shift, gain, bank selection, and emission stop.
- Industrial Operation: Supports 10–30 VDC power and operation from -10 to +50°C.
The IG-1050 delivers the reliability and precision required for dimensional measurement, edge detection, and automated quality inspection.
